Complete Guide to Blower Motor Wiring Connections and Circuit Layouts

Replace or repair a vehicle’s ventilation fan by first disconnecting the negative battery terminal. Locate the fan unit beneath the dashboard–typically secured with three or four screws–and remove the mounting bolts to access the harness plug. Label each wire before detachment to ensure correct reinstallation: power supply (often red or orange), ground (black or brown), and resistor leads (multi-colored). Verify wire gauge against the circuit’s amp draw–most systems use 14-18 AWG for primary feeds.

Inspect the connector housing for corrosion or bent pins. Clean contacts with electrical cleaner and a fine brush; damaged terminals require replacement. Test continuity between the fuse box feed and the fan’s input terminal with a multimeter–resistance should read near 0 ohms. If readings exceed 2 ohms, trace the circuit back to identify breaks or short circuits in the harness.

Reconnect components starting with the ground cable, followed by the power lead and resistor pack. Ensure the fan’s impeller spins freely without friction before securing the unit. Test at each speed setting–low speeds rely on resistor values (typically 0.5–2 ohms), while high speed bypasses resistors. If speeds fail sequentially, inspect the resistor pack for burnt traces or open circuits. Secure the unit with torque values specified in the service manual (usually 8–12 Nm).

After reassembly, monitor for unusual noises or overheating. A properly functioning system should maintain consistent airflow without sudden drops in voltage. Log voltage readings across the resistor pack during operation–deviations beyond 10% indicate potential failure points in the circuit. Keep replacement parts sized to OEM specifications to prevent wiring overloads.

Understanding Fan Assembly Circuit Layouts

Always disconnect the vehicle’s battery before examining electrical connections to prevent shorts or accidental activation. Locate the ventilation unit controller–typically a small black box near the fan housing–where the main power feed enters. Verify the fuse rating (usually 20-30A) matches the manufacturer’s specifications; replace blown fuses with the identical amperage, never a higher one.

Inspect the resistor pack (often three or four coiled components) mounted adjacent to the fan cage. Each coil corresponds to a different speed setting. Use a multimeter (set to ohms) to test continuity across each resistor–readings should decrease incrementally from low to high speeds (e.g., 3.2Ω, 1.8Ω, 0.6Ω). No continuity or inconsistent values indicate a failed resistor.

Trace the wiring harness from the control module to the fan unit itself. Look for brittle insulation, corrosion at connectors (clean with electrical contact cleaner), or loose terminals. Secure connections with crimp connectors, not solder, which can fail under vibration. Color-coding varies by model, but most systems use red (constant power), black (ground), and several intermediate colors (speed control signals).

Common Failure Points

Check the relay if the fan operates only on high. The relay’s click confirms activation, but lack of power at the output terminal suggests internal failure. Swap with a known-good relay (e.g., A/C relay) of the same rating (typically 30A/12V) to test. If speeds are intermittent, probe the control module’s ground wire–poor grounding causes erratic behavior.

High-speed operation bypasses the resistor pack entirely, routed directly to the switch or module. If only the highest setting functions, focus on the relay and its power feed. Measure voltage at the fan terminal with the switch engaged–expect 12V+ for full speed, dropping to 4-8V for lower settings. Voltage below 3V signals a weak fuse, corroded relay socket, or failing switch.

For variable-speed systems, test the transistor (if equipped) by checking voltage drop between the base and emitter (

How to Pinpoint Fan Assembly Connector Links

Locate the housing’s main power feed–typically a thick, red or orange lead–attached to the high-amperage fuse (20–40A). Follow this cable back to the harness coupler; it will terminate at either a blade-style terminal or a round pin socket. Cross-reference the adjacent pins: a smaller gauge white or yellow wire often carries pulse-width-modulated signals from the climate module, while a black or dark green lead serves as ground. Probe each terminal with a multimeter set to DC volts while cycling fan speeds; zero voltage at any pin indicates an open or disconnected run.

Common Terminal Identification Shortcuts

Check for embossed numbers or color bands on the connector’s plastic shell–manufacturers often imprint “B+”, “GND”, or “SIG” directly beside the socket. If absent, detach the harness and inspect the wire’s insulation: PVC coatings fade where heat stress occurs, revealing original striping codes (e.g., green-purple-stripe = tachometer feedback). For integrated resistor packs, stack successive ground returns–each rearward terminal corresponds to higher airflow settings, simplifying trace mapping without schematics.

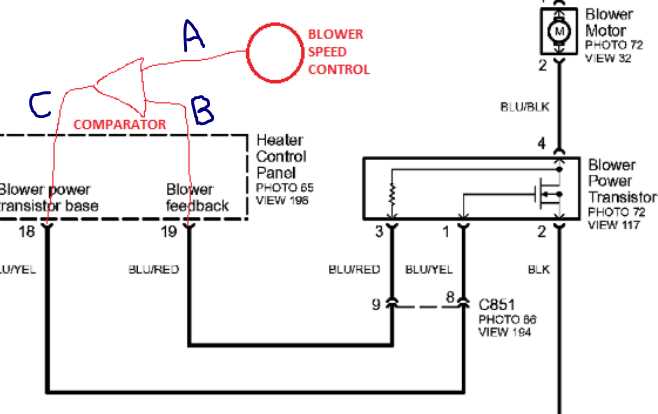

How to Interpret Fan Assembly Circuit Schematics

Locate the power source symbols first–typically a battery icon or labeled terminal (e.g., “B+”). Trace the feed path through fuses and relays, noting any thermal limiters or resistors marked with zigzag lines or “R” designations. Compare color codes on the schematic against physical wires: red often denotes constant voltage, black is ground, while blue or yellow may indicate switched circuits.

• Identify the fan speed controller (often a multi-position switch or electronic module). Each contact should link to distinct resistors, usually depicted as stacked rectangles with resistance values (e.g., 1.2Ω).
• Check for diodes (arrow-shaped symbols) across relay coils or between circuits to prevent voltage spikes. Ensure polarity matches the schematic’s orientation–banded ends align with cathode markings.
• Verify connector pinouts (numbered circles) against the component’s datasheet. Mismatches here cause common failures like intermittent operation or overheating.

Testing Procedures Based on Schematic Layout

Use a multimeter set to continuity mode to confirm connections between splices. Probe each connector pin while cycling the system through all speed settings–readings should match the schematic’s expected resistance or voltage drops. If a segment shows infinite resistance, inspect for broken wires, corroded terminals, or blown fuses. For PWM-controlled units, oscilloscope traces should mirror the duty cycle indicated near the control IC (usually a small square labeled “IC1” or similar).

Standard Fan Speed Control Module Arrangements

Fit a single-stage module with three terminals–power feed, ground, and output–to regulate airflow intensity in a linear sequence. Connect the 12V supply directly to the first terminal, then route the second terminal to chassis ground via a 0.5Ω resistor for low-speed operation. The third terminal delivers current to the impeller assembly through a 1.0Ω resistor, activating medium speed. Verify connections with a multimeter set to continuity mode to confirm resistance values match factory specs within ±5%.

Multi-stage units employ a laddered resistor network, typically arranged in progressive resistance steps of 0.3Ω, 0.6Ω, and 0.9Ω between each tap. Wire the high-volume circuit bypassing all resistors for maximum CFM output, while intermediate settings use partial resistor paths. Check for voltage drops across each tap–S1 (3.8V), S2 (5.2V), S3 (7.1V)–to diagnose failed segments. Replace corroded traces with 18AWG tinned copper wire, ensuring solder joints meet ISO 6722-2 class D standards for vibration resistance.

Dual-Resistor Fail-Safe Configurations

Install dual-path modules in high-dust environments by splitting the current path into primary and redundant resistor ladders. The primary path uses 2W carbon film resistors; the secondary path deploys 5W wirewound units for thermal surge protection. Configure the control switch to toggle between paths at 3A threshold, illuminating a dashboard indicator if primary resistors exceed 180°C. Apply dielectric grease to connector pins rated for 600V breakdown voltage to prevent arcing.

Variable-speed PWM-controlled modules integrate a MOSFET gate with feedback loop to the HVAC ECU. Connect the signal pin (pin 4) to a 0–5V analog input, while the supply pin (pin 8) requires a fused 15A feed. Program the ECU to limit duty cycles to 85% to prevent motor overheating at prolonged high-demand cycles. Use an oscilloscope to monitor pulse width; spikes above 60μs indicate failing flyback diodes requiring replacement with 1N4007 diodes.

Diagnosing Fan Circuit Problems Using a Multimeter

Set the multimeter to 20V DC and probe the supply terminal (typically pin 1 on a 3-pin connector) while the system is powered. A reading below 11.5V indicates excessive resistance upstream, likely from corroded fuse contacts, a failing relay, or undersized gauge conductors. Compare against the vehicle’s service manual–most HVAC systems demand 12.6V–13.8V for full airflow. If voltage is acceptable but the fan spins slowly, switch to ohms mode and test the ground path (pin 3). Resistance above 0.5Ω suggests a poor chassis connection; clean the mounting surface with a stainless-steel brush and reattach with dielectric grease.

Resistor Block and Switch Validation

Component	Expected Resistance (Ω)	Failure Indicators	Action
Speed resistor	0.3–3.2 (varies by step)	Open circuit or erratic readings	Replace if resistance deviates ±10%
Thermal fuse (if present)	0 (zero)	Infinite resistance	Check for overheating; replace fuse
Switch contacts	0 (closed), ∞ (open)	Intermittent connection	Spray with electronic cleaner; actuate 10x

Isolate the resistor block by unplugging its connector. Place one multimeter lead on the input terminal (receiving current from the switch) and the other on successive output terminals while cycling through fan speeds. A high-resistance reading on a single step pinpoints a burnt-out resistor segment–common in late-model trucks where PWM modules hide behind the glovebox. For older vehicles with discrete resistors, probe the plastic-wrapped coil directly; a melted epoxy layer confirms thermal failure.
