Bluetooth Headset Circuit Design Guide with Wiring Schematic Explained

Select a low-noise 2.4 GHz RF module like the NRF52832 or ESP32 with built-in audio processing for minimal interference. Pair it with a 3.7V lithium-ion battery (500mAh minimum) and a TP4056 charging IC to handle power cycles without signal drops. Avoid generic transceivers–they lack integrated audio codecs, forcing external DACs and increasing latency.

Route audio signals through a PCM5102A or UDA1334 for 16-bit output. Connect the amplifier (PAM8403 or MAX98357A) directly to the codec, bypassing unnecessary capacitors that degrade high frequencies. Use 1% tolerance resistors for impedance matching–cheaper components introduce phase shifts that disrupt stereo separation.

Isolate ground planes for digital and analog sections to prevent crosstalk. Place the antenna trace (meandered PCB trace or ceramic chip antenna) at least 15mm from other components to avoid detuning. For microphones, use INMP441 (MEMS) with a 2.2µF coupling capacitor–electret mics lack consistency at low volumes.

Flash the firmware with FreeRTOS or Zephyr to prioritize audio tasks. Disable unused peripherals (BLE advertising, Wi-Fi) to reduce power draw below 25mA idle. Test latency with an oscilloscope–target to prevent lip-sync issues. Skip RC oscillators; use a 32.768kHz crystal for stable clocking.

For enclosure shielding, apply nickel spray or use copper tape on internal surfaces–plastic alone leaks RF noise. Label test points for debugging: VBAT, SCL/SDA, LRCK/BCK. If using a Class-D amp, add LC filters (10µH + 0.1µF) to suppress EMI.

Schematic Overview of Wireless Audio Receiver Assemblies

Begin with a low-power audio codec such as the TI TLV320AIC3254, pairing it directly to an embedded wireless module like the Nordic nRF52832. This combination handles both signal processing and short-range RF communication without additional intermediate components. Use a 1.8V LDO (e.g., Torex XC6220) to supply clean power to the codec’s analog section, isolating it from digital noise with a ferrite bead and decoupling capacitors of 1μF and 0.1μF placed within 5 mm of each IC pin.

Route the module’s antenna trace as a grounded co-planar waveguide on a 4-layer board: top layer carries the RF trace, second layer acts as solid ground plane, third layer provides return paths for digital signals, and bottom layer carries low-speed control lines. Maintain a 50 Ω impedance by adjusting trace width to 0.2 mm on standard 1 oz copper FR-4 with 0.1 mm prepreg dielectric. Include a π-network (1.5 pF shunt–3.3 nH series–1.8 pF shunt) directly after the module’s antenna pin to match impedance across the 2.4–2.48 GHz band.

Microcontroller and Peripheral Integration

Flash the nRF52832 with a pre-certified stack from Nordic’s SDK v17.1, reserving 32 kB RAM for audio buffers and 256 kB flash for firmware, leaving the remaining 256 kB for over-the-air updates. Attach a MEMS microphone (ADMP441) to the codec via I2S at 44.1 kHz/24-bit, using a 1.27 mm pitch board-to-board connector for modular replacement. Lithium polymer cells require a dedicated charge IC (e.g., BQ24075) set to 100 mA trickle and 450 mA fast charge; decouple with a 4.7 μF tantalum capacitor at the battery terminal to suppress voltage transients during RF bursts.

Implement user controls on a single silicone-dome tactile switch matrix: short press toggles pairing mode, double press cycles EQ presets, and long press (>2 s) initiates shutdown. Debounce in firmware with a 16 ms timer interrupt, driving a 74HC164 shift register that multiplexes four 3 mm SMD LEDs for status feedback. Route all switch traces on the third layer to minimize EMI coupling into the audio codec’s analog ground.

Power Distribution and Thermal Considerations

Split power planes into analog (2.8 V), digital (1.8 V), and wireless (3.3 V) domains, tying each star-point at the battery input via a 3 A Schottky diode (e.g., SS14) to prevent backfeed. Place a 10 μF polymer capacitor at each plane boundary to suppress high-frequency noise above 1 MHz. Locate the LDO thermal pad over a 3 cm² copper pour on the second layer, filled with thermal vias (0.3 mm diameter, 0.8 mm pitch) to the bottom layer, achieving

Add a fuel gauge IC (Maxim MAX17048) between the battery and the main processor to monitor coulomb count with ±1% accuracy at 3.7 V nominal. Route the I2C lines in differential pairs twisted on the fourth layer, terminated with 2.2 kΩ pull-ups to the digital rail. Enclose the entire assembly in a nickel-plated zinc die-cast case with a 0.5 mm gap between RF trace and metal, ensuring

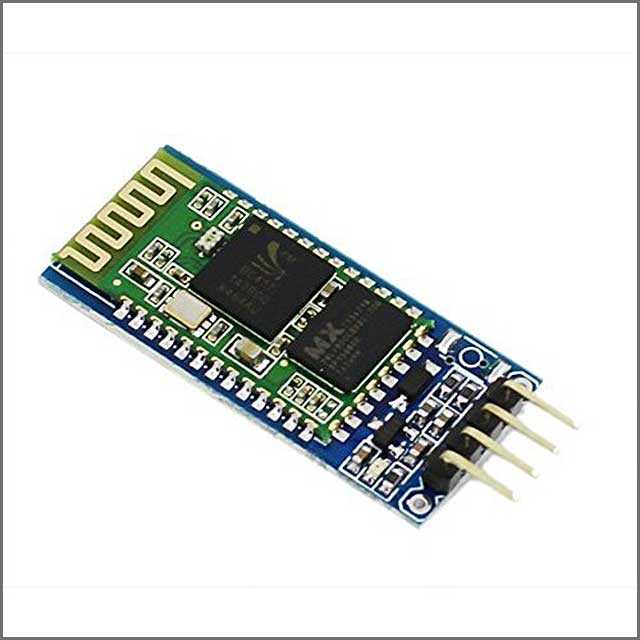

Critical Elements in Wireless Audio Device Board Design

Position the radio module near the edge of the PCB to minimize trace lengths for the antenna. A PCS Printed Inverted-F Antenna (PIFA) or chip antenna requires at least 15 mm of clearance on all sides to maintain -3 dBi gain. Avoid placing ground planes or sensitive components within this zone to prevent signal degradation.

Separate analog and digital grounds with a single-point star connection at the power supply decoupling capacitor. The digital section operates at 1.8–3.3 V with switching frequencies up to 2.4 GHz, while the audio codec uses 24-bit/96 kHz sampling. Mixed-domain interference can introduce audible hiss or clicks if grounds share return paths.

Use 0402 or smaller passives for power filtering to conserve space. Place decoupling capacitors (0.1 µF X5R) within 1 mm of the power pins on the controller and audio ICs. For the battery management system, include a 2.2 µF ceramic capacitor at the charger output to handle 2 A peak currents during transmission bursts.

Route high-speed data lines (USB, I2S, SPI) with impedance-controlled traces (typically 50–60 Ω). Maintain consistent trace widths and avoid sharp corners; use 45° miters or curves. Keep these paths >2 mm away from oscillators and switch-mode regulators to prevent crosstalk-induced jitter in audio streams.

The microphone preamp requires a low-noise LDO () with output noise . Place it on the opposite side of the board from the radio to avoid RF pickup. Use a grounded copper pour beneath the mic input to shield against EMI, but ensure no direct connection to the analog ground to prevent ground loops.

For the battery connector, use two redundant vias per pad to handle 1 A continuous current. Position the thermistor near the battery’s thermal pad, not the connector, to ensure accurate temperature monitoring. The fuel gauge IC should have a dedicated Kelvin connection to the battery’s positive terminal for precise voltage sensing.

Test points for firmware debugging should include SWD (Serial Wire Debug) lines, I2C bus, and the battery voltage divider. Label each test point with silkscreen identifiers and keep them >2 mm apart to prevent accidental shorting during probing. Avoid placing test points under components to simplify rework.

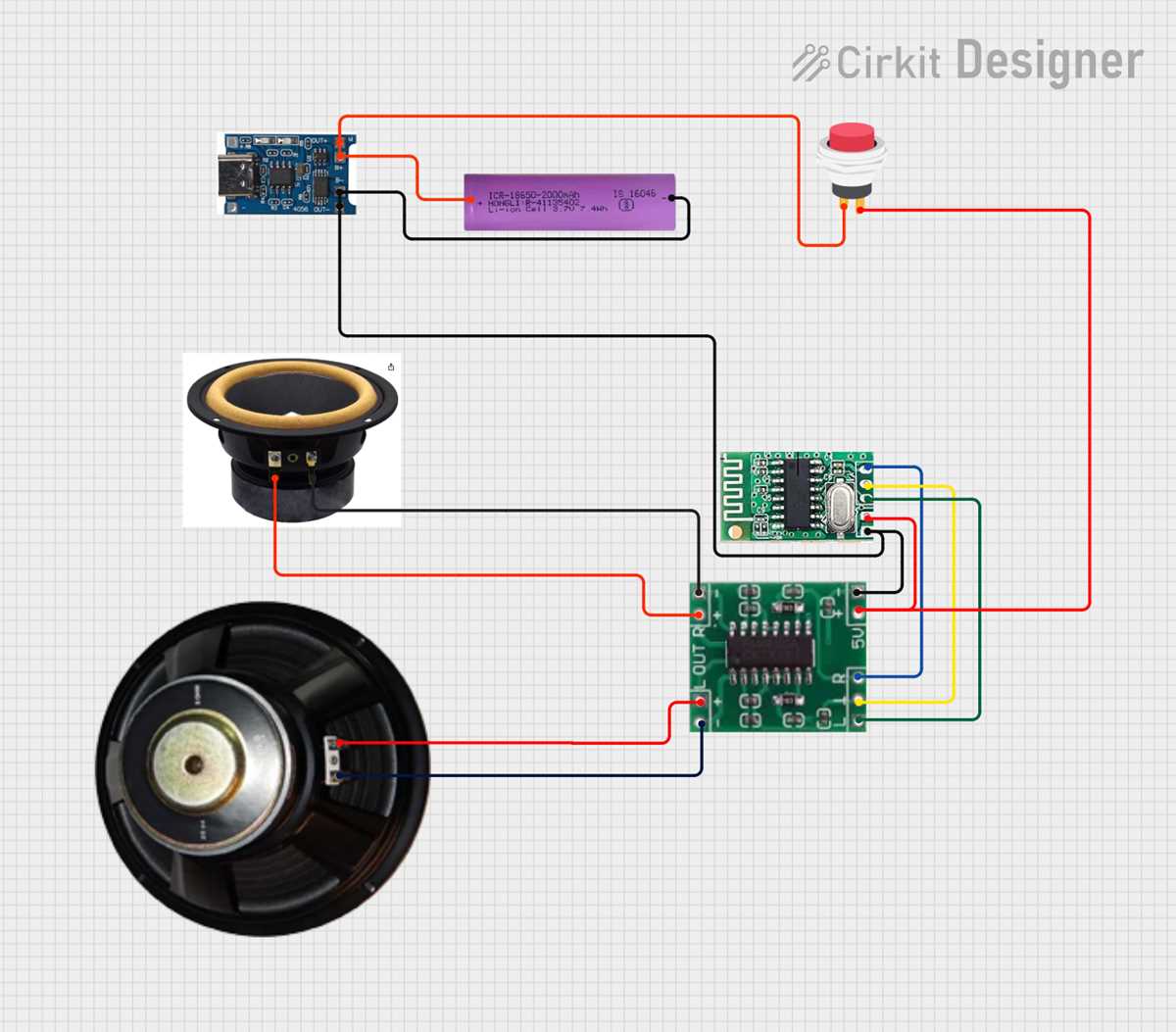

Step-by-Step Wiring for Microphone and Speaker Connections

Identify the four critical wires in your audio device: ground (typically bare copper or black), power (red), microphone signal (white or blue), and speaker feed (green or yellow). Use a multimeter set to continuity mode to verify each wire’s function before soldering–miswiring can damage components or produce distorted sound.

Microphone Integration

Connect the microphone signal wire to the input pad of the amplifier IC, ensuring it aligns with the specified pinout (e.g., pin 3 on a MAX4466 module). The power wire (red) should attach to a stable 3.3V–5V source, while the ground wire bridges to the system’s common ground plane. Add a 10µF electrolytic capacitor in series with the signal line to block DC offset and prevent circuit noise.

Component	Wire Color	Connection Point	Additional Parts
Microphone	White/Blue	Amplifier input	10µF capacitor
Speaker	Green/Yellow	Output driver	None
Ground	Bare/Black	Common ground	None

For speaker output, solder the green/yellow wire to the amplifier’s output terminal (e.g., pin 5 on the MAX4466). If using a differential speaker arrangement, split the signal into two channels–each requiring a 100nF decoupling capacitor to stabilize the waveform. Verify the impedance match (typically 4–8Ω) to avoid overheating the amplifier. Test with a 1kHz sine wave at low volume before final assembly.

Final Checks and Troubleshooting

Probe the solder joints with a multimeter to confirm

Power Supply Design: Battery Management and Voltage Regulation

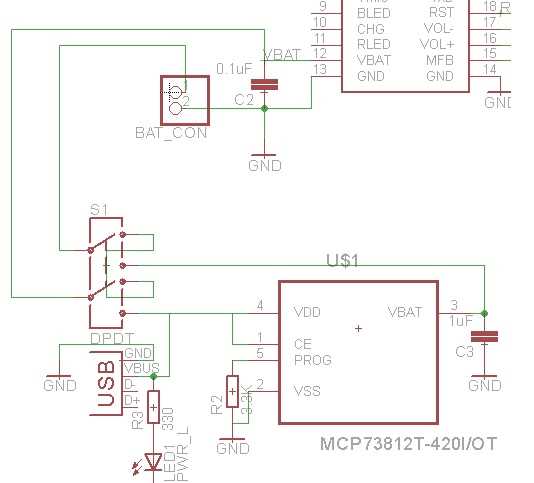

Use a single-cell lithium-ion (Li-ion) or lithium-polymer (LiPo) battery with an integrated protection IC for overcharge, overdischarge, and short-circuit safeguards. A 3.7V nominal cell delivers sufficient energy density for portable audio devices while maintaining a compact form factor. Pair it with a battery charging IC like the MCP73831 (Microchip) or TP4056 (Nanjing Top Power ASIC), configured for 500mA charging current to balance speed and thermal constraints. Ensure the charging IC includes a 4.2V ±1% termination voltage to extend battery lifespan–deviation beyond ±50mV reduces cycle life by up to 30%.

For voltage regulation, deploy a low-dropout (LDO) linear regulator such as the AP2112K-3.3 (Diodes Incorporated) or AMS1117-3.3 for fixed-output applications, or a buck converter like the TPS62743 (Texas Instruments) if efficiency above 90% is critical. The LDO’s quiescent current should not exceed 1µA during standby; the buck converter’s switching frequency must stay outside the 2.4GHz ISM band to avoid RF interference–set it to 1.2MHz instead. Decouple the output with 10µF ceramic caps (X5R/X7R dielectric) placed within 5mm of the regulator; this minimizes voltage spikes during load transients, which can reach ±200mV under rapid current draws.

Add a coulomb counter or fuel gauge IC (MAX17048, BQ27441) to track state-of-charge (SoC) with 1% accuracy and compensate for battery impedance rise over cycles. Route power traces with 2oz copper and keep them shorter than 30mm to limit resistive losses, which can exceed 50mV/A in high-current paths. Include a 3A fuse or PTC resettable fuse (e.g., 0ZCM0100FF2C) in series with the battery terminal to prevent catastrophic failure from reverse polarity or short circuits–these conditions can generate 10A+ currents within microseconds, exceeding the protection IC’s response time.
