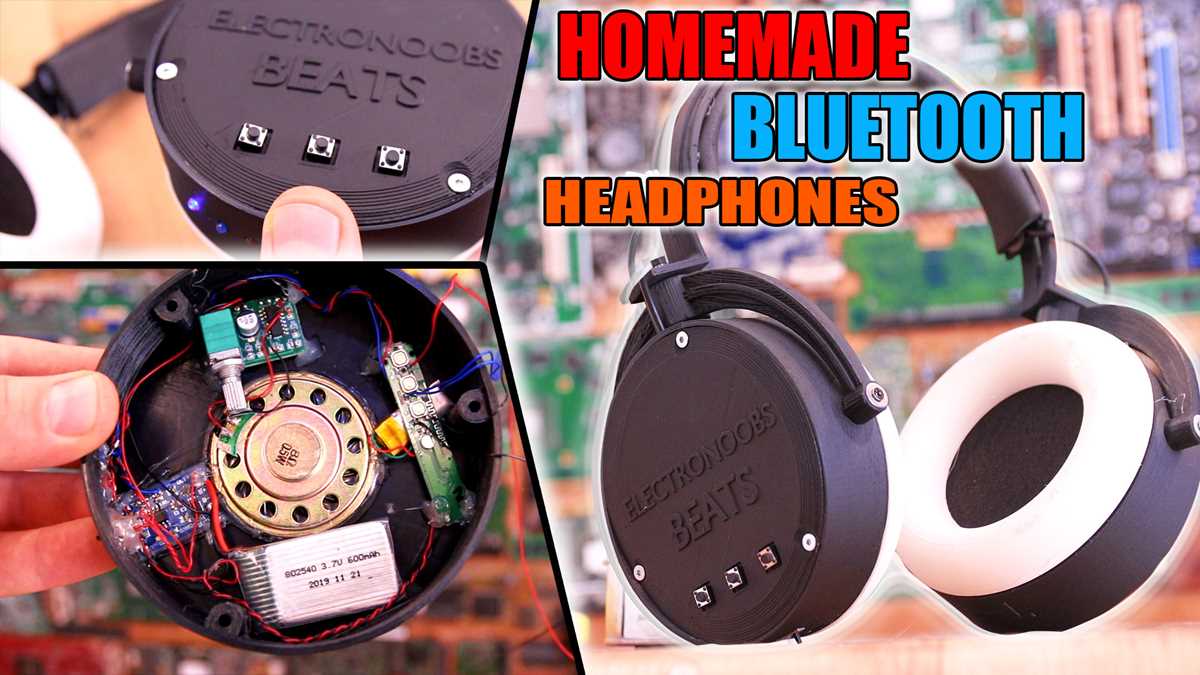

Complete Guide to Bluetooth Headset Circuit Design and Components
Start by identifying the core components: a low-energy RF transceiver module, microcontroller unit (MCU), lithium-ion battery, and audio codec. The CC2541 from Texas Instruments or the nRF52832 from Nordic Semiconductor are reliable transceiver choices, offering built-in protocol stacks and minimal external circuitry. For the MCU, prioritize ultra-low-power variants like the STM32L0 series, which balances processing power with energy efficiency. Avoid generic codecs–opt for the WM8960 or TLV320AIC3254, as they include integrated amplifiers and noise reduction.
Power management demands precise attention. A 3.7V lithium-ion cell requires a charging circuit with a dedicated IC such as the MCP73831 for single-cell balancing. Add a buck-boost converter (e.g., TPS63020) to maintain stable voltage across variable battery levels. Noise filtering is non-negotiable–place 0.1µF decoupling capacitors near each IC’s power pin and a 10µF bulk capacitor at the battery input. Omit these, and signal interference will degrade audio clarity.
Audio routing should follow a differential pair layout to minimize electromagnetic interference. Route the I2S bus from the codec to the MCU with controlled impedance (50Ω ±10%) and keep traces short–longer than 50mm increases latency. Ground planes must be continuous under sensitive components, with vias stitching multiple layers. Use a star grounding topology for the analog and digital grounds, connecting them at a single point near the battery terminal.
For RF optimization, maintain a 20mm keep-out zone around the antenna trace, free of copper pours, vias, or components. The inverted-F antenna (IFA) is the most space-efficient design for compact devices, but ensure its length matches the resonant frequency (typically λ/4 at 2.4GHz). Test antenna impedance with a vector network analyzer–target 50Ω ±5Ω. Mismatches above 10Ω will reduce range by 30% or more.
Firmware must implement deep sleep modes aggressively. Configure the MCU to enter a low-power state (
Thermal management is often overlooked. Place the battery and charging IC away from heat-generating components like the RF power amplifier. If the layout forces proximity, add thermal vias under the IC and a small copper pad to dissipate heat. Failure to manage thermal loads will reduce battery lifespan by 20–40%.
Wireless Audio Gear Circuit Design: Key Components and Layout Tips
Start with a low-power audio codec like the TI PCM51xx series–its integrated DAC and DSP simplify signal processing while reducing PCB footprint. For RF connectivity, the Nordic nRF52840 offers robust wireless performance with minimal external components; pair it with a 2.4 GHz trace antenna or a compact ceramic chip antenna (e.g., Johanson 2450AT18A100) for balanced range and efficiency. Power management demands a buck converter (e.g., TPS62743) set to 3.3V, supplemented by a 100mAh LiPo battery with overcharge protection via the MCP73831 charger IC–this combination ensures stable operation during extended talk time.
| Component | Part Number | Function | Critical Notes |
|---|---|---|---|
| Audio Codec | PCM5102A | Digital-to-analog conversion | I2S interface, 108dB SNR |
| Microcontroller | nRF52840 | RF + peripheral control | Cortex-M4, 256KB RAM |
| Buck Converter | TPS62743 | Voltage regulation | 90% efficiency at 100μA load |
| Battery Charger | MCP73831 | LiPo charging | Configurable 100mA/500mA charge rate |
Ground plane design is non-negotiable–use a solid copper pour beneath the RF section to minimize noise and prevent ground loops. Keep high-speed traces (I2S, SPI) under 20mm to avoid signal degradation; impedance-match the antenna trace to 50Ω with a network analyzer or pre-calibrated calculator tools. For microphone input, the INMP441 MEMS mic delivers 61dB SNR with minimal external components–place it on the opposite side of the board from the speaker output to reduce feedback, and use a ferrite bead (e.g., BLM15HD102SN1) to filter power supply noise.
Thermal management requires attention–limit continuous current through the speaker amplifier (e.g., MAX98357A) to 500mW by derating; add thermal vias under the IC and connect them to an internal ground plane for passive cooling. Debugging interfaces (SWD, UART) should be routed to test points for firmware updates–avoid exposing these on the final design to save space. For ESD protection, place TVS diodes (e.g., PRTR5V0U2X) at all external connectors: USB, audio jack, and charging contacts.
Assembly costs drop significantly with modular placement–group the RF section, power management, and audio pathways into distinct functional blocks. Use 0402 passives where possible to minimize area; prioritize hand-solderable components if prototyping. For FCC/CE compliance, include a 5pF~22pF tunable capacitor in the antenna matching circuit and conduct pre-scans in an anechoic chamber before certification testing. Reduce BOM complexity by selecting multi-function ICs (e.g., the nRF52840’s built-in USB, NFC, and Bluetooth stack) and verify all pull-up resistors (10kΩ typical) are placed close to their respective pins.
Critical Elements in Wireless Audio Device Circuits
Start with the RF transceiver module–opt for components like the nRF52832 or CSR8670, which integrate both the 2.4GHz radio and baseband processor. These ICs reduce external component count by including power management, audio codec, and embedded flash. Verify antenna impedance (typically 50Ω) and match it using a π-network or L-section to prevent signal reflection, which degrades range. Include a balun between the differential RF outputs and single-ended antenna to improve transmission efficiency.
Prioritize low-noise amplifiers (LNA) and power amplifiers (PA) in the signal chain. The LNA (e.g., SKY65366) should precede the antenna to boost weak incoming signals with minimal added noise, targeting a noise figure below 3dB. The PA (like the RF5110) handles output power; for Class 2 devices, ensure it delivers up to 4dBm with efficiency above 40%. Decouple these stages with 100nF capacitors placed within 1mm of the IC pins to suppress high-frequency noise.
Use a dedicated audio processor for voice clarity. Dual-core DSPs (e.g., Qualcomm QCC3031) separate voice from noise using algorithms like CVC or ANC. Connect MEMS microphones (INMP441) differential pairs via shielded cables to the codec, ensuring a SNR above 65dB. For drivers, pair 8Ω speakers with a class-D amplifier (TPA2012) delivering 2W max power; thermal vias under the IC prevent overheating during prolonged play.
Implement power distribution with a buck-boost converter (TPS63020) to maintain stable voltage across battery fluctuations. Add a 200mAh LiPo cell with a protection IC (BQ24075) for charging and overdischarge safeguards. For firmware updates, integrate a 2MB SPI flash (W25Q16) and reserve 512KB for OTA functionality. Route high-speed traces (SWD, I2S) with controlled impedance (90Ω) and minimum via stubs to avoid signal degradation.
Step-by-Step Wiring for Wireless Audio Transceiver Boards
Identify the power input pins on your module–typically labeled VCC or VBAT. Most compact stereo receivers operate at 3.3V or 5V; verify the datasheet to confirm. Connect the positive lead of a stable power source directly to this pin, ensuring current does not exceed 500mA during peak load. Use a 100μF electrolytic capacitor between the power pin and ground to filter voltage spikes, positioning it as close to the module as physically possible.
Locate the left and right audio output channels, marked L-out and R-out. Wire these to a 3.5mm audio jack or directly to an amplifier’s input, observing polarity. Insert a 100nF ceramic capacitor in series with each channel to block DC offset, preventing damage to downstream components. If driving low-impedance loads, add a 1kΩ resistor in parallel to each capacitor to maintain signal integrity without clipping.
Ground connections demand precision–use a star topology. Route all grounds (power, audio, and auxiliary) to a single point near the module’s ground pin. Avoid daisy-chaining grounds, as this introduces noise. For modules with a dedicated analog ground (AGND), separate it from digital ground (DGND) until the final common point to minimize interference between high-speed switching and audio signals.
For microphone input, check the module’s pinout for MIC or MIC_BIAS. A typical electret mic requires 2.5–3V; connect its positive terminal to the module’s bias pin through a 2.2kΩ resistor. Place a 4.7μF electrolytic capacitor between the microphone’s output and the module’s input pin to couple AC signals while blocking DC. If the module lacks a bias pin, derive voltage from VCC using a resistor-divider pair (e.g., 4.7kΩ and 10kΩ) to create a stable 2.7V source.
Enable serial communication by wiring TX and RX pins to a microcontroller if firmware updates or controls are needed. Use a logic-level converter if the module’s UART operates at 3.3V and your controller runs at 5V. Keep UART traces short–under 10cm–and route them away from power lines to prevent cross-talk. Add 10kΩ pull-up resistors on both TX and RX lines if communications are erratic, ensuring a clean idle state.
Integrate a tactile switch for pairing mode activation, connecting one terminal to the module’s PIO pin (programmable I/O) and the other to ground. If the pin lacks internal pull-up, add a 10kΩ resistor between the pin and VCC. Debounce the switch in firmware or hardware using a 0.1μF capacitor across the switch contacts to avoid false triggers during operation.
Test audio output with an oscilloscope before final assembly. Connect the scope’s probes to L-out and ground, then play a 1kHz sine wave through the module. Verify the waveform is clean, with no distortion or DC bias. If clipping occurs, reduce the audio source’s amplitude or increase the load impedance (e.g., swap 32Ω headphones for 150Ω). For persistent noise, shield audio cables with braided copper and ground the shield at the source end only.
Finalize the wiring by securing all connections with solder, avoiding cold joints. Insulate exposed leads using heat-shrink tubing or silicone sleeves. Verify power consumption under load–module current draw should stabilize within 20% of its rated value. If exceeding limits, revisit the power supply or reduce concurrent operations (e.g., disable LED feedback during high-power transmission).
