Boss Snow Plow Solenoid Wiring Guide with Step-by-Step Diagram

Direct power from the battery’s positive terminal to the actuator control module using 4-gauge wire–this ensures minimal voltage drop under load. Route the cable away from sharp edges and moving parts; secure it with adhesive-backed clamps every 12 inches to prevent chafing. The ground connection must terminate at the vehicle’s chassis or engine block, not body panels; sand the attachment point to bare metal for optimal conductivity.

Use a 30-amp circuit breaker between the battery and control module–position it within 7 inches of the battery post to protect the entire circuit. For the trigger switch, a momentary-on pushbutton rated for 15 amps is sufficient; wire it in series with the actuator’s activation coil using 18-gauge stranded copper wire. Verify pin assignments on the actuator connector: terminal A (power), B (ground), C (switch input). Confusing them risks damaging the coil.

When testing, measure voltage at the actuator terminals with a multimeter–expect 12.6V with the engine off, 14.2V while running. If readings drop below 12V during operation, inspect terminals for corrosion (clean with baking soda solution) or loose connections (torque to 8 ft-lbs). Replace any wire showing frayed strands or discoloration, as resistance increases exponentially with even minor damage.

Install a diode across the activation coil if using a vehicle with sensitive electronics–this suppresses voltage spikes that can trigger error codes in the onboard computer. Seal all connections with heat-shrink tubing after soldering; avoid electrical tape for long-term reliability. Keep wire runs as short as possible–every extra foot adds 0.1Ω resistance, reducing actuator response time.

Electrical Hookup Guide for Vehicle-Mounted Blade Actuator Systems

Start by identifying the power relay terminals on the control module–typically marked as 30 (main power), 85 (ground trigger), 86 (positive trigger), and 87 (output to motor). Use a multimeter to verify continuous 12V+ at terminal 30 when the ignition is off; if voltage drops below 11.8V, check the vehicle’s battery health or auxiliary fuse block connections. Ground paths must be direct to the chassis, avoiding painted or coated surfaces–scrape clean if necessary and secure with a star washer to prevent corrosion.

For dual-motor configurations, wire each actuator’s relay independently but share a common 12V source from a dedicated circuit breaker (minimum 30A rating). Connect the positive trigger (terminal 86) to the corresponding switch output, ensuring the switch can handle at least 2A to prevent overheating. If the system includes LED indicators, route a separate 5A fused line directly from the battery to avoid voltage sag affecting other components.

Common Pitfalls and Troubleshooting Steps

• If the motor fails to engage but clicks are audible, inspect terminal 87 for loose or oxidized connections–resistance above 0.5 ohms will cause voltage drop. Replace the relay if internal contacts are pitted.
• For intermittent operation, probe the trigger circuit (terminals 85/86) with the multimeter set to DC voltage. A reading below 10V indicates a faulty switch or broken wire; bypass the switch temporarily to isolate the issue.
• When the actuator stalls under load, verify the motor’s amp draw does not exceed the relay’s rating (typically 40A). Use a clamp meter to measure current flow during operation–anything above 35A suggests mechanical binding or worn gears.

Shield all exposed wiring with split-loom tubing or heat-shrink tubing, especially near moving parts or heat sources like exhaust manifolds. Secure cables every 12 inches using zip ties or conduit clamps to prevent chafing against sharp edges. Route lines away from high-current alternator outputs to avoid induced voltage spikes, which can damage sensitive electronics.

For vehicles with factory tow packages, splice into the existing power feed rather than tapping the main battery terminal to avoid voiding warranties. Use crimp connectors with adhesive-lined heat shrink for all joins–never twist and tape. After installation, cycle the system 10 times with no load, monitoring for overheating at connection points; abnormal warmth indicates poor contact or undersized wiring.

Wiring Color Codes and Connector Pinouts

1. Red (or red/yellow stripe): Main power feed–always fuse within 7 inches of the battery terminal.
2. Black: Primary ground–must handle full current draw; bolt directly to unpainted chassis.
3. Blue (or blue/white stripe): Motor output from relay terminal 87–avoid coiling excess wire to prevent inductance.
4. Green: Control switch input–use a relay-rated switch; standard toggle switches will fail under load.
5. White (with tracer): Optional LED power–fuse at 5A; route separately to prevent interference.

Test all connections with a load tester before final assembly. Apply dielectric grease to terminals to prevent moisture ingress, especially in regions with high humidity or road salt exposure. Label each wire at both ends using heat-shrink labels or permanent marker for future diagnostics.

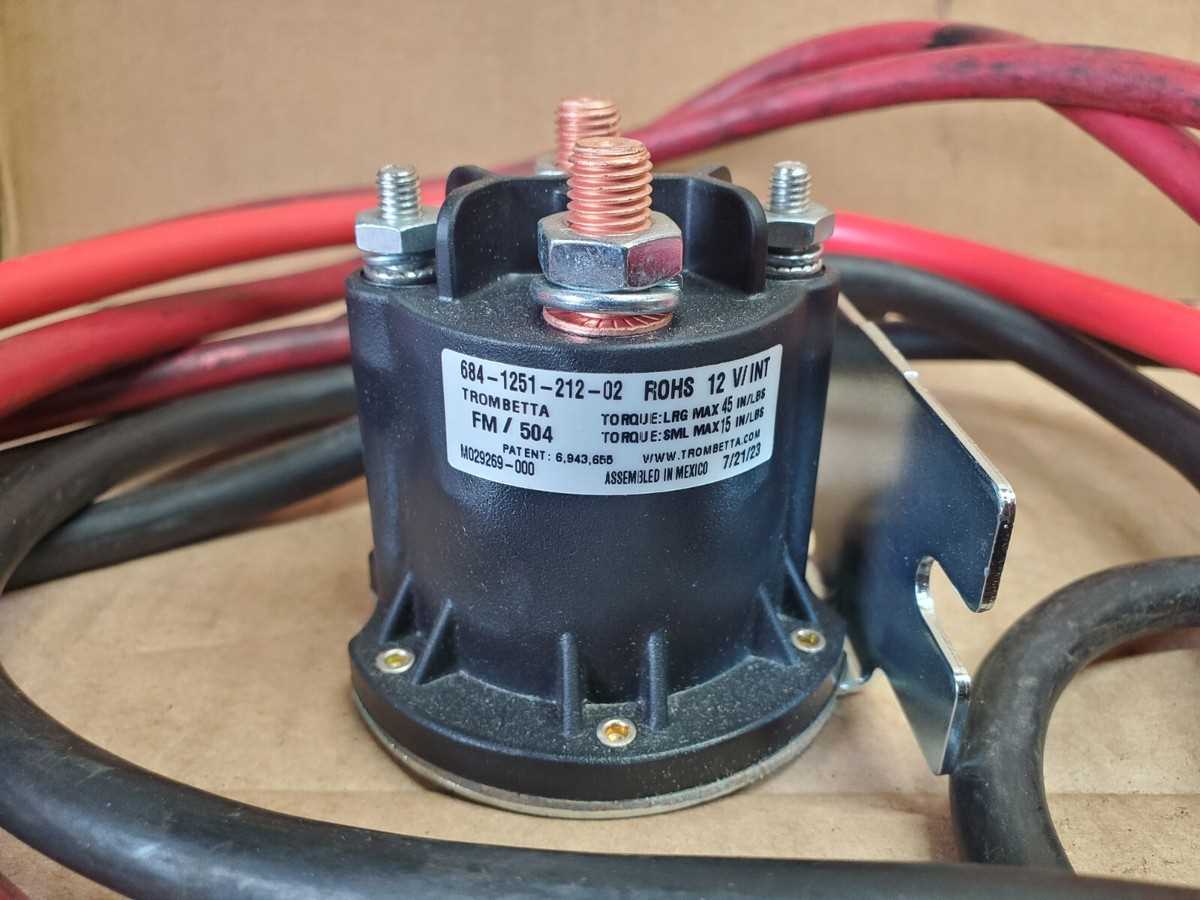

Recognizing Critical Parts in the Electromagnetic Control Assembly

Start by locating the relay coil, typically a wound copper conductor encased in a cylindrical housing with two spade or pin terminals. Measure resistance across these points–readings between 20 and 80 ohms confirm operational integrity. Values outside this range indicate shorted windings or open circuits requiring immediate replacement.

Trace the power input terminals directly connected to the vehicle battery through a dedicated fuse link, usually rated at 30 to 60 amperes. Verify voltage presence with a multimeter while activating the control switch–absence of 12+ volts suggests a blown fuse, corroded connections, or a faulty ignition interlock mechanism.

Contact Plate and Armature Assembly

Inspect the movable armature and stationary contact plate for pitting, discoloration, or arcing signs. Clean surfaces with 400-grit emery cloth if corrosion is minimal; severe erosion mandates component substitution. Ensure spring tension secures proper engagement–weak tension causes intermittent operation or failure to latch.

The diode (commonly a 1N4007 type) across the coil terminals prevents voltage spikes damaging the vehicle ECM or associated switches. Test diode continuity in both directions–forward bias should show near-zero resistance, while reverse bias must display infinite impedance. A failed diode allows damaging back-EMF currents to propagate through the circuit.

Check terminal connectors for oxidation, especially where copper meets tin-plated fasteners. Apply dielectric grease post-maintenance to inhibit future corrosion. Loose or corroded terminals create resistive losses, reducing current delivery and causing slow actuator response or incomplete engagement cycles.

Actuation Switch and Control Module

Confirm the actuation switch sends a clean ground signal to the coil terminal opposite the battery feed. Use a test light or digital multimeter set to voltage mode–illumination or voltage drop verifies proper operation. Partial brightness or unstable readings indicate a failing switch or wiring breakdown under the dashboard harness.

Guide to Connecting Electromagnetic Actuator Circuits for Vehicle Attachments

Locate the vehicle-side power terminals–typically a heavy-duty relay panel beneath the hood–and identify the 12V auxiliary post. Secure a 4-gauge cable (minimum) from this post to the actuator’s primary coil terminal, ensuring the connection withstands transient currents up to 200A. Ground the opposing coil terminal directly to the chassis via an 8-gauge cable, using a self-tapping bolt at a rust-free contact point. Verify polarity with a multimeter before energizing; reversed leads risk fusing contacts in under 3 seconds.

Critical Connection Points and Specifications

Component	Cable Gauge	Terminal Type	Torque (Nm)
Primary power feed	4 AWG	Ring (10mm ID)	7.5–9.0
Ground strap	8 AWG	Spade (4.8mm)	4.0–5.5
Signal trigger	16 AWG	Bullet (3mm)	1.0–1.5

Route all cables through corrugated loom tubing (Ø14mm) to prevent abrasion from road debris. Solder joints at solenoid studs, then seal with adhesive-lined heat shrink to eliminate moisture ingress. If integrating dual actuators, stagger trigger timing by 50ms to avoid current spikes; use a 15A fuse for each control circuit.

Common Troubleshooting Issues with Electromagnetic Switch Circuits on Attachment Systems

Check for corrosion at terminal connections first–especially where copper contacts meet aluminum components. A resistance reading above 0.5 ohms across any point in the activation loop typically indicates poor conductivity. Use dielectric grease on all connectors after cleaning with a stainless-steel wire brush; this prevents oxidation buildup during temperature fluctuations. If voltage drops below 11.5V at the coil during engagement, inspect the power source leads for frayed insulation or improper gauge–minimum 10 AWG wire is required for sustained current draw.

Intermittent Failures and Ground Path Problems

Trace the ground return path back to the battery negative terminal; a weak or corroded connection here mimics coil failure. Test continuity between the mounting bracket and vehicle chassis–any resistance suggests an incomplete circuit. Replace any crimped terminals exhibiting heat discoloration, as this signals overheating from high current flow. For vehicles with relocated batteries, ensure the auxiliary relay runs a dedicated 12V feed directly from the main power distribution block, not through factory fuse taps.
