Complete Wiring Guide for Boston VR500 Subwoofer Schematic Breakdown
Start with identifying the ground (GND) terminal on your amplifier unit. This is typically marked with a black wire or ‘-‘ symbol. Connect this to the corresponding ground port on your enclosure–failure to secure this first can lead to shorts or inconsistent performance. Use 12-gauge or thicker copper wire for all low-frequency signal paths to minimize resistance losses.
Verify impedance compatibility before finalizing connections. Most modern sealed or ported enclosures require 2-4 ohm stable amplification; check your amplifier’s specifications. For dual voice coil models, parallel wiring (both coils tied together at 2 ohms) maximizes power handling, while series wiring (coils linked end-to-end at 8 ohms) suits high-sensitivity setups.
Route signal cables away from power wires to prevent electromagnetic interference. Shielded RCA interconnects or twisted-pair cables reduce noise in low-level circuits. If installing in a vehicle, use a dedicated 30A fuse within 12 inches of the battery terminal to protect against surges. For home audio systems, ensure your AV receiver supports dedicated low-frequency output–most receivers provide a LFE (.1) channel for this.
Label all connectors during assembly. Use heat shrink tubing or crimp terminals for durable joints–soldering alone isn’t sufficient for high-current applications. Test continuity with a multimeter before sealing the enclosure. If the system hums, recheck ground connections; a floating ground is the most common issue in new installations.
For advanced setups, consider adding a bass management controller to fine-tune crossover points. Most aftermarket amplifiers allow for 50-200 Hz adjustable low-pass filters. Set the initial crossover frequency to 80 Hz for seamless integration with main speakers, then adjust based on room acoustics or vehicle cabin response.
Connecting the Acoustic Reference HR-50: Electrical Layout Guide
Begin by identifying the amplifier’s high-level inputs–these accept speaker-level signals from the front or rear channels of an existing audio system without requiring line-out converters. Locate the red (+) and black (-) terminals on both the unit’s binding posts and the corresponding outputs on the head unit, then run 16-gauge oxygen-free copper wire between them. Keep runs under 12 feet to prevent signal degradation; if longer distances are unavoidable, switch to 14-gauge wire to maintain fidelity.
For low-level connections, use an RCA cable with gold-plated connectors to link the dedicated sub-out on the receiver to the LFE input on the enclosure’s built-in plate amp. If the receiver lacks a dedicated output, tap into the left or right channel of a rear RCA pre-out instead, ensuring the crossover on the amp is set to “LFE” or “LPF” mode to filter frequencies above 80Hz. Avoid splitting a single RCA output; if necessary, use a Y-adapter, but expect a slight drop in signal-to-noise ratio.
The plate amplifier’s gain control should initially be set to its lowest position before powering on the system. After connecting, play a 50Hz test tone at moderate volume, then slowly increase the gain until the bass response blends seamlessly with the main speakers without distortion. If clipping occurs, reduce the gain or check the input voltage with a multimeter–ideal readings hover between 0.5V and 1.2V at the RCA inputs.
Bridge the remote turn-on wire from the amplifier’s trigger output to the HR-50’s 12V trigger terminal if the unit lacks automatic power sensing. Use 18-gauge wire for this connection, securing it with a crimp connector or solder joint for reliability. If the receiver has no trigger output, wire the turn-on lead directly to the ignition switch, ensuring the circuit includes a 1-amp fuse within 18 inches of the battery to prevent short circuits.
Ground the enclosure by attaching the amp’s ground wire to the vehicle’s chassis at a bare-metal point, preferably within 3 feet of the unit. Sand the contact area down to the base metal, apply dielectric grease, and fasten the wire with a self-tapping screw or bolt. Poor grounding manifests as alternator whine or intermittent operation; test with a noise filter if issues persist.
Advanced Cable Management Techniques
Route all cables away from power lines and ignition coils to minimize interference. Use split loom tubing for wires passing near the engine bay, and secure them with zip ties every 12 inches. For vehicles with sensitive ECUs, shield RCA cables with foil tape or opt for braided shielding to reduce radio frequency interference. If the HR-50 exhibits popping or crackling, revisit cable paths and ensure no sharp bends or pinches exist.
When integrating with a factory head unit lacking pre-outs, install a line-out converter between the speaker wires and the enclosure’s inputs. Set the converter’s output impedance to match the amp’s input sensitivity (typically 10kΩ). Avoid daisy-chaining converters; each sub-level connection should have a dedicated converter for optimal signal integrity.
For dual-voice-coil configurations, wire both coils in parallel to achieve a 2-ohm final load unless the amplifier specifies otherwise. Use 12-gauge wire for these connections, and verify the amp’s minimum impedance rating–most modern plate amps handle down to 1 ohm, but exceeding this can lead to thermal shutdown or permanent damage.

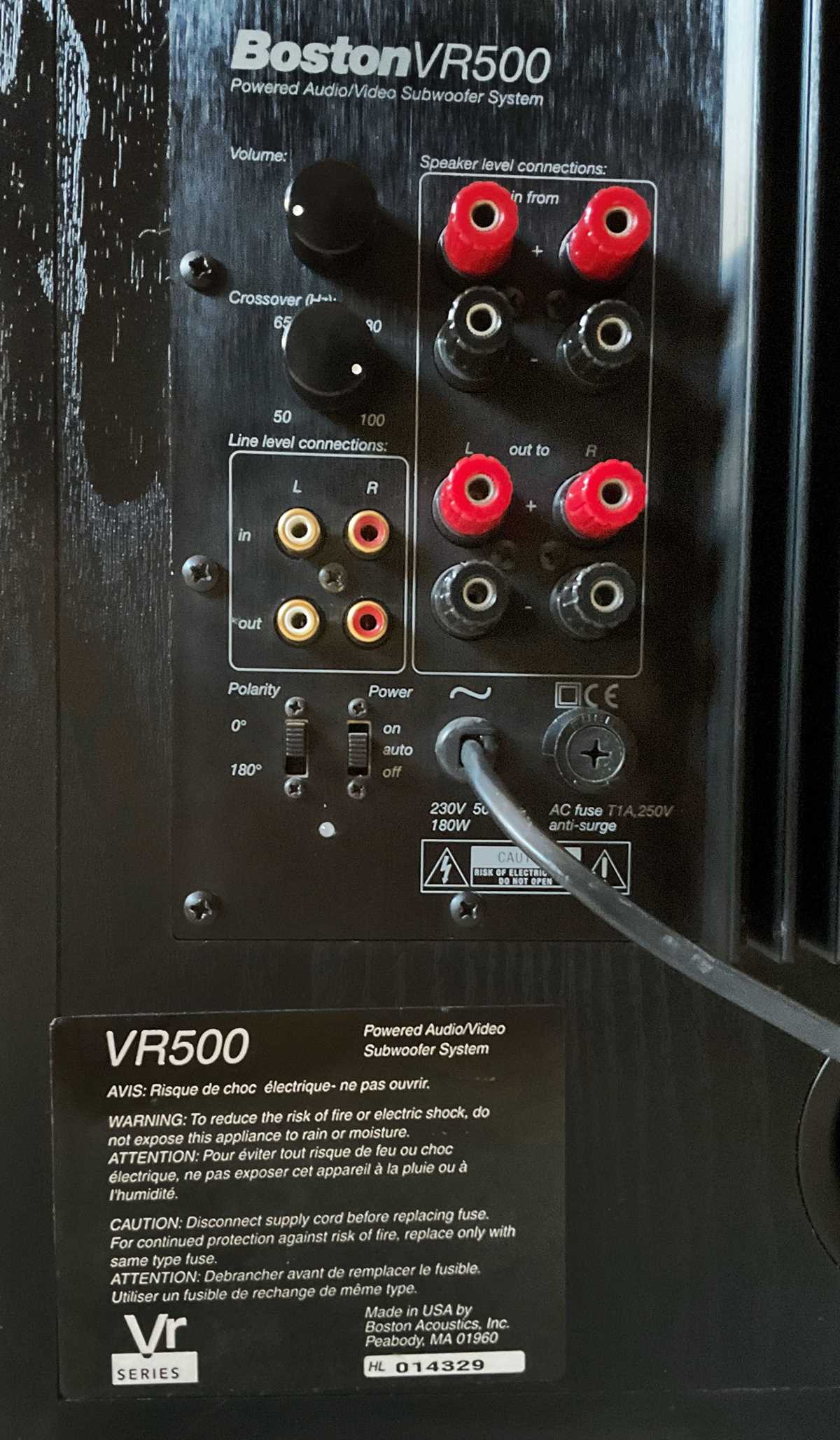

Locating and Understanding Input/Output Points on the Acoustic Power Module
Start by examining the rear panel of the unit–focus on the leftmost section where the signal entry points are clustered. The primary input terminals for line-level connections are marked LFE/RCA and Stereo/RCA. The LFE port accepts a mono low-frequency signal via an RCA cable, optimized for dedicated bass channels. The Stereo input handles left and right channels when using standard stereo sources, merging them internally.
High-level speaker inputs are identified by two pairs of binding posts labeled Speaker Input Left and Speaker Input Right. These accept raw amplified signals directly from a receiver or amplifier’s front, center, or rear channels. Connect the positive (+) and negative (–) leads securely–ensure polarity matches the source amplifier to prevent phase cancellation.
- Power indicator LEDs: A small green light confirms the device is receiving AC power. If absent, verify the power cord connection and outlet functionality.
- Ground terminal: Located adjacent to input posts–attach a bare wire here if hum or interference occurs. Ensure it connects to the amplifier’s ground.
- Auto-on trigger: A 3.5mm jack labeled 12V Trigger enables remote activation when paired with a compatible AV processor outputting a 12V DC signal.
Output connections are minimal but critical. A single pair of Speaker Output binding posts delivers the processed signal to the low-frequency driver. These are impedance-matched–never bridge them or connect additional loads beyond the manufacturer’s specified ohm range (typically 4-8 ohms). For bi-wiring, use both input and output sets simultaneously, though this offers negligible performance gains with most modern designs.
Test all connections sequentially: apply a 50Hz test tone through the LFE input at moderate volume (–10dB). If output is weak or distorted, confirm:
- Cable integrity–swap RCA or speaker wire with known-good alternatives.
- Input selector switch position–ensure it’s set to LFE for sub-channel sources.
- Amplifier gain–adjust the rear-panel Level knob (marked –6dB to +6dB) to match system dynamics.
Failing these checks, inspect the internal fuse (accessible via a rear-panel slot) or consult the service manual for PCB diagnostics.
Connecting the Acoustic Module to a Single-Channel Amplifier: Precise Installation
Locate the amplifier’s dedicated low-frequency output terminals–typically marked “Pre-Out” or “Sub Out” on the rear panel. Use shielded RCA cables with a minimum 75-ohm impedance rating to prevent interference. Run the cable from the amplifier’s output to the input terminals on the acoustic enclosure, ensuring the cable length does not exceed 18 feet (5.5 meters) to avoid signal degradation. If the amplifier lacks a dedicated output, bypass the high-level speaker outputs through a line-level converter, matching the enclosure’s impedance curve (typically 2–8 ohms) to the amplifier’s bridged output capacity.
Critical Terminal Configurations
- Identify polarity: Connect the positive (+) terminal of the amplifier to the corresponding positive input on the enclosure. A mismatch will result in phase cancellation, reducing output clarity.
- Ground loop prevention: Ensure the amplifier and enclosure share a common ground point. Use a high-quality copper ground strap (minimum 10 AWG) attached to the vehicle’s chassis if installing in an automotive environment.
- Fuse protection: Install an inline fuse (25–40 amps) on the power lead within 18 inches (45 cm) of the battery terminal to prevent overloads. Use tinned copper wire (4 AWG recommended) for power delivery.
- Gain calibration: Set the amplifier’s gain control to 50% before powering on. Adjust incrementally while monitoring enclosure response with a pink noise signal or sine wave (50–80 Hz), ensuring no distortion at half the enclosure’s rated RMS power.
Common Mistakes When Connecting RCA and Speaker-Level Inputs
Always verify impedance compatibility before connecting low-level signals. A mismatch between amplifier output impedance (typically 100–600 ohms) and input impedance (often 10–50 kohms) causes signal loss, frequency response degradation, or even damage to components. For example, connecting a 600-ohm source directly to a 10-kohm input without buffering reduces signal strength by ~15%. Use impedance-matching adapters or active line drivers when bridging such gaps.
Never route RCA cables parallel to power wires or near transformers. Induced noise from AC mains can introduce 50/60 Hz hum or higher-frequency interference, measurable as a 20–30 dB increase in noise floor. Maintain at least 30 cm of separation for short runs and use shielded twisted-pair cables for lengths exceeding 5 meters. Test for noise by disconnecting the source and probing the input with an oscilloscope–clean signals should show
Avoid using high-power speaker outputs as low-level inputs without atenuation. Directly feeding 10–50W speaker signals into an RCA or line-level input overloads the preamp stage, clipping at -10 dBV thresholds. Use a resistive voltage divider (e.g., 1kΩ + 10kΩ) to reduce signal amplitude by ~20 dB before connecting. The following table outlines safe input levels for common configurations:
| Input Type | Max Safe Voltage (RMS) | Attenuation Required if Exceeded |
|---|---|---|
| RCA (Consumer Line) | 2.83V (1V = 0 dBV) | 20 dB divider |
| Speaker-Level (8Ω) | 8.94V (1W) to 56.57V (40W) | 26–34 dB divider |
| High-Level (Pro) | 0.775V (0 dBu) | 3–12 dB pad |
Misidentifying ground loops ranks as a frequent error. Symptoms include a persistent buzz at 50/60 Hz or harmonics, audible even with no input signal. Confirm by touching the chassis–if the noise decreases, the issue is ground-related. Solve by isolating the preamp ground from the power ground using a 1:1 audio isolation transformer or a ground-loop isolator with
Reverse polarity on speaker-level connections distorts spatial imaging and reduces bass output by up to 6 dB. Use a multimeter in continuity mode to verify pin-to-pin correlation–positive leads should correspond across all interfaces. For European binding posts, the wider spade terminal is typically positive. Label cables during installation to prevent misalignment during future adjustments.
Overlooking cable capacitance causes high-frequency roll-off, particularly in installations exceeding 10 meters. Standard RCA cables exhibit ~100 pF/m capacitance; at 20 kHz, this introduces a -3 dB point at ~8 meters. For long runs, use low-capacitance cables (f3dB = 1 / (2πRC), where R is the input impedance and C is total cable capacitance.
Never tap speaker-level inputs from bridged amplifier outputs. Bridging combines two amplifier channels into one, doubling voltage swing but halving impedance–typically to 4Ω. Connecting a load
