Troubleshooting Common Errors in Circuit Diagram Design and Repair
Begin by isolating the segment where the fault occurs–most errors stem from misaligned connections or overlooked short lines in the wiring layout. Use a multimeter to verify continuity across critical paths before assuming the schematic itself is flawed. If resistance readings deviate by more than 5% from expected values, re-examine the traced routes for hidden discontinuities or unintended overlaps. High-density boards often conceal mistakes in compact sequences; magnify the area under review to confirm alignment precision down to 0.1mm.
Label each node with unique identifiers (A1, B2, etc.) before cross-referencing with the bill of materials. A single mislabeled junction can invalidate an entire branch, leading to cascading failures during prototyping. For complex systems, split the layout into functional blocks–power, signal, and ground–and validate each independently. Power distribution errors frequently manifest as voltage drops below 90% of the source; recalculate load balancing if deviations appear.
Avoid relying solely on visual inspection for traces thinner than 0.2mm; use a continuity tester to confirm electrical paths. Verify all vias for proper plating–unplated holes create open circuits in multilayer designs. Ground loops introduce noise; ensure separation between analog and digital return paths exceeds 10mm in sensitive applications. For high-frequency signals, match trace lengths within ±2mm to prevent timing errors.
Simulate the layout in a SPICE-based tool before physical testing to catch logical flaws early. Pay attention to thermal relief patterns–improper pad connections cause soldering failures during assembly. If traces overheat under load, widen them by 20-30% or use thicker copper (minimum 2oz for high-current paths). Always document modifications directly on the schematic to maintain traceability during revisions.
Faulty Schematic Debugging: Field-Tested Methods
Isolate the power source first–measure voltage at the input with a multimeter set to DC/AC mode matching the expected range. If readings drop below 80% of nominal (e.g., 4.8V for a 5V rail), trace upstream to check connectors, fuses, or regulator output. Swollen capacitors, cold solder joints, or corroded PCB traces often cause silent failures; inspect visually under 10x magnification or use a thermal camera to spot overheating components. For intermittent faults, gently flex the board while monitoring–cracked traces or hairline fractures flex under stress and reveal themselves through erratic behavior.
Signal Path Validation
Probe critical nodes with an oscilloscope to verify signal integrity. Square waves should have crisp edges with 15% often point to incorrect component values or layout errors. For digital signals, check rise/fall times; slow transitions (>20ns for 5V logic) suggest loading issues or weak drivers. Use a logic analyzer to capture bus activity–missing pulses or stuck bits localize microcontroller firmware bugs or bus contention.

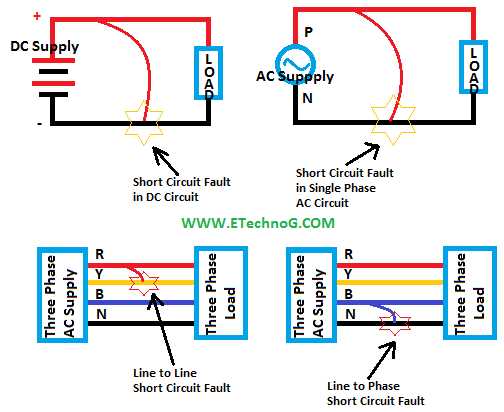

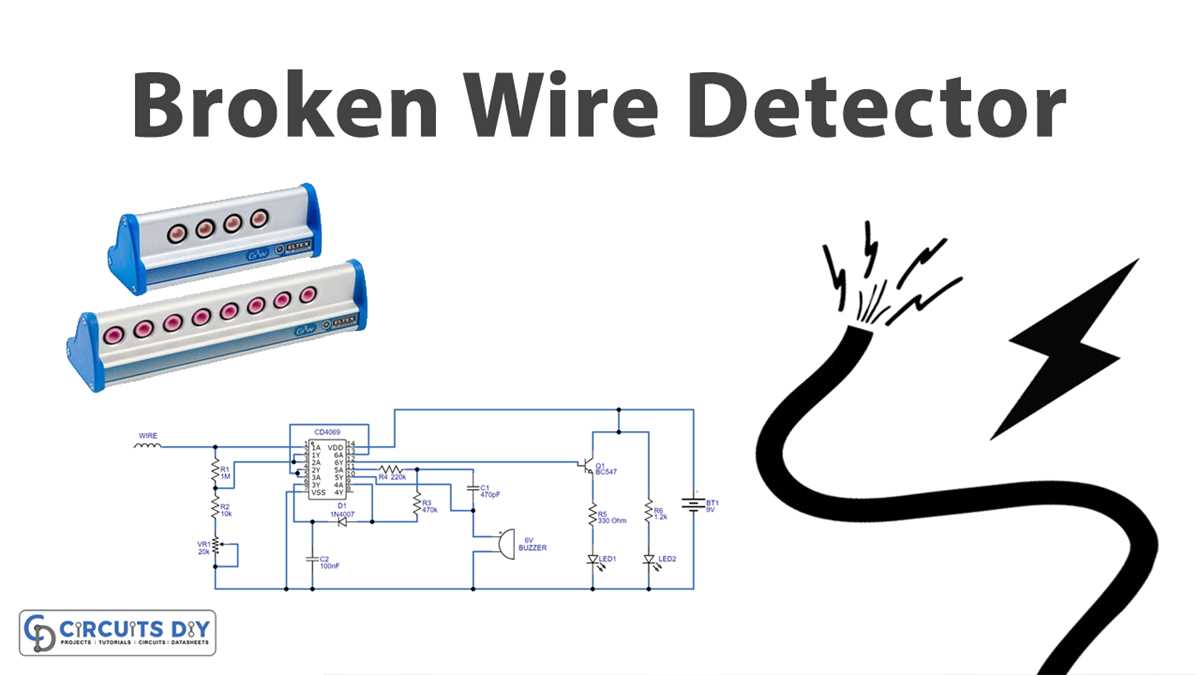

How to Spot Faulty Electrical Pathways
Begin by checking for intermittent power loss in devices. If a lamp flickers or a tool cuts out unpredictably, suspect loose wiring or corroded terminals. Use a multimeter set to continuity mode to test connections–any reading above 0.5 ohms indicates resistance buildup, often caused by oxidation or poor crimping. Pay extra attention to high-vibration areas like motors or connectors near moving parts, where mechanical stress accelerates wear.
Inspect insulation for cracks, discoloration, or brittleness. Heat-damaged plastic sheathing turns brown or black and crumbles easily; this exposes conductors to moisture and short circuits. Replace such segments immediately–even minor breaches can arc under load. For outdoor installations, verify sealants remain intact; UV exposure degrades materials faster, leading to hidden failures.
Look for hotspots during operation. Infrared thermometers reveal abnormally warm junctions, signaling excessive current flow or poor contact. A temperature rise of 10°C above ambient suggests a critical fault; trace the feed backward to isolate the weak link. Prioritize testing splices and junctions, as these are common failure points where copper strands fray or solder joints weaken.
Listen for faint buzzing or hissing near components. These sounds often accompany arcing, especially in switches or relays under load. Turn off power and dismantle the suspect device–carbon tracks on contact surfaces confirm arcing damage. Clean contacts with isopropyl alcohol and a non-conductive abrasive pad, then reassemble with dielectric grease to prevent future oxidation.
Test for voltage drops across connections. Attach multimeter probes to either side of a joint while energized; a drop exceeding 3% of the supply voltage points to resistance in the path. Common culprits include undersized wires, improperly torqued terminals, or corroded lugs. Document measurements–consistent readings over time help track degradation before total failure.
Step-by-Step Methods to Test Electrical Path Continuity
Begin by powering down the entire system and removing all power sources to prevent accidental shorts or measurement errors. Confirm the de-energized state with a non-contact voltage detector before proceeding.
Set your multimeter to the continuity test mode, typically indicated by a sound wave symbol. If your meter lacks this function, switch to the lowest resistance setting (e.g., 200Ω range).
- Attach the black probe to the common (COM) port and the red probe to the VΩ port.
- Touch the probes together; a steady tone or near-zero resistance reading confirms proper meter operation.
- Isolate the segment under test by disconnecting adjacent components or lifting one leg of a resistor if necessary.
Apply the probes at two points along the suspected path. For wired connections, test at terminals or solder joints; for traces on a PCB, use vias or exposed pads as contact points.
Interpret the results:
- Continuous tone or 0–5Ω reading: intact connection.
- Overload (OL) or infinite resistance: open path.
- Fluctuating values: partial break or cold solder joint.
- Capacitive charging (slow resistance drop): indicates parallel components, not a true continuity.
For multi-segment paths, work systematically from one end to the other, marking tested points with tape or a non-conductive marker to avoid retesting. Split the path at junctions to isolate faults.
When testing through switches or relays, verify continuity in both open and closed positions. For connectors, probe each pin individually while gently wiggling the cable to detect intermittent faults.
If dealing with surface-mount components, use fine-point probes or solder temporary wires to access tiny pads. For through-hole parts, alternate between both sides of the board to pinpoint opens in plated holes.
In high-frequency layouts, account for parasitic capacitance by using a low-resistance ohmmeter mode. For power rails, ensure decoupling capacitors are discharged before testing to avoid false readings.
Essential Instruments for Traced Fault Detection in Electrical Layouts
Begin with a high-impedance digital multimeter (DMM) rated for at least 600V CAT III to safely measure voltage drops across conductive elements without false readings from parasitic loads. Prioritize models with true RMS for accurate AC measurements in noisy environments, and ensure the meter includes a continuity mode with an audible alert–preferably below 30Ω threshold–to quickly isolate open paths. Avoid analog meters, as they lack the precision required for low-resistance diagnostics in modern PCB traces or high-gauge wiring.
For sub-surface irregularities in printed assemblies, use a thermal imaging camera with a resolution of 160×120 pixels or higher, sensitive to temperature differentials of 0.05°C. This detects localized heating from partial shorts or increased resistance in hidden vias or solder joints. Pair it with a low-magnification USB microscope (50–200x) to inspect micro-fractures, cold solder joints, or corrosion on termination points–common failure modes in aged or poorly manufactured connections.
When dealing with complex networks, employ a signal tracer or tone generator injects a modulated frequency (typically 1–5 kHz) into the conductive path, allowing an inductive amplifier probe to pick up the signal even through insulation. This method works best on cables, busbars, and multi-layer boards where visual inspection fails. Below is a comparison of key instrument specifications:
| Tool | Critical Specification | Typical Use Case | Limitations |
|---|---|---|---|
| DMM (True RMS) | 0.1% DCV accuracy, CAT III/IV | Measuring voltage drops across relay contacts | Cannot detect intermittent faults |
| Thermal Camera | ≤0.05°C NETD, >30 Hz refresh | Identifying resistive heating in SMD resistors | Requires line-of-sight; ineffective on reflective surfaces |
| Tone Generator + Probe | Output ≥10V p-p at 5 kHz | Tracing wiring harnesses behind panels | Prone to interference near switch-mode power supplies |
For intermittent faults that evade static testing, an oscilloscope with a minimum 100 MHz bandwidth captures transient voltage spikes or dropouts caused by loose connections or failing semiconductors. Use a differential probe with ≥1,000V/μs CMRR to isolate the signal from common-mode noise, particularly in automotive or industrial control systems where grounding loops distort readings. Set the trigger to single-shot mode to capture fleeting events, and save waveforms for later analysis if the fault randomizes.
