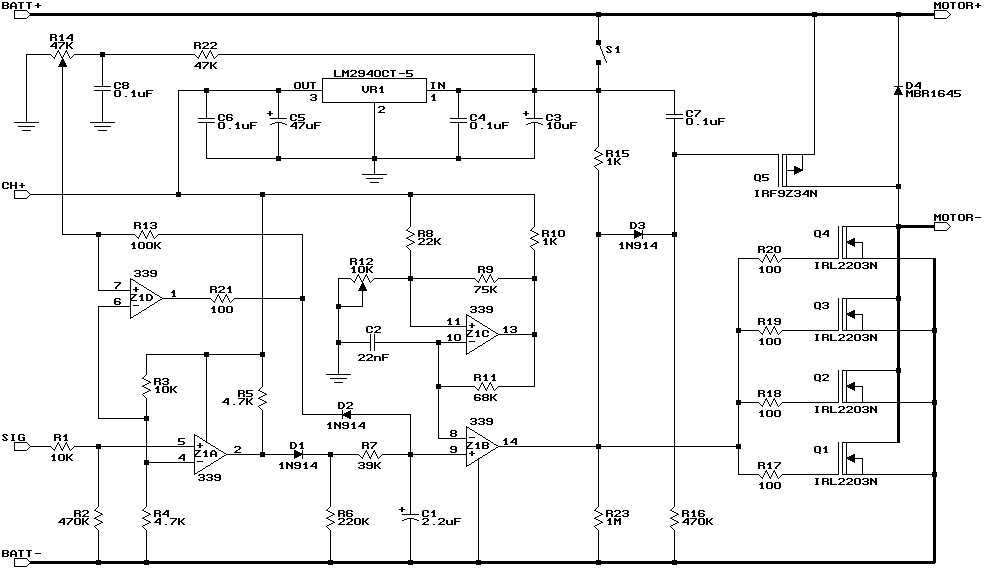

Step-by-Step Brushless ESC Circuit Schematic and Wiring Guide

Start with a three-phase inverter stage powered by N-channel MOSFETs (IRFB3077 or similar) for superior thermal efficiency and switching speed. Place a gate driver (DRV8301 or UCC27211) between the microcontroller and power stage to isolate logic signals from high-current switching transients. Connect each MOSFET’s gate to the driver via a 10Ω resistor to suppress ringing, with a 10kΩ pull-down resistor ensuring the gate defaults to off during power-up.

Use a 16-bit microcontroller (STM32F303 or dsPIC33) to generate three-phase PWM signals at 20-50kHz. Implement dead-time insertion (200-500ns) in firmware to prevent shoot-through currents. Decouple the microcontroller’s power pins with 1µF and 0.1µF ceramic capacitors, placed within 2mm of the device, to stabilize the supply during rapid switching.

Add a current sensing resistor (0.005Ω, 5W) in series with the motor’s negative lead to monitor phase currents. Amplify the signal using an INA240 instrumentation amplifier (gain of 20) before feeding it to the microcontroller’s ADC. Include a 10Hz low-pass RC filter (10kΩ + 1µF) to smooth noise while preserving dynamic response.

For voltage regulation, use a buck converter (LM2596 or TPS54331) to step down the input voltage (12-24V) to 5V for logic circuits. Add a 3.3V LDO (AP2112) to power the microcontroller, ensuring minimal ripple. Place a 100nF capacitor across each regulator’s input and output to suppress high-frequency noise.

Implement overcurrent protection by comparing the amplified shunt voltage to a reference threshold (e.g., 2.5V) using a comparator (LM358). Route the comparator output to the microcontroller’s interrupt pin to trigger an immediate shutdown when excessive current is detected. Use a PTC resettable fuse (2A, Littelfuse 1210L) in series with the power input for secondary protection.

Isolate signal grounds from power grounds using a star grounding topology. Connect all ground returns (MOSFET sources, current shunt, capacitors) to a single point near the power input to minimize ground loops. Keep high-current traces short and wide (minimum 2mm width per amp) to reduce voltage drop and heat buildup.

Test the schematic in stages: verify PWM signals with an oscilloscope (filter bandwidth ≥100MHz) before connecting the MOSFETs. Measure gate-source voltages to confirm proper driver operation–expect ~10V on high-side gates when active. Once confirmed, slowly increase motor load while monitoring phase currents and junction temperatures (target

Schematic for Three-Phase Motor Controller Design

Begin with a drone-grade MOSFET bridge (e.g., IRFB3077 or NTMFS5C628NL) arranged in a six-transistor H-bridge. Ensure each pair handles one phase with dead-time control (200-500ns) to prevent shoot-through. Gate drivers like DRV8301 or Si8271 isolate high-voltage switching from logic signals, critical for stability under 6S LiPo loads.

Integrate a current sensing shunt (0.001Ω, 3W) between the negative bus and ground, paired with a precision amplifier (INA169, gain = 20). This setup delivers real-time phase monitoring, enabling active braking and fault detection. For microcontroller interfacing, use STM32F303 or ATMEGA328 with dedicated PWM channels (16-20kHz) to drive the bridge. Include snubber capacitors (10nF, 1kV) across each FET to suppress EMI.

Essential tweaks: Add a flyback diode (UF4007) across the motor leads to absorb regenerative spikes. Opt for solid polymer capacitors (100µF, 50V) at the power input to handle ripple currents up to 10A. For firmware, prioritize sensorless trapezoidal commutation using back-EMF zero-crossing detection, reducing dependency on Hall sensors. Test with a bench power supply (30V, 20A) before LiPo integration to validate thermal dissipation.

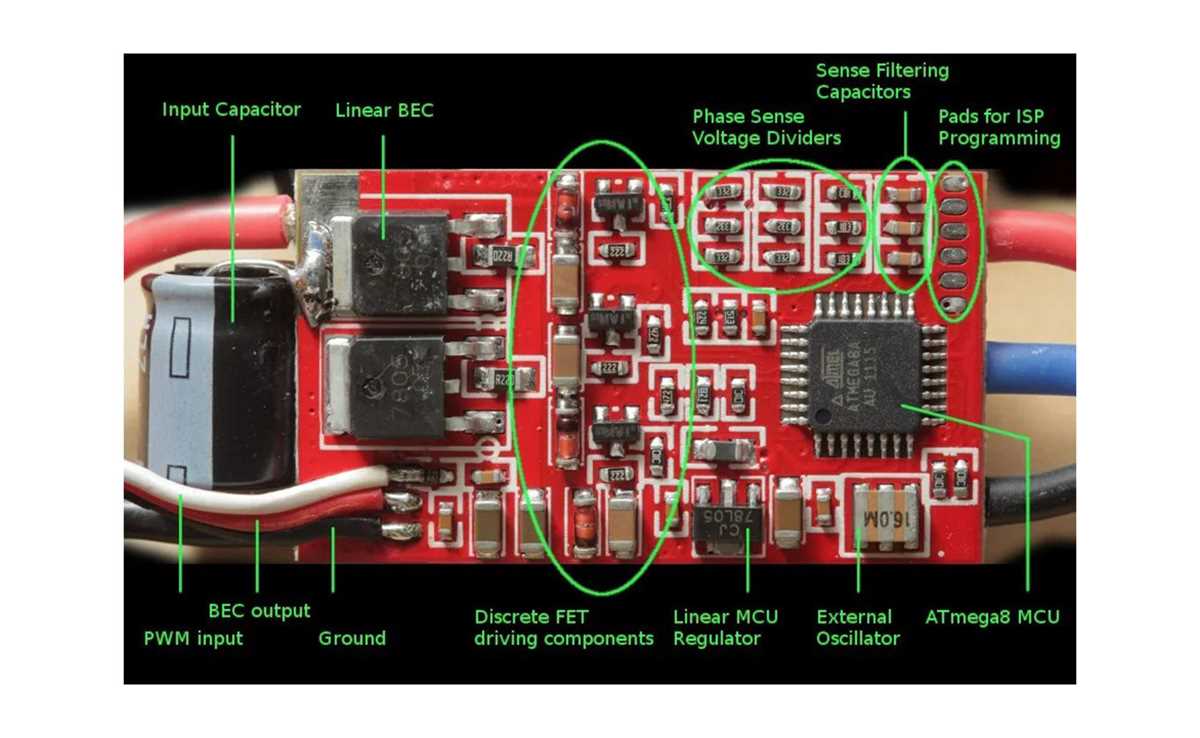

Key Components of a Sensorless Motor Controller Schematic

The microcontroller unit (MCU) forms the core of any high-performance speed regulator, dictating pulse-width modulation (PWM) signals, commutation timing, and fault handling. Opt for 32-bit ARM Cortex-M or STM32 series chips–these offer dedicated hardware timers and DMA controllers, reducing CPU load during rapid switching operations. Ensure clock speeds exceed 72 MHz for smooth 20 kHz PWM generation without jitter, critical for maintaining torque consistency in applications requiring sub-200 ms response times.

• Gate drivers: Isolate control signals from power stages using dedicated ICs like DRV8305 or Si827x series. These provide 2.5 A source/sink current, enabling sub-50 ns rise/fall times for MOSFETs rated at 60 V/200 A. Incorporate desaturation detection to prevent shoot-through–common in fast-switching topologies–by monitoring drain-source voltage during dead time.
• Power MOSFETs: Select N-channel devices with R_DS(on) below 3 mΩ (e.g., IPLU300N04S4-10) and guarantee sufficient thermal dissipation via copper pours (minimum 2 oz/ft²) on both top and bottom PCB layers. For 6S LiPo applications, use 80 V-rated transistors with V_GS(th) between 2–4 V to balance drive strength and noise immunity.
• Current sensing: Implement low-side shunt resistors (1 mΩ, 1% tolerance) with precision op-amps (INA240) for real-time feedback. Avoid high-side sensing in budget designs due to added complexity–low-side methods suffice for most RC and UAV use cases where ground reference stability is prioritized.

Decoupling capacitors are non-negotiable: place 10 µF X7R MLCCs (1206 package) within 2 mm of each MOSFET drain-source pair, supplemented by 1 µF ceramic capacitors for high-frequency noise suppression. Route signal traces perpendicular to power traces to minimize induced voltage spikes–use via stitching (minimum 3 vias per trace) along high-current paths to prevent thermal hotspots. For EMI compliance, add a common-mode choke (e.g., WE-CMB series) between the battery input and regulator output, paired with 10 nF Y-rated capacitors to chassis ground.

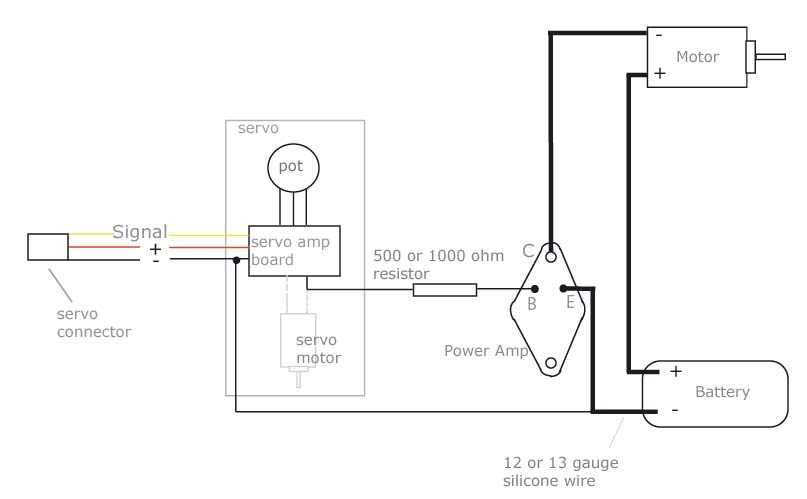

Step-by-Step Wiring for a Basic Electronic Speed Controller Setup

Begin by connecting the power source directly to the input terminals of your regulator. For a standard lithium polymer battery, ensure the voltage matches the motor’s specifications–typically 3S (11.1V) or 4S (14.8V). Use 12–14 AWG silicone wire to prevent voltage drop under load. Solder the positive and negative leads to the regulator’s input pads, confirming polarity with a multimeter before applying power.

Attach the regulator’s output to the controller’s power input. Most modular designs require a 5V or 6V BEC (Battery Eliminator Circuit) output; verify compatibility with your receiver. Use a 220µF low-ESR capacitor across the output terminals to smooth voltage spikes. Avoid exceeding 1A continuous current through the BEC–upgrade to an external UBEC if running higher-current servos.

Signal Line Configuration

Wire the throttle signal line from the receiver’s channel 3 (or designated throttle port) to the controller’s signal input. Use a 28–30 AWG servo wire, shielding it with twisted-pair or foil wrap if operating in high-noise environments. For PWM signals, a 1kΩ resistor in series prevents signal degradation over long cable runs (above 30cm). For digital protocols like DShot or SBUS, omit the resistor and use a direct connection.

Ground all components to a single reference point on the frame. Star-grounding eliminates loop noise–solder the receiver’s ground, controller’s ground, and BEC ground to a common pad. For carbon fiber frames, add a dedicated ground wire to the battery’s negative terminal to prevent conductive interference. Test continuity between all ground points before powering up.

Add a 30A fuse or circuit breaker between the battery and regulator. Place it within 10cm of the battery connector for optimal protection. For high-current setups (above 60A), use an ANL fuse holder with correctly rated 600V fuse links. Never replace fuses with wires or higher-rated alternatives–this risks fire or component failure during power surges.

Final Checks and Power-On Procedure

Calibrate the controller using the receiver’s endpoints. Power on the system, set throttle to maximum, then connect the battery. Listen for beep patterns indicating calibration mode–typically two short beeps followed by a long tone. Reduce throttle to minimum and wait for confirmation beeps. Repeat if the motor doesn’t arm on first attempt.

Verify propeller clearance and direction before mounting. Run the motor at 20% throttle and observe rotation–reverse any two of the three phase wires if incorrect. Use a non-conductive tool to adjust wiring while powered off. For failsafe testing, disconnect the signal wire during operation–the controller should default to neutral throttle within 200ms for safety compliance.

Understanding MOSFETs and Gate Drivers in Precision Motor Control Systems

Select MOSFETs with a gate-to-source threshold voltage (V_GS(th)) between 2V and 4V for low-voltage applications. Models like Infineon’s IPP075N10N3 G or ON Semiconductor’s NTMFS5C604NL offer optimal switching performance at 3.3V logic levels, reducing conduction losses by up to 30% compared to higher-threshold alternatives. Ensure the gate charge (Q_g) does not exceed 20 nC for 20 kHz switching frequencies to minimize driver power dissipation.

Implement isolated gate drivers with built-in Miller clamp functionality for high-side switches. Texas Instruments’ UCC27531 or Infineon’s 1EDN751x series prevent parasitic turn-on during rapid voltage transitions, a critical failure mode in half-bridge topologies. For non-isolated drivers, opt for ultra-low propagation delay variants under 20 ns (e.g., IXYS IX4340) to synchronously switch complementary FETs within 5 ns dead-time windows.

Use a bootstrap capacitor rated for at least 10× the gate driver’s supply current. For 12V systems, a 1 μF, X7R ceramic capacitor (Murata GRM32ER71H105KA01) maintains 95% charge retention during 50 μs high-side on-times. Pair with a bootstrap diode like BAS40-04 (40V, 15 ns reverse recovery) to prevent voltage sag exceeding 0.5V under load. Parallel Schottky diodes if switching frequencies exceed 100 kHz to reduce conduction losses.

Calculate gate resistor values using R_g = (V_driver – V_GS(th)) / I_driver(max). For a 5V driver (3A peak current) and 3V threshold, 1.2 Ω balances rise times (20 ns) with overshoot suppression. Split into dual resistors (one pull-up, one pull-down) to control turn-on/turn-off slopes independently. Ferrite beads (e.g., Murata BLM18PG221SN1) can replace resistors for EMI mitigation in wireless designs.

Thermal management demands FETs with junction-to-case thermal resistance (R_θJC) below 1.5°C/W. DirectFET packages (International Rectifier IRFH7934) enable double-sided cooling, reducing board footprint by 40% versus TO-220 variants. Apply 6 W/m·K thermal interface material (Bergquist Tgard 500) between the MOSFET and heatsink, ensuring a bond-line thickness under 0.1 mm for maximum heat transfer.

Operate drivers at 70–80% of their absolute maximum voltage rating to extend lifespan. For 15V drivers, limit supply to 12V to prevent gate oxide breakdown in 25V-rated FETs (e.g., Vishay SiHP065N60E). Implement undervoltage lockout (UVLO) at 4.5V for 5V logic systems using a precision comparator (TLV3201) to disable switching during brownout conditions.

Fault Protection Strategies

Integrate desaturation detection to shut down FETs within 500 ns of overcurrent events. Use an isolated amplifier (ISO224) to monitor drain-source voltage, triggering the driver’s disable pin when V_DS exceeds 1.2× the nominal on-state resistance. For short-circuit protection, employ a current-sense amplifier (INA180) with a 10 mΩ shunt resistor (Vishay WSR2R0010FEA), achieving 0.1% accuracy at 20A currents. Combine with a latch-based flip-flop (SN74LVC1G74) to maintain fault states until manual reset.
