Step-by-Step Guide to Wiring Security Cameras for Bunker Hill Systems
Use shielded twisted pair (STP) cables for analog feeds–RG-59 coax with a 75-ohm impedance rating ensures minimal signal degradation over distances up to 500 feet. For longer runs, install balun adapters at both ends to convert signals between coax and Cat5e/6 cables, extending coverage to 1,000 feet without repeaters. Avoid daisy-chaining power supplies; instead, deploy a centralized 12V DC power distribution box with individual fused outputs for each device. Mount the transformer within 5 feet of the recording unit to prevent voltage drop.
Position junction points in weatherproof enclosures (NEMA 4X or IP66). Label each conductor with heat-shrink tubing–black (ground), red (power), yellow (video), and white (audio, if applicable)–before stripping 1/4 inch of insulation. For PoE setups, use IEEE 802.3af/at-compliant switches with 30W per port; avoid inexpensive injectors, as they may not support handshake protocols for PTZ units. Test continuity with a multimeter before securing BNC or RCA connectors–ensure the center pin measures +0.7V to +1.0V for proper signal strength.
Route cables through conduit (Sch 40 PVC) underground or EMT above ground to prevent rodent damage. Maintain a 15-inch separation from high-voltage lines (120V+) to eliminate interference. For fiber optic installations, splice connectors with an LC or SC terminator and verify light transmission using an OTDR; expect loss under 0.3 dB per connector. Terminate unused pairs with persistent load resistors (75 ohms) to prevent ghosting on the display.
Prioritize surge suppression on all low-voltage lines–install gas discharge tubes (GDT) rated for 6kA at the main panel. Ground all metallic components to a single-point grounding rod (minimum 8 feet deep, copper-clad steel) using #6 AWG bare wire. For wireless transmitters, align antennas to line-of-sight within 30 degrees of the receiver and keep channels below 2.4GHz to minimize dropout in urban areas. Update firmware on encoders before finalizing connections; corrupted packets often stem from outdated bootloaders.
Connecting Surveillance Equipment: A Practical Schematic Guide

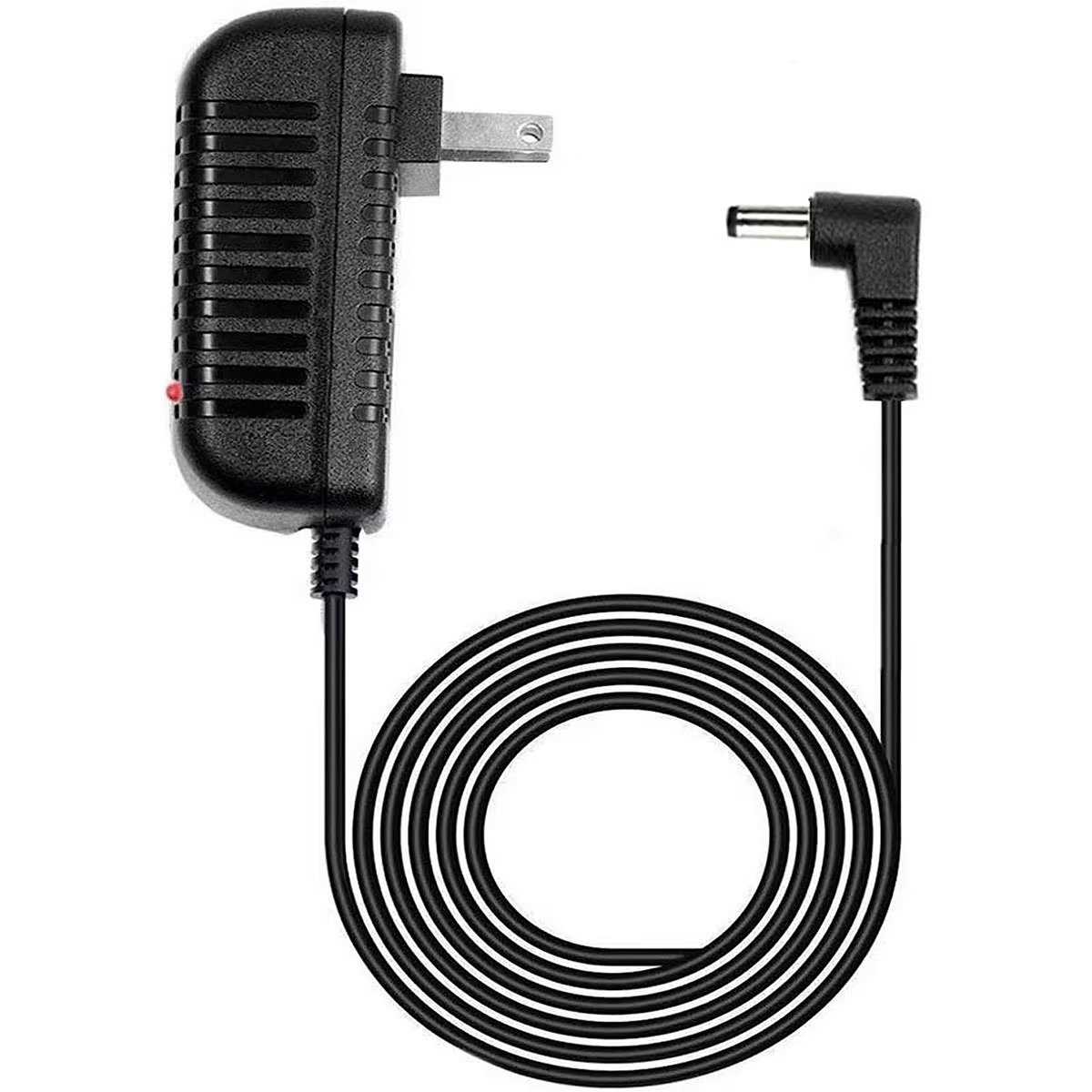

Begin by mapping the power supply route from the DC adapter to each monitoring unit. Use 18-gauge stranded copper wire for direct connections, ensuring minimal voltage drop over distances up to 300 feet. For extended runs, switch to 16-gauge wire–this prevents overheating and signal degradation. Verify the adapter’s output (typically 12V or 24V) matches the device’s input specifications before stripping insulation to avoid short circuits.
Label all cables at both ends–power, video, and RJ45–using heat-shrink tubing for durability. Connect the video feed using RG-59 coaxial cable with BNC connectors; twist the coupling ring until tight to secure the connection. For analog systems, twist the center conductor and shield tightly around the BNC terminal posts, then solder if the connection feels loose under slight tugging. Avoid relying on crimp connectors alone for outdoor installations.
Ground the shielding at a single point near the recorder to eliminate interference. Connect the shield wire to a dedicated grounding rod driven at least 8 feet into the soil, away from utility lines. Use a multimeter to confirm resistance below 5 ohms; higher values require additional rods spaced 6 feet apart. Never daisy-chain grounds–this creates loops that attract electrical noise, distorting footage during storms or nearby equipment operation.
Adapter and Switch Configuration
For PoE-enabled units, use Cat5e or Cat6 cable rated for outdoor use. Terminate both ends with T568B wiring standard, ensuring the orange-white and orange pairs carry power while the green-white and green pairs handle data. Test continuity with a cable tester–flickering lights indicate a faulty connection. If the recorder lacks PoE, introduce a midspan injector between the switch and the unit, adhering to the manufacturer’s power budget (e.g., 15.4W per port for 802.3af).
Position the recorder within 100 meters of the farthest unit to comply with Ethernet distance limitations. Network switches should have a backplane capacity exceeding the total bandwidth of all attached devices–gigabit switches support up to eight 1080p streams at 30fps without lag. Disable unused ports to reduce broadcast traffic and assign static IP addresses to each unit within the same subnet as the recorder, avoiding DHCP conflicts.
Route cables through conduit if exposed to moisture or rodents. Use 3/4-inch rigid PVC for runs under 50 feet and 1-inch for longer distances, pulling lubricant to reduce friction. Seal conduit ends with silicone to prevent water ingress. For above-ground runs, employ UV-resistant cable ties spaced every 18 inches, avoiding sharp edges that could compromise insulation over time.
When splicing cables, use waterproof butt connectors filled with dielectric grease. Match wire colors precisely–reversing polarity during a power connection can damage the unit’s circuitry. For PoE connections, confirm polarity with a non-contact voltage detector before powering on; incorrect wiring risks frying the unit’s internal components. Document each connection in a schematic, noting wire gauge, connector types, and grounding points for future troubleshooting.
Test each connection systematically. Power on the recorder first, then individual units. Verify footage displays in real-time without artifacts or latency. If interference appears, relocate power cables away from video lines–cross them at 90-degree angles if unavoidable. Ensure all BNC connectors are seated fully; a half-inserted plug causes intermittent signal loss visible as rolling horizontal lines on the display.
Step-by-Step Guide to Connecting Power Supply Leads
Identify the voltage rating on the device’s label–most low-voltage systems require 12V DC or 24V AC. Match the input specification exactly: mismatched current risks permanent damage. Strip 6–8mm of insulation from the power wires using a precision stripper, avoiding nicked conductors. Twist stranded cores clockwise to prevent fraying before inserting them into the screw terminal or connector block.
Secure Connections and Verify
Insert each prepared lead into its designated slot–red for positive, black for negative. Tighten terminal screws with a torque screwdriver (0.5Nm–0.7Nm for 1.5mm² wires) to prevent loosening under vibration. Power on and measure output with a multimeter: 12.0V–12.5V indicates proper regulation. Fluctuations beyond ±0.2V signal a faulty adapter or inadequate gauge–replace or upsize wire to AWG 18 minimum.
Identifying and Matching Video Cable Connectors for DVR Integration
Prioritize BNC connectors for analog recording device setups–these provide 75-ohm impedance matching, critical for signal clarity. Confirm compatibility by checking the DVR’s input panel: most surveillance recorders accept BNC, though higher-tier models may include HDMI or VGA ports for hybrid configurations. A multimeter helps verify continuity if connectors appear worn; resistance above 1 ohm indicates corrosion or faulty crimping.
- BNC: Use RG59 coaxial cable for distances under 300 feet; beyond this, switch to RG6 for reduced attenuation.
- RCA: Avoid for high-resolution feeds–these introduce noise at resolutions above 720p. Suitable only for legacy systems.
- HDMI: Ensure the DVR supports version 2.0 or later for 4K feeds; bandwidth drops to 10.2 Gbps for 1.4, causing lag in multi-device networks.
- S-video: Limited to 576i resolution; obsolete for modern recording hardware.
For PoE devices, confirm the recorder’s power budget–802.3af delivers 15.4W per port, while 802.3at (PoE+) supports 30W. Exceeding this risks port failure or reduced performance. Use a PoE switch with a built-in surge protector when integrating outdoor units; voltage spikes from lightning strikes reach 6,000V, enough to fry unprotected circuits.
Test connectors under load before final installation. Connect a monitor directly to the DVR’s output port and cycle through each input channel–black screens or artifacting suggest damaged cables or mismatched impedance. For multi-camera setups, label each cable at both ends with heat-shrink tubing and UV-resistant marker; replacements become far simpler during troubleshooting.
- Strip coaxial cables to 1/4 inch copper exposure–excessive wire invites shorts; insufficient causes signal loss.
- Tighten BNC connectors by hand, then secure with a torque wrench set to 8 in-lbs; overtightening strips threads.
- For HDMI, avoid sharp bends–keep a minimum 1-inch radius to prevent channel desync.
- Solder joints only if absolutely necessary; cold-solder connections introduce 3-5dB signal degradation.
Resolving Installation Faults in Surveillance Setups
Check voltage consistency at each power junction first. Use a multimeter to verify 12V DC output levels – deviations exceeding ±0.5V indicate faulty adapters, corroded connectors, or undersized wire gauges. Replace any 18AWG cables longer than 50 feet with 16AWG to prevent voltage drop. Inspect RJ45 terminations: twisted pairs must maintain precise color-coding (T568B standard) with no exposed copper beyond 0.5mm per Ethernet spec 802.3. Misaligned pins cause intermittent signal loss; re-crimp defective ends.
| Fault | Diagnosis | Correction |
|---|---|---|
| No video feed | Power LED inactive / PoE injector output | Test injector with known-good unit; swap Ethernet cable |
| Intermittent dropout | Multimeter shows 60Hz AC ripple >200mV | Install ferrite choke on DC input; replace power supply |
| Color distortion | Coaxial shield impedance mismatch (75Ω required) | Verify BNC connectors; use RG59 cable for runs |
| Network lag | Packet loss >3% on ping tests | Segment network with VLAN; update switch firmware |
