Step-by-Step Guide to Building a Simple Buzzer Alarm Circuit

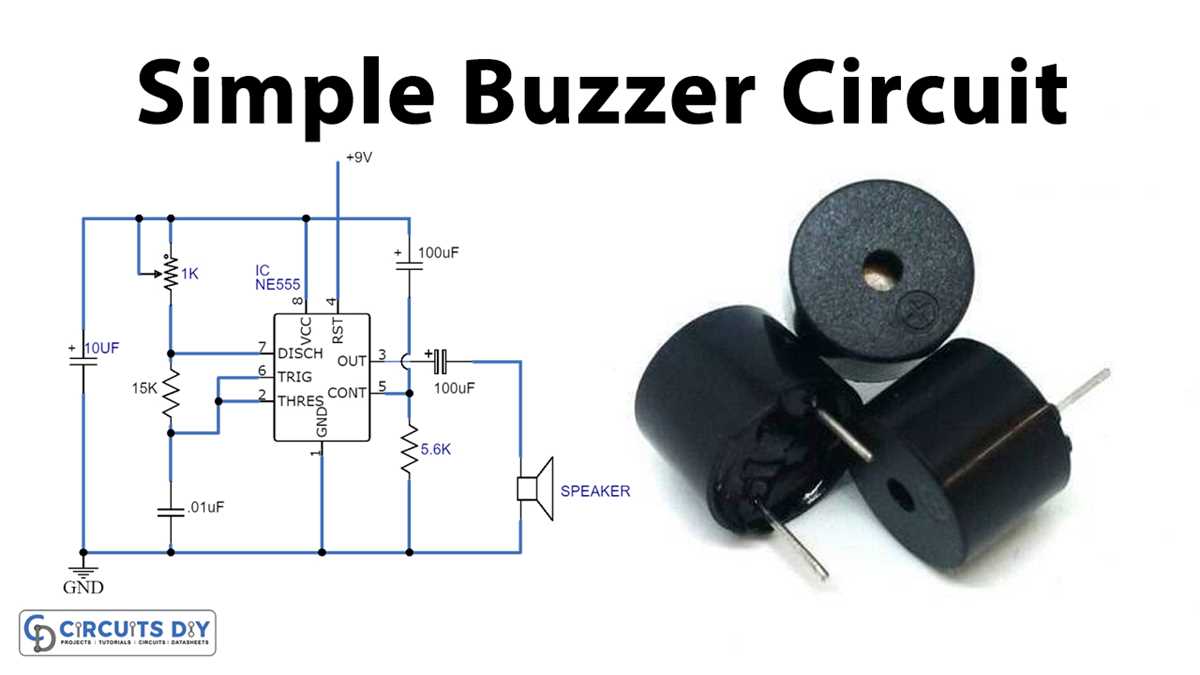

buzzer alarm circuit diagram

For immediate deployment, prioritize a low-voltage piezoelectric element paired with a transistor-based switch. Use a 2N3904 or BC547 NPN transistor as the control hub–these handle currents up to 200mA without distortion. Connect the base via a 1kΩ resistor to a microcontroller GPIO pin or mechanical trigger, ensuring the emitter grounds directly to the power source’s negative terminal. The collector should link to the negative lead of the sound emitter, while the positive lead ties to a 3–12V DC supply, depending on desired volume.

Power stability dictates performance. Insert a 100μF electrolytic capacitor across the supply rails to suppress voltage spikes that introduce erratic tones. For intermittent alerts, add a 555 timer IC configured in astable mode–set R1=10kΩ, R2=100kΩ, and C=1μF for a 2Hz pulse rate. This eliminates reliance on external triggers while maintaining consistent auditory feedback.

Space constraints demand compact layouts. Use a perfboard or etched PCB with copper fills for ground planes to minimize electromagnetic interference. Position the transistor within 2cm of the emitter to prevent signal degradation. If integrating with inductive loads–such as relays–add a flyback diode (1N4007) across the coil to protect the transistor from reverse-voltage spikes.

For variable tone control, replace fixed resistors with a potentiometer (50kΩ) in series with the base resistor. This allows fine-tuning of frequency from 500Hz to 5kHz–critical for environments where specific pitches cut through ambient noise. Test with a multimeter in continuity mode: probe the emitter’s leads while energizing the circuit–audible clicks confirm functional output.

Fault isolation requires systematic checks. If silent, verify the transistor’s collector voltage matches the supply line; a drop below 0.7V suggests a shorted base-emitter junction. If the unit emits weak or distorted output, inspect solder joints under magnification–the most common failure point. Replace electrolytic capacitors if leakage current exceeds 0.5mA, as degraded dielectrics introduce hum.

Designing a Reliable Sounding Alert System

Begin with a 5V piezoelectric emitter for consistent acoustic output while minimizing power draw. Connect it directly to a microcontroller’s GPIO pin, using a 2N2222 transistor as a switch for currents exceeding 20mA. Ensure the transistor’s base resistor is between 470Ω–1kΩ to prevent saturation while maintaining switching speed. For battery-operated setups, add a 100nF ceramic capacitor across the emitter’s terminals to suppress voltage spikes.

Select component values based on desired auditory frequency. Piezo elements typically resonate at 2–5kHz; choose a 1kΩ resistor in series with a 10μF electrolytic capacitor to create a low-pass filter shaping the tone. Below is a reference for common frequency responses:

Resistor (Ω) Capacitor (μF) Frequency (kHz)
470 10 3.2
1k 10 2.1
2.2k 10 1.0
470 22 1.5

For intermittent signaling, program the microcontroller to toggle the output pin at 2Hz with a 50% duty cycle. This prevents desensitization in noisy environments while preserving battery life. Avoid continuous tones above 70dB, which can exceed occupational noise limits.

Optimizing Power Delivery

Use a Schottky diode like 1N5817 to protect the emitter from reverse voltage when powered through inductive loads. When driving multiple emitters, connect them in parallel with individual 10Ω current-limiting resistors to equalize output. For mobile applications, a 3V coin cell can directly power a single emitter, but expect reduced volume; a boost converter to 5V extends runtime by 40%.

Test elektromagnetic interference by placing a spectrum analyzer 30cm from the emitter. Harmonics above 10kHz should remain below -40dBm to comply with FCC Part 15 regulations. If interference occurs, add ferrite beads on both power and signal lines, selecting beads with an impedance of ≥60Ω at the operating frequency.

Key Elements for a Simple Audible Alert System

Select a piezoelectric transducer with a resonant frequency between 2 and 4 kHz for optimal human hearing sensitivity. Models like the KPEG-1610T-4.5A offer a clear 85 dB SPL at 10 cm distance with a 5V DC supply, reducing the need for additional amplification stages in most applications.

Use an NPN transistor such as the 2N3904 as a switching element when driving the transducer directly from a microcontroller. Ensure the base resistor is sized between 470Ω and 1kΩ to prevent excessive current draw while maintaining reliable saturation. For higher power levels, consider a Darlington pair like the TIP122.

Pick a power supply voltage that matches the transducer’s rated specifications–typically 3V, 5V, or 12V. Low-dropout regulators like the LM2937-5.0 provide stable 5V output from a 6–12V input, critical for consistent sound pressure levels across battery voltage fluctuations. Always include a 100nF decoupling capacitor near the supply pins.

Switching and Control Mechanics

Implement a momentary push-button or a mechanical limit switch as the activation trigger. Debounce the input using a 10kΩ pull-up resistor and a 100nF capacitor to ground to avoid false triggers during signal transitions. Alternatively, a Schmitt-trigger inverter like the 74HC14 can clean noisy input signals.

For microcontroller integration, assign an output pin to toggle the alert. Most 8-bit controllers can drive the switching transistor directly, but isolate inductive loads with a flyback diode such as the 1N4007. For stand-alone designs, a 555 timer in astable mode at 2–3 kHz generates a reliable tone without firmware overhead.

Enclosure and Environmental Considerations

Mount the transducer on a rigid surface using a rubber gasket to maximize sound pressure output. Avoid enclosed cavities that can muffle frequencies above 3 kHz. If outdoor deployment is necessary, apply a conformal coating to exposed components like the ULQ2003 transistor array to prevent corrosion from humidity.

Test the alert’s audibility under ambient noise conditions typical for its intended environment. Adjust the voltage or switch to a 12V-rated transducer like the CPE-221 if background sound exceeds 70 dB. For silent-on-demand applications, pair the audible element with an LED indicator to provide redundant feedback.

Always verify component tolerances under worst-case scenarios–battery drain, temperature extremes, or mechanical vibration. A 2.2kΩ resistor in series with the base of the switching transistor ensures consistent operation even if the supply drops to 70% of nominal voltage.

Assembling a Sound Signal Device: Wiring Guide for a Passive Acoustic Element

Select a 5V microcontroller–Arduino Uno, ESP8266, or ATtiny85 work reliably. Connect the ground pin of the acoustic element directly to the microcontroller’s GND. For power, use a PWM-capable digital output–pins 3, 5, 6, 9, 10, or 11 on Arduino Uno–to modulate frequency without additional components. Avoid supplying raw DC; the device requires alternating signals to produce sound.

  • Identify the positive terminal on the acoustic element–marked or longer lead–but verify with a multimeter in continuity mode if unclear. Reverse polarity won’t damage it but will silence output.
  • Insert a 100Ω resistor in series between the microcontroller pin and the acoustic element’s positive lead. This limits current draw, preventing overheating or distorted audio.
  • Skip capacitors; passive variants function without them, unlike active ones needing DC offset suppression.
  • If using breadboard wiring, ensure all connections are short–longer runs introduce resistance, muffling tones or dropping volume.

For testing, upload a basic sketch toggling the output pin at audible ranges. Start with 1kHz (code snippet below)–most devices respond clearly here. Frequencies below 100Hz may produce faint clicks instead of steady tones, while above 10kHz risks becoming inaudible to human hearing.

  1. Open your IDE and paste this minimal example:
void setup() {
pinMode(9, OUTPUT);
}
void loop() {
tone(9, 1000); // 1kHz signal
}
  1. Verify voltage at the acoustic element’s positive lead with a multimeter–should read ~2.5V RMS when active. If absent, recheck ground and signal connections.
  2. Experiment with tone(); the second parameter adjusts frequency in Hz. Try 250Hz, 800Hz, or 2kHz to test response range.
  3. If silence persists, substitute with a different microcontroller pin or inspect for cold solder joints.

For volume control, swap the 100Ω resistor for values between 47Ω (louder, but risks clipping) and 470Ω (quieter, cleaner output). Some boards support analogWrite() for pure sine waves, though tone() remains the simplest method. Always disconnect power before modifying wiring–even passive components can retain charge briefly.

Power Supply Options and Voltage Requirements

Select a regulated 5V DC power source for most piezoelectric sound emitters, ensuring stable operation without risking damage from voltage spikes. Linear regulators like the LM7805 provide consistent output, but switching regulators (e.g., LM2596) offer better efficiency for battery-powered setups, retaining up to 90% of input energy.

Battery Choices and Longevity

  • 9V alkaline: Delivers ~500mAh, sufficient for intermittent use over 10–20 hours with a 20mA load. Replace when voltage drops below 7.5V to prevent distortion.
  • AA cells (NiMH): Pair two in series for 2.4V nominal–boost with an MT3608 module to 5V if needed. Four cells extend runtime to ~30 hours at 30mA draw.
  • LiPo (3.7V single-cell): Requires a charging circuit. Discharge below 3.2V risks permanent capacity loss; use a TP4056 module for protection.

For wired installations, opt for a 12V AC-DC adapter with at least 500mA current rating. Measure actual voltage at the load–long cables can introduce drops of 0.5V or more. A 1N4007 diode in series compensates for adapter tolerance (±5%). Avoid unregulated wall warts; they often exceed nominal voltage under light loads.

Voltage Tolerances and Protection

  1. Piezo emitters tolerate 3–28V transiently but degrade above 12V DC continuous. Use a Zener diode (e.g., 1N4733A) to clamp excess voltage.
  2. Inductive loads (e.g., relays) require flyback diodes (1N4001). Omit this step, and reverse EMF will destroy the transistor or IC driver.
  3. Low-dropout regulators (LD1117V33) maintain regulation closer to the dropout threshold (1.1V vs. 2V for LM7805), critical for lithium-ion sources nearing depletion.

Car power (12–14.4V) demands a buck converter. Modules like the XL6009 handle input up to 32V, converting to 5V with 85% efficiency. Fuse the input at 1A to protect against short circuits. For motorcycle applications (6V nominal), use a buck-boost converter (e.g., S18V20ALV) to accommodate voltage sag during engine cranking.

Solar-powered setups require a charge controller. Pair a 6V 2W panel with a 3.7V 18650 cell and an MT3608 module. Size the battery at 2.5× daily amp-hour usage–for an 8-hour, 50mA load, use a 1500mAh cell. Add a supercapacitor (1F) in parallel to smooth intermittent clouds.
