Complete C10 Wiring Diagram Guide for Restoration and Troubleshooting

Start with a 12-volt battery connection routed directly to the ignition switch, bypassing intermediate relays when possible. Use 10-gauge copper wire for high-current circuits: starter solenoid, alternator output, and main power distribution. Label every fuse with its amperage rating and circuit function–common values include 50A for the alternator, 30A for headlights, and 20A for auxiliary components. Verify ground paths by measuring resistance: less than 0.1 ohms confirms a solid connection.

Route power cables away from sharp edges and moving parts. Secure them with nylon ties every 8 inches along straight runs, and every 4 inches near bends. For lighting circuits, use a dedicated harness separator to prevent voltage drop–headlight dimming at idle indicates insufficient gauge or corroded connectors. Install circuit breakers instead of fuses for the fuel pump and cooling fan; these reset automatically and handle transient surges better than single-use fuses.

Test each circuit with a multimeter before final assembly. Probe for voltage at the component side of connectors–12.6V at the battery should drop no more than 0.5V at the farthest point. For turn signals, use a solid-state flasher module; mechanical flashers fail under vibration. Upgrade to a 63-amp alternator if adding aftermarket audio or winches; stock 37-amp units lack reserve capacity. Color-code all documentation: red for power, black for ground, blue for lighting, and yellow for accessories.

Isolate the horn circuit with a 15A fuse–shorts here can drain the battery in hours. For trailer wiring, use a modular 7-pin connector with integrated diodes to prevent feedback. Double-check polarity on all auxiliary inputs; reversed polarity will destroy ECUs and gauge clusters. Document every splice and connection point in a schematic with wire gauge, length, and termination points–this saves hours of troubleshooting later.

Chevrolet 1960s Truck Electrical Layout: Step-by-Step Installation Guide

Begin by disconnecting the battery’s negative terminal to prevent short circuits before handling any cables. For the ignition system, trace the primary circuit from the coil to the distributor–ensure the pink wire (12V ignition feed) connects securely to the coil’s “+” terminal, while the resistor wire (brown/tan) runs to the ballast resistor. If upgrading to an aftermarket alternator, splice the exciter wire (typically black with a yellow stripe) directly into the voltage regulator’s “F” terminal, bypassing the stock generator’s field circuit.

When rerouting the lighting harness, prioritize corrosion resistance: use dielectric grease on bulb sockets and crimp connectors with heat-shrink tubing. The headlight switch’s “H” terminal should link to the dimmer relay via a yellow wire, while the parking lights (amber) require a direct 14-gauge wire from the fuse block–avoid daisy-chaining through existing grounds to prevent voltage drop. For trailer wiring, a 4-pin flat connector (brown/ground, yellow/left turn, green/right turn, white/brake) must be spliced into the rear harness with 12-gauge wire to handle the 20A load.

Test all circuits with a multimeter set to Ω (200-ohm range) before finalizing connections. The starter solenoid’s “S” terminal requires a heavy-duty cable (minimum 8-gauge) from the ignition switch, while the “B” terminal connects to the battery via a 1/0-gauge cable for the 800+ cranking amps. Replace the fusible link–a 14-gauge wire with a melted section–if melted; solder and seal with adhesive-lined heat shrink to restore factory-level protection.

For HVAC systems, the blower motor’s high-speed relay taps into the purple wire (ignition-switched 12V) and grounds through the dash’s firewall connector. Label every splice with wire tags (e.g., “AUX PWR – RADIO”) and secure bundles with spiral wrap, avoiding sharp edges or moving parts like the steering column. Store a digital backup of the modified schematic, noting wire colors, terminal numbers, and fuse ratings for future troubleshooting.

Pinpointing Critical Electrical Elements in Classic Chevrolet Schematics

Locate the fusebox immediately–it’s typically mounted beneath the dashboard near the driver’s side kick panel. Use a multimeter to verify fuse integrity; a reading below 12.6V indicates corrosion or failure. Replace suspect fuses with Exact Match Blades (EMB) rated for the original amperage: 10A for lighting circuits, 20A for ignition, and 30A for major accessories. Avoid generic fuses; cross-reference with GM’s 1970s specifications to prevent overheating.

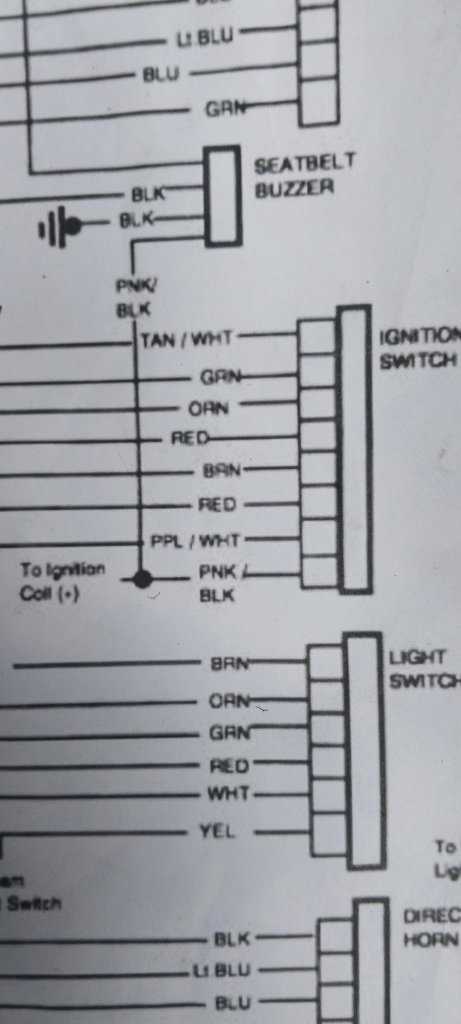

Trace the ignition switch harness first. The red (battery), white (ignition feed), and brown (accessory) leads must connect to the correct terminal spades–mixing these causes hard starts or starter solenoid burnout. Strip insulation no more than 3/8″ to prevent shorting against the firewall. Secure connections with heat-shrink tubing, not electrical tape; vibration loosens tape over time. Test continuity from switch to solenoid–resistance above 0.2 ohms signals corrosion in the pigtail.

Check the voltage regulator’s three wires: yellow (field), green (sense), and white (ground). At idle, field voltage should read 9-11V; below 8V means the regulator is failing or the alternator brushes are worn. Disconnect the battery ground cable before probing the alternator stator–touching live circuits risks diode destruction. Replace the regulator if voltage fluctuates more than 0.5V during revs; install an electronic solid-state unit for consistent 13.8-14.5V output.

• Headlight relay: Identify the 85 (trigger), 86 (coil), 30 (input), and 87 (output) terminals–reverse polarity blows the relay.
• Brake light switch: Verify purple (signal) and dark green (ground) wires–shorts here disable cruise control.
• Turn signal flasher: Replace thermal flashers with an electronic unit if blinking exceeds 90 cycles per minute.
• Chassis ground: Sand paint from mounting points; clean with a wire brush before securing straps to bare metal.

Step-by-Step Electrical Hookups for the Engine Bay

Begin by disconnecting the battery’s negative terminal to prevent short circuits. Use a 10mm wrench to loosen the clamp–ensure no contact between the terminal and the wrench to avoid arcing. Label each connection point with masking tape and a marker before removal, noting the wire gauge and routing path for reference during reassembly.

Preparing Key Components

• Remove the air cleaner assembly to access the firewall grommet where harness bundles exit the cabin. Pull the harness gently but firmly, checking for brittle insulation or corrosion.
• Inspect the alternator’s output terminal (B+) for oxidation. Clean with a wire brush if necessary, then apply dielectric grease to prevent future buildup. A terminal block with a 6-gauge wire is recommended for secure attachment.
• Locate the starter solenoid’s S-terminal–the smaller post–and verify its connection to the ignition switch lead. Use a multimeter to confirm 12V appears here when the key is turned to “start.”

Connect the primary ignition feed wire (typically red with a white stripe, 14-gauge) to the positive side of the coil. Secure with a crimp connector and heat-shrink tubing to seal out moisture. Route the wire away from moving parts, such as the serpentine belt, and secure it with zip ties every 6 inches to prevent abrasion.

1. Attach the engine temperature sender unit’s lead (usually a single 16-gauge wire) to the designated terminal on the instrumentation harness. The matching connector often has a retaining clip–press firmly until it clicks into place.
2. For fuel injection systems, connect the injectors’ common power lead (orange, 12-gauge) to a relay controlled by the ECU. Ground the injectors individually at the intake manifold using ring terminals and star washers to ensure a solid electrical path.
3. Link the throttle position sensor (TPS) to the main harness with a three-wire pigtail (5V reference, signal, and ground). Align the connector’s orientation before mating–forced attachment can damage pins.

Test each circuit before closing the hood. Reconnect the battery and turn the ignition to “on” without starting the engine. Use a test light to verify voltage at the coil, injectors, and alternator B+ terminal. If the check engine light illuminates, use an OBD-I scanner to pull codes–cross-reference with the vehicle’s service manual for specific resistance values (e.g., coolant temperature sender: 2,200 ohms at 70°F).

Final Checks

Reinspect all ground connections, particularly the engine block to chassis strap. A loose ground can cause intermittent electrical issues, including hard starting or dim headlights. Apply anti-seize compound to threads if mounting bolts show rust. Bundle excess wire lengths with split loom tubing, securing them at least 1 inch away from exhaust manifolds or headers.

Dashboard and Instrument Cluster Connection Essentials

Start by verifying the voltage regulator output on the back of the speedometer assembly using a multimeter. Set the tool to DC 20V range and probe terminals A (input) and B (ground). Correct readings should stabilize between 13.8–14.4V; fluctuations outside this range indicate a faulty regulator requiring replacement. Disconnect the battery negative cable before servicing to prevent short circuits, then remove the instrument bezel by releasing the two retaining clips at the bottom.

Trace the dimmer switch circuit path through the printed circuit board under the cluster. Locate the orange wire (illumination) and light blue/white strip (dash lights) on connector C1. Use a continuity tester to confirm the switch toggles between 0–12V when rotating the dimmer knob–failure denotes a broken rheostat or corroded contacts. Clean contacts with electronic cleaner if resistance exceeds 5 ohms; solder bridges only if the trace is visibly cracked.

Component	Wire Color Code	Pin Number (C2)	Signal Type	Expected Voltage
Fuel gauge sender	Pink	3	Variable resistance	0.5–6V
Temperature gauge	Yellow	5	Thermistor	0.25–4.5V
Oil pressure switch	Dark green	8	Normally open	12V (engine off) / 0V (engine on)
Tachometer input	White/black	12	Pulse width	2–6V (AC peak)

Check the brake warning light circuit by jumping pin 4 (dark blue) to ground–if the dash light illuminates, the issue lies upstream in the brake pressure switch or master cylinder. For turn signal indicators, observe the light green/white and dark green/white wires on connector C3, pins 7 and 9; each should pulse 0–12V at 60–120 cycles per minute when activated. Replace the flasher relay if pulses are erratic or absent.

Secure all grounds by tightening the bare copper wire ring terminal under the dash mounting bolt (torque: 8–10 ft-lbs). Loose grounds cause intermittent gauge readings–test by connecting a temporary jumper from the cluster ground bus to the battery negative post; if readings normalize, clean the ground surface with a wire brush and apply dielectric grease before reassembling.
