Complete Guide to Wiring Your Car Audio System Step by Step

Begin by identifying the power requirements of your amplifier. Most aftermarket units need between 10–30 amperes at peak output. Use a thick-gauge wire–4 AWG or thicker–for the main power feed to prevent voltage drops under load. Connect the positive lead directly to the battery terminal using an ANL fuse within 7 inches of the battery to ensure safety. Ground the amplifier to a bare metal chassis point, scraping away paint and rust for a solid connection.

Route RCA cables away from power wires to minimize interference. Shielded twisted-pair cables reduce noise, especially in installations with high-current components like electric fans or alternators. For multi-channel setups, match impedance–2–4 ohms–between the amplifier and speakers to avoid clipping. Use a line output converter if connecting to factory systems that lack RCA outputs.

Test connections with a multimeter before finalizing the setup. Check for 12–14 volts at the amplifier power input and less than 0.5 ohms resistance in the ground path. Secure all wires with split loom tubing or zip ties to prevent rattling or damage from moving parts. Avoid sharp edges near wires to prevent chafing, which can lead to shorts or system failure.

Adjust gain settings carefully–turning the volume up on the head unit first, then raising the amplifier gain until distortion begins. Overamplification can damage speakers, particularly tweeters. For subwoofers, use a low-pass filter set to 80–120 Hz to direct bass frequencies properly. Ensure the enclosure is sealed or ported based on the subwoofer’s specifications for optimal performance.

Vehicle Sound System Connection Guide

Begin by identifying power requirements: most factory head units operate at 10–15 amps, while aftermarket amplifiers demand 30–100 amps. Use a multimeter to verify the battery’s resting voltage–12.6V indicates full charge. Install a 60–80 amp fuse within 18 inches of the battery terminal to prevent fire hazards. Route thick-gauge wire (minimum 8 AWG for high-power setups) through the firewall using a grommet protector to avoid abrasion.

Grounding is critical. Connect the negative terminal directly to the chassis using a 6 AWG or larger wire, bolted to clean, bare metal. Sand the contact point to remove paint or oxidation. Avoid daisy-chaining grounds; each component should have its own dedicated path to the chassis. Test continuity with a multimeter before finalizing connections.

Speaker polarity must match across all channels. Mismatched polarity causes phase cancellation, weakening bass response. Use a 9-volt battery to test speaker direction before wiring: momentarily connect the positive terminal to the speaker’s positive lead–the cone should push outward. Reverse the leads for factory systems if the cone pulls inward.

• Remote turn-on wire: Connect to a switched 12V source (e.g., ignition wire) to prevent amplifier drain when the vehicle is off.
• RCA cables: Shielded cables reduce engine noise; route them away from power wires to minimize interference.
• Tweeter placement: Angle 10–15 degrees toward the listener’s ears for optimal high-frequency dispersion.
• Subwoofer wiring: Dual 4-ohm voice coils require parallel or series wiring–parallel for higher power, series for stability.

Pinpointing Speaker Leads in Your Automobile

Start by locating the factory harness behind the stereo unit–most vehicles use a 12-pin or 16-pin connector with color-coded strands. Typically, front left positive is white, front right positive is gray, rear left positive is green, and rear right positive is purple. Negative strands often share a black stripe or matching darker hue. Verify with a multimeter: set to 200 ohms, probe the connector pins while playing a 100Hz test tone–readings between 2 and 8 ohms confirm speaker connections, while zero or infinity indicates incorrect leads.

Factory-installed systems frequently omit individual fuses for each channel, but aftermarket amplification introduces inline fuse blocks near the battery or under the dash. Trace wires from the head unit outward; bundled loom ties suggest factory routes, while loose or spliced lines point to previous modifications. Twisted pairs (one solid, one striped) almost always denote positive-negative pairs–cross-check with your vehicle’s service manual, as European models may swap gray and purple positions.

For systems with integrated crossovers or passive equalizers, expect additional splits: tweeters often branch off the main speaker harness with thinner gauge wires (18-20 AWG) and distinct markers like blue (front left tweeter positive) or orange (right tweeter negative). Probe these splits separately–resistance should drop when measuring across the tweeter alone. Toyota and Lexus models sometimes reverse left-right tweeter polarity; compensate by labeling during disassembly.

Identify power amplifiers by following thicker gauge paths (12-14 AWG) leading away from the head unit–these terminate at heavy-duty connectors or bolt-down terminals. Subwoofers use separate harnesses, usually orange (positive) and brown (negative), sometimes paired with remote turn-on wires (blue/white stripe). Disconnect the battery before probing; measure voltage on suspected sub leads–12V indicates constant power, while 0V suggests ground or speaker-level signals.

Observe harness routing: OEM setups run wires above the kick panels or under rear seats, while custom builds may snake lines through door hinges (risking pinched strands). Test door speaker leads without removal–remove a single door card screw to access the harness plug, then verify continuity with a tone generator. For Bose or JBL premium stereo options, expect proprietary connectors with unique pinouts; bypass these cautiously to avoid damaging active signal processors.

Connecting Power Boosters to Main Units Step-by-Step

Disconnect the vehicle battery’s negative terminal first to eliminate short-circuit risks. Use a 12-gauge or thicker power cable for the amplifier’s 12V input, routing it directly from the battery–avoid sharing fuse boxes or accessory wirings. Mount an in-line fuse (40–100A, matched to the amp’s specs) within 18 inches of the battery terminal. Ground the amplifier to a bare metal chassis point, sanding paint or corrosion off the contact surface; a 4-gauge or thicker wire ensures stable grounding.

RCA cables carry the low-level signal from the head unit to the amplifier. Route them on the opposite side of the vehicle from power cables to minimize interference. If extending RCAs beyond 16 feet, use shielded cables or a line driver to preserve signal integrity. Connect RCAs to the amp’s dedicated inputs, not the speaker-level outputs–these require adapters and degrade performance. Check impedance compatibility: if the head unit’s preamp outputs are 2V, ensure the amplifier can handle it without clipping.

Signal Processing Adjustments

Set the amplifier’s gain before connecting speakers. Start with the head unit’s volume at 75% and adjust the amp’s gain until distortion disappears–this prevents blown tweeters or subs. Use a multimeter to verify voltage at the amp’s inputs; 200–400mV for standard decks, up to 5V for high-output units. Disable bass boost or EQ settings on the head unit if the amplifier has built-in crossovers–redundant processing muddies frequencies. For bridged mono operation, verify the amp’s minimum impedance load (often 4Ω) to avoid overheating.

Test connections with a 30Hz–20kHz sine wave before securing wiring. Secure cables with zip ties every 12 inches, avoiding sharp edges or moving components. Reconnect the battery and power on the system at low volume, checking for hiss, popping, or uneven channels–these indicate poor grounding or cable interference. If subs exhibit “port noise,” relocate the amp away from subwoofer enclosures. For class D amplifiers, route signal cables perpendicular to power cables to reduce electromagnetic interference. Finalize by sealing exposed connections with silicone gel or heat-shrink tubing.

Optimizing Low-Frequency Output in Vehicle Sound Systems

Use 12-16 AWG oxygen-free copper cables for subwoofer connections to minimize signal loss and ensure clean power delivery. Thicker wires reduce resistance, preserving bass impact at high volumes, especially for long runs exceeding 16 feet. Measure impedance with a multimeter before connecting to match the amplifier’s stable load range–typically 2 or 4 ohms.

Subwoofer Enclosure Selection

• Sealed boxes: Deliver tight, accurate bass with lower distortion but require more power. Ideal for genres like jazz or classical.
• Ported enclosures: Offer deeper extension and higher output at lower frequencies. Tune the port length to match the sub’s resonant frequency for peak efficiency.
• Bandpass enclosures: Maximize output in a narrow frequency range but sacrifice sound quality. Use only for competition setups where volume is prioritized over clarity.

Mount subwoofers away from trunk walls or metal surfaces to prevent cancellation effects. Air gaps should be at least 2 inches behind the cone to avoid chuffing. For rear-mounted setups, angle the subwoofer 15-30 degrees toward the listening position to improve low-frequency propagation through cabin reflections.

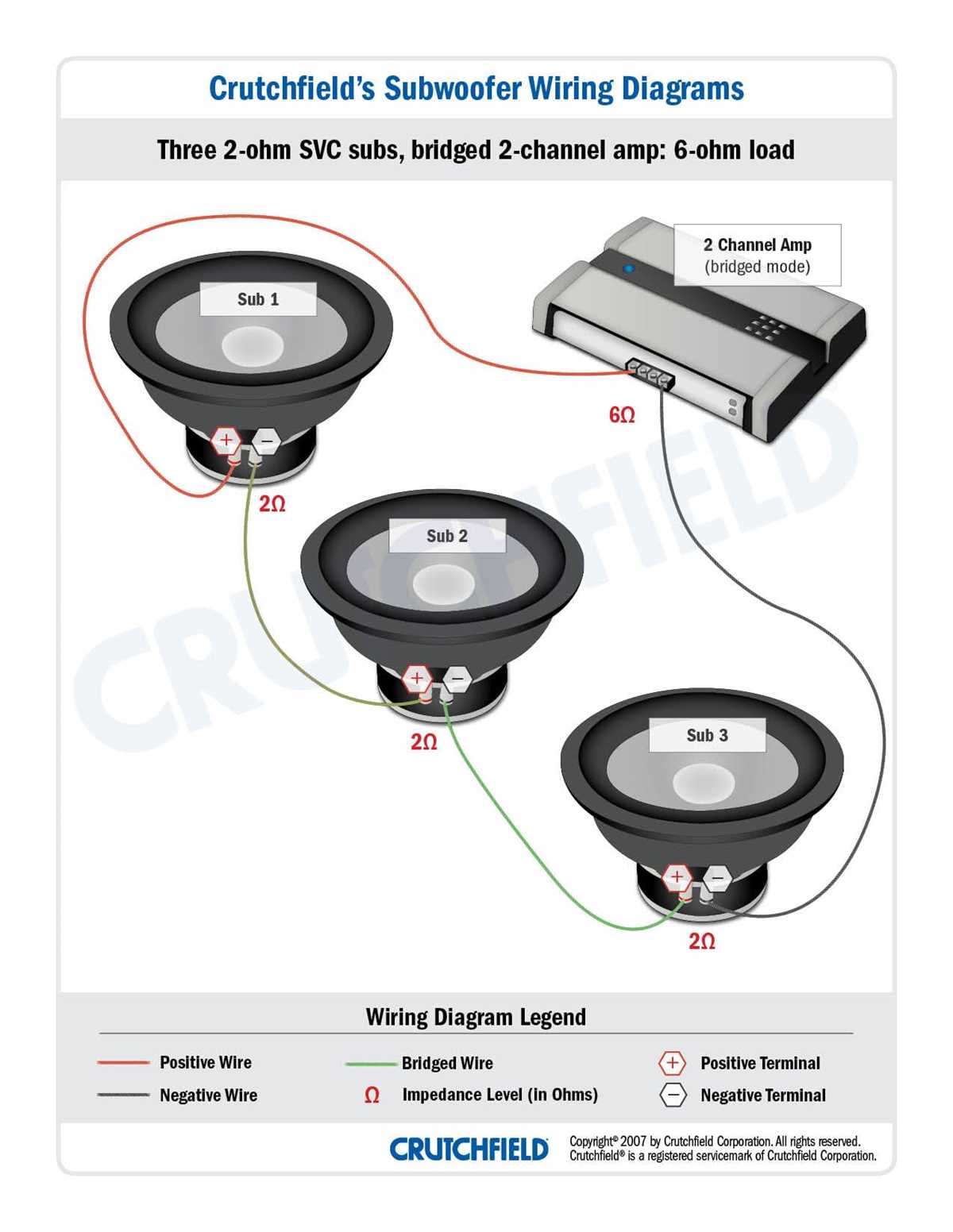

Bridge amplifiers for mono operation when driving a single subwoofer. Check the amp’s bridged power ratings–most double their output in bridged mode at 4 ohms. Avoid bridging if the amp’s manual warns against it, as this can cause overheating or premature failure.

Set the low-pass filter between 80-120 Hz to blend subwoofers with midrange drivers. Use a 12 dB/octave slope for gradual roll-off or 24 dB/octave for tighter integration with smaller speakers. Adjust the phase switch (0° or 180°) by ear to eliminate frequency cancellation, especially noticeable as thin or weak bass response.

Power and Grounding Best Practices

1. Fuse the positive lead within 18 inches of the battery terminal using a value 10-15% higher than the amp’s total fuse rating.
2. Ground the amplifier to a bare metal chassis point with minimal paint or rust. Use an 8 AWG (or thicker) wire and a star washer to ensure a solid connection.
3. Separate power and signal cables by at least 6 inches to reduce noise interference. Run RCA cables along the opposite side of the vehicle from power wires.

Use a dedicated capacitor (1 farad per 1,000 watts) if voltage drops below 12.5V during bass-heavy passages. Connect it within 18 inches of the amplifier with short, thick wires to stabilize power delivery. Test with a voltmeter under load–consistent readings above 12V indicate sufficient electrical supply.

Break-in subwoofers for 20-40 hours at moderate volume before tuning. This allows the suspension to settle, improving excursion linearity and output. After break-in, re-check enclosure seals and mounting screws for tightness to prevent air leaks or rattles during playback.
