Complete Car Subwoofer Wiring Guide with Step-by-Step Diagram
Begin with a 4-gauge oxygen-free copper cable for the main power feed. Run it directly from the battery’s positive terminal through a 100-amp fuse within 18 inches of the connection point. This prevents voltage drop over distances exceeding 16 feet, ensuring consistent bass response without distortion. Ground the amplifier chassis to a bare metal section of the vehicle’s frame–avoid painted surfaces, as they introduce resistance. A 3/8-inch star washer under the grounding bolt improves conductivity.
Use a dual RCA cable shielded with 90% copper braid to link the head unit’s preamp outputs to the bass amplifier. Keep the signal path at least 12 inches away from power wires to minimize interference. If noise persists, install a 0.1µF capacitor across the RCA jacks at the amplifier’s input. For systems with sensitivity controls, set the gain by playing a 40Hz test tone at 75% volume–adjust until the tone matches the amplifier’s rated output without clipping.
Connect a line-level converter if your audio control unit lacks dedicated sub outputs. Match the converter’s input impedance to the head unit’s output (typically 2kΩ) to preserve signal integrity. Route remote turn-on wiring through a 1-amp fuse to protect the amplifier’s internal circuitry. For capacitor-assisted setups, place the capacitor within 6 inches of the amplifier’s power input–mount it on a vibration-dampened surface to prevent microphonics.
Test impedance with a multimeter before finalizing connections. Most amplified bass modules require a 2-4Ω load; deviations cause overheating. Secure all cables with nylon ties every 8 inches to prevent rattling, which introduces distortion. Use heat-shrink tubing over soldered joints to prevent corrosion–exposed connections degrade within 18 months in humid environments.
Connecting Your Vehicle’s Low-Frequency Speaker System
Begin by identifying the amplifier’s power terminals–typically marked with +12V, GND, and REM (remote turn-on). Use 8-gauge copper wire for the main power feed from the battery to the amp, ensuring a fuse no more than 18 inches from the battery terminal. The ground connection must be bolted directly to the chassis, within 18 inches of the amplifier, using a bare metal surface free of paint or corrosion. For the remote wire, splice into the head unit’s blue/white accessory wire (0.5A rating) or use a dedicated switched 12V source.
Component Compatibility and Signal Flow
| Component | Input Signal | Output Signal | Recommended Wire Gauge |
|---|---|---|---|
| Head unit RCA outputs | Line-level (2V–4V) | Low-pass filtered signal | RCA interconnects (shielded) |
| Amplifier | High-level (speaker-level) or line-level | High-current (20A–150A) | 8–4 AWG (power), 16–14 AWG (signal) |
| Passive bass speaker | Filtered mono signal (35Hz–120Hz) | N/A (driver movement) | 16–12 AWG (speaker wire) |
For line-level inputs, use shielded RCA cables to prevent interference from the alternator or ignition system. If tapping into factory speaker wires, install a line-output converter (LOC) to step down high-level signals (typically 10V–20V) to line-level (2V–4V). Set the amplifier’s low-pass filter between 70Hz and 100Hz, with a slope of 12dB/octave to avoid muddiness. Avoid bridging outputs unless the amplifier explicitly supports it–this risks damaging both the amp and the bass driver.

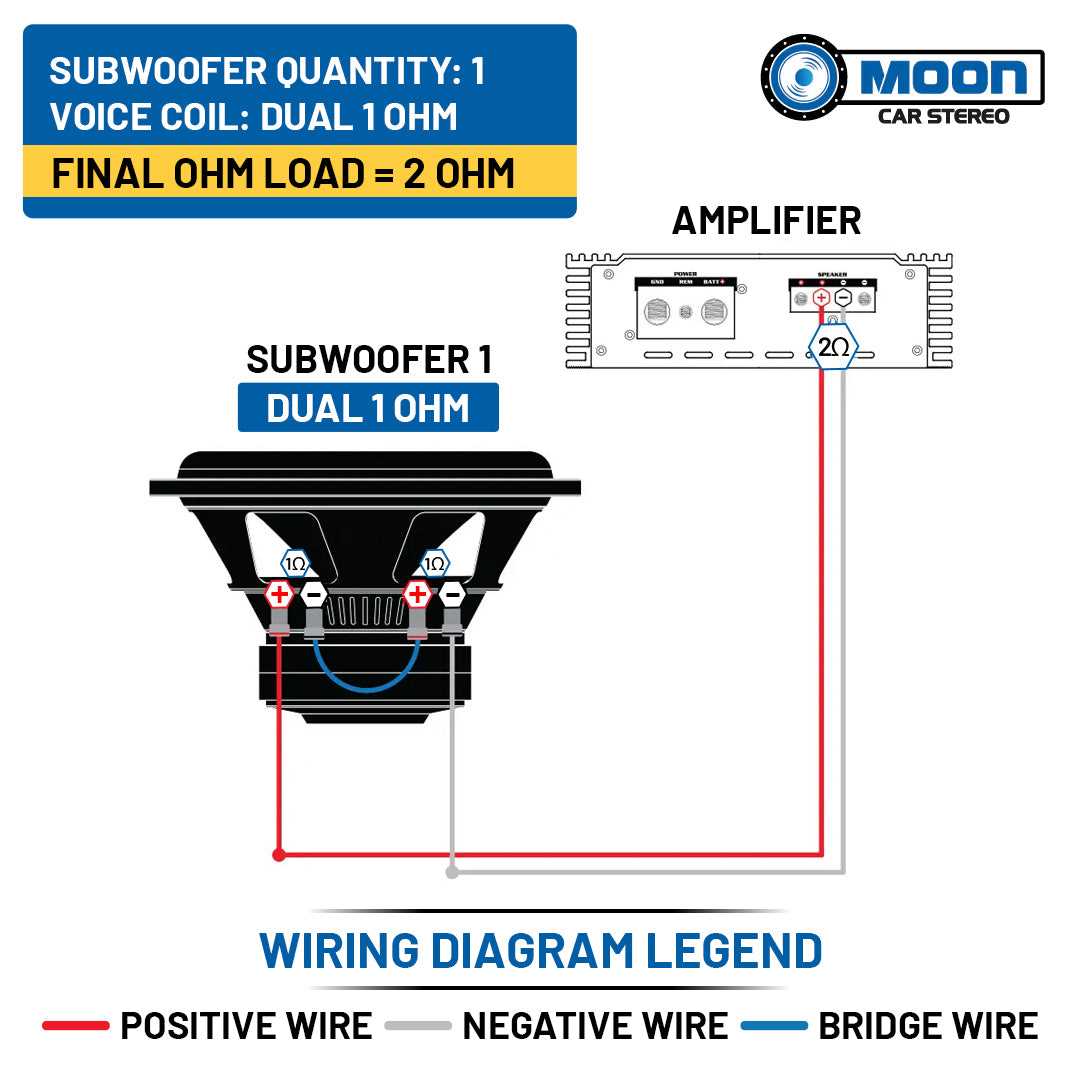

Mount the amplifier away from heat sources, using rubber grommets for all wire passages through metal panels. Route power cables separately from RCA and signal wires to minimize cross-talk. Double-check all connections with a multimeter: the power wire should read 12V–14.4V, the ground should show 0V relative to chassis, and the remote wire should toggle on/off with the ignition. For dual-voice-coil (DVC) woofers, parallel wiring (4Ω final load) is simplest; verify the amplifier’s stable impedance range before connecting.
Troubleshooting Common Installation Errors
If the system emits a humming noise, relocate RCA cables away from power wires or install a noise filter. A “pop” during startup indicates insufficient capacitor discharge–add a 10,000µF capacitor near the amplifier or ensure the battery’s health. Weak bass often stems from incorrect gain settings: play a 50Hz test tone, adjust the amplifier’s gain until the bass driver distorts, then back off slightly. Overheating suggests impedance mismatch–confirm the amplifier’s RMS rating aligns with the driver’s power handling.
Use crimp connectors (not solder) for wire terminations to prevent brittle failure under vibration. Secure all wires with adhesive-lined clamps every 18 inches to avoid chafing. Label both ends of each wire (e.g., “AMP +12V,” “LEFT CHANNEL RCA”) to simplify future diagnostics. For systems above 300W RMS, consider upgrading the alternator to a high-output model (e.g., 140A–220A) to prevent voltage sag under heavy bass loads.
Selecting Optimal Power and Ground Cables for Your Audio Booster
Start with at least 4 AWG gauge copper wire for systems drawing under 500W RMS. Thicker cables reduce voltage drop–critical for bass-heavy amplifiers. For 1000W RMS, upgrade to 1/0 AWG to handle peak current surges without overheating. Avoid aluminum wiring; its higher resistance increases power loss over distance. Measure the run length from the battery to the amp; every 18 inches beyond 3 feet requires a step-up in gauge.
Key Factors in Cable Selection
- Current draw: Calculate based on the amp’s fuse rating (e.g., 100A fuse needs 4 AWG).
- Run distance: A 10-foot run at 500W RMS demands 2 AWG; 20 feet jumps to 1/0 AWG.
- Terminal compatibility: Ring terminals must match the amp’s post size–typically 8mm or 10mm.
- Insulation type: Silicone-jacketed wire bends easier in tight spaces than PVC.
Ground cables must match the power wire’s gauge. A weak ground causes noise and potential damage. Scrape paint or rust from the chassis contact point–a 3/8-inch bolt secures a 4 AWG ground reliably. For marine-grade installations, tinned copper resists corrosion; land-based systems can use standard oxygen-free copper. Never daisy-chain grounds; connect each amp directly to the chassis.
Test voltage drop with a multimeter. At full volume, the difference between battery voltage and amp input should stay under 0.5V. If readings exceed this, reroute cables closer to the battery or increase gauge thickness. Avoid routing power wires alongside signal cables to prevent interference–maintain at least 6 inches of separation. For high-power setups, add a distribution block to split power from a single thick wire to multiple amps.
- Disconnect the battery negative terminal before wiring.
- Strip 1/2 inch of insulation, crimp terminals, and solder for a vibration-proof connection.
- Use adhesive-lined heat shrink tubing to seal connections fully.
- Secure wires every 12 inches with nylon looms to prevent rattling.
- Reconnect the battery last to avoid short circuits.
Step-by-Step Fuse Installation Near the Vehicle’s Power Source
Disconnect the ground terminal from the battery using an 8mm or 10mm wrench–never rely on memory: verify polarity with a multimeter set to DC voltage (20V range) to confirm the negative cable before handling. Select a fuse rating matching the amplifier’s maximum current draw (e.g., 30A for a 300W RMS unit at 12V) plus a 20-25% safety margin; for high-power systems exceeding 500W, opt for an ANL fuse holder with a 100A-150A fuse and 4 AWG cable minimum.
Mount the fuse holder within 18 inches of the battery’s positive post–directly on the chassis or via a dedicated bracket–using star washers to prevent corrosion; strip 1/2 inch of insulation from the input and output wires, crimp with a hydraulic crimper for 4 AWG or thicker, then solder the connection for vibration resistance. Route the fused cable parallel to the OEM harness (avoiding sharp edges and moving parts) and secure with zip ties every 6 inches; reconnect the ground terminal last, tightening to 8-10 lb-ft of torque.
Linking the Remote Activation Cable to the Audio Source
Locate the blue/white stripe wire on the stereo harness–this is the standard trigger output for aftermarket amplifiers and bass systems. Splice it directly to the corresponding remote lead on the low-frequency unit using a 16-18 AWG butt connector or solder joint, ensuring minimal resistance for consistent signal transmission. Avoid daisy-chaining through other devices, as this can introduce voltage drop and delay power-up sequencing.
Critical Connection Steps
- Strip 5-7mm of insulation from both wires before joining to prevent short circuits.
- Use heat-shrink tubing instead of electrical tape for long-term moisture resistance.
- Test continuity with a multimeter before securing the connection–target impedance should not exceed 0.5 ohms.
- Route the cable away from high-current lines (e.g., battery cables) to avoid induced noise.
For factory-installed audio systems lacking a dedicated remote output, tap into the accessory wire of the fuse box (typically labeled “ACC” or “IGN”) using an add-a-circuit fuse tap. Select a fuse slot that activates only when the ignition is turned, not in accessory mode, to prevent battery drain. Verify the chosen circuit handles at least 500mA to accommodate the bass module’s power demands without blowing the fuse.
If the amplifier incorporates a delayed turn-on feature (common in class-D models), ensure the remote signal reaches it within 200-300ms of ignition to prevent audible “popping” during startup. Use a relay if the stereo’s output current is insufficient–connect the 85/86 terminals to the blue/white wire and ground respectively, while the 30/87 terminals bridge the power source to the low-frequency device’s remote input.
