Understanding Vehicle Wiring and Electrical System Blueprints

Begin by locating the fuse box layout–most manufacturers print it inside the cover. Use a multimeter set to continuity mode to trace wiring paths without guessing. Ground points are critical: inspect them first if circuits behave unpredictably. Corrosion here mimics failed components, wasting hours of diagnostics.

Color codes vary by brand, but red wires almost always carry 12V power. Brown or black stripes typically indicate grounding. Toyota and Ford differ in labeling; consult a manufacturer-specific manual before assuming. Misinterpreting colors causes incorrect repairs–verify with a diagram before cutting or splicing.

Relays control high-current devices like fuel pumps. Test them by swapping with a known-good relay of the same type–no tools needed. If the issue persists, the problem lies elsewhere in the circuit. OEM wiring harnesses rarely fail; focus on connectors and terminals first.

Converters and control modules often use pulse-width modulation (PWM). A simple LED test light won’t work here–use an oscilloscope to confirm signal integrity. Voltage drop tests reveal resistance issues invisible to visual inspection. Measure across terminals with the circuit active: drops over 0.2V indicate a problem.

Scan tools retrieve codes, but functional tests pinpoint failures. Activate outputs like injectors or solenoids manually to isolate faults. If a component doesn’t respond, check the wiring back to the controller. Shorts to ground or power often trigger misleading fault codes.

Aftermarket additions frequently disrupt factory wiring. Route wires away from moving parts and exhaust manifolds. Use adhesive-lined shrink tubing, not electrical tape–heat and vibration degrade cheap materials. Label all modifications clearly, or future troubleshooting becomes impossible.

Understanding Vehicle Electrical Blueprints

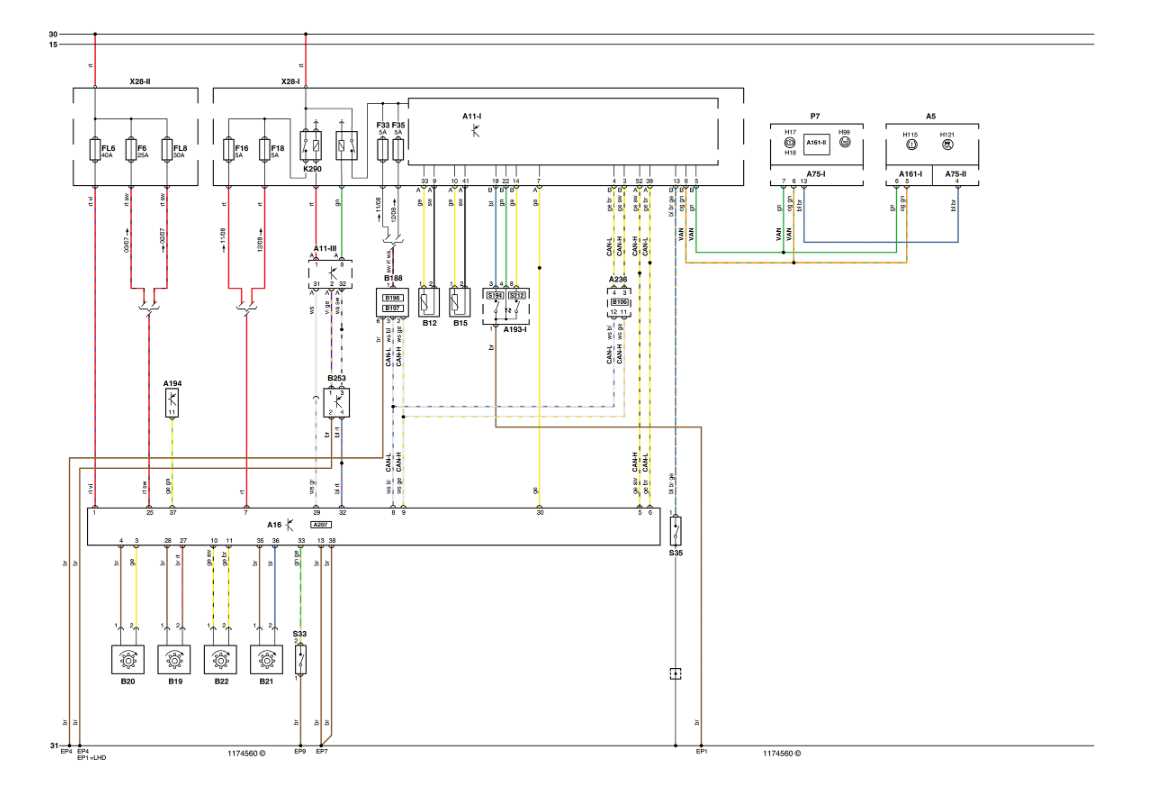

Start by identifying the main power distribution block in the wiring layout–typically marked with thick lines and labeled “30” (constant power) or “15” (ignition-switched). Trace these lines to fuse boxes, noting amperage ratings (e.g., 10A for lighting circuits, 30A for high-draw components like starter motors). Discrepancies in wire gauge (thicker for high-current paths, thinner for sensors) reveal potential overheating risks; verify against manufacturer specs (e.g., AWG 10 for alternator output, AWG 18 for signal wires).

Use a multimeter to validate ground points (GND or chassis symbols) by probing between the terminal and bare metal–resistance should read <0.5Ω. Common failures occur at corroded or loose connections (e.g., battery tray, fender mounts). Label each wire segment with its destination (e.g., “ECU pin 8 → MAP sensor”), citing exact pinouts from service manuals (Haynes/Alldata provide color codes like YL/BK for yellow with black stripe).

Troubleshooting with Layouts

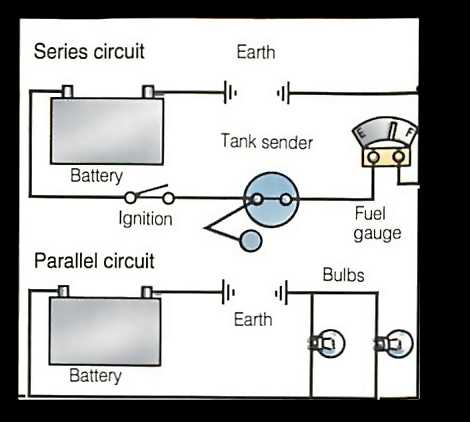

Focus on parallel vs. series branches: parallel splits (e.g., rear lamps) require equal voltage drop across loads, while series chains (e.g., ignition coils) demand continuity. Check voltage drop across each segment; >0.2V indicates resistance issues. For CAN bus networks, overlay the physical wiring with the communication topology–termination resistors (usually 120Ω) must exist at bus ends (verified with ohmmeter). Annotate interactive PDFs with measured values to track intermittent faults.

How to Interpret Automotive Electrical Blueprints

Locate the power source first–typically a battery symbol with “+” and “-” terminals. Trace the thickest lines from the positive terminal to the fuse box, identifying relay blocks along the way. For circuits like lighting, follow the path from the fuse to the switch (often marked SW), then to the load (bulb icon). Ground points are indicated by a downward arrow or “GND” label; confirm these connect directly to the negative terminal or chassis. Color codes in wiring guides use abbreviations: B = Black, W = White, R = Red, G = Green, Y = Yellow, BL = Blue, BR = Brown. Cross-reference these with the legend if the diagram includes wire gauge (e.g., 1.0 = 1.0 mm²).

Use these steps to troubleshoot:

• Check continuity with a multimeter: probe both ends of a wire to verify no breaks.
• Verify voltage at the fuse: 12V should drop minimally (under 0.5V) across a healthy circuit.
• Inspect relays: a click sound when energized indicates proper function; swap with a known-good relay if needed.
• Test sensors (e.g., oxygen sensor) by measuring resistance (ohms) against manufacturer specs.
• Look for splice points (dots on wires) where corrosion often occurs; clean with electrical contact cleaner.

For engine management systems, note the ECU (electronic control unit) pinout–each pin links to specific components like injectors, coils, or sensors. Wiring guides label these as INJ, IGN, or CMP. If a circuit fails, backtrack from the ECU to the component, testing step-by-step. Ignore misleading labels; focus on circuit paths and symbols like resistors (zigzag lines) or capacitors (parallel lines).

Step-by-Step Guide to Tracing Circuits in Automotive Wiring Blueprints

Locate the power source first–usually a fuse, relay, or battery terminal–marked with a bold line or red color on the layout. Verify the voltage rating matches the system (e.g., 12V for standard, 48V for hybrids) before proceeding. Missed polarity or incorrect amperage will corrupt the entire trace.

Identify each component along the path using its standardized symbol: resistors (zigzag lines), switches (gapped circles), or motors (coiled loops). Cross-reference the label in the legend–most manufacturers use alphanumeric codes (e.g., “M5” for a motor, “S3” for a switch) to avoid confusion between identical symbols.

Trace the wire color next, as defined in the corner key: solid red for constant power, striped yellow/black for ground, blue for control signals. Use a multimeter to confirm continuity–expect 0.5 ohms or less between points; higher resistance signals corrosion, breaks, or incorrect connections.

Check for splices or junctions, often marked with dots or branching lines. These require special attention–split the trace into segments, testing each individually. A single failed splice (e.g., T-tap) disrupts the entire downstream circuit, mimicking component failure.

Isolate grounds last: cluster grounds (shared terminals) or chassis grounds (direct metal contact). Measure voltage drop from component to ground–anything above 0.1V indicates poor contact. Corrosion on chassis points is a frequent culprit in intermittent faults.

Document deviations: note missing wires, added connectors, or aftermarket modifications. Compare against the original blueprint–discrepancies often explain unexplained failures (e.g., a missing 10A fuse bypassed for a 20A). Use highlighters to mark verified paths, eliminating guesswork on future diagnostics.

Equipment for Reading and Adjusting Vehicle Wiring Plans

Start with a multimeter supporting at least 600V AC/DC, 10A current, and 40MΩ impedance. Fluke 17B or UNI-T UT61E cover basic resistance, voltage, and continuity checks while tolerating transient spikes common in 48V hybrid systems. Avoid cheap analogs under 50USD–they lack safety certifications for transient protection.

Decent wiring maps demand high-contrast illumination. A 10,000 lux rechargeable work lamp with adjustable gooseneck prevents misreading faded lines in aftermarket manuals printed on low-grade paper. Aim the beam at 45° to avoid glare on glossy pages; LED strips with 5000K color temperature reduce eye strain during long sessions.

Keep a set of ESD-safe 12-gauge test leads with silicone insulation and gold-plated probes. Silicone withstands under-hood temperatures up to 200°C; gold plating prevents oxidation that skews readings in high-resistance circuits like CAN bus terminations. Add alligator clips with 2A current rating–cheap clips deform under repeated clamping, risking intermittent connections.

Digital calipers with 0.01mm precision help measure wire gauge discrepancies between OEM specs and repair manuals. Cross-reference readings with AWG tables; discrepancies over 5% indicate potential overload points needing trace verification. Avoid vernier scales–sliding mechanisms wear down, introducing measurement drift.

Software like ETAS INCA or Vector Canoe decodes raw CAN logs but requires a laptop with dual-core CPU and 8GB RAM minimum. Export filtered logs as .csv files for cross-referencing against wiring plans; highlight anomalies where voltage drops exceed 0.3V in critical feeds to injectors or TCUs. Cloud sync risks data corruption–use encrypted local storage instead.

A 60W soldering station with adjustable iron (300–450°C) and chisel tip ensures clean joints in retrofits. Pre-tin strands before joining; flux-core 60/40 solder works for general circuits, while silver-bearing solder suits high-frequency sensor leads. Calibrate tip temperature weekly–oxidation buildup reduces heat transfer, causing cold joints.

Identifying Key Components and Symbols in Vehicle Wiring Charts

Begin by locating the fuse box representation–typically marked with a rectangular outline and internal divisions. Each compartment contains a fuse symbol (a zigzag line for blade fuses or a rectangle with a wavy line for older types) alongside numeric or alphanumeric labels matching the fuse ratings in the legend.

Trace power sources: battery terminals appear as thick parallel lines (positive) intersecting a smaller line (negative). The ignition switch is often depicted as a circled breaker symbol with labels like “IG1” or “ACC” branching into colored wiring paths (red for constant power, yellow for ignition-fed).

Relays follow a standardized pattern: a square enclosing four numbered pins (85, 86 for coil; 30, 87 for contacts). Switches–e.g., door triggers or headlight controls–use T-shaped junctions where one line intersects multiple branches; closed contacts show a bridge between terminals, while open contacts have a gap.

Ground connections are consistently shown as vertical lines terminating in three horizontal bars. Verify these against chassis grounding points in the service manual to avoid misinterpretation of floating circuits.

Common Symbols and Their Variations

Symbol	Component	Key Details
⚡	Solenoid/Actuator	Dotted circle with internal coil; check for diagonal slash (polarized)
	Light Bulb	Filled circle for incandescent; hollow for LED (often grouped with resistor symbol)
⏚	Dual Ground	Double horizontal bars beneath vertical line (multipoint grounding)
–⊕–	Connector	Arrows indicate pin assignments; dashed lines mark shielded pairs

Sensors (MAP, oxygen, wheel speed) use hexagonal or diamond shapes with a central identifier–”THW” for coolant temp, “VSS” for speed inputs. CAN bus nodes appear as horizontal lines connecting multiple sensors/ECUs; note twist pairs (two parallel lines crossing intermittently) for noise immunity.

Harness splices are circles intersecting multiple colored wires; verify splice IDs against the wire gauge chart to detect undersized connections that could cause voltage drops under load.

Critical warning: circuit breakers (automatic reset) resemble fuses but add a circular arrow. Permanent breakers (non-reset) include a triangle symbol at the center–replace rather than bypass these during troubleshooting.

Color Code Interpretation

Base colors denote primary functions: red (battery), black (ground), yellow (ignition). Stripes indicate sub-circuits–red/white for fused accessory power, blue/white for headlight triggers. Cross-reference with the manufacturer’s coding table; aftermarket manuals sometimes invert stripe precedence.
