Understanding Cat 5e Cable Wiring Step-by-Step Color Codes and Installation Guide
Use T568B wiring for all modern installations. This standard ensures compatibility with gigabit networks and Power over LAN (PoE) setups while avoiding signal interference. Pin assignments for connectors follow this order: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Deviating from this sequence risks degraded performance and failed handshakes between devices.
Strip 1.5–2 cm of outer insulation without nicking the internal wires. Untwist pairs only enough to insert into the connector–keep untwisted length under 12 mm to prevent crosstalk. Crimp firmly with a ratchet tool rated for 6–8PSI; loose connections cause intermittent failures detectable only under load. Test continuity and polarity with a network analyzer before deployment.
For crossover connections–rare in gigabit networks but still needed for direct device linking–swap pins 1↔3 and 2↔6. Most contemporary hardware auto-MDIXs, but legacy switches may require manual crossover when link LEDs fail to illuminate. Use shielded variants in environments with heavy electrical noise; ground both ends via the connector’s drain wire.
Label both ends immediately after termination. Color-code patch panels to match wall jacks for rapid troubleshooting. Replace cables exhibiting physical damage, kinks, or abrasions–even minor defects introduce latency or packet loss under sustained throughput. Store spare lengths coiled loosely (minimum 7 cm diameter) to prevent permanent bends, which weaken conductors and increase attenuation.
T568A vs. T568B: Which Standard to Choose?
Use T568B for new installations unless existing infrastructure requires T568A. The B standard dominates in North America and commercial settings due to its backward compatibility with older phone systems. T568A remains common in residential and European environments. Verify local conventions before terminating connectors–mixing standards causes crossed signals.

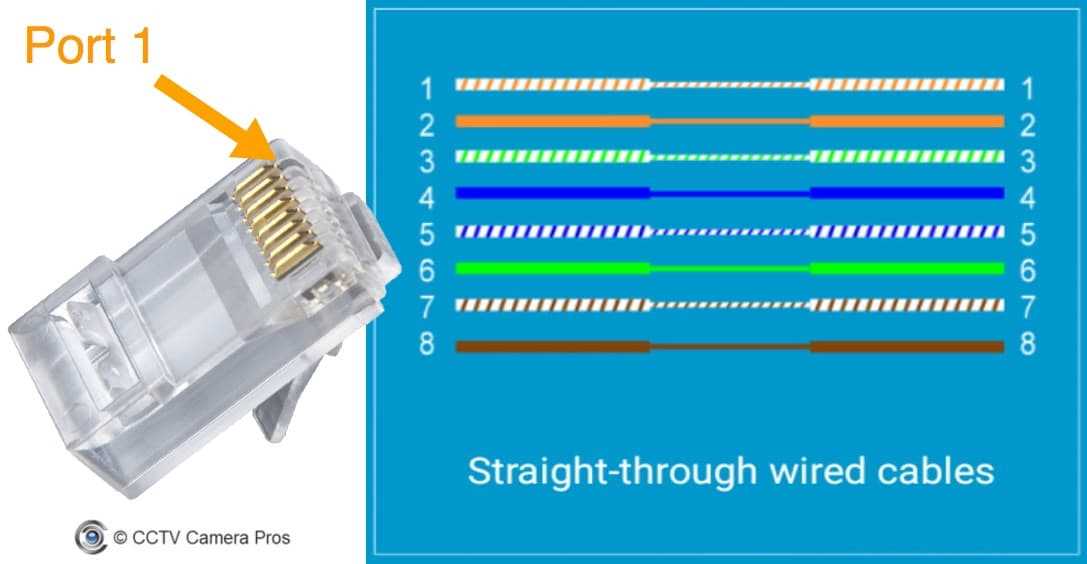

Pinout Configuration for Straight-Through Connections
| Pin | T568B Wire Color | T568A Wire Color | Function |
|---|---|---|---|
| 1 | Orange/White | Green/White | Transmit + |
| 2 | Orange | Green | Transmit – |
| 3 | Green/White | Orange/White | Receive + |
| 6 | Green | Orange | Receive – |
Strip outer jacket 1.5–2 inches to expose twisted pairs. Maintain pair twists–untwisting more than 0.5 inches degrades signal integrity. Insert wires into an RJ45 connector with copper contacts facing upward, ensuring each conductor reaches the pin’s end. Crimp once using 10–12 lbs of pressure; verify retention by gently tugging each wire.Test with a continuity checker before deployment. Pins 1–2 must communicate with pins 3–6 on the opposite end for straight-through links. Swap pins 1↔3 and 2↔6 for crossover setups. Daisy-chained POE devices require proper termination–incorrect polarity risks hardware damage.For 100BASE-TX, only pairs 2 (orange/green) and 3 (green/orange) carry data. Gigabit networks utilize all four pairs: pins 4/5 (blue) and 7/8 (brown) handle bidirectional traffic. Maintain consistent impedance–category 5e rated at 100Ω ±15%. Avoid kinks or bends tighter than 4x the jacket diameter; this preserves bandwidth up to 100 MHz.
Step-by-Step Guide to Terminating a Twisted-Pair Link Using T568A and T568B Pinouts

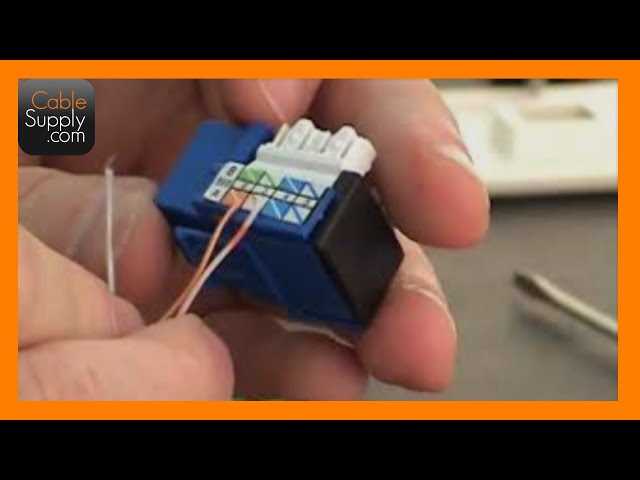

Begin by stripping 1.5–2 cm of the outer jacket from the conductor bundle, exposing the individual insulated strands. Use a dedicated ripcord or sharp scissors, cutting only the jacket without nicking the wire insulation. Separate the four twisted pairs, untwisting each pair no farther than 12.7 mm (0.5 in) to preserve signal integrity.
Arrange the strands in the required sequence for the selected scheme: T568A (white/green, green, white/orange, blue, white/blue, orange, white/brown, brown) or T568B (white/orange, orange, white/green, blue, white/blue, green, white/brown, brown). Flatten the wires between thumb and forefinger, trimming them with flush-cut diagonal pliers so all ends terminate within ±1 mm of each other. Insert the prepared ends into an RJ-45 plug until each conductor bottoms out against the plug’s internal stop.
Crimp the connector with an 8P8C tool, applying firm pressure to fully seat the plug’s blades through the wire insulation; verify continuity with a network tester across each of the eight pins before securing the jacket strain relief.
Standardized Color Patterns for Straight and Cross-Connected Twisted Pair Conductors
For devices communicating at identical hierarchical levels (e.g., switch-to-switch or router-to-router), implement an inverted color pairing on one end as follows:
- Pin 1: White-orange (transmit +) ↔ Pin 3: White-green (receive +)
- Pin 2: Orange (transmit –) ↔ Pin 6: Green (receive –)
- Pin 3: White-green (receive +) ↔ Pin 1: White-orange (transmit +)
- Pin 6: Green (receive –) ↔ Pin 2: Orange (transmit –)
Retain unchanged pairing for data flow continuity on pins 4/5 (blue pair) and 7/8 (brown pair). Validate polarity before securing connectors– mischanneled conductors cause link negotiation failures.
Compliance with T568A or T568B termination standards for end-to-end links depends on network equipment auto-MDI/MDIX capability:
- T568A: White-green → green → white-orange → blue → white-blue → orange → white-brown → brown
- T568B: White-orange → orange → white-green → blue → white-blue → green → white-brown → brown
Verify vendor documentation–some PoE switches mandate T568B for consistent power delivery across all four pairs.
Deviations from the standard color progression introduce signal reflections. Blue and brown pairs must occupy central pin positions (4-5, 7-8) irrespective of selected scheme. Swap only orange/green pairs for crossover functionality–incorrect pair transposition disrupts NEXT and FEXT parameters.

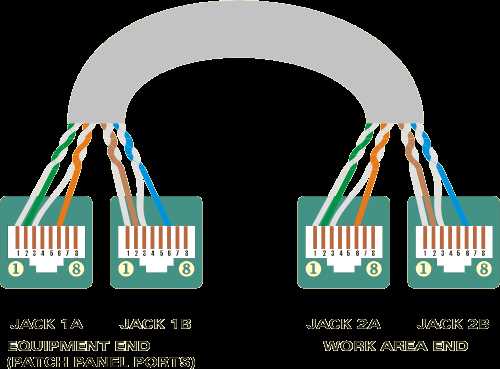

For field-terminated plugs, maintain consistent conductor sequence across all jacks–flipping sequence between patch panel and wall outlet degrades channel performance below Gigabit thresholds. Use pre-terminated assemblies where possible to eliminate termination-induced errors.
Diagram cross-check using continuity tester post-assembly:
- Straight connections: identical color order on both ends
- Crossed connections: swapped orange/green pairs only
- Open circuits: re-strip conductors, re-crimp with minimal untwisting
Twists per meter must not exceed 13 (manufacturer-specified), or modal dispersion rises sharply.
Power-over-data strands leverage shielded variants to mitigate alien crosstalk–confirm sheath type against application requirements. For PoE++, ensure brown pair current capacity meets 100W delivery without thermal compromise.
Consistent labeling prevents misconfiguration–annotate each connector with termination scheme (A/B) and cross/straight designation. Store excess lengths in 120mm loops to avoid kinking, which degrades impedance uniformity.
Essential Gear for Proper RJ45 Termination
Begin with a high-quality crimping tool featuring a ratcheting mechanism–avoid budget models lacking this feature, as they often fail to fully seat conductors. Verify the tool’s die matches 8P8C connectors to prevent misalignment during compression, which can degrade signal integrity. Inspect the cutting blades for sharpness; dull edges fray strands, increasing resistance and susceptibility to interference.
A wire stripper calibrated for 24-26 AWG pairs (standard for data-grade twisted lines) prevents accidental nicking of copper. Choose models with adjustable depth guides to remove exactly 1.5–2.0 cm of outer jacket–too little risks shorting, too much exposes conductors to damage. Replace immediately if blades show visible wear; precision here eliminates 30% of common termination faults.
Modular plugs must meet ANSI/TIA-568 standards: gold-plated contacts (minimum 50 µin plating), polycarbonate bodies for durability, and strain relief boots to prevent conductor misalignment under tension. Verify pin numbering on the connector’s housing–reverse wiring is irreversible and requires cutting off the plug. Bulk purchases from reputable suppliers (e.g., Panduit, Belden) reduce variability in quality; avoid generic batches.
Add a cable tester with LED indicators for each conductor and a built-in remote unit to confirm continuity, shorts, and miswires across all eight paths. Models with tone generation help trace cables in crowded racks, while advanced units measure attenuation and crosstalk. Always test immediately after termination–identifying faults later doubles rework time, especially in long runs or behind walls.
Common Mistakes to Avoid When Setting Up Network Lines
Skipping the verification of twisted-pair integrity before termination leads to intermittent signal drops. Each conductor pair must maintain a consistent twist ratio–no more than 12.7 mm (0.5 inches) of untwisted length at the connector–otherwise, crosstalk exceeds -45 dB thresholds, degrading Gigabit performance. Use a cable certifier to validate impedance (100 ± 15 ohms) and return loss before finalizing installations.
Misaligning conductors in the RJ45 plug causes link failures. Pin assignments must follow T568A or T568B strictly–swapping orange-white with green-white, or blue with brown, disrupts PoE delivery and data transmission. Verify each conductor insertion depth (2.5–3 mm into the plug) to prevent shorts. A crimping tool with an incorrect die size compresses the plug unevenly, leading to broken contacts after 50–100 mating cycles.
Over-tightening cable ties at 90-degree bends introduces attenuation. Bend radii should exceed four times the outer diameter (typically 14.5 mm for 24 AWG solid copper) to avoid exceeding 0.2 dB loss per 100 meters. Bundling ties too tightly also compresses the jacket, altering impedance and increasing susceptibility to EMI. Space ties every 15 cm (6 inches) for horizontal runs, using hook-and-loop straps for vertical drops to maintain consistent spacing.
Ignoring jacket strip length when terminating introduces untwisted conductors. Expose only 1.2–1.5 cm (0.5–0.6 inches) of the foil shield (if present) to avoid grounding issues, but leave 2.5 cm (1 inch) of conductors untwisted for proper RJ45 insertion. Stripping too close to the connector risks nicking wires, reducing mechanical pull strength (minimum 20 N per conductor) and causing delayed failures under tension.
Improper Grounding and Shield Handling
Unterminated or improperly grounded foil shields act as antennas, amplifying noise. Shielded twisted-pair (STP) demands 360-degree termination at both ends–missing one end turns the shield into a radiator. Use a drain wire connected to the chassis ground via a 1 μF capacitor to prevent ground loops. For unshielded variants, route lines perpendicular to power conduits, maintaining 10 cm (4 inches) separation to minimize induced EMI.
Using solid-core conductors in patch cords leads to conductor fatigue. Solid copper breaks after 75–100 flex cycles, while stranded cores (7 strands per conductor) endure 5,000+ bends. Confusion arises when mixing types–solid for horizontal runs, stranded for patch cables–to balance durability and termination ease. Verify copper purity (minimum 99.9% electrolytic-grade) to ensure ≤0.188 Ω/100m DC resistance at 20°C, critical for PoE++ (IEEE 802.3bt) delivering 90W.
Omitting cable slack in wall plates causes premature failure. Reserve 30 cm (12 inches) of coiled excess behind plates to accommodate future re-terminations. Avoid sharp edges on backboxes–use grommets to prevent jacket abrasion, which reduces impedance consistency. For outdoor runs, ensure sunlight-resistant jackets (UV-stabilized polyethylene) to prevent cracking; PVC degrades after 2 years under direct UV exposure.
