How to Wire a Cat5e Cable Step-by-Step Color Code Guide
Use the T568B configuration for all endpoints in copper-based Ethernet links operating at speeds up to 1 Gbps. Both ends of a straight-through patch cord must follow the same termination sequence: pin 1 – orange-white, pin 2 – orange, pin 3 – green-white, pin 4 – blue, pin 5 – blue-white, pin 6 – green, pin 7 – brown-white, pin 8 – brown. Deviating from this order degrades signal integrity and causes intermittent packet loss.

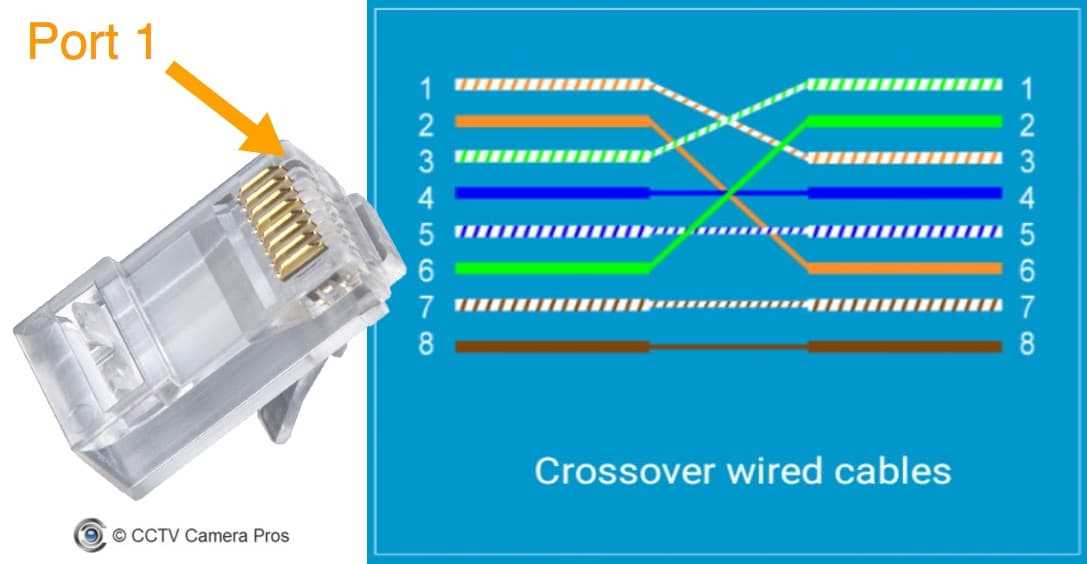

For crossover connections–used exclusively when linking two devices of the same type, such as switch-to-switch or NIC-to-NIC–swap the transmit and receive pairs. Map pin 1 on one end to pin 3 on the opposite end, and pin 2 to pin 6. Modern auto-MDI/MDIX ports eliminate the need for manual crossover, but verifying the pinout prevents compatibility issues in environments with legacy hardware.
Terminate connectors within 1 cm of the jacket edge to minimize untwisted length. Each pair’s twist rate varies: orange and green maintain 18–20 twists per meter; blue and brown, 15–17 twists per meter. Exceeding these limits increases crosstalk beyond IEEE 802.3ab tolerance thresholds, particularly in runs exceeding 55 meters. Use a calibrated crimp tool; verified torque settings range 18–22 inch-pounds to prevent under-crimping or fractured conductors.
Shielded variants (FTP or STP) require a grounded drain wire. Connect the foil shield’s drain wire to the connector’s metallic shell via a 360-degree termination at both ends. Failure to ground introduces noise coupling, negating shield efficacy. Unshielded types assume proper separation from power sources: maintain 20 cm minimum vertical clearance from AC wiring, 45 cm from fluorescent lighting circuits, and 1.2 meters from high-current equipment.
Test continuity with a dedicated network tester. Validate each conductor’s resistance (≤ 9.38 Ω per 100 meters at 20°C) and ensure pair-to-pair crosstalk (≤ -35 dB at 100 MHz). Voltage between any conductor and ground should measure 0 V DC; stray voltage indicates damaged insulation or improper termination.
Practical Steps for T568B Termination
Start by stripping 1.5 inches of the outer jacket from the cable using a precision cutter–avoid nicking the internal conductors. Separate the four twisted pairs immediately after exposure, as delayed separation increases crosstalk risk. Maintain the natural twist of each pair until the final 0.5 inches before termination to preserve signal integrity.

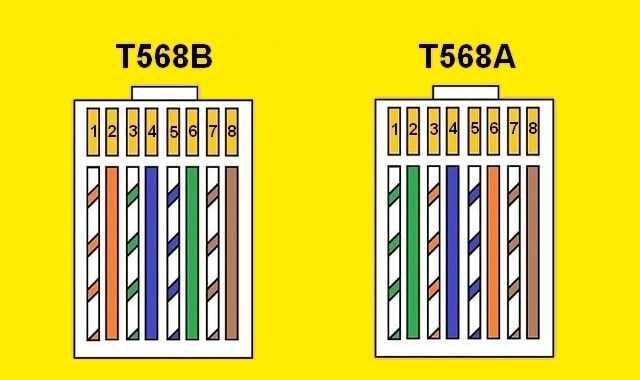

Align the conductors in the T568B sequence from left to right: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Hold the conductors between thumb and forefinger while trimming excess length with diagonal pliers–leave exactly 0.5 inches of exposed wire beyond the jacket for proper seating in the connector.
- White-orange (pin 1) – Transmit+
- Orange (pin 2) – Transmit-
- White-green (pin 3) – Receive+
- Blue (pin 4) – Reserved
- White-blue (pin 5) – Reserved
- Green (pin 6) – Receive-
- White-brown (pin 7) – Unused
- Brown (pin 8) – Unused
Insert the trimmed conductors into the RJ45 plug with the clip facing down. Verify all wires reach the gold contacts at the plug’s tip–failure to do so creates intermittent connections. Apply even pressure while crimping; a quality tool makes a single, crisp click when properly engaged. Test immediately using a cable certifier–expect less than 20 MHz crosstalk at 100 MHz for Gigabit compliance.
For patch panels, use a punch-down tool with a 110-blade for T568B termination. Align each conductor with its respective slot, then strike firmly once. Excess wire should shear cleanly at the block’s edge–repeated strikes damage contacts. Label both ends of the cable before installation; color-coded schemes prevent misconfiguration in rack environments.
- Pre-punch each slot lightly to secure the wire before final termination.
- Verify polarity using a tone generator and probe–avoid relying on visual inspection alone.
- Use a continuity tester to confirm all eight conductors before energizing PoE devices.
When daisy-chaining multiple connections, limit total link length to 90 meters (horizontal run) + 10 meters (patch cables). Exceeding this threshold degrades signal strength, especially at higher frequencies. Use shielded variants (STP) in electrically noisy environments like factories or server rooms–ground the shield at one end only to prevent ground loops.
Troubleshooting Common Errors
Intermittent connectivity often stems from uneven wire length within the connector. Re-trim and re-terminate using a magnifying loupe if necessary. Crosstalk violations typically occur when pairs are untwisted more than 13 mm from the plug–reduce untwist to 8 mm for optimal performance. For Power over Ethernet (PoE) applications, ensure all four pairs carry current; misconfigured pairs lead to overheating.
Test every cable immediately after termination. Use a dedicated cable analyzer rather than a basic continuity tester–verify insertion loss, return loss, and crosstalk. For Gigabit applications, confirm all eight conductors are functional; 10/100 Mbps networks require only two pairs (orange/green), but Gigabit needs all four. Document test results for future reference, including date, tester model, and pass/fail criteria.
Step-by-Step Color Code for T568B Connector Termination
Strip the outer jacket of the twisted pair cable back 30–35 mm to expose the internal conductors, ensuring no nicking of the isolation. Fan out the pairs carefully–avoid untwisting beyond 12 mm to maintain signal integrity and reduce crosstalk.
Arrange the eight conductors in the T568B sequence: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. Hold them between thumb and forefinger, maintaining order without bending the wires excessively.
Trim the conductors to a uniform length of 12–14 mm from the jacket edge using sharp scissors or a crimping tool. Precise cutting prevents shorting and ensures proper contact with the connector pins. Inspect the ends for fraying–retrim if necessary.
Insert the wires into the RJ45 plug, pushing firmly until each conductor seats fully against the connector’s front edge. Verify alignment through the plug’s transparent face–each wire must correspond to its designated pin slot (1–8 from left to right).
Crimp the connector with 10–12 kg of force, engaging the contacts into the conductors. Test immediately with a cable tester: check continuity for all pairs and confirm no split pairs exist–SRL (Structural Return Loss) should not exceed -12 dB at 100 MHz.
If termination fails, discard the connector–do not reuse. Poor crimps create impedance mismatches, degrading performance. For bulk projects, label each end with color-coded boots matching pin 1 (white/orange) for consistency.
Essential Equipment for Structured Cable Termination Using B Standard
Begin with a high-quality crimping tool calibrated for 8P8C connectors–avoid generic models labeled for “telephone use” as they often lack the precision needed for consistent termination. Look for tools with built-in cutting and stripping blades, preferably one with a ratcheting mechanism to ensure full insertion of conductors without damaging the connector housing.
A modular jack punch-down tool with a 110-blade is non-negotiable; select one with an ergonomic design to reduce hand fatigue during extended sessions. Verify the blade type supports both stranded and solid conductors, and check for an integrated impact mechanism to drive contacts fully into IDC slots without requiring excessive force.
Shielded twisted pair demands additional grounding provisions–use cable with an integrated drain wire and prepare a grounding kit containing a 6 AWG copper bonding conductor, a split bolt connector, and antioxidant compound. Bond the shield at both ends if electrical noise exceeds 30 MHz, but leave it floating at one end for lower-frequency environments to prevent ground loops.
For verification, a network cable tester with remote identifier units ensures proper pin mapping–models with PoE detection capabilities are ideal, as they confirm power delivery alongside signal integrity. Avoid cheap testers advertising “pass/fail” functions without port-specific diagnostics, as they cannot detect split pairs or miswired sequences.
Cutting corners on patch cords introduces attenuation–source pre-terminated cords meeting ISO/IEC 11801 Class D standards, with stranded copper conductors and gold-plated contacts. If fabricating custom lengths, use stranded 24–26 AWG wire with a minimum of 7 twists per meter to maintain specified impedance (100 ± 15 ohms).
A toroidal cable tie tool streamlines bundling; adjust tension to 18–22 N (4–5 lbf) to secure cables without compressing outer jackets. For riser-rated installations, flame-retardant sleeves (per UL 2024) must cover exposed runs exceeding 1.5 meters, particularly in plenum spaces where air circulation draws combustion byproducts.
Document each run with labeled connectors and color-coded ports–use a thermal transfer printer for labels capable of 0.5 mm character height, resistant to UV and abrasion. Maintain an inventory log cross-referencing port numbers, cable length, and certification test results (insertion loss, return loss, and crosstalk at 100 MHz) to simplify troubleshooting later.
Critical Errors in Structured Cable Termination
Exceeding the 1/2-inch untwist limit per pair before termination degrades signal integrity. The TIA/EIA-568-B standard specifies this precise distance to maintain proper impedance matching and crosstalk suppression. Violations cause return loss and NEXT failures, particularly at frequencies above 100 MHz where Gigabit Ethernet operates. Use a cable stripper with built-in guides to consistently maintain this tolerance, and verify with a Fluke DTX-1800 tester post-termination.

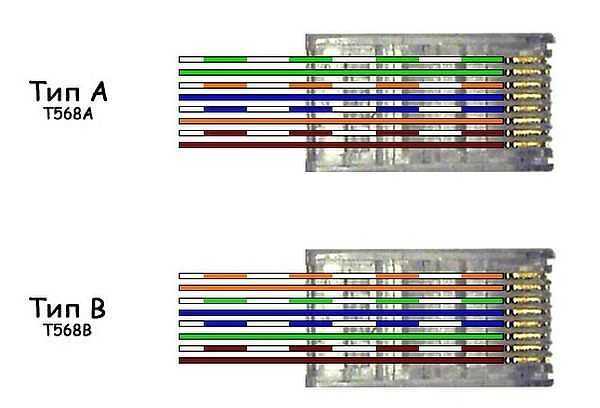

Confusing T568A and T568B pinouts across a single link creates split pairs, rendering the connection unusable. Document each termination point during installation and cross-check with a tone generator before securing connectors. The table below illustrates common misalignment scenarios:
| Pin | Correct T568B | Incorrect Swap | Resulting Issue |
|---|---|---|---|
| 1 | White/Orange | White/Green | Complete link failure |
| 2 | Orange | Green | Gigabit Ethernet fallback |
| 3 | White/Green | White/Orange | PoE voltage drop |
| 6 | Green | Orange | ACR-F margin loss |
Junction boxes and patch panels require strain relief clamps to prevent conductor migration under tension. A 10-pound pull force on an unclamped cable can dislodge terminations over time, introducing intermittent faults. Secure cables with Velcro ties every 18 inches along horizontal runs, and use plenum-rated ties for suspended installations. Avoid zip ties that exceed 2.5 lbs tension–they deform jacket insulation and induce alien crosstalk.
Skipping wire sequence verification before crimping RJ45 connectors wastes time and materials. A single reversed wire at pins 4/5 or 7/8 forces a full retermination. Use a magnifying inspection lamp to confirm color alignment before seating the connector, and keep a dedicated wire map template for rapid reference. For shielded variants, ensure the drain wire contacts the plug’s metal shell along its entire length–failure here compromises EMI protection, causing packet loss in high-noise environments.
