Complete Cat6a Cable Wiring Diagram Guide with Color Code Standards
Use T568A or T568B termination exclusively–mixing pairs causes signal reflection and near-end crosstalk (NEXT) beyond 500 MHz. Both schemes maintain backward compatibility, but T568B is preferred for new installations to align with North American conventions. Confirm the chosen standard across all jacks, patch panels, and patch cords to avoid impedance mismatches.
Solid conductors must be terminated within 13 mm (0.5 in) of the cable jacket to limit untwisted length–exceeding this threshold introduces insertion loss. Use 23–24 AWG solid copper wire exclusively; stranded or copper-clad aluminum increases attenuation and violates ANSI/TIA-568-C.2 specifications for augmented category performance.

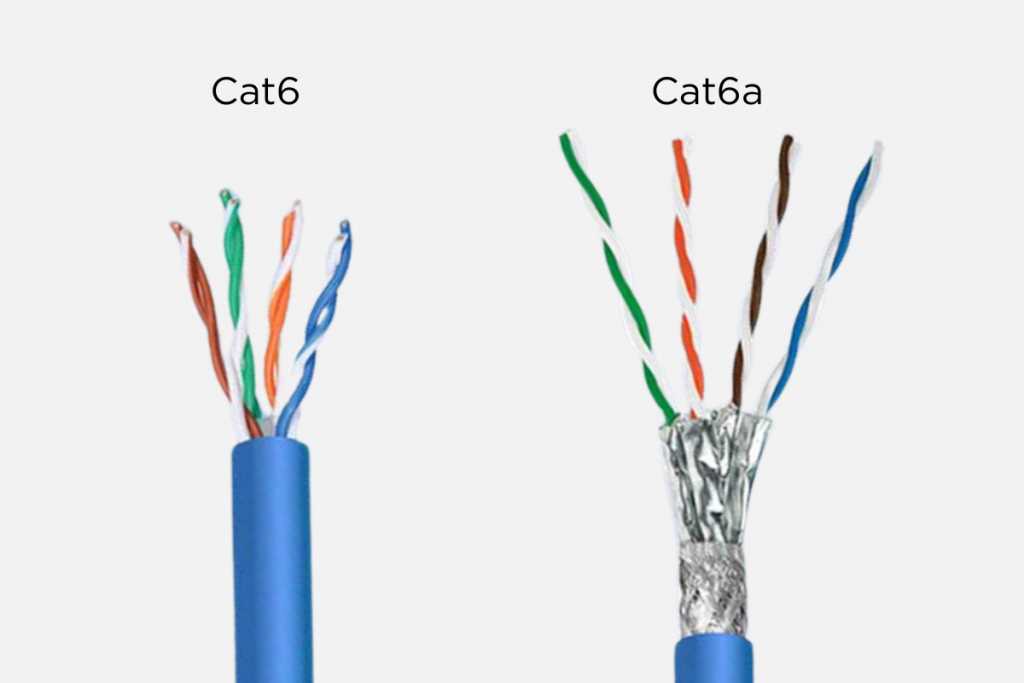

Shielded implementations (F/UTP or S/FTP) require a 360-degree shield termination to the connector and chassis ground. Omitting this bond elevates electromagnetic interference (EMI) and compromises alien crosstalk (AXT) mitigation. Verify continuity with a megohmmeter reading below 1 Ω between shield and ground.
Patch cords must match the permanent link’s construction–mixing shielded and unshielded components invokes coupling capacitance and degrades PSANEXT by 3–6 dB. Test each channel with a Level IIIe certifier to confirm compliance with TIA-1152-A requirements: minimum 650 MHz bandwidth, 60 dB NEXT, 55 dB AXT for full 10GBASE-T support.
Label each end with termination standard, installer identification, and certification date–omitting this step invalidates warranty claims under manufacturer defect liability clauses. Store certifier reports in PDF/A format with embedded timestamp hashes for legal admissibility.
Structured Cabling for 10GBASE-T Networks: Step-by-Step Installation
Start by stripping 1.5 inches of the outer jacket from the cable, exposing the twisted pairs without nicking the conductors. Use a high-quality cable stripper with an adjustable blade depth–catastrophic signal degradation occurs if the insulation is cut through. Arrange the pairs in the EIA/TIA-568B sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown.
Terminate each conductor into an RJ45 shielded connector, pushing the wire until it clicks audibly against the contact pin. Verify continuity with a network tester immediately–unlike lower-grade cabling, 10GBASE-T networks exhibit transmission failures detectable only at full operational speeds. Maintain pair twists within 0.5 inches of the termination point; untwisting beyond this threshold raises alien crosstalk and insertion loss.
- Use only shielded patch panels rated for 500 MHz bandwidth–unshielded jacks introduce near-end crosstalk that renders 10 Gbps speeds unattainable.
- Avoid sharp bends (radius < 4× cable diameter) during installation–permanent kinks distort impedance and cause intermittent link drops.
- Ground the cable shield at both endpoints through a dedicated bonding conductor to eliminate ground loops and EMI interference.
Measure insertion loss with a Level IIIe certifier before connecting active equipment–acceptable values for a 100-meter segment must stay below 20.8 dB at 500 MHz. Test all eight conductors for resistance imbalance; a variance exceeding 5% between pairs introduces latency and retransmission errors.
Label each port with permanent, corrosion-resistant tags that include the termination point, installer ID, and certification date. Document cable routes with exact distances–future troubleshooting becomes exponentially faster when precise lengths are recorded. Store spare cables in anti-static bags with humidity indicators; prolonged exposure to moisture or airborne contaminants degrades insulation integrity.
For horizontal runs exceeding 55 meters in high-density environments (e.g., data centers), use solid-core cable with a polyethylene jacket–stranded conductors exhibit higher attenuation, reducing effective range by up to 15%. Install cable supports every 1.2 meters to prevent sagging, which distorts pair geometry and amplifies alien crosstalk.
After physical installation, configure switch ports to auto-negotiate 10GBASE-T with flow control enabled–fixed-speed settings or disabled flow control increase frame loss during microbursts. Monitor ports for cyclic redundancy check errors; a rate above 0.1% suggests termination faults, twisted pair damage, or improper grounding.
Step-by-Step Pinout Configuration for T568A and T568B Standards
Begin by stripping 1.5–2 inches of the outer jacket from the twisted pair cable, exposing the four twisted pairs inside. Avoid cutting into the insulation of individual conductors–damaged wires degrade signal integrity.
Untwist each pair just enough to arrange them in the correct sequence, but keep the untwisting to a minimum; excess separation increases crosstalk. Hold the connector with the clip facing downward to align pins 1 through 8 from left to right.

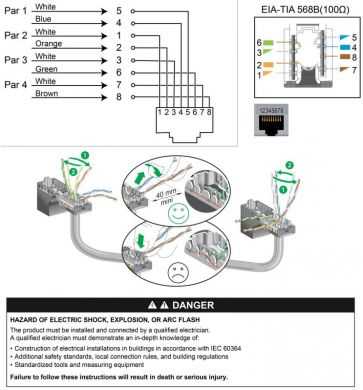

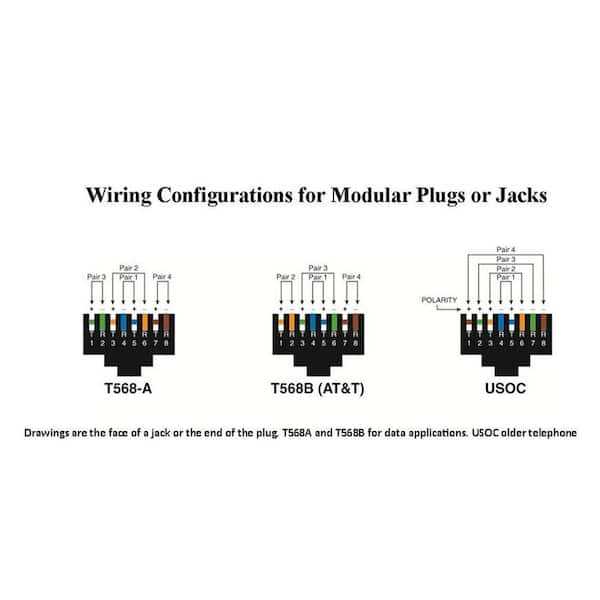

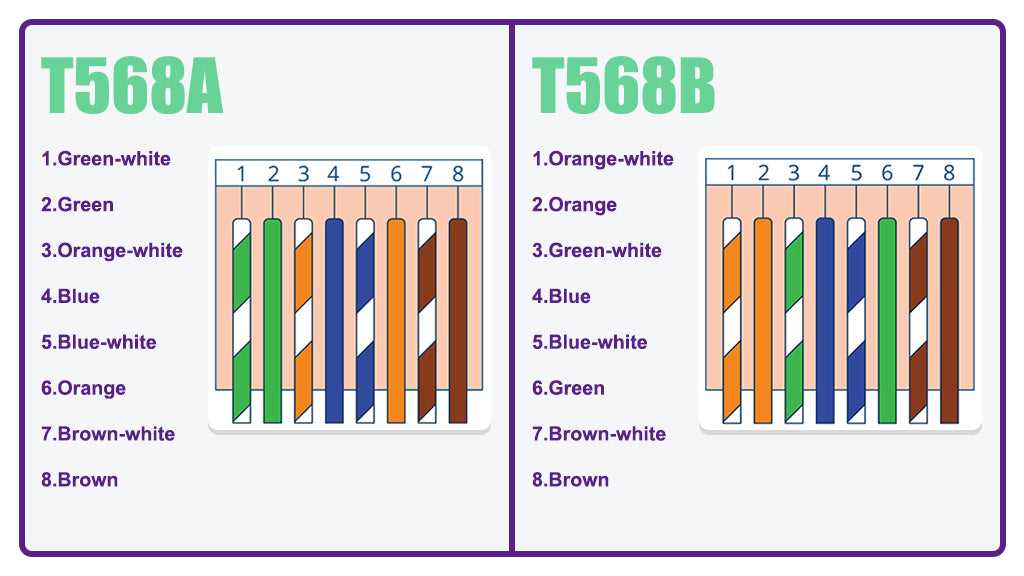

| Pin # | T568A Color Code | T568B Color Code |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
For T568A, arrange the wires in this exact order: White/Green, Green, White/Orange, Blue, White/Blue, Orange, White/Brown, Brown. Ensure the wires lie flat and flush against the connector’s base before crimping–misalignment causes intermittent connections.
For T568B, the sequence changes slightly: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown. This standard dominates commercial installations, so match endpoints unless specifications demand otherwise.
Push the wires fully into the connector until each conductor reaches the front edge–you should see the copper tips through the transparent end. Use a ratcheting crimper with at least 1000 psi pressure to secure the connector; weaker tools create unreliable terminations.
Test each termination with a cable certifier. Verify pin assignments according to the standard used–T568A pairs swap pins 1–2 with 3–6, while T568B swaps 1–2 and 3–6 differently. Skipping this step risks undetected faults causing latency spikes.
Essential Equipment for Terminating Enhanced Ethernet Links
Use a high-leverage crimping tool rated for AWG 23–24 conductors to ensure proper pressure distribution across all eight pins simultaneously–avoid models with uneven jaw alignment. Confirm the tool supports both T568A and T568B termination standards without requiring manual reconfiguration; verify compatibility with 24AWG solid copper cores, as stranded variants demand different force settings. Replace cutting blades if frayed edges appear after 200–300 terminations to prevent sheath damage.
Precision Stripping Gear
Select a rotary stripping tool with depth gauges calibrated to 12.5–13.5 mm–this measurement exposes the optimal twist length while leaving the cross-filler intact. Avoid V-notch style strippers; they risk nicking individual conductors during rotation. Test strip length on scrap segments first, adjusting the blade stop screw incrementally until the jacket slides off cleanly without requiring excessive force.
Stock RJ45 plugs designed for shielded installations if cable runs exceed 55m or traverses high-interference zones–look for metal shrouds with integrated strain relief tabs. Verify plug compatibility with shielded foiled twisted pairs by checking for full circumferential grounding tabs. Keep a continuity tester with dual-mode functionality (pin-to-pin and shield-to-ground) to validate terminations before final deployment; audible tones save time over visual checks alone. Store connectors and cables in static-protective bags at 35–60% relative humidity to prevent oxidation of plated contacts.
Terminating Shielded vs. Unshielded RJ45 Plugs for High-Speed Cables
Begin with a razor-sharp jacket cut–20mm for shielded types, 25mm for unshielded. Use a cable stripper calibrated for 23 AWG conductors to avoid nicking the insulation. For screened variants, expose the foil shield without tearing it; fold it back cleanly over the jacket before terminating. Unscreened types require no additional shielding prep, but maintain strict pair separation to 12.5mm untwist limits per TIA-568 standards.
Arrange conductors in T568B sequence for shielded plugs, verifying pinouts under magnification–misalignment by 1mm disrupts crosstalk performance. For foil-shielded cables, trim conductor tips at a 45° angle to preserve the drain wire’s contact surface. Use a crimping tool with dies rated for 24–22 AWG solid copper; apply 80–100 lbs. of force precisely at the connector’s load bar to ensure full insertion without conductor compression.
Shielded plugs demand soldering or grounding the drain wire to the plug’s metal casing. Use a 60/40 rosin-core solder with a 30W iron; heat the casing for 3 seconds, then apply solder to form a bead no thicker than 1.5mm. Excess solder creates inductive loops–test continuity with a tone generator before securing the latch. Unshielded plugs skip this step; focus instead on minimizing untwisted pair lengths (
Terminate unshielded pairs with a staggered cut technique: trim conductors to descending lengths (blue/orange @ 11mm, green/brown @ 13mm) to reduce skew. For screened cables, stagger lengths inversely (shortest near the drain wire) to optimize foil overlap. Verify pair alignment with a $500+ certifier; impedance deviations above 5Ω indicate poor termination.
Test shielded plugs for DC resistance: 2Ω–5Ω across the drain wire to casing. Exceeding 7Ω requires re-termination–oxidation or insufficient solder bonds cause intermittent grounding. For unshielded setups, check for split pairs using a TDR; reflections above -45 dB at 500 MHz signal improper untwisting. Replace connectors with visible copper exposure; pitting disrupts signal integrity.
Use a torque screwdriver to secure shielded plug casings–8 in-lbs prevents foil tears. For unshielded variants, compress the latch clip with 15 lbs. of force; inadequate pressure leads to retraction failures. Apply a thermal boot over the terminated plug, sliding it 5mm past the jacket to seal the connection. Label cables with heat-shrink tubing; inkjet-printed labels degrade under PoE loads.
Document termination details: note conductor gauge, plug part number (e.g., SN6604 for shielded), and certifier test results. Store unused connectors in anti-static bags with desiccant; humidity above 60% corrodes plated contacts within 90 days. Re-terminate if insertion loss exceeds 0.4 dB during field testing–this margin accounts for real-world patch panel variances.
