Dual D-Type Flip-Flop CD4013 Pinout Circuit Design and Applications Guide
Begin with a 14-pin DIP package configured as a dual bistable multivibrator–each half operates independently yet synchronously. Power the IC with a 3V to 15V supply, ensuring noise decoupling via a 0.1µF capacitor between VDD and ground. Connect the clock input (CP) to a square wave generator at 1kHz for consistent toggling, while tying unused inputs (D, S, R) to ground to prevent erratic behavior.
For edge-triggered toggling, wire the data input (D) to the inverted Q output of the same section. This creates a self-sustaining toggle state: each rising clock edge flips the output. To reset, pulse the set/reset pins (S/R) high momentarily–prioritize R over S when both are active. Incorporate 10kΩ pull-down resistors on all control pins to stabilize logic levels in noisy environments.
Optimize performance by limiting clock speeds to 5MHz under 5V supply, derating to 1MHz at 3V. Use Schottky diodes on Q/Q̅ outputs to clamp voltage spikes when driving inductive loads. For cascading configurations, chain the Q output of the first stage to the CP input of the second–synchronization hinges on matching propagation delays, typically 150ns at 5V. Test with an oscilloscope to verify clean transitions devoid of ringing or glitches.
When interfacing with microcontrollers, buffer inputs with CMOS gates (e.g., 4049) to protect against voltage overshoot. For low-power applications, reduce supply voltage to 3.3V and disable unused sections by grounding their inputs. Document pin assignments meticulously: pin 3 (CP), pin 4 (D), pin 1 (Q)–miswiring risks latch-up, particularly if S/R conflicts occur. Store spare units in anti-static tubes; exposure to >2kV ESD destroys internal oxide layers.
Mastering Flip-Flop Layouts with Dual D-Type ICs
Connect the input pins (D, CLK, SET, RESET) to pull-up resistors (10kΩ) if left floating–this prevents erratic toggling. Power the chip with 3–15V, but stabilize voltage at 5V for CMOS compatibility with microcontrollers. For reliable clocking, use a debounced switch or a square-wave generator (1Hz–1MHz) to avoid metastability. Bypass VDD to VSS with a 0.1µF ceramic capacitor placed within 2mm of the IC to filter noise, especially in high-speed applications.
- Pin 1 (Q1) and Pin 2 (Q̅1) act as complementary outputs–wire Q1 to LEDs or logic gates for immediate state validation.
- Asynchronous SET/RESET dominate over clocked inputs; tie unused pins to VSS to avoid false triggers.
- For divide-by-2 operation, loop Q1 back to D1–this creates a toggle flip-flop, doubling the clock period.
- Test frequency limits: toggle rates drop sharply below
3V; above12V, thermal dissipation requires a heatsink. - Isolate inputs with
1kΩseries resistors if interfacing with non-CMOS signals (>0.7Vpp) to protect oxide layers.
Basic Flip-Flop Configuration Using a Dual D-Type Bistable IC
Begin by connecting the power supply directly to pins 14 (VDD) and 7 (VSS), ensuring a stable voltage range of 3V to 15V. For reliable operation, decouple the supply with a 0.1µF ceramic capacitor placed as close as possible to the IC. Ground data inputs (pins 5 and 9) through 10kΩ pull-down resistors to prevent floating states, which can lead to unpredictable toggling.
To create a data latch, wire the Q output (pin 1) back to the D input (pin 5) of the first bistable stage. Apply a clock pulse (CP) to pin 3 via a 1Hz square wave generator or manual switch debounced with a 1µF capacitor and 10kΩ resistor to eliminate contact bounce. The complementary output (pin 2) will reflect the inverted state of Q, useful for driving LEDs or logic gates.
| Pin | Function | Typical Connection |
|---|---|---|
| 3 | Clock Input (CP) | Pulse source (1Hz) |
| 4 | Set (S) | Pull to VSS (inactive) |
| 5 | Data Input (D) | Q output (feedback) or logic signal |
| 6 | Reset (R) | Pull to VSS (inactive) |
Use the second bistable stage for extended functionality by mirroring the first stage’s connections: D input to pin 9, CP to pin 11, and outputs at pins 13 (Q) and 12 (Q̅). Tie unused set/reset pins (4, 6, 8, 10) to ground via 1kΩ resistors to prevent spurious activation. For edge-triggered operation, ensure clock transitions are sharp; Schmitt-trigger inputs (e.g., CD4093) can clean noisy signals before feeding the CP line.
Test stability by monitoring Q outputs with an oscilloscope or logic probe during clock transitions. Adjust resistor values if metastability occurs–reduce feedback path resistance to 4.7kΩ for faster switching, or increase to 22kΩ for slower, more reliable operation in noisy environments. Avoid exceeding 1MHz clock speed without proper layout, as parasitic capacitance can degrade performance.

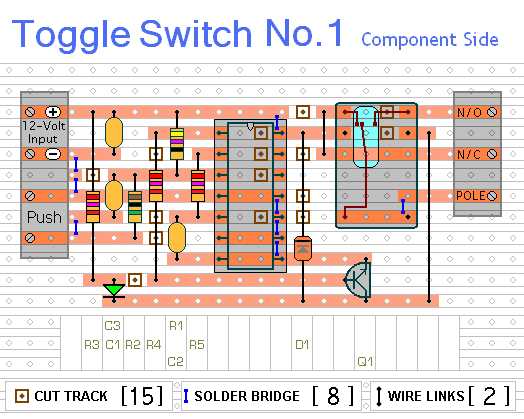

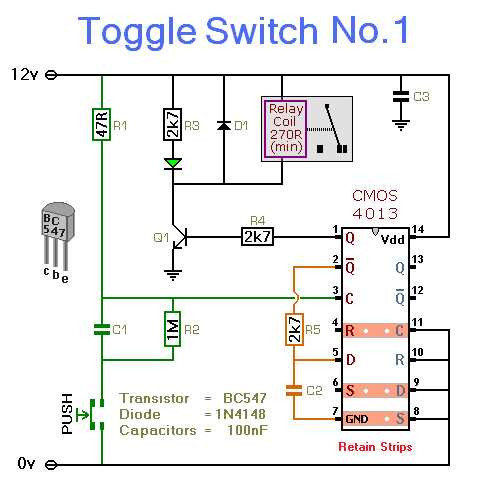

Configuring a Dual Flip-Flop IC for Latching Switch Behavior
To achieve reliable toggle operation, connect the data input (D) to the inverted output (Q̅) of the same stage. This creates a feedback loop essential for stable state changes. Use a momentary pushbutton tied to the clock (CLK) input–each press will alternate the output between high and low without bounce effects.
- Power pins: Apply 3–15V between VDD (positive) and VSS (ground). Decouple with a 0.1µF capacitor close to the IC for noise immunity.
- Reset/set override: Keep R and S pins low (GND) unless immediate clearing or setting is required. Pulling R high forces Q low; S high forces Q high.
- Input conditioning: Add a 10kΩ pull-down resistor on CLK to prevent false triggers. For mechanical switches, pair with a 0.01µF debounce capacitor to CLK.
For dual-stage toggling, cascade both flip-flop sections. Link the Q output of the first stage to the CLK input of the second. This divides input pulses by four, useful for sequential state machines or multi-button interfaces.
Outputs drive small loads directly. For higher current requirements–LEDs, relays, or transistors–buffer with a 2N3904 (NPN) or logic-level MOSFET. Connect Q to the base/gate through a 1kΩ resistor; include a flyback diode (1N4007) for inductive loads.
- Verify supply voltage matches IC tolerances. Lower voltages increase propagation delay but reduce power draw.
- Test in isolation before integration. Probe CLK and Q with an oscilloscope to confirm sharp transitions (typical ~200ns rise/fall).
- Optimize debounce components empirically. Fingers vary; 5–10ms stability is typical. Increase capacitance for noisier switches.
Parallel the D and Q̅ connection only after confirming basic toggle function. Incorrect feedback causes metastability or oscillation at power-up. Reset circuitry should override this path for predictable initialization.
For battery-powered applications, minimize quiescent current by ensuring all unused inputs float to GND or VDD. Unconnected inputs act as antennas, drawing microamps unnecessarily. Apply high-value resistors (1MΩ) to prevent latch-up during transients.
Extension: Combine with an SPDT switch for dual-mode operation. Route the common terminal to CLK, then split normally-open/closed to separate D inputs. This toggles output polarity without adding components. Add series resistors (1kΩ) to limit switch current during accidental shorts.
Eliminating Switch Bounce with a Dual Flip-Flop Setup
Connect the push button between the clock input (CP) of the first D-type latch and VDD, using a 10 kΩ pull-down resistor to GND. Route the button’s output through a 0.1 µF ceramic capacitor to filter high-frequency noise before it reaches the flip-flop. Tie the data input (D) high (VDD) and link the inverted output (Q̅) back to the data input to create a toggle function–this ensures a single, clean transition per button press, removing bounce artifacts.
Add a second identical stage with its clock input driven by the first stage’s non-inverted output (Q) for edge-triggered operation. This cascading configuration delays state changes until the input settles, doubling the debounce period to ~20 ms–adequate for most mechanical switches. Decouple each power pin (VDD) with a 0.01 µF capacitor placed within 2 mm of the IC to suppress voltage spikes that could falsely trigger the flip-flops.
For switch types with prolonged bounce (e.g., membrane keypads), increase the capacitor value to 0.47 µF or add a 1 kΩ resistor in series with the clock input to form an RC delay network. Test with an oscilloscope; the output pulse width should remain stable at 50% duty cycle regardless of input jitter. Avoid ceramic capacitors below 0.047 µF–they lack sufficient charge retention to mask bounce durations typical of tactile switches.
When wiring to microcontrollers, buffer the output with a 470 Ω resistor to prevent back-feeding current during rapid toggling. For low-power applications, substitute the pull-down resistor with 100 kΩ and reduce decoupling capacitor values to 0.001 µF–this extends battery life while maintaining bounce suppression for switches rated at 50 mA contact current. Never omit the ground plane beneath the IC; it stabilizes thresholds and minimizes radiated noise from fast-edged signals.
Constructing a Reliable Two-Stage Frequency Splitter
Connect the clock input directly to the data pin of the first flip-flop stage using a 10 kΩ pull-down resistor to prevent floating states. Ensure the complimentary output (Q̅) loops back to the data input (D) via a 1 kΩ current-limiting resistor–this creates a self-toggling state, halving the input frequency at each stage’s Q output. For stable operation, decouple the power supply with a 0.1 µF ceramic capacitor placed within 5 mm of the IC’s VDD pin; longer traces introduce noise that disrupts edge triggering.
Use a Schmitt-trigger inverter (e.g., 74HC14) between the oscillator and the flip-flop chain if the clock source lacks sharp transitions–this eliminates metastability by enforcing clean rising/falling edges. Test the output waveform with a 10x oscilloscope probe; ringing above 0.5 Vpp indicates insufficient ground plane stitching–solder a 1 nF capacitor across the flip-flop’s VDD and GND pins to suppress high-frequency spikes. For frequencies above 1 MHz, reduce trace lengths below 2 cm; parasitic inductance at 5 MHz causes phase jitter exceeding ±2%.
Bypass the reset (R) and set (S) pins with 10 kΩ resistors to VSS to prevent unintended state changes–floating inputs draw microampere leakage currents that shift switching thresholds unpredictably. Verify functionality by injecting a 1 kHz square wave; the Q output should alternate at 500 Hz with a 50% duty cycle. Deviations signal incorrect feedback routing or insufficient decoupling–remeasure rise/fall times: acceptable values range between 50–200 ns for standard CMOS logic.
