Understanding Electrical Cell Symbols and Their Role in Circuit Schematics

Use the single straight and dashed lines for batteries in schematics. A vertical straight line marks the positive terminal, while a shorter parallel dashed line indicates the negative. The gap between them reflects voltage–standard spacing suggests 1.5V per segment, but multiple segments stack for higher outputs. Avoid angled or curved variations unless documenting unconventional power units, as they reduce clarity.

Label voltage explicitly next to the symbol. Even if spacing implies nominal values (e.g., AAA alkaline = ~1.5V, lithium coin = ~3.0V), explicit annotation prevents misinterpretation. For multi-cell configurations, add numeric values (e.g., “4 × 1.2V NiMH = 4.8V”) near the lines. Hide internal wiring–internal connections between stacked segments are assumed and clutter schematics.

For rechargeable sources, cross-reference the chemistry in a separate legend. Lead-acid (2.1V per segment), nickel-metal hydride (1.2V), and lithium-ion (3.7V) differ in discharge curves and internal resistance. Note temperature dependencies: a 12V lead-acid drops to 11.8V at -18°C, while lithium-ion holds ~3.6V. Include these details in margin notes or linked references.

Ground references tie power symbols into the broader system. A direct downward line from the dashed terminal connects to common ground–ensure this line avoids intersecting other traces unless using node markers (#1, #2). In mixed analog-digital designs, separate grounds (AGND/DGND) require distinct symbols; label them to prevent ground loops.

Verify symbol consistency across toolsets. KiCad defaults to minimalist lines, Altium favors thicker strokes, and SPICE netlists may omit visual symbols entirely, relying on text attributes (e.g., “*Vbat 3 0 DC 9”). Standardize representations early–redraw non-compliant symbols during schematic review phases.

Depicting Power Sources in Schematic Illustrations

Use a vertical line pair with a longer positive terminal (right side) to represent electrochemical storage elements in wiring sketches–ensure a 3mm gap between lines and maintain consistent spacing across all instances within the same document. For lithium-based units, add “+Li” above the positive terminal; zinc-carbon variants require no markings. Avoid diagonal placement unless simulating a multi-layer board layout, where rotation must align with grid increments of 15°.

Standardize symbol dimensions at 12mm height for single-voltage components; modular stacks should scale by 4mm per additional 1.5V increment while preserving the 1:3 ratio between line thickness and internal gap. When drafting parallel configurations, separate individual symbols by a minimum of 8mm to prevent visual merging–grouping three or more demands a dashed bounding box with rounded corners (radius 2mm). For non-rechargeable types, append an arrow perpendicular to the positive terminal, directed outward at 30°.

How to Depict Power Sources in Electrical Blueprints

Start by placing the longer line at the positive terminal and the shorter line parallel to it for the negative terminal in all schematic drawings. This convention is universally recognized, ensuring clarity across engineering disciplines and geographic regions.

For multi-section power units, stack individual voltage sources vertically with equal spacing between segments. Each pair should align precisely to avoid visual ambiguity, particularly in complex layouts where misalignment could mislead interpretation of voltage distribution.

Variations for Specialized Configurations

Use offset parallel lines with an angled connecting line to represent rechargeable elements in energy storage diagrams. This distinctive symbol immediately distinguishes them from non-rechargeable counterparts, critical in designs requiring cyclical energy flow.

When illustrating open-circuit voltage or theoretical sources, add a diagonally crossed rectangle encompassing the standard voltage symbol. This modification clearly indicates non-operational or idealized states without physical connections, preventing misinterpretation during prototype development.

Advanced Symbol Representations

Apply concentric half-circles around the primary voltage symbol to denote electrochemical elements with additional chemical properties, such as corrosion resistance or temperature-dependent output characteristics. Three half-circles signify enhanced specifications, while fewer circles indicate basic variants.

In modular designs, combine multiple voltage symbols with intersecting lines to show parallel bank arrangements, ensuring proper polarity alignment. Label each segment with numerical values only–avoid text within the schematic itself to maintain readability during scaling or reproduction.

For transient simulations or pulsed sources, overlay a dashed box around the voltage symbol while preserving terminal orientation. This approach differentiates time-variant behavior from steady-state components without altering core symbol geometry, which remains critical for rapid visual parsing.

Standard Battery Symbols in Schematic Representations

Use a single straight line with a shorter perpendicular line at one end for basic power sources in schematics. The long line represents the positive terminal, while the short line marks the negative. This is the default symbol for a single electrochemical unit in low-voltage designs, ensuring immediate recognition in any layout.

For batteries with multiple electrochemical units stacked in series, extend the symbol by repeating the parallel lines while maintaining consistent spacing. Each additional pair increases the total voltage proportionally–two pairs represent a 3 V configuration, three pairs yield 4.5 V, and so on. Label each variant directly beneath the symbol to prevent misinterpretation during prototyping.

Long-life power sources with stacked electrochemical units often integrate a dashed vertical separator between the terminal lines. This variation signals a sealed, maintenance-free unit–common in consumer electronics and portable instrumentation–without requiring textual annotation. Avoid altering the length of the dashed line, as it confuses interpretation with alternating or pulsed voltage symbols.

Schematic libraries frequently include a variant with a curved bottom line for compact alkaline or lithium stacks. This curvature distinguishes non-rechargeable units from secondary power sources, which typically retain straight lines. Rely on this visual cue to streamline component selection during board population.

When depicting parallel arrangements, align identical symbols horizontally and clearly indicate connection points with dot markers. This prevents accidental misreading as series configurations and clarifies current distribution. For clarity, supplement the visual with numeric voltage or capacity values adjacent to each symbol.

High-voltage industrial stacks exceeding 24 V combine both parallel line pairs and numerical annotations. Use a bold outer rectangle to enclose the entire configuration, reinforcing the distinction from control signals. Always cross-reference the schematic with the manufacturer’s datasheet to confirm pin polarity and voltage rating.

Custom battery packs with internal protection circuitry may substitute the standard lines with a rectangular outline containing terminal indicators (+/–). This adapted symbol preserves schematic simplicity while signaling additional complexity–ideal for ensuring safe integration without crowding the drawing with unrelated details.

Voltage and Polarity Labeling in Electrochemical Sources

Mark the positive terminal with a “+” symbol and the negative terminal with a “−” sign, ensuring a minimum font size of 2.5 mm for visibility. Place labels adjacent to the terminals, never inside the graphical representation. For multi-layered schematics, use color-coded voltage indicators–red for positive, blue for negative–to avoid ambiguous interpretations. Specify nominal voltage inside a small rectangle 2 mm from the terminal, e.g., “3.7 V” for lithium-ion, accompanied by the unit symbol “V” in uppercase. If space constraints exist, abbreviate to “3V7” but never omit the decimal separator.

Critical Labeling Practices

• Align polarity markers horizontally when the source is drawn vertically to prevent misreading.
• For asymmetrical sources (e.g., button batteries), place the “+” above the “−” to reflect physical orientation.
• Avoid stacking labels vertically; overlap causes confusion in dense layouts.
• Use a 0.5 mm stroke width for all symbols to maintain legibility after scaling.
• In balanced configurations (e.g., dual-supply op-amps), label midpoint voltage–e.g., “±5 V”–centered between terminals.
• For variable sources, append a horizontal arrow to the voltage value with “Adj” or a range (e.g., “0–9 V”).
• Never use parentheses or brackets around voltage values; they imply optional or conditional readings.

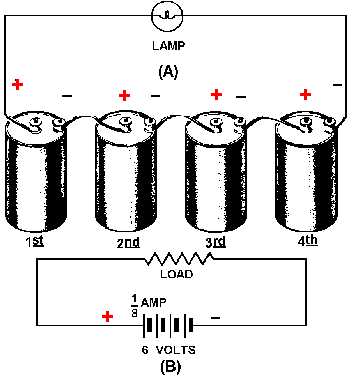

Connecting Power Sources in Series vs. Parallel: Key Differences

Always match internal resistance when arranging multiple batteries in parallel–mismatched values create circulating currents, reducing efficiency and lifespan. Series configurations tolerate slight mismatches but demand uniform voltage to prevent weak links from dragging down the stack. For lithium-based units, balance charging is non-negotiable in series; parallel setups distribute load naturally but require current-limiting precautions to avoid thermal runaway during connection.

Output characteristics split sharply:

Parameter	Series Arrangement	Parallel Arrangement
Total Voltage	Sum of individual voltages	Single unit voltage
Current Capacity	Single unit current	Sum of individual currents
Load Duration	Same as single unit	Extended by number of units
Failure Impact	Total system failure	Partial capacity loss

High-power applications like electric vehicles use series strings to meet voltage demands, while parallel banks suit backup storage where runtime extension matters more than peak voltage.

Wiring complexity escalates with series chains–each connection point introduces resistance that compounds voltage drop. Parallel layouts simplify scaling; adding units only requires matching polarity and monitoring for unequal discharge paths. Measure voltage sag under load in both setups: series stacks exhibit steeper drops as internal resistance accumulates, whereas parallel groups maintain stable output until deep discharge.

When to Choose Series

Select series coupling for motors, inverters, or tools requiring 24V, 48V, or higher–stack alkaline or NiMH units for cost-effective solutions without current-limiting circuitry. Lithium iron phosphate excels here due to stable chemistry but mandate protection circuits to prevent overcharge. Avoid mixing ages or brands; newer units dominate load share in parallel but drag down series performance if weaker.

When to Choose Parallel

Parallel suits low-voltage, long-run scenarios like LED lighting or portable electronics using three or more identical units. Computer power supplies commonly use this approach to handle peak demands without voltage fluctuation issues. Always fuse each branch independently–parallel faults can cascade if not isolated. For lead-acid units, float charging maintains balance; lithium requires active monitoring to equalize state-of-charge across branches.
