Step-by-Step Guide to Designing a Custom Charger Circuit Schematic

Start with a linear regulator for simplicity if input voltage stays within 2V of the target output. A 7805 suits 5V outputs with up to 35V input, but efficiency drops below 50% at 12V input. Pair it with a 100µF input capacitor and 10µF output capacitor to suppress ripples above 100mV. For currents above 500mA, mount the regulator on a 10cm² heatsink rated at 15°C/W to prevent thermal shutdown.

Switch-mode designs cut losses but demand precise component selection. Use a buck converter IC like the LM2596 for 3A outputs, pairing it with a 33µH inductor and 47µF capacitors at input/output. Keep switching frequencies above 50kHz to avoid audible noise but below 500kHz to limit high-frequency losses. Calculate inductor saturation current as 1.5× max load current to prevent core saturation.

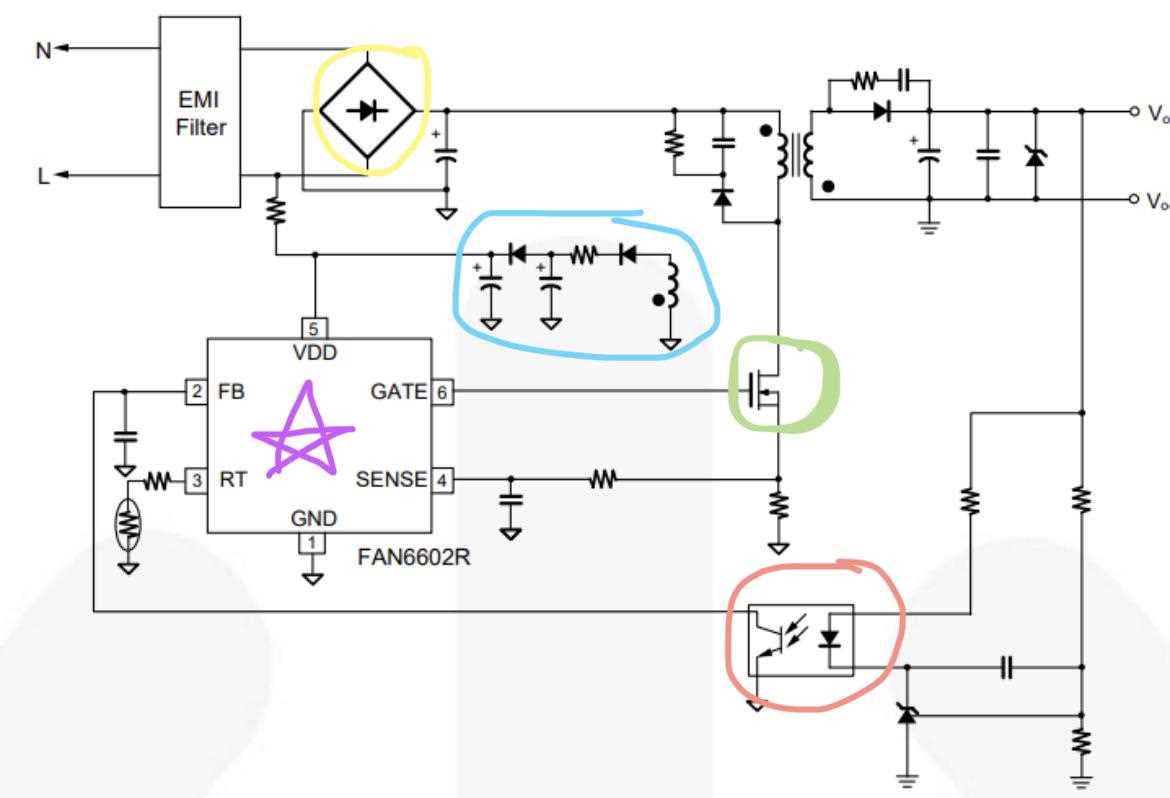

Isolation adds safety for medical or industrial setups. Opt for a flyback topology with a UC3843 controller, using a 1:1 transformer for 5W–50W ranges. Wind the primary and secondary with 3mm clearance for 2kV isolation; verify with a hipot tester at 3kV. Include a snubber circuit (220Ω + 470pF across the switch) to clamp spikes above 50V.

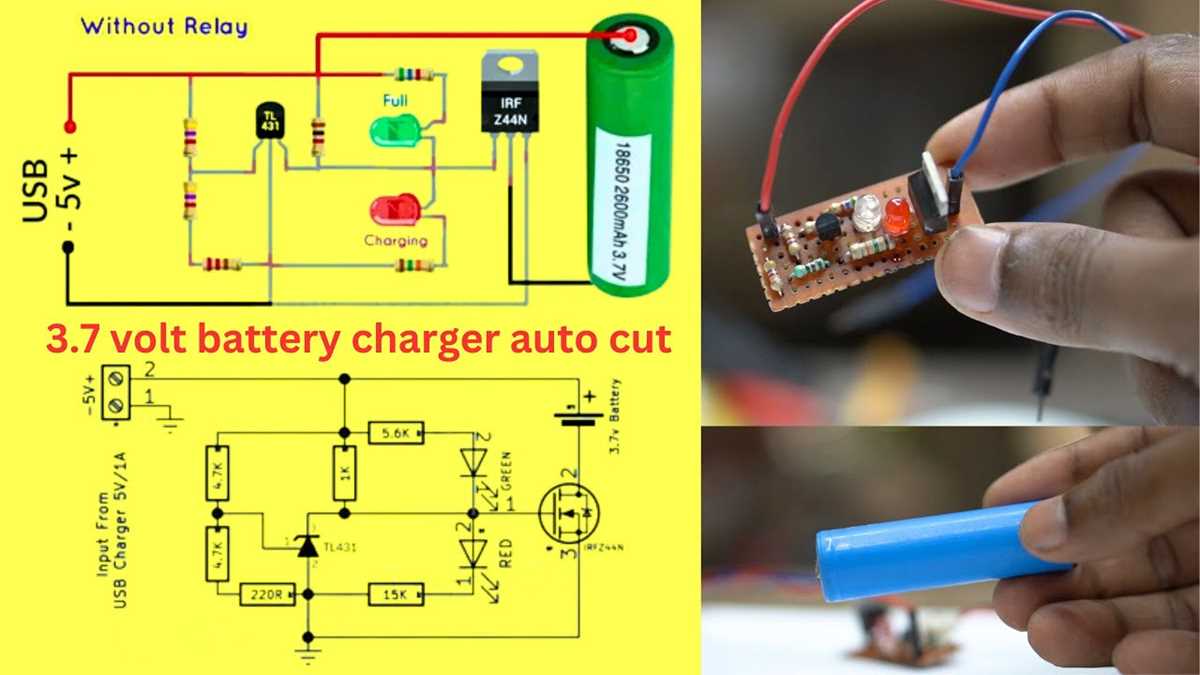

Battery-dependent systems need charge termination. For Li-ion, set a CC/CV profile: hold 4.2V/cell until current drops to 5% of C-rate (e.g., 50mA for a 1Ah pack). Use a microcontroller with ADC to monitor voltage accuracy within 10mV. Add a thermal sensor (NTC) to throttle charging above 45°C, cutting power entirely if the temperature exceeds 60°C.

Designing a Reliable Power Adapter Layout

Begin with a linear regulator or switching converter based on efficiency needs–use an LM317 for simplicity at ≤1A or an LM2596 for outputs above 1.5A. Connect input capacitors (10μF ceramic) directly across the supply pins to suppress voltage spikes; place 1μF output caps no farther than 1 cm from the load. Add a flyback diode (1N4007) on the input side if driving inductive elements to prevent back EMF damage. Ground loops are minimized by routing the return path as a single contiguous plane beneath the entire board; split analog and digital grounds only at the power source with a ferrite bead.

Select R1 and R2 for voltage divider ratios using this formula: V_out = 1.25(1 + R2/R1). For 5V output, set R1=240Ω and R2=750Ω (±1%). Include a 10kΩ thermistor near the primary pass element to trigger thermal shutdown at 125°C. Keep trace widths ≥2 mm per ampere for currents above 500 mA to prevent overheating. Test transient response by pulsing load from 10% to 90% of rated current at 1 kHz; acceptable overshoot ≤5%.

Key Components of a Basic USB Power Adapter Layout

Select a switching regulator with a 70-90% efficiency rating for input voltages between 5V and 20V to optimize conversion losses. Linear regulators waste excess voltage as heat, making them impractical for low-power designs where thermal dissipation is a concern. For micro-USB or Type-C outputs, ensure the regulator supports programmable current limiting (e.g., 500mA to 3A) to match device charging protocols without overloading.

Add a transient voltage suppression (TVS) diode with a clamping voltage 10-20% above the maximum input voltage to protect against voltage spikes. Polyfuse selection should align with the expected load–choose a 1A fuse for 500mA loads or a 2.5A fuse for 2A+ currents to ensure reliable overcurrent protection without nuisance tripping. Below is a comparison of common protection components:

Component	Function	Typical Values	Critical Specifications
TVS Diode	Spike absorption	5.8V-24V	Clamping voltage, reverse standoff
Polyfuse	Overcurrent cutoff	0.5A-3A	Hold current, trip time
Output Capacitor	Load transient response	10µF-47µF	ESR, voltage rating

Feedback Loop and Voltage Regulation

Implement a resistive divider network to scale the output voltage to the regulator’s feedback reference (typically 1.25V). Use 1% tolerance resistors–common configurations include 10kΩ (upper) and 2.2kΩ (lower) for a 5V output–to maintain accuracy within ±2%. For adjustable regulators, prioritize low-tempco resistors to prevent drift across operating temperatures (-20°C to 85°C).

EMI Mitigation and Layout Practices

Place input and output capacitors (

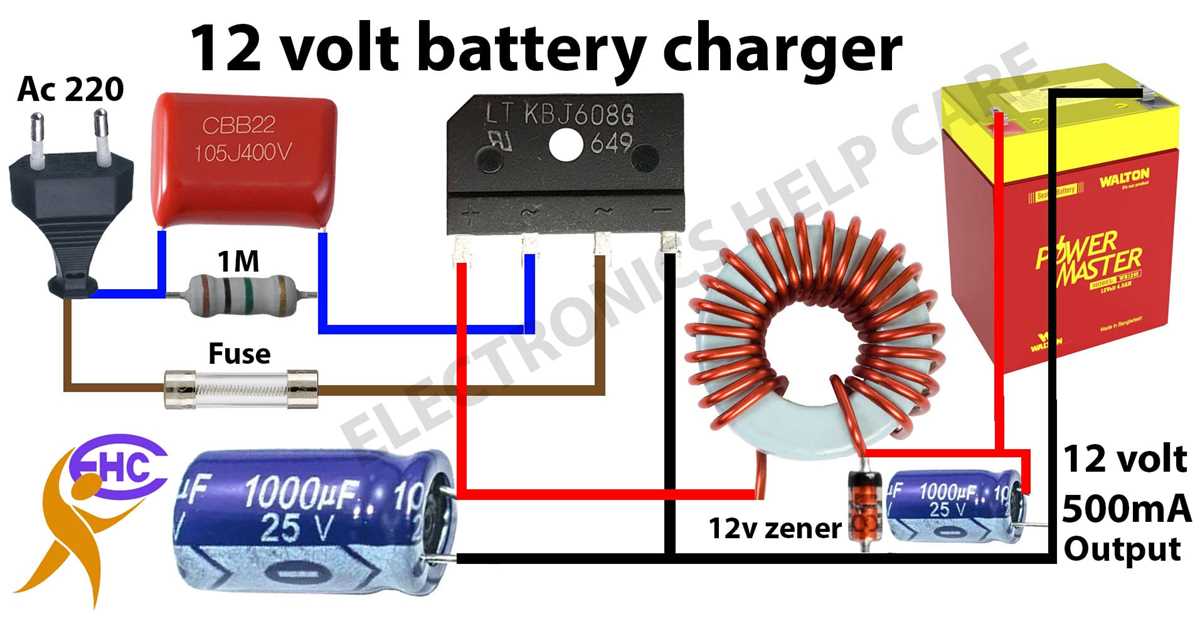

Step-by-Step Guide to Designing a 5V Power Supply Setup

Select a 7805 linear regulator as the core component for your voltage stabilizer. This IC ensures a consistent 5V output with minimal ripple, handling currents up to 1A. Pair it with a 220µF input capacitor (rated for at least 16V) and a 100µF output capacitor (6.3V or higher) to filter noise and smooth transient responses. For improved thermal management, mount the regulator on a heatsink if the load exceeds 500mA or ambient temperatures rise above 50°C.

Follow this assembly sequence:

• Connect the transformer’s secondary winding (9V–12V AC) to a bridge rectifier (e.g., MB10S) to convert AC to pulsating DC.
• Solder the input capacitor across the rectifier’s output, observing polarity–positive to the regulator’s Vin pin.
• Link the regulator’s GND pin to the circuit’s common ground and the Vout pin to the load via the output capacitor.
• Add a 0.1µF ceramic capacitor between Vin and GND to suppress high-frequency noise.
• Test with a multimeter: verify ~1.2V drop across the regulator (input minus output) and ≤50mV ripple under full load.

Avoid skipping the step-down transformer–direct mains connection risks catastrophic failure. Use 24-gauge wire for connections carrying over 300mA to prevent voltage drops. For variable input scenarios (e.g., automotive applications), replace the transformer with a buck converter module (e.g., LM2596) for efficiency gains up to 90%.

Key Errors in Power Adapter Assembly and Corrective Measures

Reverse polarity remains the most frequent yet overlooked failure point. Lithium-ion cells and sensitive devices withstand no more than 50 mV reverse voltage without degradation. Verify connections with a multimeter before finalizing solder joints. Label positive and negative terminals explicitly, even on prototypes–silicone sleeves or colored wires prevent ambiguity.

• Incorrect gauge selection causes overheating. A 2A source demands at least 22 AWG copper wire; thinner strands introduce resistance, reducing efficiency by up to 12% at full load. Measure wire length–every additional 30 cm increases voltage drop by 0.1V over 2A draw.
• Skipping transient protection invites voltage spikes. Install a 1N4007 diode across coils or a 22 μF capacitor at input terminals to absorb transients. Without suppression, MOSFETs and ICs fail within 100 hours under typical load.

Ground loops develop when multiple paths share a return line. Dedicate a single low-impedance ground trace wider than 2 mm on PCBs or use braided wire for off-board setups. Currents exceeding 500 mA split unpredictably, causing erratic behavior. Test with an oscilloscope–stable waveforms confirm proper grounding.

Overlooking thermal management shortens component lifespan. Linear regulators dissipate heat proportional to input-output differential; a 12V-to-5V conversion at 1A wastes 7W. Use 2 oz copper layers, thermal vias spaced every 5 mm, or heatsinks rated for 4°C/W. Without mitigation, junction temperatures exceed 125°C within seconds.

1. Failing to isolate feedback paths creates ripple sensitivity. Keep PWM signals at least 10 mm from output traces and shield with a ground plane. Shielded cables add 2 mm thickness but reduce noise by 90%.
2. Neglecting input filtering destabilizes switching-mode sources. Place a 10 μF ceramic cap directly on IC pins and another 100 μF electrolytic at input terminals. Ripple exceeding 50 mV peak-to-peak triggers false detection in protection ICs.

Last-minute changes disrupt proper load testing. Bench-test each revision at 20%, 50%, and 100% rated current for at least 30 minutes. Logging voltage, current, and temperature validates thermal design. Undetected flaws–like a loose connector–manifest only under prolonged stress, often after deployment.

How to Calculate Resistor and Capacitor Values for Stable Voltage Output

To ensure a regulated voltage supply, begin by determining the desired output voltage (V_out) and maximum load current (I_load). For a linear regulator with a dropout voltage (V_drop) of 1.5V–2V, use the formula: R_adj = (V_ref / I_adj) × ((V_out / V_ref) – 1), where V_ref is typically 1.25V for common regulators (e.g., LM317) and I_adj is around 50–100µA.

For input filtering, select a capacitor (C_in) based on ripple voltage (V_ripple) and source impedance. Use C_in ≥ (I_load × Δt) / V_ripple, where Δt is the ripple period (e.g., 10ms for 50Hz). A 1000µF capacitor suffices for 1A loads with 0.5V ripple. Verify ESR (equivalent series resistance) to avoid instability–target

Output capacitance (C_out) stabilizes transient response. For most linear regulators, C_out ≥ 22µF per ampere of load current prevents oscillations. Ceramic capacitors (X7R/X5R dielectric) are preferred for low ESR, but require higher values (e.g., 47µF) due to voltage derating. Check the regulator’s datasheet for minimum/maximum capacitance limits–some require ≤10µF.

Resistor noise in adjustable regulators can be minimized by keeping R₁ (between output and adjust pin) ≤240Ω. Calculate R₂ as R₂ = R₁ × ((V_out / V_ref) – 1). For low-noise applications, parallel R₂ with a 0.1µF bypass capacitor to reduce thermal drift.

Thermal considerations dictate resistor power ratings. Use P = I_adj² × R; for 50µA and 240Ω, power dissipation is negligible, but for higher currents, select resistors with ¼W or ½W ratings. Wirewound types offer better stability for precision applications.

For switching converters, calculate the feedback divider resistors (R_fb1, R_fb2) using V_out = V_ref × (1 + R_fb1 / R_fb2), where V_ref is often 0.8V or 1.0V. Ensure the divider current is at least 10× the controller’s bias current (typically 10–100nA). Ceramic capacitors in feedback loops (

Load transient response demands bulk capacitance. For a 2A step load, a 470µF aluminum electrolytic capacitor (ESR

Temperature derating affects capacitor performance. X5R ceramics lose 50% capacitance at 85°C; multiply nominal values by 2× for high-temperature environments. Polymer electrolytics handle derating better but cost more. Always cross-check calculations with the regulator’s stability plots–some controllers mandate specific ESR ranges (e.g., 0.01Ω–1Ω).
