Complete Chevrolet S10 Wiring Diagram Guide for Electrical Troubleshooting
Locate the fuse block under the dashboard near the driver’s side kick panel. Remove the cover to reveal relay slots and numbered fuse positions–refer to the owner’s manual for precise assignments. For the 1994-2004 models, fuse #12 controls the headlight circuit, while #18 handles the fuel pump. Use a multimeter set to 20V DC to verify voltage at these points before proceeding.
Disconnect the negative battery terminal before inspecting the harness. The main engine harness runs along the firewall, splitting into branches for ignition, sensors, and lighting. Follow the blue wire with a yellow stripe (BK/Y) from the alternator to the voltage regulator–this path carries charging current. If voltage drops below 13.8V at the regulator, check the ground connection at the engine block.
For exterior lighting issues, trace the brown wire from the tail lamp assembly toward the front of the vehicle. It merges with the green wire near the driver’s side A-pillar, forming a junction with the turn signal and brake light circuits. A short here typically affects both rear brake lights–test continuity between the bulb socket and chassis ground.
The ECM harness uses a 22-pin connector mounted behind the glove box. Pin 17 (red/black stripe) delivers 12V+ ignition feed, while pin 7 (dark green/white) relays engine coolant temperature data. Probe these terminals with the ignition on to confirm signal integrity–fluctuations above 4.5V indicate a faulty sensor or corroded connector.
Troubleshoot power windows by accessing the door panel. The master switch harness contains six wires: two for the motor (gray and light blue), two for the lock actuator (yellow and purple), and two for the window/door lock relays (dark blue and pink). Swap the motor wires at the switch to isolate failure–if the window moves in reverse, the switch requires replacement.
Electrical Blueprint for the Mid-Size Pickup: Key Connections

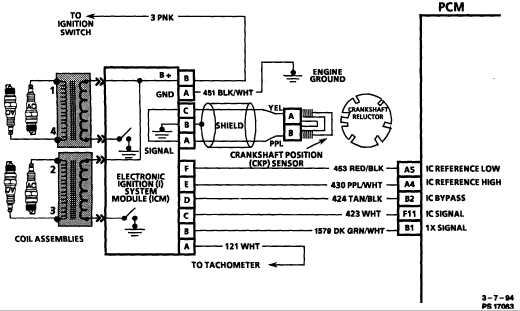

Start troubleshooting by locating fuse box F6, typically housed under the dashboard near the driver’s knee panel. Pin C3 on the 12-way gray connector feeds the ignition coil–test for 12V with a multimeter when the key is in the RUN position. If voltage drops below 11.5V, inspect the pink-and-black wire (circuit 339) for corrosion where it splices near the firewall grommet. Replace any frayed segments with 14-gauge automotive wirerated for 30A.
The headlight switch harness plugs into the main wiring loom via a 10-pin rectangular connector; terminal 5 delivers power to the low-beam circuit through a brown stripe wire. Verify ground integrity at connection G101, found behind the left-front fender–clean the bolt threads with a wire brush if resistance exceeds 0.2 ohms. High-beam relays, labeled K11 and K12, reside in the under-hood relay center; the control signal arrives from the multifunction switch through a purple wire (circuit 17).
For turn signal issues, trace the light-green stripe wire from the flasher unit to the steering column connector–terminal 8 should pulse at 1-2Hz when activated. Corrosion often develops at the trailer harness adapter; apply dielectric grease to the 7-pin connector if flickering occurs. The instrument cluster receives data from the vehicle speed sensor via circuit 484, a twisted pair of yellow and black wires–check for continuity at the transmission plug if the speedometer reads erratically.
Air conditioning clutch engagement depends on a green stripe wire (circuit 459) from the pressure switch to the PCM; low refrigerant can prevent voltage delivery. Test the clutch coil resistance–it should measure 3.5-4.5 ohms. Auxiliary power outlets draw current directly from the battery through a 20A fuse (F14); if the circuit fails, probe the orange wire at the fuse block for voltage while toggling the ignition.
Aftermarket stereo installations often disrupt the dimmer wire (circuit 240), a dark-blue stripe cable running through the driver’s door jamb. Confirm the radio undergoes proper illumination dimming by testing the wire at connector C203–it should reflect dashboard brightness adjustments. For persistent electrical gremlins, consult the factory service manual’s supplementary appendix, which details splice locations for rear defroster, power mirrors, and anti-theft systems.
Finding the Right Electrical Schematic for Your Mid-Size Pickup Variant
Begin by identifying the exact production year of your vehicle–each model iteration uses distinct circuitry layouts with variations even between trim levels. The 1994–2004 generations introduce incompatible connector pinouts, so cross-referencing against the VIN’s eighth digit eliminates guesswork.
Official service manuals from GM remain the most reliable source, grouping schematics by functional sections: powertrain, lighting, instrument cluster, and auxiliary systems. Select the correct volume; early years split content across two books while 2001+ consolidates diagrams into one.
| Model Span | Key Schematic Sections | Volume Reference |
|---|---|---|
| 1994–1997 | Engine control module, body control module, anti-lock brakes | Vol. 1 & Vol. 2 |
| 1998–2000 | Interior fuse block, exterior lighting, transmission control | Vol. 1 |
| 2001–2004 | On-board diagnostics, trailer wiring harness, HVAC | Single Volume |
Aftermarket alternatives such as Mitchell or Chilton offer quicker access but often lack late-model updates; verify the revision date matches your build month for post-2000 units. Digital scans frequently omit colored wire traces critical for troubleshooting shorts–opt for printed manuals or high-resolution PDFs.
For vehicles equipped with optional packages (ZR2 off-road, LS extended cab), locate the supplemental electrical supplement section–standard diagrams exclude premium stereo, skid plate sensors, or trailer brake controllers.
Online forums segment discussions by year-cluster; thread titles like “98–99 ECM pinout swap” or “03 LS fog light retrofit” yield user-confirmed modifications not documented in factory literature. Bookmark threads with photos of connector C101 or fuse box layout for quick reference.
Label every wire before disconnecting–most harnesses follow a consistent scheme: orange stripe denotes 12V constant, dark blue stripe signals data bus, and pink delivers ignition-switched voltage. Misplaced terminals risk damaging the powertrain control module, requiring costly reprogramming.
How to Interpret Your Pickup’s Electrical Blueprint

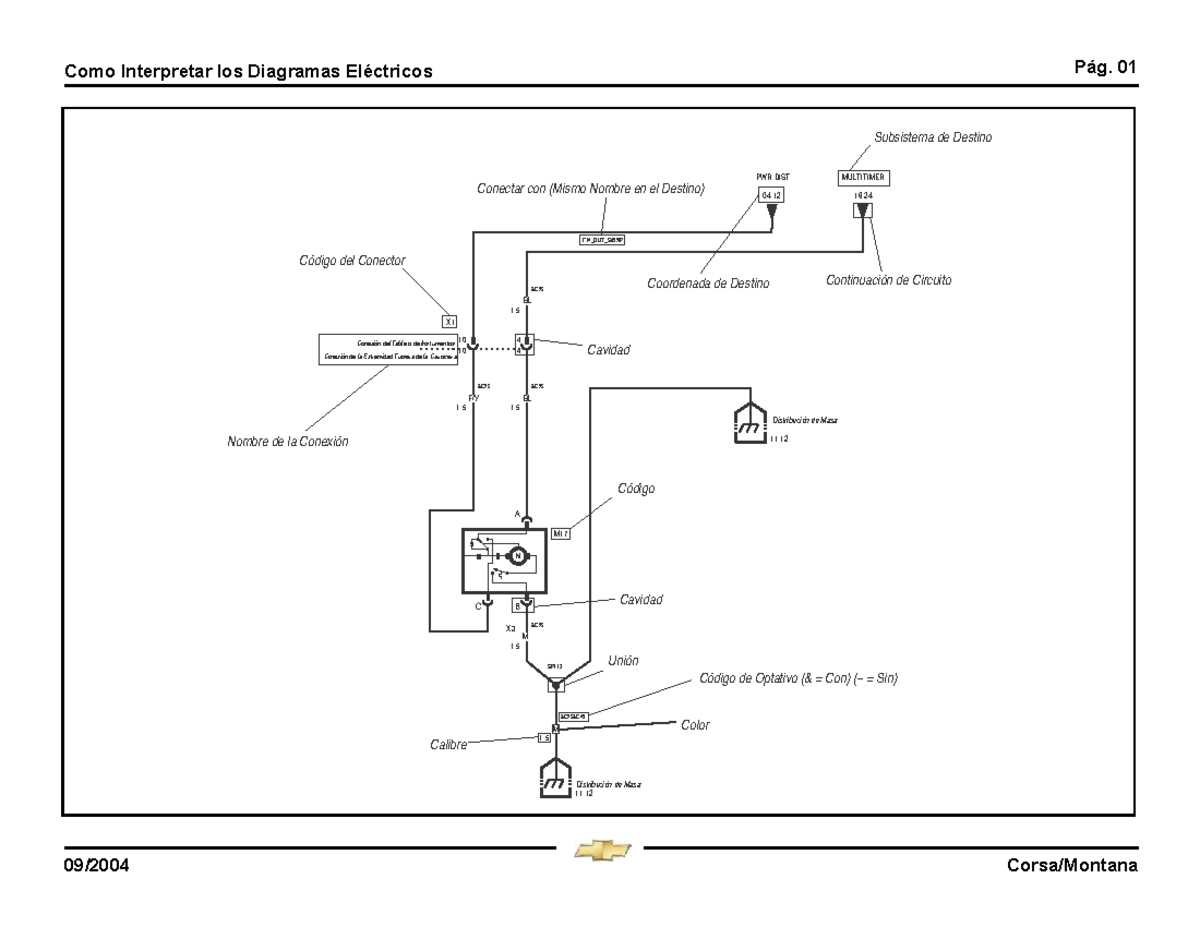

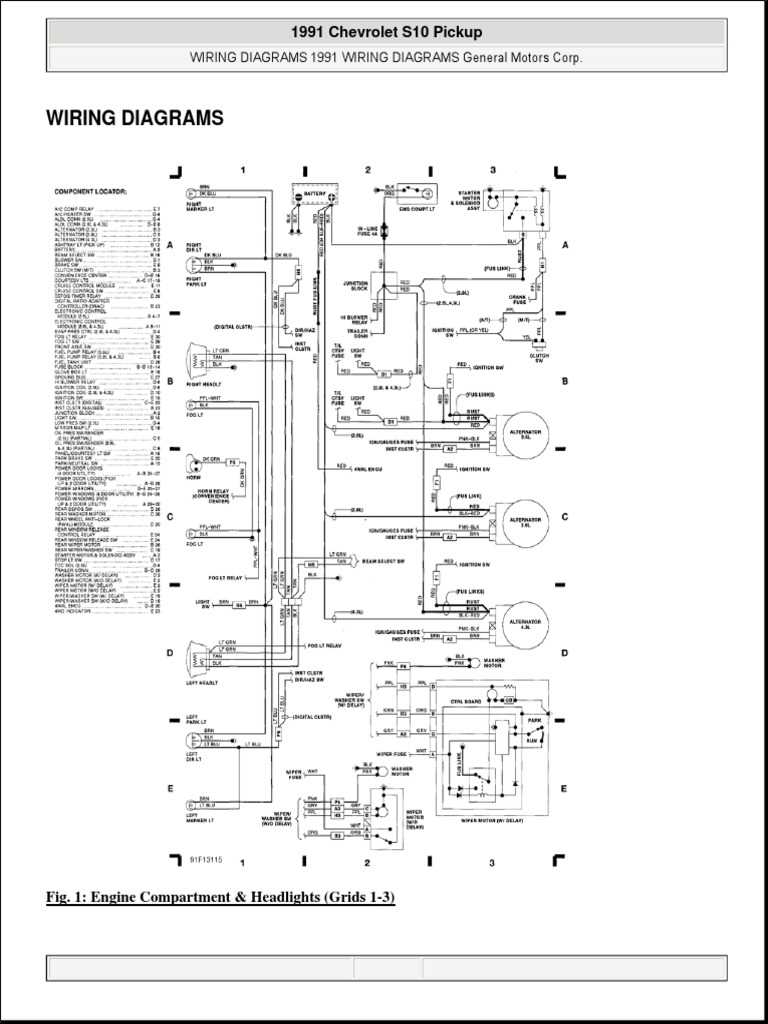

Locate the color codes next to each conductor on the schematic–acronyms like PK (pink), DK BLU (dark blue), and YEL (yellow) identify wire paths. Cross-reference these against the legend at the bottom corner; discrepancies often trace back to misread colors rather than component failure. Harness routing diagrams, typically adjacent, reveal where wires exit the cab, enter the engine bay, or splice under the dash. Document each termination point with masking tape labels before disconnecting anything.
- Isolate circuits by voltage: 12V constant (red wires), switched ignition (yellow or orange), and ground paths (black or brown).
- Trace power from battery positive through fuses (labelled F1–F24) to relays before reaching sensors or actuators.
- Ground symbols–look for triangles with lines–indicate chassis attachment points; corroded connections here cause intermittent faults.
Solid lines represent live conductors; dashed lines denote shared or optional circuits, such as trailer lighting or A/C compressor clutch. Module connectors, shown as rectangular blocks with numbered pins, require pin-out verification: probe with a multimeter set to continuity, ensuring resistance below 0.5 ohms. Ignore generic symbols; focus on model-specific callouts like “4L60-E TCM” on later iterations.
Use a highlighter to mark completed paths–start at the source (battery), follow through switches, and end at loads (bulbs, motors). Ambiguous junctions, labelled “Splice S101,” often hide under driver-side kick panels; remove the plastic cover to inspect crimps. Annotate every splice location with wire gauge–common gauges are 16 AWG (thin circuits) and 12 AWG (high-current paths like starter cables).
Pinpointing and Resolving Frequent Electrical Faults in the Compact Pickup
Start by checking fuse box integrity–corrosion on contacts mimics phantom failures. Use a multimeter to verify 12V at each fuse terminal with the ignition off; deviations below 11.8V indicate resistance buildup. Remove and inspect fuses under bright light; hairline cracks or discolored metal strips require immediate replacement, even if continuity tests pass.
Trace circuits using a color-coded schematic for the 1994-2004 models. The brown wire (parking lamps) and dark blue (right turn signal) share ground paths along the driver-side firewall; chafing here causes intermittent illumination. Probe connections with a non-powered test light to isolate shorts–touching the probe to bare terminals should never light the bulb without ignition power.
Test the ignition switch output by back-probing connector C1 (red/black wire) during cranking. Voltage should drop below 0.5V; readings above 2V suggest a faulty switch or deteriorated internal contacts. Clean contacts with electronic cleaner spray, then apply dielectric grease to prevent future oxidation.
Inspect the alternator’s voltage regulator by monitoring battery voltage at idle. Spec calls for 13.8-14.4V; overcharging (15V+) often stems from a stuck relay or degraded stator windings. Disconnect the battery while the engine runs to confirm regulator failure–if the engine stalls, the regulator is defective.
Examine the body control module (BCM) by probing data link connector terminals 2 (gray) and 10 (purple) with a scan tool. Invalid PIDs or erratic gauge readings point to water intrusion in the module housing. Remove the BCM and dry it with compressed air, then reseal gaps with silicone to prevent recurrence.
For power window failures, focus on the delay relay inside the fuse panel. The tan wire (window motor) and yellow (door switch) must maintain continuity; resistance above 0.3 ohms causes sluggish operation. Replace the relay if windows stall in mid-travel–bypassing the relay temporarily can confirm diagnosis.
Test trailer harness circuits by loading each pin with a 55W bulb. Pin 7 (left turn/brake) and pin 5 (tail lamps) often short due to insufficient gauge wire; routes under the bed expose them to abrasion. Solder splices with marine-grade heat shrink to repair, then reroute wires away from sharp edges.
