Complete Wiring Guide for Chevy Cobalt Radio Installation
For 2005–2010 model years, the audio harness uses a 24-pin connector with color-coded leads. Pin assignments follow a strict sequence: A1 (constant 12V, yellow), A4 ( illumination, orange), A7 (antenna trigger, pink), A8 (left front speaker positive, gray), A10 (left front speaker negative, gray/black stripe), A12 (right front speaker positive, white), and A14 (right front speaker negative, white/black stripe). Verify continuity with a multimeter before splicing; factory crimp connections often corrode after 8–10 years.

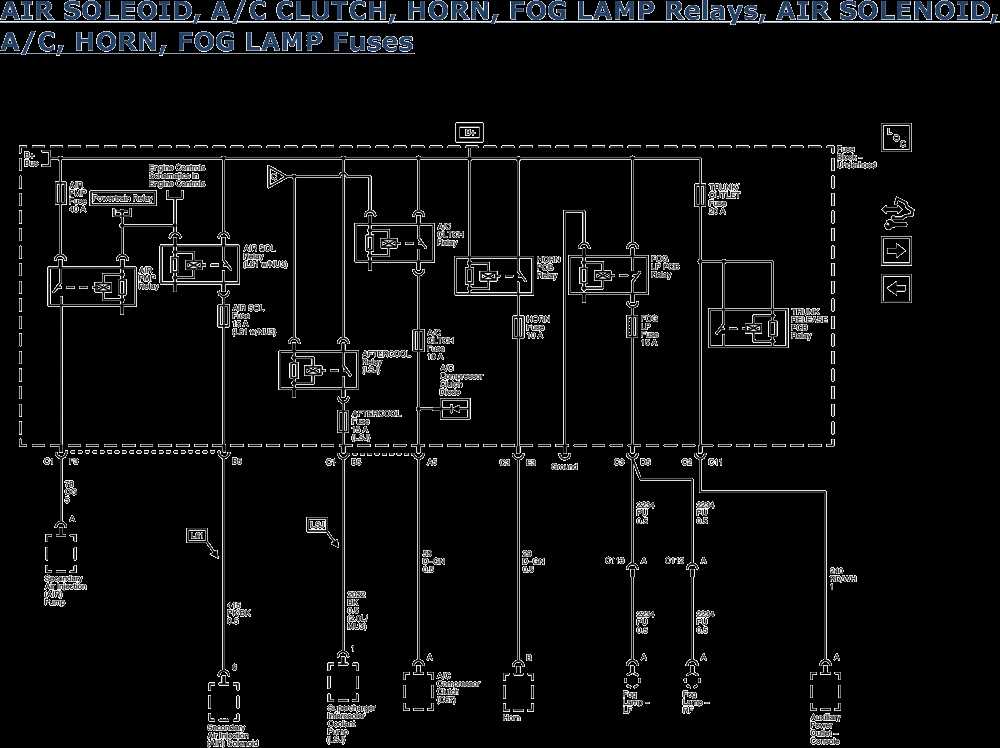

Aftermarket adapters frequently mislabel the B+ lead; use factory service manual schematic #99860468 as reference. Ground wire (black) must terminate at chassis point G303 near the driver-side kick panel. Avoid soldering near the harness bundle–heat shrink tubing plus butt connectors rated for 16–18 AWG prevents brittle failures.
For models equipped with OnStar, the data bus (serial data, dark green/white) requires uninterrupted continuity; a single broken strand can disrupt hands-free functionality. If retrofitting Bluetooth, tap the RX/TX lines at pins B1 and B2; noise filtering capacitors (0.1 µF) reduce interference.
Double-DIN conversions necessitate a bypass harness; aftermarket units like Metra 70-2003 include matching connectors and fuse holders rated for 15A. Always disconnect the negative battery terminal before probing live circuits–shorting pins A3 (accessory) to ground can trip the BCM module.
Understanding Your Vehicle’s Audio System Circuit Layout

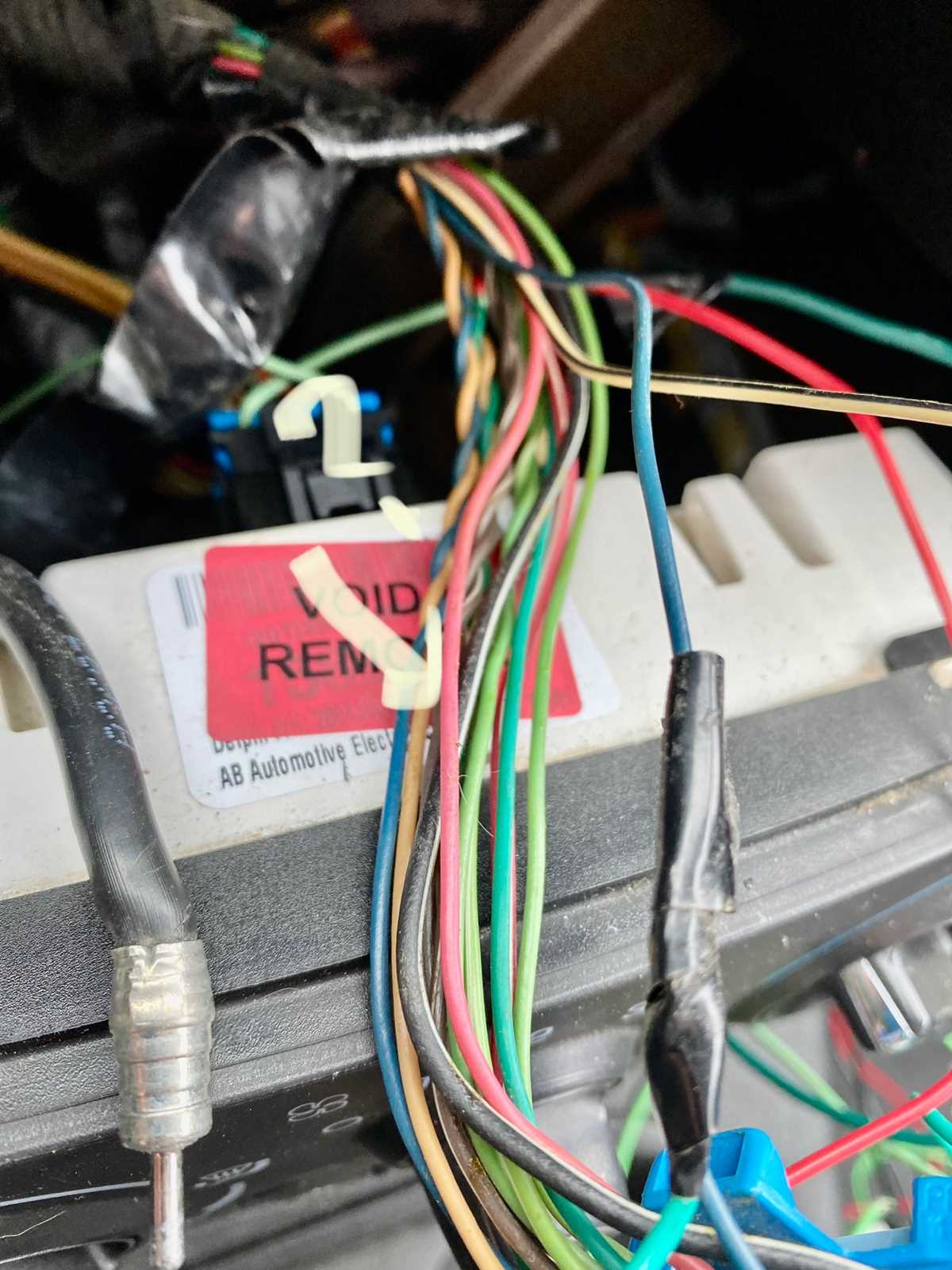

First, locate the harness connector behind the factory stereo unit–typically a 12-pin or 16-pin plug labeled “A” through “H” or “1” through “16.” Pin A (or 1) carries constant 12V power from the battery, while pin B (or 2) supplies accessory voltage triggered by the ignition switch. Ground connections usually occupy pin C (or 3) or a separate black wire with a ring terminal screwed to the chassis. Verify these with a multimeter: 12.6V on A and 0 ohms to ground on C confirm proper continuity.
Speaker Wire Identification and Color Codes
Front left positive typically runs through a light green wire, front right positive via a gray wire; rears follow dark green (left) and purple (right). Negative leads pair as light green/black, gray/black, dark green/black, and purple/black respectively–never mix positives and negatives to prevent blown channels. Aftermarket amplifiers require 4-gauge fused power cables routed separately from signal wires to minimize interference, secured at least 8 inches from engine components.

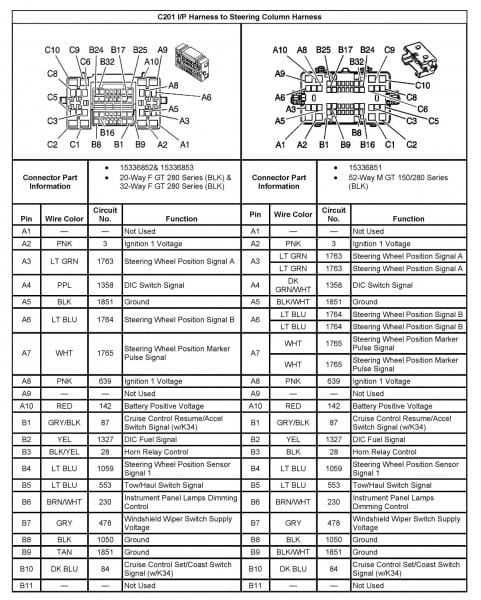

Factory steering wheel controls interface via a single-wire multiplex signal on pin F (or 6)–usually tan or pink/white. Adapter modules like PAC RP4-CH11 decode these pulses for third-party head units; ensure compatibility by cross-referencing your vehicle’s build date (pre-2008 models may require resistor packs). Data communication wires (orange/white and brown) handle chimes and vehicle diagnostics–isolate these with a 100-ohm resistor if retaining factory alerts is unnecessary.
Retain the original antenna motor lead (blue/white) if upgrading to a satellite-capable receiver; this preserves automatic mast retraction. For non-powered antennas, use a 12V adapter or solder a 100μF capacitor in-line to prevent voltage drops during high-power broadcasts. Always disconnect the battery ground terminal before handling any circuit connections to avoid short circuits–reconnect after verifying all fuses (15A for head unit, 10A for memory) remain intact.
Finding Audio System Cable Clusters in the 2005–2010 Compact Sedan
Begin beneath the central dashboard panel. Remove the trim surrounding the climate controls by pulling outward from the bottom; plastic clips secure it without screws. The connector block hides directly behind, typically a 12-pin rectangular plug labeled “C2” on the factory schematic.
Trace the upper harness bundle toward the driver-side kick panel. A secondary cluster–an eight-pin white or gray connector–lies tucked beside the fuse box. This link supplies power and signal feeds from the vehicle’s network; mismatch here disrupts amplifier or antenna signals.
Inspect the rear of the center console if modifications hide original ports. A separate blue harness may snake toward factory subwoofers; splice errors here cause intermittent audio drops or speaker rattles. Mark each terminal with painter’s tape before disconnecting.
Locate the ground wire bolted to the chassis near the glovebox hinge. Corrosion at this point generates buzzing noises. Scrape the metal surface clean, apply dielectric grease, then retighten with a 10mm wrench for reliable performance.
Follow speaker leads along the door sills if replacing factory units. Each door harbors a six-pin connector behind the inner panel; pry off the plastic guard gently with a trim tool to avoid snapping retaining clips.
Check the trunk area for aftermarket amplifiers if present. A thick red cable from the battery terminates at an inline fuse holder; bypassing this risks electrical fires during high-power upgrades.
Verify all connectors click securely. Oxide buildup on pins mimics connection failure; clean contacts with electrical contact cleaner and a small wire brush before reassembly.
Reference the color-coded terminal chart in the service manual (pinout A = yellow, B = purple/white stripe, C = gray, etc.) when reconnecting. Swapping even one lead reverses polarity, distorting midrange frequencies.
Decoding Factory Harness Color Codes for Third-Party Head Unit Integration
Locate the constant 12V memory wire–typically a solid yellow lead–first. Verify with a multimeter: probe the connector pin while the ignition is off. A 12V reading confirms the correct lead. This wire retains presets and clock settings after power-down.
Match speaker outputs by measuring impedance at the factory harness pins. Front left positive is usually a white wire with a colored stripe; rear right positive often uses a gray variant. Cross-reference with
| Location | Positive Color | Negative Color | Typical Current (mA) |
|---|---|---|---|
| Front Left | White + stripe | White | 220–380 |
| Front Right | Gray + stripe | Gray | 220–380 |
| Rear Left | Green + stripe | Green | 200–350 |
| Rear Right | Violet + stripe | Violet | 200–350 |
.
Ignition-switched leads–commonly red–require connection to a fuse tap drawing power only when the key is in the ON position. Avoid splicing into lighting circuits (e.g., orange wires), which activate with the headlights. Use a test light to trace the correct circuit: it should illuminate only when the engine is running or accessories are enabled.
Ground connections should terminate at bare chassis metal. Sand paint off contact points until shiny, then secure with a star washer. Do not daisy-chain grounds; each device needs its own direct path.
Factory dimming inputs–typically pink or light blue–alter display brightness in sync with dash lights. Bypass these wires if the aftermarket unit lacks auto-dimming. For bypassed modules, connect directly to a fused constant lead or illumination wire instead.
Step-by-Step Guide to Disconnecting the Original Audio System Without Damage
Unplug the vehicle’s negative battery terminal first to prevent short circuits. Use a 10mm wrench to loosen the terminal clamp, then lift it off the post and secure it away from metal contact.
Remove the trim panel surrounding the center console. Pry it gently with a plastic trim tool at the seam near the climate controls, working upward until the clips release. Avoid forcing it–these segments snap into place and can crack under excess pressure.
- Locate the two screws behind the ashtray or cup holder; remove them with a T20 Torx driver.
- Slide the climate control bezel downward to expose additional retaining screws.
- Use a flathead screwdriver to pop the hazard light switch out of its socket if present.
Detach the faceplate once the retaining screws are removed. Pull it straight out with even pressure to avoid bending the internal brackets. If resistance occurs, check for hidden screws or tabs near the lower edges.
Disconnect the antenna cable by pressing the release tab and pulling the coaxial connector outward. Unplug the quad-lock wiring harness by squeezing the sides of the connector while pulling–do not twist or yank, as this can damage the pins.
Release the mounting brackets holding the unit in place. Most models use slide-in rails; push inward on the tabs at each side to free the system. Some versions require removing screws visible after the trim is out of the way.
Lift the device from the dashboard once all connections are detached. Tilt it slightly forward to clear the lower support brackets, then angle it upward to avoid scratching nearby panels. Store it face-down on a soft cloth to protect the display.
Reconnect the negative battery terminal after installation of the new unit to restore power. Recheck all trim alignments before driving to ensure everything sits flush–misaligned clips can lead to rattling or air leaks.
Proper Power, Earth, and Audio Cable Connections
Begin by locating the constant 12V line–typically a yellow cable in most aftermarket harnesses–this must connect directly to the vehicle’s battery or an always-hot fuse terminal. Use a 16-gauge or thicker wire to prevent voltage drop, and install an inline fuse (10-15A) no farther than 15 cm from the power source. Avoid splicing into accessory circuits, as these may introduce interference during ignition cycles or when electrical loads fluctuate.
Ground connections demand the same precision as power feeds. Select a bare metal point on the chassis within 30 cm of the device, scrape away paint and corrosion until clean metal is exposed, then secure the earth wire (minimum 14-gauge) with a star washer to ensure a solid, low-resistance bond. Loose or corroded grounds are the leading cause of static, popping, and erratic operation–never rely on factory ground points that serve multiple systems.
Speaker polarity consistency is critical for accurate sound staging. Positive leads (usually marked with a stripe) must align across all channels; reversing polarity on just one channel cancels bass frequencies and collapses stereo imaging. Test each connection with a multimeter in continuity mode before finalizing–measure from the connector plug to the speaker terminal to confirm correct pairing. For systems using amplification, verify that the amplifier’s remote turn-on wire (blue/white in many setups) is energized only when the head unit powers on.
For vehicles with factory amplified audio, bypass the built-in amp by connecting directly to the speaker-level outputs if the new unit lacks high-voltage inputs. Use a line-output converter to step down signals when necessary, adjusting gain settings to match the head unit’s preamp output (typically 2-4V). Failure to match impedance or voltage levels results in distorted audio or damaged components–measure RMS wattage and impedance of both the new device and existing speakers before integration.
Troubleshooting Common Issues
If static persists, isolate each component by disconnecting all RCA cables and reconnecting one at a time. Check for poor shielding or ground loops, which often manifest as a low-frequency hum. Separate power and signal cables by at least 30 cm, routing audio leads away from power wires, ECU modules, and high-current devices like A/C compressors. For digital interfaces (e.g., CAN bus), use a dedicated harness adapter to prevent communication errors that disable features like steering wheel controls.
Before buttoning up the installation, verify all connections with a test tone at mid-volume–listen for balanced output across all speakers and watch for any flickering in the display, which indicates power instability. If the device resets when starting the engine, the battery feed may be insufficient; relocate the power connection to a fused circuit with higher amperage capacity, such as the fusebox under the dash or a direct battery tap.
