Complete Wiring Guide for Chevy Transfer Case Troubleshooting and Repairs

To resolve intermittent disengagement in your four-wheel drive selector, inspect the TCCM (Transfer Case Control Module) connectors for corrosion first. Focus on pins 4, 7, and 12–these carry critical signals for shift motor actuation in NP246 and NV236 assemblies. Use a multimeter to verify 5V reference voltage on pin 4 during ignition-on; voltages below 4.8V indicate a grounding issue at the TCM or damaged wiring harness near the front driveshaft.

NP241HD models require attention to the mode switch resistor network. Locate the gray 8-pin connector behind the shift lever; probe terminal C with the selector in 4HI–expected resistance should read 800-1200 ohms. Deviations suggest worn contacts in the rotary encoder. For NV233 units, bypass the encoder temporarily by jumping VSS (vehicle speed sensor) input directly to the TCCM pin 3–if engagement stabilizes, replace the sensor or recalibrate its 500-ohm pull-up resistor.

Shielded MIL-spec wire (type TXL or GXL) must be used for all splices when repairing circuits handling motor drivers at pins 1, 2, 8, and 9. Avoid standard PVC-insulated wire–thermal cycling near exhaust manifolds causes insulation embrittlement within 30,000 miles. Add heat-shrink tubing with adhesive liner over all splices; standard tubing melts at 125°C, insufficient near catalytic converters.

Verify shift motor operation by back-probing pin 2 (red/black wire) for 12V during 2HI to 4LO shifts. If voltage drops below 11.5V, check fuse 38 (25A high-side driver) and relay R4-1 under the dash. Insufficient current here causes motor stall mid-shift, often misdiagnosed as transmission failure. For NP231 models, ensure the neutral safety switch closes fully in 4LO–misaligned actuator forks prevent proper engagement.

GM Drivetrain Electrical Schematic for 4WD Systems

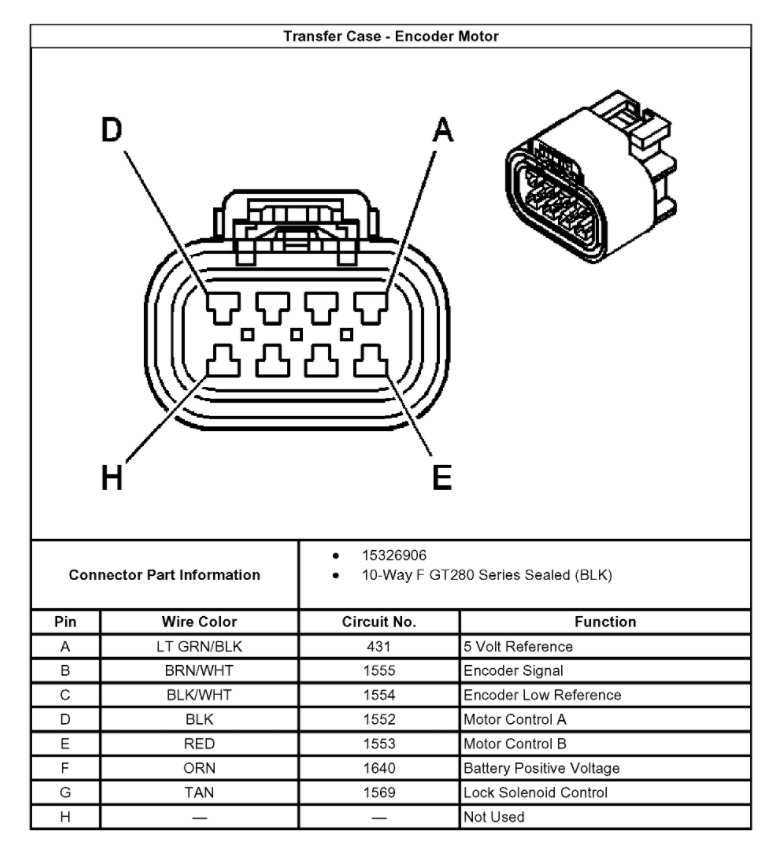

Locate the control module near the rear differential on models like the 2003 Silverado 2500HD–it’s mounted to the frame rail, adjacent to the driver-side fuel tank strap. Pin assignments differ between NP263 and NV246 variants: verify harness colors before splicing. For the NP263, the encoder motor connects via a 6-wire harness with these critical leads:

• Yellow/black: 12V switched ignition
• Tan: shift motor feedback A
• Brown/white: shift motor feedback B
• Gray/black: ground
• Orange: TCCM signal

Test voltage at the TCCM connector with a multimeter set to 20VDC; expected readings are 0V (2H), 2.5V (4H auto), 5V (4L). Deviations indicate a faulty range sensor or corroded terminals–clean contacts with CRC Electronic Cleaner before replacing components.

For the NV246, trace the actuator harness through the transmission tunnel, then up the transfer port housing. Critical splice points include the 4WD indicator switch (light blue wire) and the front axle disconnect relay (dark blue/white). On 2007–2013 models, the mode selector switch uses a CAN bus interface–access resistance values via OBD-II port at PID 4001. If the system enters “limp mode,” check the fuse block under the hood for a 10A fuse labeled “4WD” (typically position #34). Replace with a Zeitco ceramic fuse if blown.

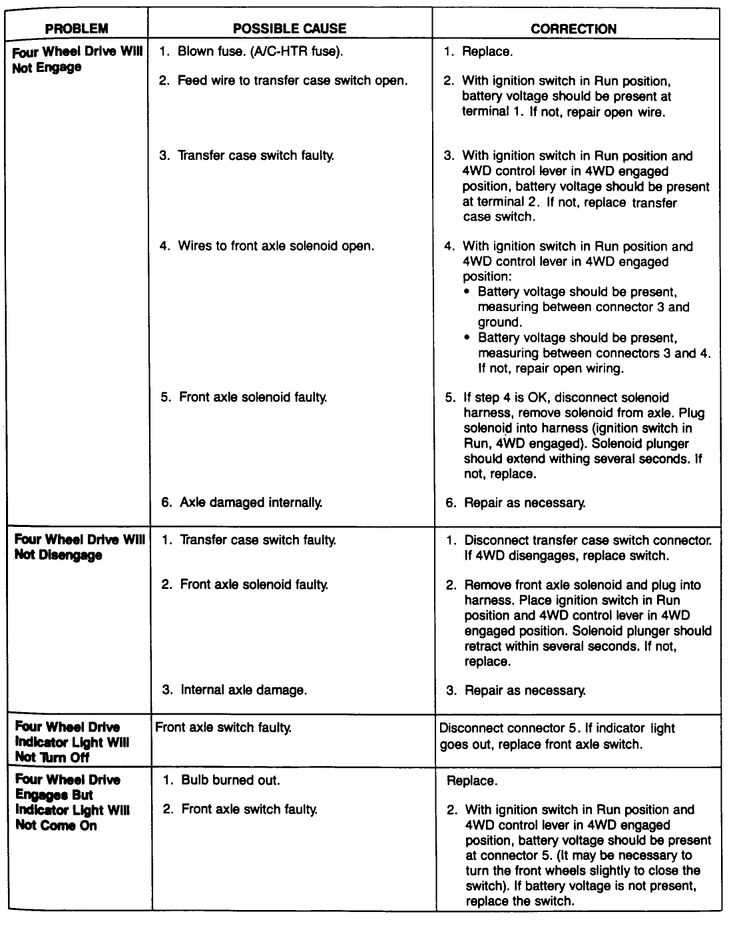

Common failures:

1. Intermittent engagement after 5–7 seconds: corrosion in the encoder motor’s commutator–disassemble and polish with 600-grit sandpaper.
2. Grinding in neutral: worn nylon gears in the NV246–replace the shift fork assembly (PN 12589202).
3. Fuse #34 blows repeatedly: shorted actuator relay–test with a 30A circuit tester at the relay socket (terminals 85–86).

Use dielectric grease on connector terminals to prevent moisture ingress. For off-road vehicles, bypass the vacuum actuator with a manual hub conversion kit (Warn #29822).

Matching Electrical Schematics to Your GM Powertrain Configuration

Locate the vehicle identification number (VIN) on the driver-side dashboard or door jamb; the eighth character indicates the transmission type. For K-series (NVG 246) units in 1999–2007 Silverado/Sierra 1500 models, reference GM service bulletin 00-04-20-006 for pin assignments at the four-wheel-drive control module. Earlier 1992–1998 C/K trucks with the NP241 variant require the 12-pin round connector schematics found in section 8D of the factory manual, while 2001–2006 HD 2500/3500 trucks with the NP273 use a six-wire setup–focus on terminals A, B, C, D, E, and G for proper engagement solenoids.

Decoding Model-Specific Variations

Blazer/Jimmy models built 1995–1999 with the ZR2 package feature a unique electronic shift motor wired directly to the TCCM, distinguishable by purple and tan wires at connector C1. Conversely, Suburban/Yukon XL platforms from 2000 onward split into high-line and low-line configurations: check for a 20-pin rectangular connector (high-line) versus an 8-pin round plug (low-line) located beneath the instrument cluster. Tahoe/Yukon models manufactured 2007–2013 incorporate a two-speed active encoder motor–consult the 2007+ Wiring Systems manual, page 23-110, for encoder resistance values (± 10 ohms) to diagnose faulty engagement signals.

Verify the presence or absence of a dedicated shift interrupt switch on manual transmission variants; this alters ground paths for neutral safety relay operation. 2014–2018 Colorado/Canyon mid-size pickups with automatic configurations route power through the instrument panel fuse block (20A IGN fuse) before reaching the 4WD mode switch–an omission here prevents front axle disconnect actuation. Always cross-reference pigtail color codes against the official harness routing diagram (stamped on the firewall firewall near the brake master cylinder) to rule out aftermarket modifications before interpreting scanned DTCs.

Identifying All-Wheel-Drive System Conductor Hues and Terminal Assignments in GM Blueprints

Begin by securing the GM service manual specific to your vehicle’s model year–electronic copies from gmtechinfo.com or alldata.com offer searchable schematics. Locate the section labeled “Powertrain” or “Driveline Components,” then filter for “Switching Assembly” or “Actuator Circuit.” GM standardizes their conductor hues with prefixes indicating function: ORG (orange) for power feeds, DK BLU (dark blue) for ground returns, and YEL (yellow) for sensor inputs. For example, the NV246 system in 2007-2013 GMT360 platforms uses PPL (purple) for mode selector signals, while GRY (gray) carries shift motor control. Cross-reference the pinout tables with the connector identifier (e.g., C101 or X3) stamped on the harness plug–these numbers appear in both schematics and physical connectors.

Common Terminal Configurations by Platform

Platform	Connector	Pin	Color Code	Function
GMT355 (2000-2006)	C1	A	RED	Ignition 1 Feed
GMT800 (1999-2007)	X2	7	TAN/BLK	Encoder Ground
GMT900 (2007-2014)	C3	D	LT BLU	Shift Motor Phase 1
K2XX (2015-2020)	X502	8	WHT	CAN High Signal

Verify each conductor’s path using a multimeter set to continuity mode–probe from the harness connector back to the control module (TCM or IPC). Traces often split at splices (marked S101, S202 in schematics), where GM uses colored stripes for sub-circuits. For instance, GRY/WHT indicates a gray conductor with a white stripe, typically a switched output. If hues don’t match, inspect the harness for aftermarket modifications or corrosion at the bulkhead connector–common failure points include the firewall passthrough near the brake master cylinder.

Step-by-Step Guide to Tracing Powertrain Distribution Unit Control Module Circuits

Locate the vehicle’s service manual for the precise pinout configuration of the distribution control module. Identify terminals by their designated colors and functions–typically labeled with codes like “B+” for power, “GND” for ground, and alphanumeric signals (e.g., “A12” or “VSS”) for sensor inputs. Use a multimeter set to DC voltage to probe connectors at the module while the ignition is off; confirm battery voltage (12-14V) at the power terminal and 0V at ground. If readings deviate, inspect the fuse panel and main relay for continuity.

Disconnect the battery negative terminal before handling any harnesses to prevent short circuits or accidental deployment of safety systems. Trace each wire from the module to its termination point–sensors, actuators, or the onboard computer–using a tone generator for broken or misrouted lines. For instance, the shift motor control wires often run in twisted pairs (e.g., purple/white and purple) to reduce interference; isolate these with a probe clip and verify resistance (typically 2-5 ohms) against specifications.

Reassemble connectors only after cleaning terminals with electrical contact cleaner; corrosion or bent pins cause intermittent faults. Reconnect the battery, start the engine, and monitor live data via an OBD-II scanner for module communication errors (e.g., U-codes). If codes persist, backprobe the signal wires at the component end during operation–shift solenoids should toggle between 0V and 12V when activated. Compare waveform patterns on an oscilloscope against the manual’s reference graphs to spot deviations.

For stubborn issues, swap the module with a known-good unit to isolate hardware failure. Label all removed harnesses with masking tape to avoid confusion during reinstallation. Replace damaged wires with automotive-grade copper wiring (minimum 18 AWG), solder joints, and heat-shrink tubing to prevent moisture ingress. Test drive under varied conditions (e.g., low-speed maneuvering, highway cruising) while logging sensor inputs to confirm stable operation before finalizing repairs.
