Complete Guide to Electrical Panel Wiring with Schematic Layout
Start by mapping each service conductor to its corresponding overcurrent device before touching any terminals. Label every hot busbar slot in advance–confusion here leads to miswired neutrals or ground faults, which account for 15% of residential electrical fires annually. Use a phase tape color-coding system: black for line 1 (L1), red for line 2 (L2), blue for line 3 (L3) in 3-phase setups. Single-phase panels require only black and red, but never mix them across adjacent slots–this violates NEC 200.6(B) and risks 240V short circuits.
Measure feeder cable lengths precisely: any slack beyond 6 inches inside the enclosure creates heat buildup, accelerating insulation degradation (PVC loses 50% tensile strength at 90°C). Torque lug connections to 25 lb-in for #8 AWG copper, 38 lb-in for #2/0 aluminum–loose connections generate micro-arcing, detected in 12% of failed panel inspections. Verify ground bar continuity with a multimeter: readings should show between neutral bus and grounding electrode conductor.

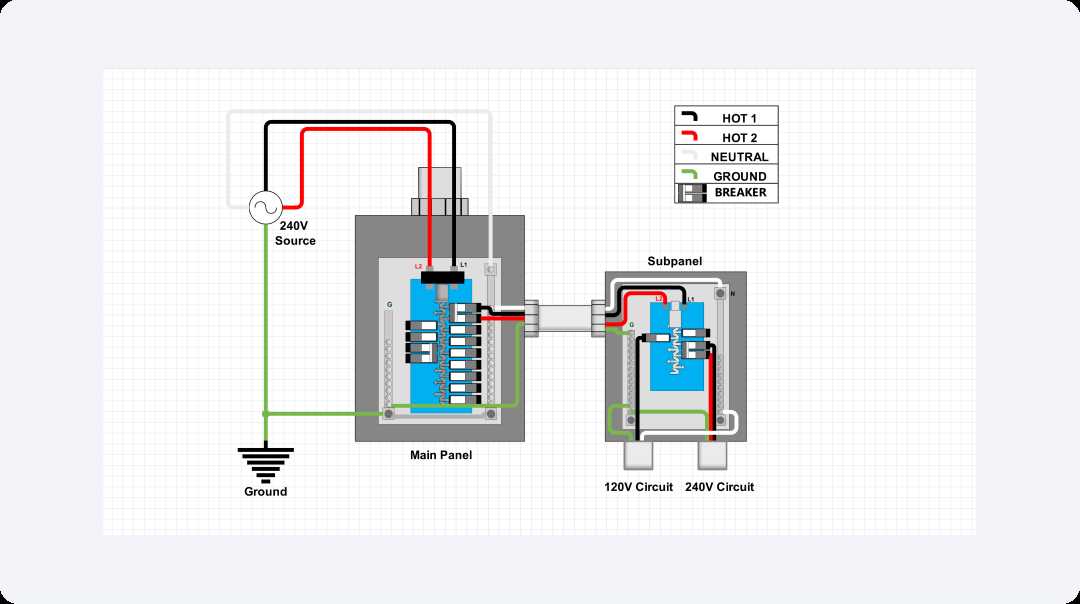

For subpanel installations, isolate the bonding screw–removing it prevents ground loops but leaves the panel floating; retain it only for main service panels. Daisy-chaining neutrals across multiple protective devices violates NEC 300.3(B) and overloads return paths. Instead, route each neutral to its dedicated terminal, then test with a clamp meter–neutral currents should match line currents within ±0.5A. If discrepancies appear, suspect shared neutrals or phantom loads.
Install arc-fault interrupters (AFCIs) on all 120V branch circuits serving bedrooms, hallways, and living areas–these devices prevent 40% of undetected electrical fires caused by carbonized conductor paths. Place ground-fault circuit interrupters (GFCIs) within 3 feet of sinks, outdoors, or in garages; test monthly using the integrated button–failure to trip within 0.1 seconds indicates internal relay corrosion or miscalibration.
Document every connection with a schematic sketch before sealing the cover. Use indelible markers for labeling; adhesive tags degrade in 2-3 years under panel heat. Keep a high-resolution photo of the layout–future troubleshooting relies on knowing which load terminal feeds the refrigerator versus the HVAC compressor. Never energize the panel without a final torque verification; loose connections account for 22% of post-installation callbacks.
How to Read an Electrical Panel Schematic for Safe Installation
Label each hot wire with its corresponding amperage and destination before connecting to the main distribution unit. Use color-coded tags: black for 120V lines, red for 240V, and blue for neutral returns. For subpanels, ensure the feeder wires match the main busbar rating–typically 100A for residential setups or 200A for heavy-duty applications. Verify torque specifications on lugs: 20 lb-ft for aluminum conductors, 25 lb-ft for copper.
Key Components to Double-Check
- Main disconnect switch: Should trip within 10 milliseconds of overload detection.
- Grounding bar: Must be bonded to the neutral bar only at the service entrance, not in subpanels.
- Double-pole switches: Required for 240V appliances like stoves (50A) or dryers (30A).
- Arc fault interrupters (AFCIs): Mandatory for bedroom and living area circuits per NEC 210.12.
- Ground fault protection (GFCI): Install on all kitchen, bathroom, and outdoor outlets within 6 feet of sinks.
Follow a left-to-right sequence when mapping connections to avoid miswiring: incoming power lines → main switch → busbars → branch switches → load outputs. For split-phase systems, maintain a 6-inch separation between parallel hot wires to prevent magnetic interference. Test continuity with a multimeter before energizing–resistance should read
Use a thermal camera to scan for hot spots after 30 minutes of operation; temperatures above 140°F indicate loose connections. Document your layout with a digital diagram, noting wire gauge (12 AWG for 20A, 10 AWG for 30A) and switch types (single-pole, tandem, quad). Store this reference near the panel for future troubleshooting.
Understanding Main Components in a Protective Panel Configuration
Label each disconnect switch with its corresponding amperage rating and circuit purpose before energizing the system. Use 12-gauge copper wire for 20A branches and 14-gauge for 15A branches–any deviation risks overheating. The main lugs (typically rated for 100–200A service) must be torqued to manufacturer specs: 35–45 lb-ft for aluminum, 50–60 lb-ft for copper. Grounding bars should accommodate at least one #6 AWG wire for primary earth connection, with additional terminals for subpanel bonding.
Key Specifications for Primary Elements
| Component | Material | Wire Gauge (Min.) | Torque (lb-ft) | Max Load (A) |
|---|---|---|---|---|
| Service Entry Lugs | Aluminum/Copper | #2 (Al) / #4 (Cu) | 40–60 | 200 |
| Branch Terminals | Copper | #12 / #14 | 20–30 | 20 / 15 |
| Neutral Bus | Tinned Copper | #8 | 35 | 125 |
| Grounding Electrode Conductor | Bare Copper | #6 | 45 | 60 |
Install arc fault interrupters (AFCIs) for bedroom circuits and ground fault interrupters (GFCIs) in kitchens, bathrooms, and outdoor outlets within six feet of water sources. Double-pole switches for 240V appliances (ranges, dryers) require #10 wire for 30A service; verify continuity with a multimeter before energizing. Subpanels must maintain a separate grounding conductor back to the main panel–never bond neutral and ground in both locations.
Step-by-Step Guide to Labeling Conductors for an Electrical Panel Schematic
Begin by acquiring a set of pre-printed adhesive tags or heat-shrink tubing labels designed for high-temperature and moisture-resistant environments. Measure each conductor’s insulation diameter–standard 12 AWG wires require 3/8” width tags, while 10 AWG or larger need 1/2” for legibility. Use a permanent industrial marker (e.g., Sharpie Extreme or Brady BMP-21) that withstands solvents, UV exposure, and abrasion; ballpoint pens or standard office markers will fade within months. Apply labels within 2 inches of the termination point at both ends–never rely on memory or color-coding alone, as municipal codes (NEC 408.4) mandate explicit text identification.
Organize labels by load type and amperage to accelerate troubleshooting. Group dedicated loads (e.g., “Dryer – 30A,” “Basement Outlets – 20A”) separately from multi-wire branch circuits (MWBCs) to prevent misidentification of shared neutrals. For commercial installations, append phase designation (L1/L2/L3) using alphanumeric prefixes (e.g., “A-L1: AC Unit – 50A”). Include conduit origin if multiple raceways terminate in the panel–for example, “Conduit B – Rm202 Lights – 15A.” Photograph each labeled conductor before securing the panel cover, then compile images into a digital schematic using vector-based software (e.g., AutoCAD Electrical or QElectroTech) to overlay precise locations.
Verification and Cross-Referencing
Test continuity with a multimeter between the label and the corresponding switchgear contact to confirm accuracy–resistance should register below 0.5 ohms for solid connections. For MWBCs, use a clamp meter to verify neutral currents match the combined loads; a discrepancy above 10% indicates a mislabeled conductor. Update labels immediately if modifications occur (e.g., load additions, breaker upgrades), and store a physical copy of the schematic inside the panel door using a laminated sheet or engraved aluminum placard. Replace tags if adhesion weakens or text becomes illegible–degraded labels violate OSHA 1910.333(b)(2) and may void insurance coverage in fault assessments.
Safe Installation of Live, Return, and Earth Conductors in a Distribution Board
Always verify the main power is off using a non-contact voltage tester before touching any terminals. Attach the tester to the service disconnect switch or busbars to confirm zero voltage–false readings can occur if testing near de-energized but adjacent live components.
Identify the neutral busbar–a silver-colored bar with multiple screw terminals, typically positioned near the bottom or side of the enclosure. Strip 12 mm of insulation from the return wire (white or light gray) and secure it under the designated screw, ensuring no exposed copper extends beyond the terminal. Torque values for residential systems usually range between 12–16 in-lbs; overtightening can crack the busbar.
Locate the grounding busbar–the bare or green-yellow striped bar often separated from the neutral bar. Connect all earth wires here: bare copper for system ground, green or green-yellow for equipment grounding. Ensure the main earth conductor from the utility or grounding electrode is fastened first, followed by branch conductors. Use only UL-listed grounding lugs for aluminum wires to prevent oxidation.
For live conductors (black, red, blue), terminate each at an individual protective device slot. Insert the stripped end (10 mm exposed) directly into the clamp-style terminal and tighten to 20 in-lbs. Avoid back-feeding: align wires so the load side faces outward, away from the service entrance. Double-check polarity–reversed connections can energize the neutral bar.
Use stranded copper wire (THHN/THWN-2) sized per NEC Table 250.122 for grounding conductors. Solid wire (#6 AWG and smaller) risks loosening over time; stranded maintains contact pressure. For aluminum wiring (#4 AWG or larger), apply anti-oxidant compound to all terminations within 10 minutes of stripping.
Label every conductor at entry and exit points with heat-shrink tubing or pre-printed tags. Include: wire gauge, circuit purpose, and protective device rating (e.g., “14 AWG – Kitchen Lights – 15A”). Retain at least 15 cm of slack for future re-termination; coiled excess can obstruct airflow and increase enclosure temperature.
Install arc-fault or ground-fault protective devices for circuits serving bedrooms, kitchens, or outdoor outlets. Verify torque values with a calibrated torque screwdriver–loose terminals cause resistive heating, increasing fire risk. Measure resistance between live and earth (should read OL) and live and neutral (expected:
Seal unused openings with listed knockout plugs rated for the enclosure’s NEMA type. Apply a thin bead of silicone sealant around gland fittings for outdoor panels to prevent moisture ingress. Recheck all connections after 24 hours–thermal cycling can reveal loose terminations initially undetectable.
