Complete Circuit Breaker Shunt Trip Wiring Schematic Guide for Professionals

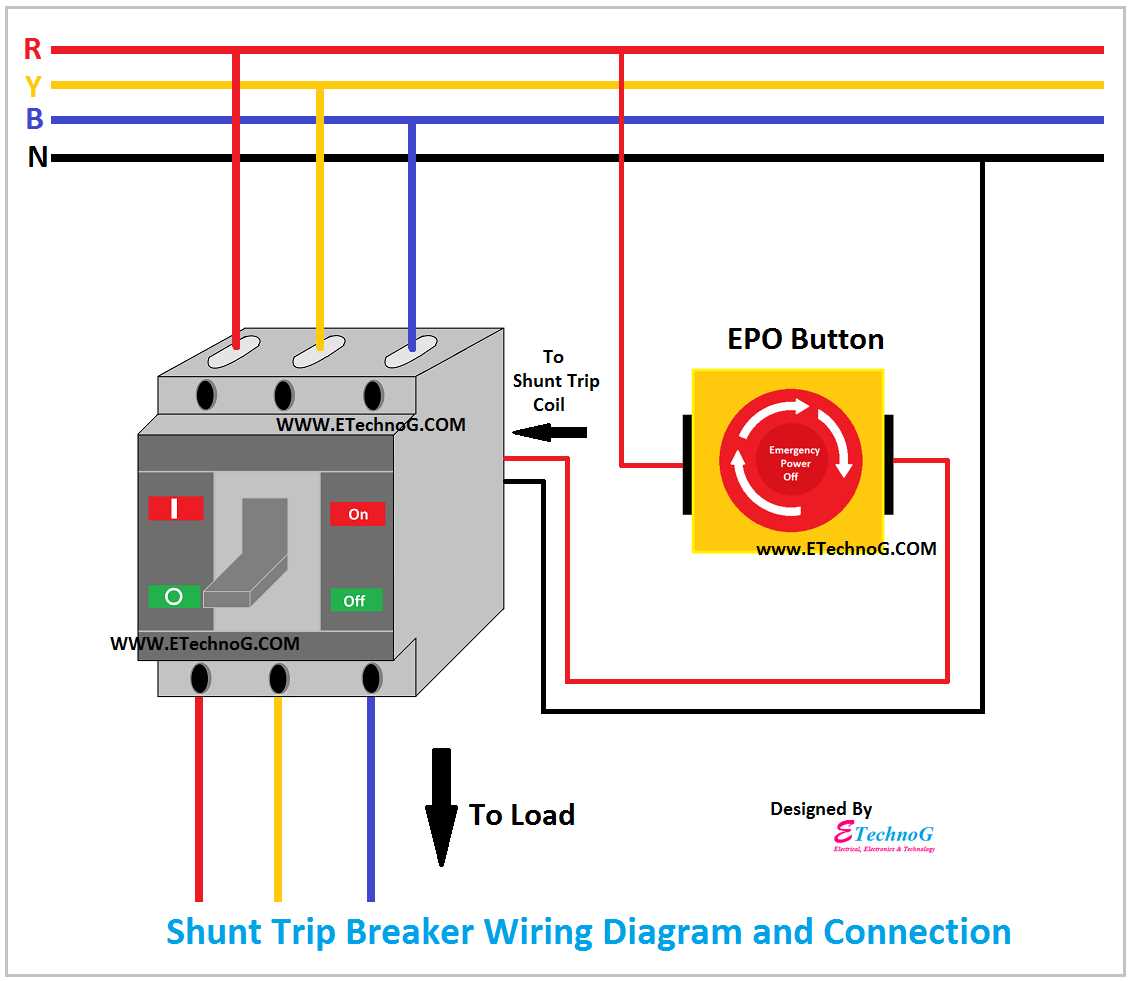

For immediate remote activation of a protective switch, install a 24V–240V control coil between the auxiliary contacts and an external trigger–typically a relay or emergency stop. Use 14–18 AWG copper conductors for control circuits; heavier gauge (10–12 AWG) is required if linking to high-current solenoids. Polarity rarely matters, but verify manufacturer specifications: some units demand a specific coil orientation to prevent overheating.

Step-by-step connection:

Locate the auxiliary terminal block–marked NC/NO or labeled “Trip” on the device housing. Bridge the NO (normally open) terminal to a power source via a momentary pushbutton, float switch, or PLC output. Route return wiring through the NC terminal back to neutral or the lower-voltage side of the source. Bypass fuses if the trigger draws less than 5A; use a 6A slow-blow fuse for inductive loads.

Ground all metal enclosures with 6 AWG green wire; avoid daisy-chaining ground connections. Test with a multimeter set to continuity: actuation should produce a brief beep (

For automated systems, pair with DIN-rail mounted terminals rated IP20 or higher. Label both ends of every conductor–permanent markers withstand heat better than adhesive tags. Store spare coils on-site; replacement window for most models is 72 hours if sourced domestically.

Critical fault avoidance:

• Do not exceed 30°C ambient–derate coil voltage by 1% per degree above.
• Keep conductor runs under 30m to minimize voltage drop; use twisted pair for AC coils.
• Install arc suppressors across inductive triggers (MOVs or RC networks) to extend contact life.

Replace entire assemblies–not just coils–if insulation resistance drops below 1 MΩ. Smell and discoloration indicate imminent failure; retiring units preemptively costs 70% less than emergency replacements.

Connecting Auxiliary Release Mechanisms: Key Schematics

Begin by identifying the interrupting device’s control terminals–typically labeled “X1” and “X2” or “A1” and “A2” on the auxiliary release coil. Verify the coil voltage rating (commonly 120V, 240V, or 24V DC) against your control power supply to prevent overheating or failure. Connect one terminal directly to the switched side of your control source (e.g., a pushbutton, relay, or PLC output), ensuring the other terminal runs to the neutral or return path. Use 14 AWG stranded copper wire for 15A circuits, upgrading to 12 AWG if ambient temperatures exceed 60°C. Secure connections with crimp terminals rated for the coil’s duty cycle–Class T for frequent operation (>300 cycles/year), Class H for standard use.

Critical Safety and Troubleshooting Checks

Integrate a transient voltage suppression diode (TVS) across DC coils to absorb inductive kickback–1N4007 suffices for 24V/48V systems. For AC applications, substitute with an RC snubber (0.1µF capacitor + 100Ω resistor) to suppress arcing. Test functionality by applying control voltage while monitoring coil current with a clamp meter; readings should match the coil’s datasheet (e.g., 20-40mA for 120V AC coils). If the mechanism fails to energize, isolate the control circuit and probe for continuity across the coil–open circuits usually indicate burnt windings or loose wiring. Always confirm the interrupting device resets manually after activation; persistent tripping suggests misaligned contacts or insufficient control power.

Key Elements for Remote Release Mechanism Installation

Select a disconnect switch with an auxiliary input rated for 120VAC, 24VDC, or 48VDC–check the manufacturer’s data sheet for voltage tolerance (typically ±10%). Avoid mismatched coil voltages as they cause overheating or failure.

Use a UL-listed control relay with at least two NO/NC contacts if the activation signal must trigger secondary devices like alarms or backup generators. Relay contacts should handle 10A at 250VAC minimum; verify the inrush current of connected loads.

Component	Minimum Rating	Recommended Model
Auxiliary coil	120VAC, 24VDC, 48VDC	Eaton EZD, Siemens 3RV10
Control relay	10A resistive @ 250VAC	Omron MY4N, Schneider RXM4AB2BD
Signal wire	18 AWG, stranded copper	Belden 9418, Lapp ÖLFLEX 110

Choose 18 AWG stranded copper wire for signal paths, rated for 600V insulation; solid core introduces brittleness and premature breaks. Shielded cable (e.g., Belden 9841) reduces EMI from nearby motors or VFDs–ground the shield at a single point to prevent ground loops.

Field Verification Checks

Test coil resistance with a multimeter before installation: a 120VAC coil should read 15-50Ω; a 24VDC coil typically measures 200-800Ω–values outside this range indicate damage. Apply nominal voltage to the coil and confirm the disconnect latch disengages within 50ms; longer delays suggest corroded contacts or weak springs.

Label every conductor at both ends with heat-shrink tubing: “CMD” for command source, “RET” for return path, “SHLD” for shield. Photograph the panel layout before closing; this simplifies troubleshooting if later modifications are needed.

Mount the remote pushbutton or PLC output within 5 meters of the disconnect to limit voltage drop–calculate drop using V = I × R, targeting less than 3% loss. Separate control wiring from power conductors by at least 25mm in raceways; cross at 90° if separation isn’t possible.

Step-by-Step Auxiliary Release Installation for Protective Devices

Before handling any live components, isolate the power source at the main distribution panel. Verify zero voltage using a multimeter across the input terminals of the overcurrent protection unit. Failure to confirm de-energization risks severe electrical shock or equipment damage during installation. Label all wires according to their function–control, common, or voltage supply–to prevent misconnection later.

Follow these precise mounting steps:

• Align the auxiliary release module with the designated mounting bracket on the protective device’s chassis. Most models include pre-drilled slots for secure attachment.
• Connect the control wires to the module’s terminal block. Red wires typically carry voltage (24V/120V/230V), while black or blue wires serve as neutral or return paths. Confirm polarity per the manufacturer’s datasheet–incorrect polarity can trigger immediate activation or module failure.
• Attach the common wire from the release coil to the designated “trip” terminal on the device. Ensure a tight, vibration-resistant connection using ring terminals crimped with a ratcheting tool, not bare wire under screw tension.
• Route external control signals (e.g., from a pushbutton, relay, or building management system) through a Class 2 circuit isolated from high-voltage lines. Use twisted pair cabling for noise immunity over distances exceeding 15 feet.

Test functionality in three phases: First, apply nominal control voltage (e.g., 120VAC) and verify the coil energizes with a faint hum–absence indicates faulty wiring or coil failure. Next, manually trigger the release using the control source; the device should latch open within 50ms. Lastly, simulate a fault scenario (e.g., short-circuit test) to confirm automatic disengagement. Document results, including voltage drops across terminals, for compliance records. Re-energize the system only after verifying all connections and securing covers to prevent accidental contact.

Critical Errors in Protective Device Remote Activation and Prevention Methods

Incorrect voltage rating selection tops the list of failures. Most control relays and auxiliary switches require 120VAC or 24VDC for reliable operation, yet technicians often misalign these values with the system’s supply. A 24VDC coil connected to a 120VAC source will burn out within seconds; conversely, a 120VAC coil on 24VDC will fail to engage. Always verify the nameplate data on the coil and confirm compatibility with the control voltage source before fastening connections. Use a multimeter set to AC or DC voltage mode, depending on the system, to measure the supply lines directly at the terminal block–never assume the voltage based on breaker panel labeling or color-coded wires.

• Neglecting Neutral Connections: In single-phase systems, omitting the neutral from the activation coil circuit leads to intermittent operation or complete failure. The neutral must run alongside the live wire to complete the loop. Test continuity from the neutral bar to the coil’s return terminal after wiring.
• Overlooking Polarity in DC Systems: DC-powered coils demand strict adherence to positive and negative leads. Reversing polarity will prevent actuation. Mark DC wires with color-coded sleeves–red for positive, black for negative–and double-check the coil’s terminal markings before securing.
• Ignoring Auxiliary Contact Ratings: Auxiliary switches inside protective devices often carry micro-load ratings unsuitable for direct control of coils or indicator lamps. Exceeding the rated current, typically 5A, risks arcing and contact weld. Use a relay rated for the full load if the auxiliary switch can’t handle the current draw.
• Skipping Insulation Resistance Tests: Bare strands or nicked wires introduce leakage current, reducing excitation voltage at the coil. After tightening, tug-test every connection and perform a 500VDC megohm test between conductors and ground–any reading below 1MΩ indicates compromised insulation.
• Misrouting Control Cables: Parallel routing of control cables with power conductors induces false trips via capacitive coupling. Separate control cables by at least 12 inches from power lines or use shielded twisted-pair wire grounded at one end only.

Measure twice, connect once–reversing any of these errors demands disassembly and retesting, costing hours of downtime.
