Building and Reading Arduino Circuit Diagrams for Beginners
Start with a modular approach–break your prototype into functional blocks. For example, power regulation requires an LM7805 or AMS1117 for steady 5V output, paired with decoupling capacitors (10µF input, 1µF output) near the microcontroller’s VCC pin. Avoid connecting peripherals directly to the board’s 3.3V/5V rails; instead, route them through a dedicated bus with a current-limiting resistor if needed. Use a P-channel MOSFET (e.g., IRF9530) for high-side switching to protect sensitive sensors.
Signal lines demand attention to noise and voltage levels. Digital I/O pins tolerate 0–5V (or 0–3.3V for some boards), but analog inputs require scaling via voltage dividers when interfacing with higher voltages. For I2C or SPI devices, pull-up resistors (4.7kΩ) on SCL/SDA lines are non-negotiable–omit them, and communication fails. Ground loops disrupt readings; tie all grounds to a single star point near the power source.
Power-hungry components like motors or relays need isolation. Drive them with an N-channel MOSFET (IRF520) or solid-state relay, triggered by a low-power transistor (2N2222) if the microcontroller’s pin lacks sufficient current. Add flyback diodes (1N4007) across inductive loads to prevent voltage spikes from damaging the board. LED indicators should include series resistors (220Ω–1kΩ) to limit current to 5–20mA per pin.
For complex setups, label every node in your layout. Use Fritzing or KiCad to document connections, but cross-verify with a multimeter–software mistakes turn into fried hardware. Test sub-circuits independently before integrating. A 0.1µF ceramic capacitor across the microcontroller’s power pins smooths transient spikes, and a reset button wired to the RST pin simplifies debugging. Keep high-frequency signals (PWM, SPI clocks) away from analog traces to prevent crosstalk.

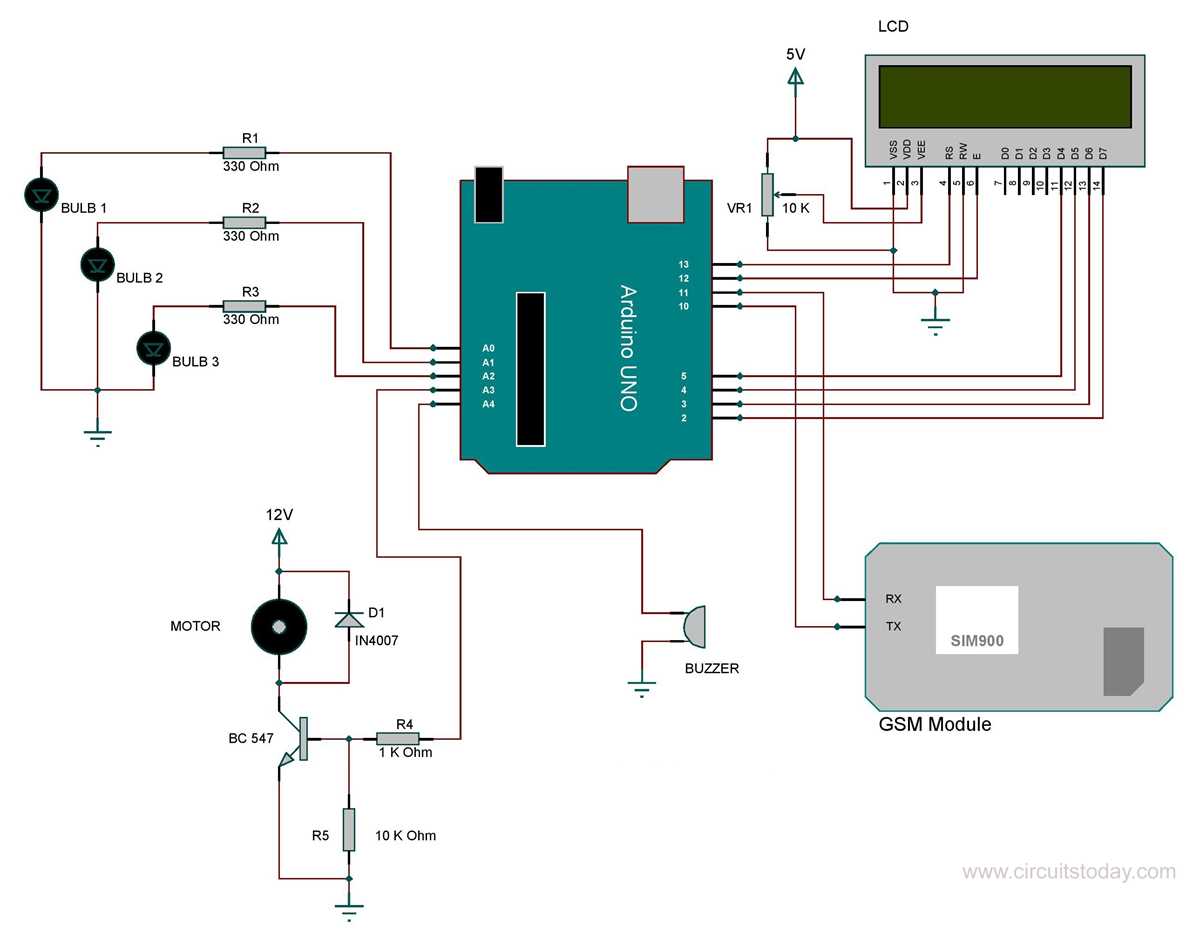

Building Electronic Schematics for Microcontroller Boards
Begin with the power supply section–use a regulated 5V source for most ATmega328-based systems to avoid voltage fluctuations that disrupt sensors or actuators. Linear regulators like the LM7805 tolerate input voltages up to 35V but require a heatsink if the current exceeds 500mA. Switched-mode regulators such as the MP2307 step down higher voltages efficiently without excessive heat.
Label every component with a unique identifier (R1, C1, D1) and maintain consistency across the layout and parts list. For resistors, specify both resistance (e.g., 220Ω) and power rating (¼W is standard unless driving LEDs or motors). Capacitors under 1µF should use ceramic types; electrolytics are better for bulk storage above 10µF but polarize–mark the negative terminal. Diodes need orientation arrows; LEDs require current-limiting resistors calculated via R = (VCC - VLED)/ILED, typically 20mA.
| Component | Common Values | Critical Notes |
|---|---|---|
| Resistor | 220Ω, 1kΩ, 10kΩ | Carbon film for general use; metal film for precision |
| Ceramic Capacitor | 100nF, 22pF | Bypass near IC power pins to suppress noise |
| Electrolytic Capacitor | 10µF, 100µF | Observe polarity; short lifespan above 85°C |
| LED | 3mm red, 5mm blue | Reverse voltage destroys them; maximum 5V |
| Transistor (NPN) | 2N2222, BC547 | Check hFE for switching currents above 100mA |
Ground loops are a frequent issue–connect all grounds at a single point near the power source to prevent return-path interference. Analog and digital grounds should merge only at this node. For I2C or SPI, keep trace lengths under 10cm; longer runs may need pull-up resistors (4.7kΩ for 5V systems) to ensure signal integrity.
Use 0.1µF decoupling capacitors directly across the power pins of every IC to quench high-frequency noise generated during switching. Place them physically close–ideally within 2mm of the pins. If the system includes motor drivers or relays, add a flyback diode (1N4007) across inductive loads to snub voltage spikes that exceed VCC.
Fritzing is adequate for prototyping visuals, but KiCad or Eagle provide netlist exports needed for PCB fabrication. Trace widths for 500mA signals should be at least 0.3mm; 1mm for 2A currents. Thermal reliefs on through-hole pads ease soldering but increase resistance–omit them if heat dissipation is critical.
Test continuity with a multimeter before applying power. Measure the rails–5V should be within 5% tolerance. If the system resets during operation, suspect voltage sags caused by insufficient input capacitance or ground bounce. An oscilloscope verifies noise faster than iterative troubleshooting.
Opto-isolators (e.g., PC817) separate signal domains when mixing 12V peripherals with 3.3V logic. Each side needs independent power and ground. For wireless modules like HC-05, ensure adequate antenna clearance–metal enclosures attenuate 2.4GHz signals.
Update the schematic revisiting every revision. Log component swaps (e.g., resistor values adjusted for sensor calibration) and mark deprecated connections with a strikethrough to maintain clarity for future builds.
Beginner’s Guide to Interpreting Electronic Schematics for Microcontrollers
Identify power rails first–look for labels like VCC, 5V, 3.3V, or GND. These define reference points for component connections. Trace lines extending from these nodes to sensors, resistors, or LEDs to understand voltage distribution. If a symbol shows a battery or power source, note its polarity; reversing it risks damaging modules.
Recognize common symbols instantly: zigzag lines represent resistors, flat rectangles with leads indicate capacitors, and arrows denote LEDs. ICs (integrated chips) appear as rectangles with numbered pins–match these to the microcontroller’s pinout for correct wiring. For example, a DHT11 sensor typically connects to pin 2 for data, with a 10K pull-up resistor bridging its data line to power.
Verify ground connections–every component sharing the same potential must link to the board’s GND via direct or shared traces. Use a multimeter in continuity mode to confirm connections if unclear. For pull-down/push buttons, locate resistors (1K–10K) tying the signal line to either power or ground, preventing floating inputs.

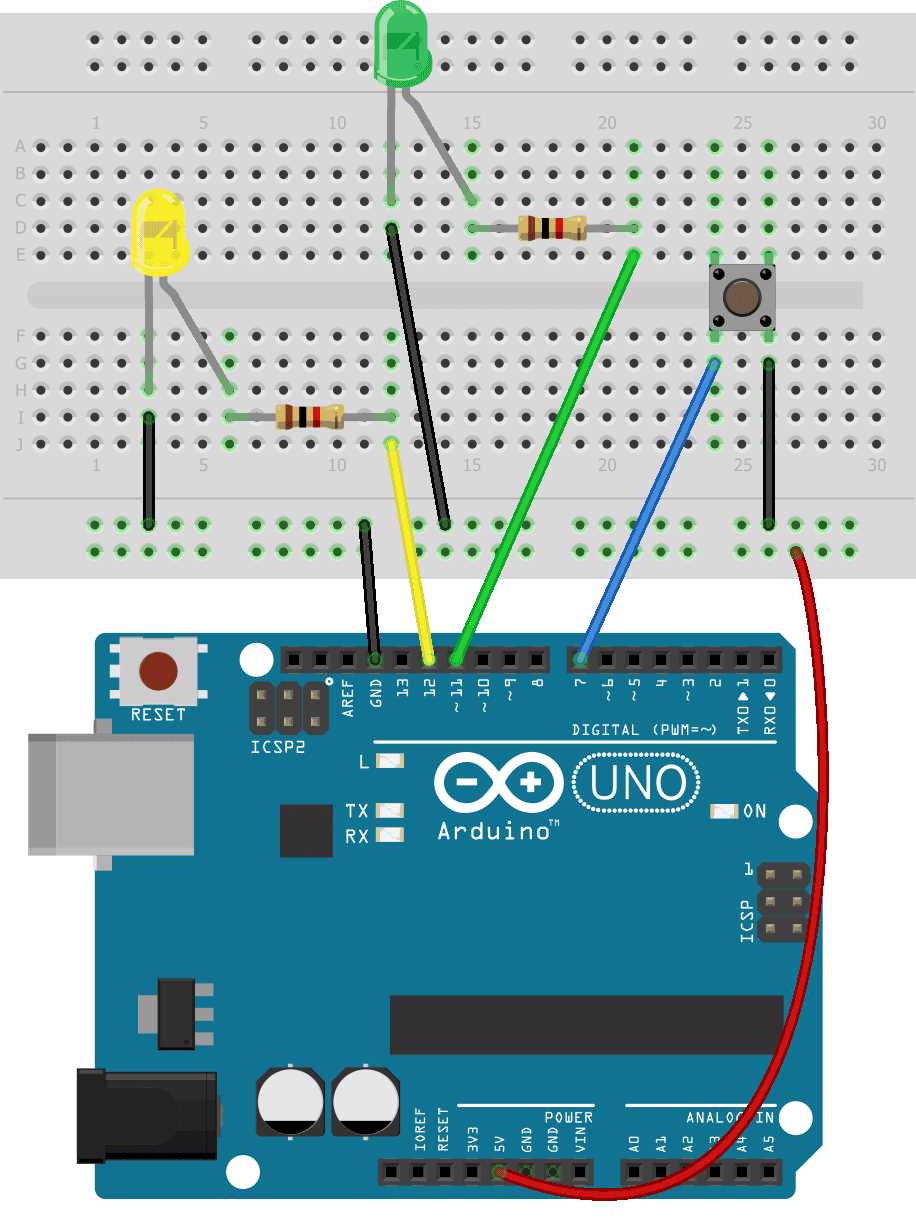

Step-by-Step Guide to Sketching Your First Microcontroller Blueprint
Start with KiCad or Fritzing–both offer free versions and built-in libraries for common components like resistors, LEDs, and sensors. Download the latest stable release from their official sites to avoid compatibility issues.
Select a simple project, such as an LED flasher, to minimize complexity. Place the microcontroller board at the center of your workspace, then arrange peripherals around it. Use grid snapping (set to 2.54mm) to align parts accurately–this prevents misaligned connections later.
For power lines, draw thick traces (0.5mm or wider) to handle current without overheating. Label all pins explicitly: 5V, GND, D2, etc. Add a 100nF capacitor near the microcontroller’s power pins to stabilize voltage–ignore this step only if debugging hardware failures later is acceptable.
Route signal lines last. Keep traces short and avoid 90° angles; use 45° bends instead to reduce electrical noise. If crossing lines becomes unavoidable, add a jumper wire symbol (not a direct line) to clarify intent–software autotracers may misinterpret overlaps.
Verify connections with the electrical rules check (ERC) tool before exporting. KiCad’s ERC flags unconnected pins, duplicate nets, and power conflicts–address all warnings even if the design “seems” correct. Export to PDF or SVG; PNG compresses poorly.
Print the blueprint at 1:1 scale to test real-world fit. Tape components onto the printout–if they align without bending legs, proceed to soldering. Misaligned parts indicate measurement errors in the drawing.
Backup the project file to GitHub or cloud storage using .kicad_pro (KiCad) or .fzz (Fritzing) formats. Include a bill of materials (BOM) listing supplier part numbers–digikey or LCSC–for quick ordering.
Key Components and Graphical Notations in Schematics
Use standardized symbols to represent parts in layouts–confusion arises when non-standard icons are introduced. A microcontroller board commonly appears as a rectangular box with labeled pins; resistors use zigzag lines or rectangles with resistance values (e.g., 220Ω). LEDs are depicted as triangles pointing toward a bar, with annotations clarifying anode and cathode. Transistors (BJTs) show a vertical line intersecting a circle, with emitter, base, and collector marked; MOSFETs replace the circle with a perpendicular bar. Capacitors split into polar (curved line for negative) and non-polar (two parallel lines). Sensors (e.g., thermistors) often combine a generic rectangle with descriptive text.
- Resistor: R=1kΩ – zigzag or rectangle with value
- LED: D→| – triangle + line, anode marked
- NPN Transistor: Q ↓ – vertical line inside circle, emitter arrow down
- Push Button: S ⏜̃ – two flexible contacts meeting a bar
- Potentiometer: RP=10kΩ – resistor with adjustable tap arrow
- Servo Motor: M → – rectangle with shaft line
- ICSP Header: ⎯⎯⎯⎯⎯⎯⎯⎯ – set of six small circles, labeled MISO/SCK
- Crystal Oscillator: Y=16MHz – parallel lines with frequency annotation
Ensure symbols match datasheets–deviations risk misinterpretation during prototyping or debugging.
Connecting Sensors to Development Boards: Practical Wiring Examples
Begin by matching the sensor’s voltage requirements to the microcontroller’s logic levels–5V or 3.3V–to prevent overloading input pins. For instance, a DHT11 temperature and humidity module operates safely at 5V, while a BME280 barometric sensor demands 3.3V to avoid irreversible damage. Verify the datasheet for each component before powering the setup.
Use a 4.7kΩ pull-up resistor when interfacing I2C sensors like the MPU6050 accelerometer-gyroscope combo. Connect SDA and SCL lines to analog pins A4 and A5 on an Uno, respectively, ensuring the resistor ties the data lines to VCC. Omit this resistor only if the sensor’s internal circuitry already includes it, as with some modern modules.
For analog sensors such as the MQ-2 gas detector, wire the output directly to an analog input pin. Calibrate readings by exposing the sensor to known gas concentrations in a controlled environment–record voltage values at 10%, 50%, and 90% of the target gas’s range. Use these benchmarks to map raw analog values to meaningful units in code.
When working with digital sensors like the HC-SR04 ultrasonic distance module, power it from a stable 5V source. Attach the Trigger pin to a digital output and the Echo pin to a digital input with a 1kΩ series resistor to buffer transient voltage spikes. Measure pulse duration on the Echo pin to calculate distance in centimeters, accounting for sound’s 343 m/s propagation speed in air.
Reduce noise in analog signals by placing a 0.1µF decoupling capacitor between the sensor’s power and ground pins, as close to the module as possible. For sensors generating rapid data streams, add a 10µF electrolytic capacitor in parallel to smooth voltage fluctuations during transient current draws, especially with motors or high-power LEDs sharing the supply.
Test wiring integrity before powering the entire system–probes the connections with a multimeter. Look for unexpected shorts or open circuits; even a single misplaced jumper can corrupt readings. Once verified, upload a minimal sketch to confirm sensor responsiveness–polling an I2C device’s default address or printing raw analog values offers immediate feedback.
Label wires using heat-shrink tubing or colored markers to simplify troubleshooting. Group ground wires in a star topology to minimize ground loops. Avoid daisy-chaining power lines–run separate heavy-gauge wires from the regulator to high-current sensors like servo motors or relays to prevent voltage sag that destabilizes sensitive modules.
