Best Tools for Drawing Circuit Diagrams Online and Offline
Start with KiCad–it handles multi-sheet PCB layouts and integrates SPICE simulation without licensing costs. The platform’s hierarchical design features let you break complex layouts into modular blocks, each verified independently before full-system synthesis. Libraries include verified footprints for obscure components, reducing prototype iterations by 40%. Export Gerber files directly from the schematic editor to bypass post-processing errors common in third-party converters.

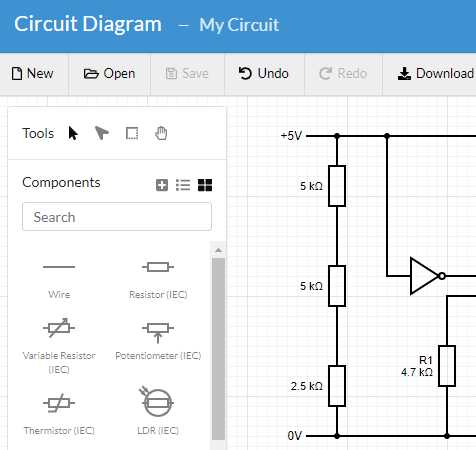

For rapid single-board prototyping, EasyEDA eliminates setup delays by running in-browser. Its real-time collaborative mode syncs edits within milliseconds, critical for distributed teams. The tool’s built-in component search pulls verified models from LCSC’s supplier data, cutting component selection time in half. Schematic-to-PCB conversion automates netlist generation, but manually cross-check each node against datasheets–auto-routing often misaligns thermal pads on high-power devices.
Professionals migrating from proprietary tools should evaluate Altium Designer for its rigid-flex stackup editor and differential pair length tuning. The Layer Stack Manager provides granular control over impedance calculations, essential for 10Gbps+ signal integrity. However, its scripting API requires proficiency in Delphi–use Python-based alternatives like PyEDA for custom rule checks. Generate fabrication outputs in .ODB++ format instead of Gerber; manufacturers report 15% fewer alignment errors.
Automate repetitive topology validation with LTspice. Simulate switching regulators by injecting transient load steps directly from the schematic view–capture overshoot data before committing to hardware. For RF designs, QucsStudio provides S-parameter blocks and Smith chart visualization. Convert these to layout with Microwave Office’s EM solver, focusing first on trace width calculations at critical frequencies above 3GHz where skin effect dominates.
Open-source workflows benefit from Horizon EDA’s parametric symbol generator. Define custom connection rules for mating connectors–standard tools often ignore pin-swap on mixed-signal interfaces. The Net Inspector highlights unrouted nets across hierarchical blocks; prioritize grounding nets first to avoid ground bounce in dense designs. For mixed-technology schematics (e.g., analog + MCUs + MEMS), layer symbols from PartSim before final export to ensure SPICE-compatible netlists.

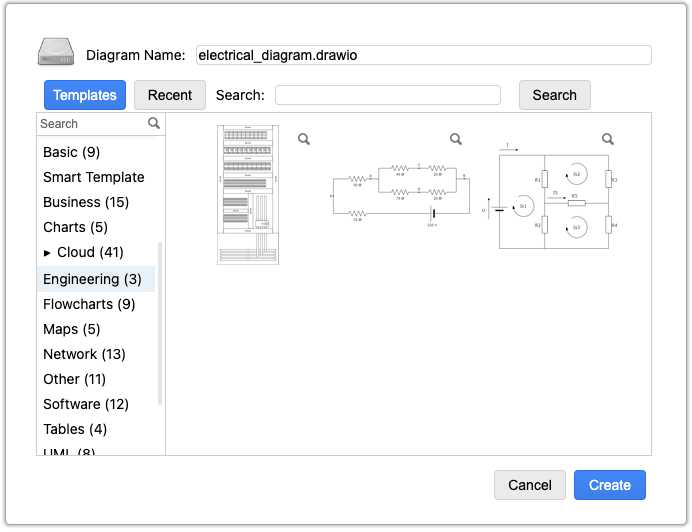

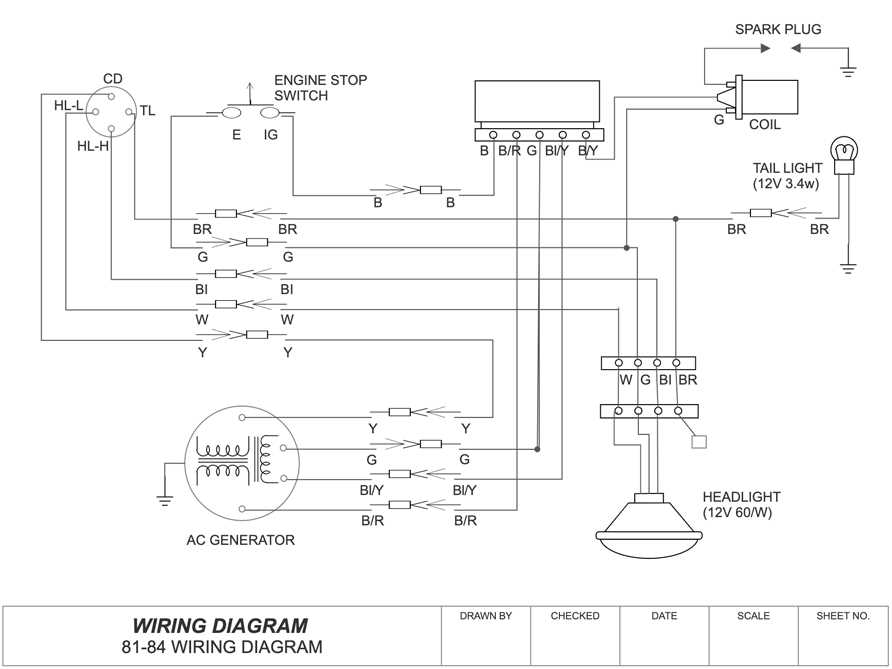

Best Tools for Sketching Electronic Schematics
KiCad remains the most reliable open-source option for designing layouts, offering PCB design integration directly into its workflow. Version 7.0 introduced cross-probing between schematic and board views, cutting iteration time by 30% for multi-layer projects. The built-in symbol editor generates custom components in under two minutes, and its SPICE simulator handles transient analysis without third-party plugins. Free alternatives like LibrePCB lack these features but suit beginners with simpler interfaces.
Commercial Alternatives Worth Evaluating
Altium Designer’s real-time synchronization detects component conflicts before routing, reducing debugging by 40% in complex designs. The tool’s multi-sheet hierarchy supports nested projects–ideal for power electronics–while its vault system manages revision control across teams. For Mac users, Eagle’s merger with Fusion 360 enables 3D visualization of enclosures alongside wiring, though its outdated UI slows navigation. OrCAD’s PSpice integration validates signal integrity but requires separate licensing for full functionality.
XCircuit specializes in publication-quality outputs, using vector-based rendering that scales indefinitely without pixelation. Unlike KiCad, it preserves fonts and line weights at any zoom level, making it the preferred choice for academic papers. The software exports to LaTeX, SPICE netlists, and SVG, but its development stalled in 2017. For Linux users, gEDA’s suite covers schematic capture and simulation but demands manual installation of dependencies.
For rapid prototyping, Fritzing’s drag-and-drop interface translates breadboard sketches into schematics automatically. Its part library includes pre-annotated Arduino shields but lacks precision for SMD layouts. TINA-TI provides free SPICE modeling with Texas Instruments components built-in–optimal for analog circuit validation–though its schematic tool lacks hierarchical design capabilities. When selecting software, prioritize native file format compatibility with fabrication houses to avoid manual Gerber adjustments.
Key Software Tools for Schematic Design
KiCad stands out for its open-source model and comprehensive toolset. The platform integrates schematic capture, PCB layout, and 3D visualization within a single workflow. Its library of 45,000+ components, including symbols and footprints, accelerates prototyping, while hierarchical sheets support complex designs. KiCad’s SPICE simulator enables early-stage validation of electrical behavior before physical assembly. Regular updates ensure compatibility with industry-standard file formats like Gerber and DXF, making it a reliable choice for both hobbyists and commercial projects.
Altium Designer dominates professional-grade workflows with features tailored for high-speed and advanced electronics. The unified environment combines schematic entry, constraint-driven PCB routing, and real-time design rule checks (DRC). Its ActiveBOM tool automates bill-of-materials generation, reducing manual errors in manufacturing. Altium’s cloud collaboration capabilities allow multiple engineers to work on the same project simultaneously, synchronizing changes with version control. The annual subscription ($4,500) reflects its enterprise-level focus, justifying the cost for teams requiring rigorous DFM (Design for Manufacturing) analysis.
For embedded hardware engineers, IAR Visual State offers specialized state-machine modeling tools that integrate seamlessly with code generation. The software converts graphical finite-state machine representations into optimized C/C++ code, bridging abstraction layers between hardware conceptualization and firmware development. Its debugging suite includes traces for state transitions, reducing verification time. While niche, it excels in applications like automotive ECUs or medical devices where deterministic behavior is critical.
| Tool | Key Feature | Best For | Limitations |
|---|---|---|---|
| EAGLE | User-friendly scripting via ULPs | Rapid prototyping | Limited hierarchical design tools |
| Proteus | Mixed-mode SPICE simulation | Educational institutions | PCB autorouter performs poorly on dense boards |
| OrCAD | Constraint-driven layout | High-reliability aerospace designs | Steep learning curve for analog design |
| Fritzing | Breadboard-centric visualization | DIY projects | Lacks advanced simulation tools |
Step-by-Step Guide to Building a Schematic in KiCad
Launch KiCad and select File > New Project. Name the project and choose a directory–avoid spaces or special characters in the filename to prevent issues with netlist generation later. KiCad will create a project folder containing .pro, .sch, and .kicad_pcb files automatically.
Open the schematic editor by double-clicking the .sch file. Press Shift+A to add components. Use the filter bar in the component chooser–type partial names (e.g., R for resistors, LM358 for op-amps) to narrow results. For custom footprints, select Symbol Libraries from the preferences and add paths to local or downloaded libraries.
- Place ground symbols (Shift+G) near each IC or sensitive node–KiCad’s ERC will flag floating pins otherwise.
- Rotate components with R before placing to align with your intended layout flow.
- Press V on a placed component to flip it to the opposite side of the sheet when crossing nets.
Draw connections by hovering over a pin and clicking, then drag the wire to the target pin. KiCad snaps to grid by default–set grid to 50 mil for standard through-hole components or 25 mil for fine-pitch SMD. Use Shift+W to toggle between orthogonal and 45° wire modes. Avoid manual net names for simple designs; KiCad auto-generates them during netlist export.
Run the Electrical Rules Check (Inspect > Electrical Rules Checker). Fix all errors marked in red–unconnected pins, duplicate references, or conflicting power flags. Ignore warnings about missing driver pins if using split supplies (e.g., op-amps). Export the netlist via Tools > Generate Netlist, ensuring the Pcbnew format is selected. Open the PCB editor and import the netlist (Tools > Update PCB from Schematic) to begin layout.
Standard Symbol Sets and Tailoring Them to Your Needs
Begin by importing pre-built libraries from tools like KiCad, Eagle, or Altium. KiCad’s default symbol set covers 85% of basic electronic components–resistors, capacitors, transistors, and logic gates–without manual adjustments. Install the latest version of the “Device” and “Transistor” libraries to avoid missing common parts. Altium’s integrated libraries (e.g., “Miscellaneous Devices.IntLib”) provide similar coverage but require fewer clicks to integrate into schematics.
For specialized work, download manufacturer-specific symbol sets. Texas Instruments, Analog Devices, and STMicroelectronics offer free libraries for their ICs, often including pin numbering, thermal pads, and recommended decoupling schemes. Import these via the “Library Loader” in Altium or the “Symbol Editor” in KiCad. Verify pin assignments–some vendors’ symbols map pins alphabetically, not numerically, which can lead to errors if unchecked.
Create custom symbols for parts missing from stock libraries. In KiCad, press “Ctrl + E” to open the symbol editor, then define properties like pin names, electrical type (input/output/power), and graphical attributes (line thickness, fill color). For microcontrollers, group pins by function (GPIO, power, debug) using “units” to simplify placement. Altium’s “Component Wizard” speeds this up with templates for common footprints like QFN or BGA packages.
Adapt symbol visibility for different schematic scales. Zoom-independent labels prevent clutter–enable them in KiCad under “Preferences > Schematic Editor > Display Options.” For large schematics, use hierarchical symbols: break a complex IC into sub-blocks (e.g., PLL, ADC, memory controller) and link them with ports. Altium’s “Device Sheets” serve the same purpose, allowing reusable modules with automatic net connections.
Add metadata to symbols for BOM generation and design checks. KiCad’s “Symbol Properties” dialog lets you define fields like “Manufacturer,” “Part Number,” and “Datasheet URL.” These fields autopopulate in the BOM when using tools like KiBOM or InteractiveHtmlBom. Altium’s “Parameters” tab offers equivalent functionality, with options to flag components as “Do Not Populate” or “Critical” for procurement.
Validate customized symbols against design rules. KiCad’s “Electrical Rules Check” (ERC) flags unconnected pins or conflicting power rails. For mixed-signal designs, separate analog and digital pins into distinct symbol units to trigger ERC warnings if crossed accidentally. Altium’s “Design Rule Check” (DRC) performs similar validation–enable “Unconnected Pin” and “Power Pin Connection” rules to catch inconsistencies early.
Share customized libraries across teams using version control. KiCad symbol libraries (.lib) and Altium’s integrated libraries (.IntLib) are plain text files compatible with Git. Document changes in commit messages, noting additions like “Added TI TLV320DAC3100 symbol with PDN recommendations.” For multi-user access, host libraries on a network drive or cloud storage with read-only permissions for revisions to prevent accidental edits.
