Mastering Circuit Design Practical Diagram Exercises for Engineers

Begin with a simple voltage divider to test your understanding of component interaction. Assemble two resistors (e.g., 1kΩ and 2kΩ) in series between a 5V source and ground. Measure the voltage across the smaller resistor–it should read 1.67V. Deviations indicate miscalculations or faulty connections. Repeat with varying resistor values (e.g., 10kΩ/20kΩ) to confirm consistency. Document each step; anomalies often reveal gaps in theory.

Isolate transistor switching as your next task. Use a BC547 or 2N3904 with a 1kΩ base resistor and a 470Ω collector resistor. Apply a 3V signal to the base; the transistor should saturate, dropping the collector voltage to near-zero. If not, check resistor values, polarity, or substitute the transistor. Compare datasheet parameters (e.g., h_FE) against actual behavior–real-world deviations are common.

Construct a timed delay using a 555 timer in monostable mode. Set R = 100kΩ and C = 10µF for a 1-second pulse. Trigger via a pushbutton; the output should light an LED for the calculated duration. If timing drifts, verify capacitor tolerance (electrolytics may vary ±20%) or parasitic resistance (breadboard contacts add ~0.5Ω). Replace components with precision parts (e.g., film capacitors, 1% resistors) to test accuracy.

Analyze a power supply ripple by building a half-wave rectifier with a 1N4007 diode, 100µF capacitor, and 12V AC source. Measure DC output–expect ~16V peak with ~1V ripple. Swap the capacitor for 1000µF; ripple should drop below 100mV. If noise persists, probe for ground loops or add a 0.1µF bypass capacitor. Use an oscilloscope, not a multimeter, for high-frequency artifacts.

For digital logic, wire a 74HC00 NAND gate to control an LED. Feed inputs from a DIP switch; confirm the truth table (0+0=1, 1+1=0). If behavior is erratic, check pull-up/pulldown resistors (10kΩ) or power supply stability (decouple with 0.1µF near Vcc). Substitute the gate with 74HC08 AND gates to contrast outputs–same logic levels, inverted responses.

Finally, design a custom operational amplifier circuit. Use an LM358 to amplify a 10mV signal 100x (R_f=100kΩ, R_in=1kΩ). If output clips, reduce gain or verify power rails (±5V minimum). Swap the op-amp for TL072 (lower noise) or LM741 (higher offset) to observe trade-offs. Probe slew rate with a square wave input–slow op-amps distort edges.

Building Practical Schematics: Key Steps for Accuracy

Begin by labeling every component with standardized symbols from IEEE 315 or IEC 60617. Resistors use a zigzag line (ANSI) or rectangle (IEC), capacitors show two parallel lines, and transistors include emitter, base, and collector pins. Number each part sequentially–R1, R2, C1, Q1–to avoid confusion during testing. Keep spacing consistent: 5mm between small components, 10mm for larger ones like transformers.

Trace power rails first. Position the positive voltage line at the top, ground at the bottom. Use thicker lines (0.5mm) for power, thinner (0.25mm) for signal paths. Avoid crossing lines; if unavoidable, add a small semicircle at the intersection to indicate no connection. For multi-layer boards, color-code layers: red for top, blue for bottom, green for inner layers.

Verification Methods to Catch Errors Early

Simulate the layout using SPICE tools like LTspice or KiCad’s integrated engine. Input expected voltages (e.g., 5V, ±12V) and component values. Check for voltage drops exceeding 10% of the supply–this often reveals undersized traces or missing decoupling capacitors. Use an oscilloscope’s probe mode to validate node voltages against calculated values.

Print the layout at 1:1 scale and overlay it on a breadboard. Place each part physically, then compare pinouts. Misaligned transistors or reversed diodes become obvious here. For SMD components, use a 10x magnifier to verify pad spacing matches datasheet specs (e.g., 0603 resistors need 0.8mm center-to-center spacing).

Add test points–small circles labeled TP1, TP2–for critical nodes like oscillator outputs or feedback loops. These let you clip probes without damaging traces. For digital logic, include pull-up resistors (4.7kΩ) on floating inputs to prevent erratic behavior. Document each test point’s expected voltage range in a table adjacent to the layout.

Finalize with a continuity check. Use a multimeter in diode mode to verify no shorts exist between power and ground. Measure resistance between VCC and GND–values below 1kΩ suggest a fault. For analog sections, confirm coupling capacitors are correctly polarized; reversed electrolytics will fail within hours of power-up.

Decoding Resistor and Capacitor Labels in Electrical Blueprints

Look for alphanumeric codes on resistor symbols–numbers like “470” mean 470Ω, while “4k7” translates to 4.7kΩ. Multipliers follow: “R” (×1), “K” (×10³), “M” (×10⁶). Capacitors use microfarads (µF) or picofarads (pF); “104” equals 100nF (10×10⁴ pF), “22p” is exact. Color bands further clarify tolerance: gold (±5%), silver (±10%), none (±20%). Cross-reference with part lists if codes are ambiguous–schematics often omit units for brevity.

Polarized capacitors show a curved or “+” line–ensure alignment with the voltage rail. Non-standard values may use decimals (e.g., “.01” = 10nF) or letters (e.g., “1u” = 1µF). For precision, consult datasheets–some designs use custom markings. Tolerance impacts performance; ±1% resistors (brown band) stabilize critical paths, while ±20% suffice for general use.

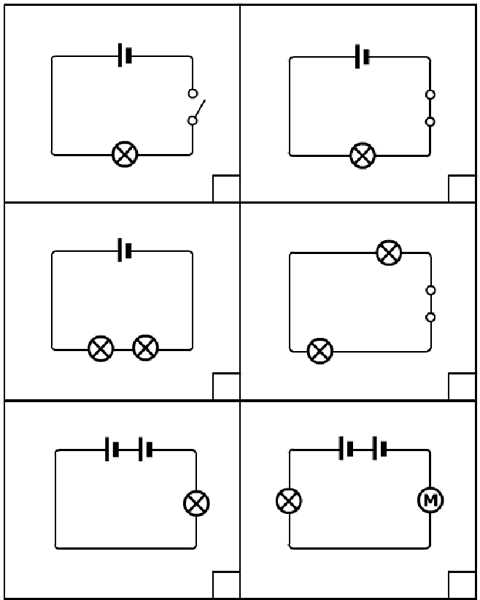

How to Sketch a Basic LED Connection Layout

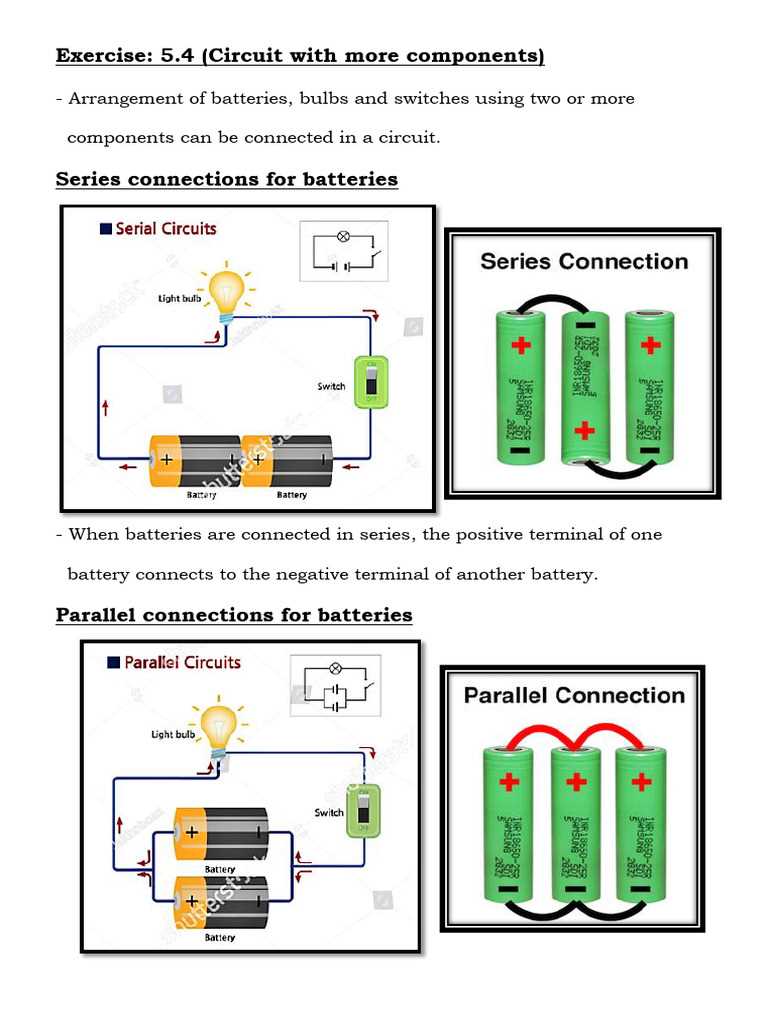

Begin by placing a battery symbol at the top of your schematic. Use a rectangle with a longer positive terminal (marked “+”) and a shorter negative line (“-“). Ensure the voltage rating matches your components–typically 3V to 12V for single LEDs. Label it clearly to avoid confusion later. The battery sets the foundation for current flow direction, so orientation matters.

Required components:

• Battery (e.g., coin cell, AA, or 9V)
• LED (check forward voltage; standard red LEDs need ~1.8V–2.2V)
• Resistor (calculate using Ohm’s Law: R = (Vsource – VLED) / ILED; 20mA is safe for most LEDs)
• Jumper wires or breadboard (for physical testing)

Draw the LED next, using a triangle with a line at its tip. Add two small arrows pointing outward from the line to indicate light emission. Connect the anode (triangle’s flat side) to the battery’s positive terminal via a resistor. The resistor prevents excessive current–skip it only if your power source matches the LED’s voltage precisely. Misalignment risks burning the LED instantly.

Complete the loop by linking the LED’s cathode (the lined end) back to the battery’s negative terminal. Use straight lines for connections, keeping them orthogonal to minimize clutter. Add a switch symbol–a break in the line with a lever–to control current flow without disassembling. Double-check polarity: reversing LED leads stops conduction. Test on a breadboard first if unsure; LEDs glow faintly when powered correctly but stay dark if wired backward.

Common Mistakes When Labeling Components in Schematics

Use consistent naming conventions–R1, R2, not Resistor1, resistor2 or mix uppercase/lowercase like R_fb and c3. Inconsistent labels break automated netlist parsing and confuse collaborators. For example, a capacitor labeled “C_in” in one section but “Cin” elsewhere forces manual cross-referencing, increasing errors. Stick to one format per component type, prefixed with its standard letter (R, C, Q, U) followed by sequential numbers. Skip vague names like “Sensor” or “LED_Status”–specify function: “U_temp” for a temperature IC, “Q_main” for a primary transistor.

Omitting power rails (VCC, GND, VDD) from labels creates ambiguity in multi-voltage designs. A transistor marked “Q1” without its supply (e.g., “Q1_V5”) leaves engineers guessing during debugging. Label all pins, including unused ones, with their net names (e.g., “NC” for no-connect, “GND” for ground). Avoid redundant prefixes; “IC_ADC” is clearer than “IC1_ADC” when only one ADC exists. Never reuse labels–”R_sense” for both current and voltage sensing resistors risks short-circuit confusion. Use subscripts for variants (“R_load1,” “R_load2”) and append units if necessary (e.g., “R_10k”).

Key Software for Prototyping Electronic Schematics Before Physical Builds

Start with LTspice–it’s free, integrates seamlessly with Linear Technology’s IC libraries, and handles analog simulations with precision. Its transient, AC, and DC sweep analyses cover 90% of pre-assembly validation needs. Drop SPICE netlists directly into the interface, then adjust component values without manual calculations. For power electronics, the built-in voltage regulator and switch-mode power supply models save hours of guesswork. Install the LTspiceXVII update for native macOS and Linux support, though Windows remains the most stable platform.

NI Multisim bridges classroom theory to professional design with its interactive environment. Paired with Ultiboard for PCB layout, it offers a single workflow from schematic capture to fabrication. The database includes 20,000+ components, updated quarterly, and its co-simulation with LabVIEW lets you embed firmware logic into SPICE models. Use the “3D Visualization” tool to spot mechanical clashes before ordering boards–critical for compact designs. Licensing tiers start at $1,200/year, but the 30-day trial suffices for short-term projects.

For PCB-centric work, KiCad stands out with zero licensing costs and scripting via Python. Its ngspice engine runs Monte Carlo analyses to stress-test tolerances across manufacturing batches. The “Interactive Router” auto-detects high-speed constraints (DDR3, PCIe) and adjusts trace lengths, while the footprint editor supports custom land patterns for rare components. Export Gerbers directly to fab houses like JLCPCB without middleman tools. KiCad’s curve is steep–allocate 10–15 hours for the official tutorials–but pays off with full control over stackup and impedance calculations.

Comparison of Simulation Tools

Tool	Best For	Strengths	Limitations	Output Formats
LTspice	Analog/RF designs	Fast SPICE engine, 10,000+ IC models	No PCB layout, outdated UI	.asc, .plt, CSV
NI Multisim	Educational/prototypes	LabVIEW integration, mixed-signal	$1.2K/year, steep simulation curves	.ms14, .lsfx, Gerber
KiCad	PCB-centric projects	Free, Python automation, Gerber export	Slow SPICE, no official support	.kicad_pcb, Gerber, DXF
Proteus VSM	Firmware/MCU testing	8051/PIC/AVR co-simulation	£900 license, Windows-only	.DSN, .HEX, ARES

Proteus VSM excels when firmware interacts with hardware–drag-and-drop an Arduino sketch onto a simulated ATMega328P, then measure ADC readings or UART traffic in real-time. The “Advanced Simulation” suite includes I²C/SPI protocol analyzers, critical for debugging bus collisions. Version 8.15 added Raspberry Pi Pico support, but ARM Cortex-M models remain generic. Use the “Explode Package” feature to virtually disassemble ICs, revealing bonding wires for ESD analysis. Pair it with ISIS for schematic entry; the workflow feels dated but remains unmatched for embedded validations.

For RF work under 6 GHz, ADS (Keysight Advanced Design System) dominates with its Harmonic Balance solver and electromagnetic co-simulation. Its “Momentum” engine simulates substrate losses in PCB stackups, critical for 5G mmWave designs. ADS integrates with Mentor Graphics Xpedition for layout, but at $40,000/year, it’s overkill for small teams. Instead, try QucsStudio–a free alternative with S-parameter analysis and Smith chart plotting. Its “Verilog-A” models handle nonlinear components like varactors, though file sizes bloat quickly. Export Touchstone files for compatibility with Ansys HFSS or CST Microwave Studio.

Cloud-based options scale for collaborative reviews. EasyEDA runs entirely in-browser, merging SPICE simulations with PCB layout and offering 1-click ordering from LCSC’s catalog. Its schematic editor lacks advanced features like noise figure analysis, but team sharing works flawlessly. For teams using Altium, Altium Designer’s “XSpice” engine validates nets before syncing to Octopart for BOM costing. Note: Altium’s nitrogen-cooled SPICE simulations crash on designs >100 nets–split complex projects into sub-sheets. Git integration tracks versions, but cloud storage costs $45/user/month above 5GB.
