How to Build an Automated Plant Watering System with Circuit Schematics

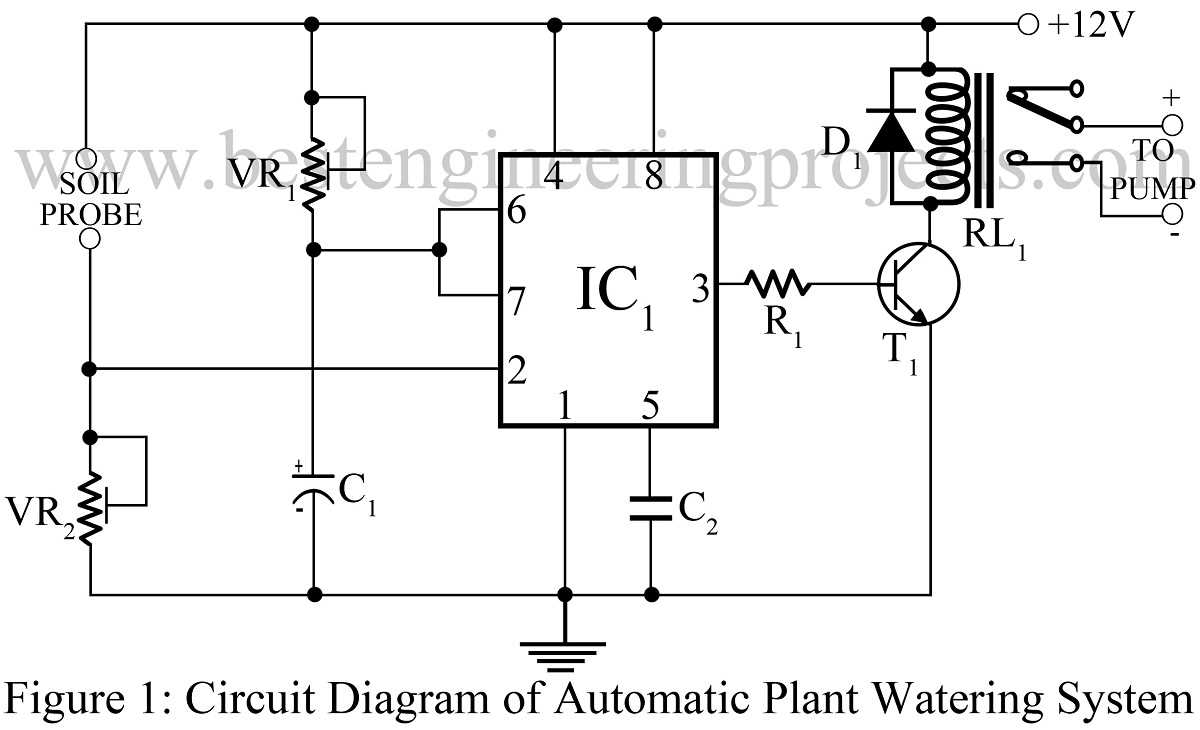

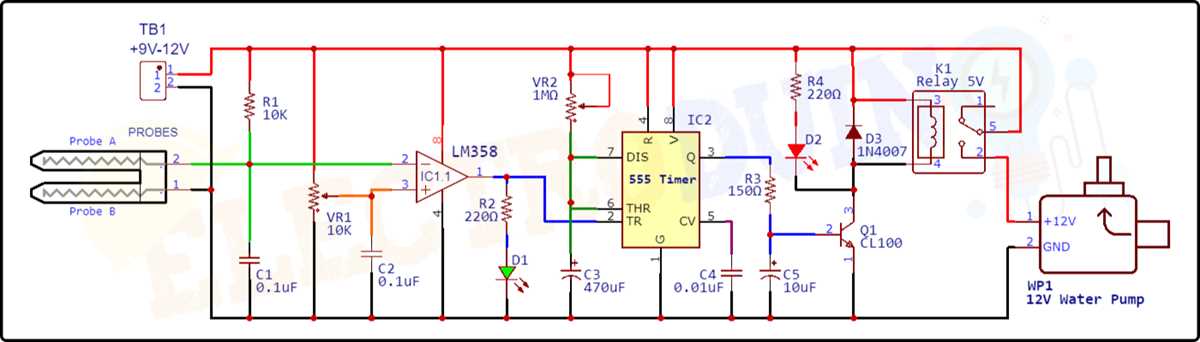

For precision irrigation under 12V DC, deploy a BD139 transistor as the primary switch to handle solenoid valves rated at 500mA–well below its 1.5A collector-emitter limit. Pair it with a 1N4007 diode across the valve terminals to absorb inductive spikes up to 1kV without damaging adjacent components. Use a 555 timer IC in astable mode with a 10μF capacitor and 100kΩ resistor to achieve a 30-second on/off cycle, customizable via a 50kΩ potentiometer for humidity-specific adjustments.
Moisture sensing requires a frequency-response approach: connect a 47nF ceramic capacitor between two stainless steel probes spaced 2cm apart. Drive them with a 4046 PLL IC configured as a voltage-controlled oscillator; raw soil conductivity variations between 10kΩ (saturated) and 1MΩ (dry) translate to 1kHz–10kHz output, processable via an ATtiny85 microcontroller with less than 20mA quiescent draw. Calibrate thresholds at 40% RH–below this, enable the relay; above 85% RH, suppress triggering to prevent overwatering.
Power distribution demands a LM7805 regulator with a heatsink if input exceeds 15V, but parallel Schottky 1N5822 diodes on the output to shunt reverse polarity spikes to ground under transient loads. For redundancy, insert a PPTC resettable fuse (0.75A hold current) upstream of the 5V rail–trips within 5 seconds if a short occurs. Sensor leads should be shielded with RG-174 coax for spans over 1m to mitigate EMI from adjacent AC wiring.
Designing a Soil Moisture-Based Irrigation Setup
Secure a capacitive soil sensor (e.g., FC-28 or better) at root-level depth, ensuring the probe avoids direct contact with coarse substrates like perlite or expanded clay. Wire the sensor’s VCC to a regulated 5 V source, GND to common ground, and AO (analog out) to an Arduino Nano’s A0 pin; pull-down resistors (10 kΩ) prevent floating readings during power cycles. Pair the microcontroller with a low-RDSON MOSFET (IRF520N) to toggle a 12 V submersible pump–protect the gate with a 1N4007 flyback diode and drive it via a 2N2222 transistor buffer if PWM control is needed for flow modulation.
Power & Control Configuration
- Power tree: 12 V –> 5 V buck converter (LM2596) for logic, 12 V direct for pump.
- Threshold loop: read A0 every 30 s, trigger pump at <30% moisture (raw A0 <600), retain off until >60% (raw A0 >800).
- Protection: add a polypropylene 100 nF cap across sensor GND/VCC to suppress EMI from pump spikes.
- Indicator: drive a bi-color LED (red/blue) from D3/D4–red when dry, blue when irrigating.
- Override: include a tactile switch at D2 for manual cycle initiation (10 kΩ pull-up).
Essential Hardware for Assembling the Hydration Control Setup

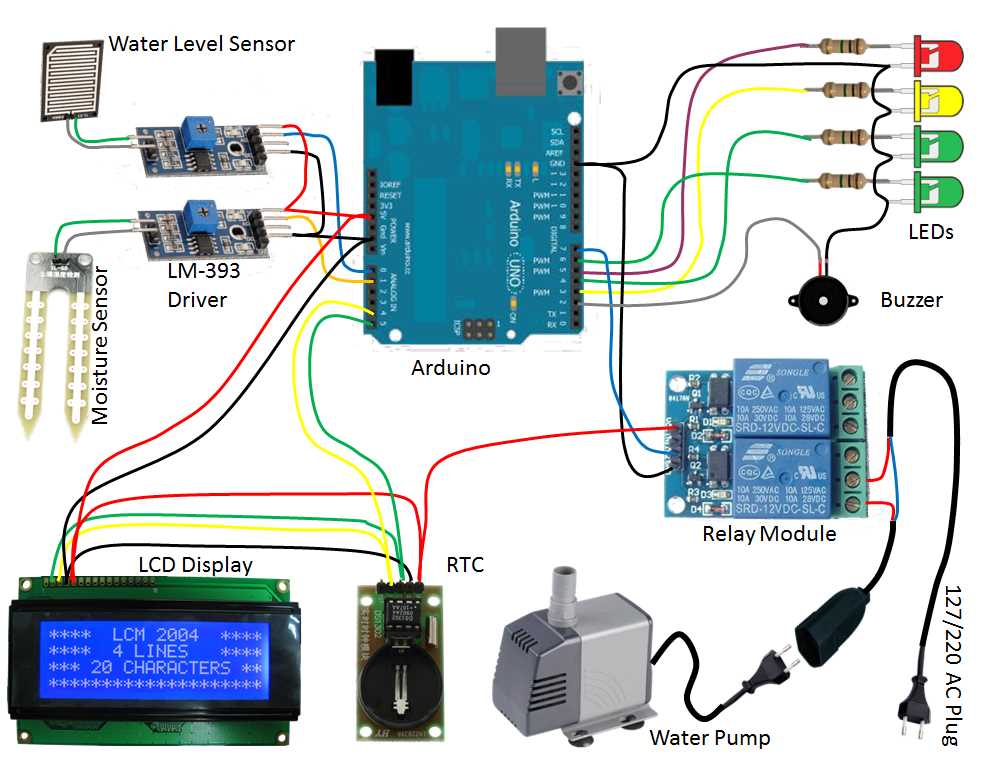

Begin with a microcontroller–opt for an Arduino Uno R3 or ESP8266 for cost-effective yet reliable processing. These boards handle sensor inputs and relay commands without excessive power draw. The ESP8266 offers Wi-Fi for remote monitoring, while the Uno excels in offline stability.
Select a submersible pump rated below 6V, capable of delivering 200-400L/h. Pair it with 4mm inner diameter silicone tubing to prevent clogging. Avoid cheap plastic pumps–verify impeller durability and voltage compatibility before purchase.
| Component | Recommended Model | Critical Spec |
|---|---|---|
| Soil Moisture Sensor | Capacitive YL-69 | 0-100% range, corrosion-resistant |
| Relay Module | SRD-05VDC-SL-C | 5V coil, 10A max load |
| Power Supply | 12V 2A Wall Adapter | Stable output, 5.5mm jack |
Capacitive moisture probes outperform resistive ones, avoiding electrode corrosion. Position the sensor 3-5cm below the soil surface away from the pot’s edge to capture accurate readings. Calibrate using dry and saturated soil samples before deployment.
Use a 5V single-channel relay to isolate the pump from the microcontroller’s logic. Never exceed the relay’s 10A rating–add a fuse (1A) in series with the pump to prevent overheating. Connect the relay’s VCC to the microcontroller’s 5V pin, not 3.3V, to ensure proper switching.
A 10kΩ resistor should pull the moisture sensor’s analog output high to prevent floating readings. For battery-powered setups, a 9V alkaline or LiPo pack with a 7805 voltage regulator stabilizes the 5V supply. Measure current draw–idle consumption should stay below 50mA.
Mount all components on a solderless breadboard during prototyping, then transition to a perfboard for permanent assembly. Secure the pump and tubing with zip ties to prevent leaks. Test pump functionality in a separate container before connecting to plants.
Include a manual override switch–a simple momentary pushbutton–to bypass automatic operation. Debounce it in code using a 10ms delay. For outdoor use, encase the electronics in a waterproof enclosure (IP65 rated) and route sensor cables through grommets to prevent moisture ingress.
Step-by-Step Wiring Guide for Soil Moisture Sensor Integration
Begin by identifying the sensor’s power requirements–most capacitive soil detectors operate at 3.3V–5V. Connect the VCC pin to the corresponding voltage output on your microcontroller, ensuring polarity matches. Incorrect voltage will skew readings or damage the component.
Attach the GND pin to the ground rail. Use a multimeter to verify 0V continuity between the sensor’s ground and the controller’s reference point. Floating grounds cause erratic signal behavior.
Link the signal/output pin to an analog input on the board (e.g., A0 on Arduino, GPIO34 on ESP32). Confirm the pin supports ADC (analog-to-digital conversion); digital-only pins won’t work. For resistive sensors, add a 10kΩ pull-down resistor between the signal line and ground to stabilize readings.
Test the sensor in controlled conditions before deployment:
- Submerge the probe in dry soil (<20% moisture); expected output: 0–200 (10-bit ADC).
- Place in waterlogged sand (90%+ saturation); target range: 700–1023.
- Observe drift over 10-second intervals; deviations >5% indicate loose connections.
For noisy environments, add a 0.1µF ceramic capacitor between VCC and GND at the sensor’s pins. This filters high-frequency interference from pumps or wireless modules. Avoid electrolytic capacitors–polarity matters here.
Use twisted pair wiring for lengths exceeding 30cm. Separate power and signal lines by 2mm to minimize crosstalk. For outdoor setups, shield cables with aluminum foil grounded at one end to block RF noise from adjacent electronics.
If readings fluctuate wildly, check for ground loops. Disconnect other peripherals temporarily; isolated issues suggest shared ground contamination. Solder joints near the sensor’s PCB–cold joints introduce intermittent failures.
Calibrate thresholds based on soil composition:
- Measure dry soil (uniform depth of 5cm); record as LOW_THRESHOLD.
- Repeat for optimally moist soil (medium-high); set as HIGH_THRESHOLD.
- Avoid absolute values–normalize against a water-soaked reference (base reading + 80%).
Troubleshooting Critical Wiring Errors
Symptom: Sensor outputs max value (1023) regardless of moisture. Solution: Probe insulation may be compromised. Use a continuity tester–if <1MΩ between signal and ground, replace the unit.
Symptom: No signal change at any moisture level. Verify the ADC channel isn’t overloaded by another peripheral. On ESP32, ADC2 shares pins with Wi-Fi–use ADC1 exclusively for sensors.
Power Supply Alternatives and Stabilized Voltage for Dependable Hydration Control
Opt for a 12V DC wall adapter as the primary energy source for low-power irrigation controllers, ensuring consistent output under 2A. Verify adapter specifications meet IEC 60950 safety standards to prevent voltage spikes that degrade solenoid valves over time. Avoid unregulated adapters–even minor fluctuations above ±5% accelerate pump wear.
Integrate a LM2596-based buck converter whenever stepping down voltage for microcontrollers or sensors. This switching regulator maintains 92% efficiency at 1A loads, critical for battery-backed setups. Position input capacitors within 2cm of the module to suppress high-frequency noise that disrupts soil moisture readings.
For solar-powered deployments, pair a 10W monocrystalline panel with a 12V 7Ah sealed lead-acid battery. Ensure the charge controller includes MPPT tracking–standard PWM controllers waste 15-25% of harvested energy. Size battery capacity to handle 3 consecutive cloudy days without brownouts, factoring in 20% depth of discharge to extend lifespan.
Use TP4056 modules for lithium-ion backup in portable designs. These boards incorporate thermal protection and 4.2V ±0.05V precision charging, preventing cell swelling in prolonged inactivity. For 18650 cells, attach a 100µF output capacitor to smooth load transients when relays engage.
Design redundant rails for mission-critical installations: a primary 5V rail (via AMS1117) for logic, and a secondary 6V rail for valves via MEZD7 Zener diodes. This isolation prevents reset cycles when inductive loads switch. Calculate dropout voltage (Vin – Vout ≥ 1.3V) to maintain regulation during brownouts.
Implement TVS diodes (e.g., SMBJ12A) across power inputs to clamp transients exceeding 15V. Solenoid-driven setups generate flyback voltages up to 10× nominal supply; without suppression, FETs fail within 500 cycles. Place diodes directly at load terminals–PCB trace inductance negates protection if routed remotely.
For off-grid locations, use supercapacitor banks (5F/12V) to bridge brief outages. Unlike electrolytics, these handle 500,000 cycles and sustain 0°C to 60°C operation. However, monitor leakage current–supercaps lose 2% charge/month at 25°C, requiring periodic refresh for long dormancy periods.
Select magnetic latching relays for valve control to minimize quiescent draw. These consume zero holding current, extending battery life 4x versus standard relays. Trigger coils with H-bridge drivers (e.g., L293D) to enable bidirectional control, allowing reverse polarity cleanup of mineral deposits in drippers every 500 cycles.
