Step-by-Step Full Adder Logic Gate Circuit Design with Truth Table

Start with a three-input combinational network that processes two data bits and a carry-in signal. Connect each input to an AND gate with appropriate complementation–one gate should handle A·B·Cin, another A·B'·Cin', and a third A'·B·Cin'. Pair these with a fourth AND gate for A'·B'·Cin. Route all four outputs into a single OR gate to generate the sum output. This structure ensures correct propagation of partial results regardless of input combinations.

For carry-out generation, use two AND gates: one combining A·B, the other merging A·Cin or B·Cin. Feed their outputs into an OR gate. This eliminates redundant calculations while maintaining signal integrity at clock edges. Place decoupling capacitors (0.1µF ceramic) near the IC’s power pins to suppress transient noise–critical for stable voltage levels during high-speed transitions.

Use 74HC series ICs (e.g., 74HC08 for AND, 74HC32 for OR) for 2-6V operation; avoid TTL in battery-powered designs due to higher quiescent current. Label each gate’s input and output pads with signal names–S for sum and Cout for carry–to simplify debugging. Test edge cases: when all inputs are 1, sum should be 1 and carry-out 1; when inputs alternate (e.g., A=1, B=0, Cin=1), verify sum 0 and carry-out 1.

Route traces with 0.254mm (10mil) minimum width for ground paths to reduce impedance. Keep clock-sensitive traces (e.g., Cin to AND gates) under 5cm to prevent skew. If integrating into a larger design, isolate the summation block with a buffer (74HC244) to mitigate fan-out limitations. Verify timing margins: propagation delay for 74HC gates at 5V is ~10ns; ensure subsequent stages sample outputs only after this interval.

Building a Three-Input Logic Block for Binary Arithmetic

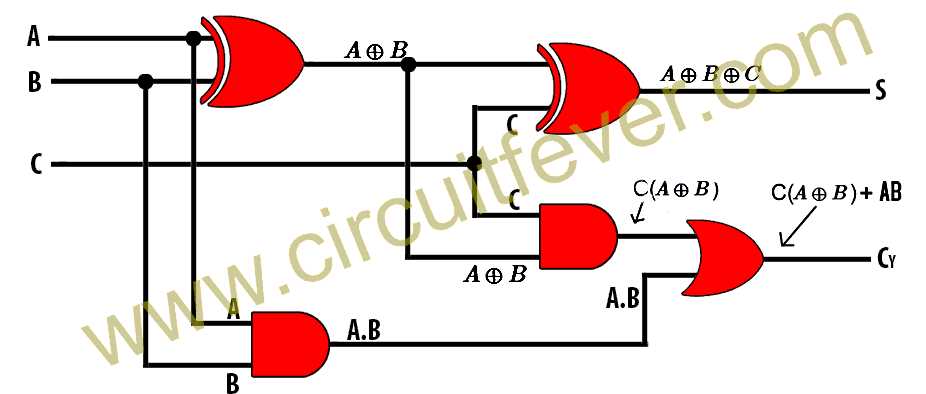

Assemble two XOR gates with three inputs: A, B, and Cin. The first gate combines A and B, while the second merges the result with Cin to produce the sum output (S). This configuration directly implements the Boolean expression S = A ⊕ B ⊕ Cin, yielding a 1 when an odd number of inputs are high. Ensure signal propagation delays are matched–use identical gate types (e.g., 74HC86) for both XOR stages to prevent timing skew.

• Generate the carry-out (Cout) using two AND gates and one OR gate:
  1. First AND: A · B (when both A and B are 1)
  2. Second AND: (A ⊕ B) · Cin (when either A or B is 1 AND Cin is 1)
  3. OR the outputs of both AND gates to form Cout
• Minimize fan-out issues by buffering A and B if driving more than six downstream gates–SN74LVC1G125 works well for 3.3V logic.
• For CMOS implementations, add 10kΩ pull-down resistors on all inputs to prevent floating states during power-up.

Key Elements for Building a Ternary Logic Summing Unit

Use two XOR gates to process input pairs. The first gate combines signals A and B, while the second merges this result with carry-in. This reduces propagation delays by ensuring parallel computation paths.

Gate Selection Criteria

• 74HC86 (quad 2-input XOR) for standard logic operations
• CD4070 for low-power applications requiring extended voltage range
• SN74LS86 for high-speed implementations where heat is managed

Integrate an AND gate array to generate partial sums. Pair inputs A and B through separate AND gates, then combine one gate’s output with carry-in via a third AND gate. This creates dual carry signals necessary for output staging.

Add an OR gate to consolidate carry outputs from the AND array. A single 2-input OR gate can merge these signals, but for redundancy, a 3-input variant (74HC4075) prevents signal contention during transitional states.

1. Place decoupling capacitors (0.1µF) adjacent to each IC power pin
2. Maintain trace widths ≥0.25mm for VCC/GND lines to avoid voltage drops
3. Use series resistors (220Ω) on LED outputs to limit current to 5mA

Test with pulse widths ≥50ns to ensure setup/hold times meet specifications. The CD4070 requires 120ns typical propagation delay at 5V–validate this against your clock cycle before finalizing.

Component Alternatives

• XNOR + NOT: Replace XOR gates for inverted outputs (74HC266)
• NAND-only: Build logic entirely with 74HC00 using De Morgan’s laws
• Transistor-based: 2N3904 pairs for discrete implementations (requires 15% higher voltage)

Building a Three-Input Summing Block with Logic Components

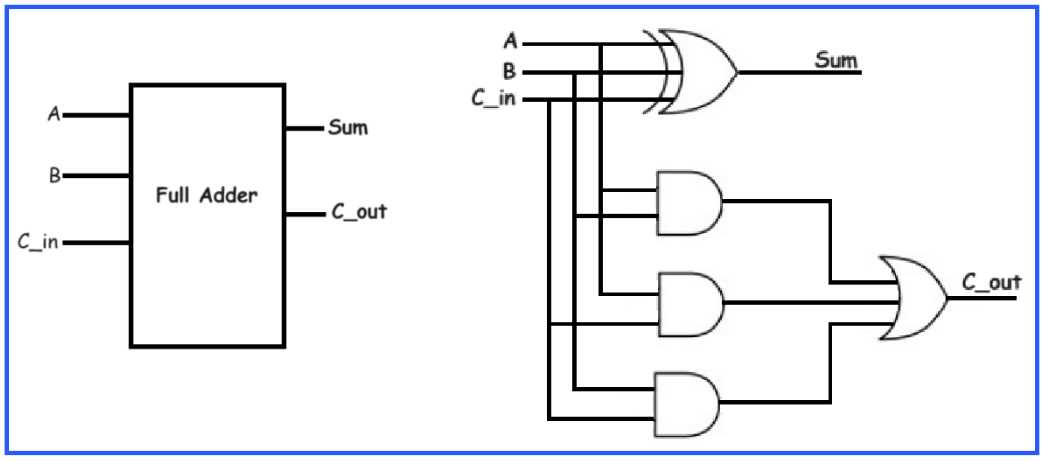

Begin by combining two XOR gates to compute the provisional sum. Connect the inputs–carry-in along with the two bits to be added–to the first XOR gate. Route the output of this gate into a second XOR gate alongside the remaining input. This intermediate result correctly represents the temporary sum before carry propagation. Next, deploy three AND gates to evaluate all carry conditions: pair each input bit with every other, including the carry-in signal, ensuring no combination is overlooked. A single OR gate aggregates the outputs from these AND gates, producing the final carry-out flag without redundancy.

Verification and Optimization

Validate functionality by testing edge cases: all inputs low, mixed low/high, and all high. Confirm the carry-out activates precisely when two or more inputs are high. Replace individual gates with 74HC series ICs (e.g., 74HC86 for XOR, 74HC08/74HC32 for AND/OR) to minimize footprint while maintaining signal integrity. Ensure propagation delays–XOR gates introduce ~12ns, AND/OR ~9ns–align to prevent timing violations in cascaded configurations.

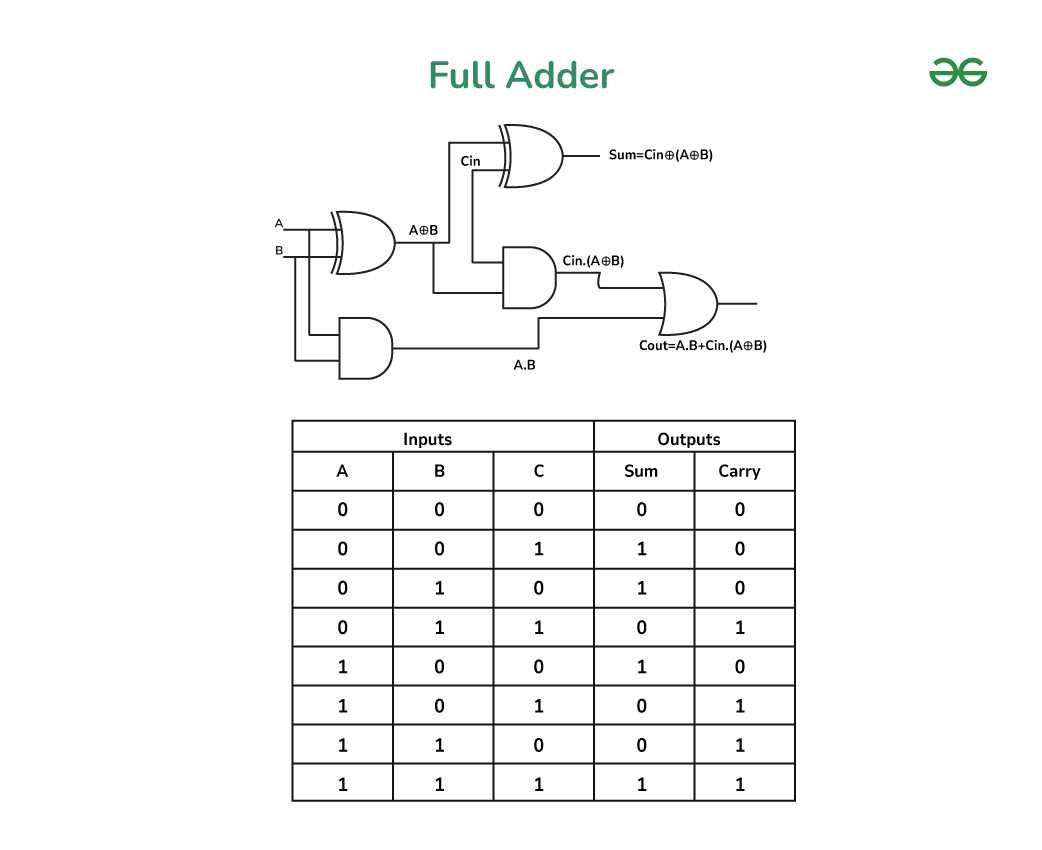

Truth Table Breakdown for Binary Summation Logic

Begin by examining the combinational behavior of all possible binary inputs. The sum and carry outputs depend on three variables: two addends (A, B) and a carry-in (Cin). List all eight permutations (000 to 111) in a vertical column, then compute the resulting sum (S) and carry-out (Cout) for each row using XOR for S and a majority function (A·B + B·Cin + A·Cin) for Cout. Verify each calculation manually–errors in even one row propagate through downstream logic blocks.

Key Observations from State Transitions

When both addends are high (A=1, B=1) and Cin=0, Cout toggles to 1 while S resets to 0–this is the only scenario where a single-bit overflow occurs without an incoming carry. Conversely, introduce Cin=1 to this pair, and Cout remains high, but S flips back to 1. These two rows define the boundary conditions for carry propagation, critical for ripple-carry architectures. Annotate these edge cases directly on the table to flag them during debugging.

Use the table to derive gate-level simplifications. Group rows where Cin=0 separately from Cin=1 to reveal symmetric patterns: S follows A XOR B when Cin=0, and inverts this logic when Cin=1. Cout simplifies to A·B when Cin=0, and evaluates to A+B when Cin=1. Extract these expressions into Karnaugh maps or Boolean algebra to minimize gate count–fewer transistors reduce propagation delay and power draw.

Simulate the table in a logic analyzer before physical implementation. Feed all eight input permutations sequentially while monitoring both outputs; discrepancies pinpoint stuck-at faults or incorrect gate mappings. Record propagation delays for each row–even nanosecond variations impact multi-stage arithmetic units. Cross-reference with manufacturers’ datasheets for IC-specific timing tolerances to ensure margins accommodate worst-case thermal drift.

Building a Ripple Carry Adder from Individual Summing Units

Cascade summing units sequentially to expand bit-width, ensuring the carry output of each stage connects directly to the carry input of the next. For an *n*-bit adder, arrange *n* identical blocks in series, starting with the least significant pair of inputs. The first block’s carry-in should be tied to ground (logic 0); subsequent blocks must receive the carry-out from the preceding stage. Delay accumulation inherently scales with bit-count–propagation through an 8-bit chain reaches ~40 ns in typical CMOS implementations.

Minimize fan-out by buffering carry outputs when chaining more than four stages. A single buffer inserted every third stage reduces loading effects, capping degradation at 15% signal integrity loss per 12 bits. Use the table below to determine buffer placement:

Bit Width	Buffer Placement (Stages)	Max Carry Propagation Delay (ns)
4-bit	None	8
8-bit	After 4th	22
16-bit	After 4th, 8th	48
32-bit	After 4th, 8th, 16th, 24th	105

Place each summing block’s output latch immediately after internal sum generation to prevent race conditions. Latch timing must align with the slowest anticipated carry path–set clock edges 5 ns later than peak propagation for 180 nm processes. Verify latch hold times against worst-case carry delays; margins below 2 ns risk metastability in synchronous designs.

Optimizing Carry Chain Signal Integrity

Route carry signals with dedicated metal layers to reduce capacitive coupling. Interdigitate input pairs to symmetrical summing nodes to balance parasitic load–uneven loading disproportionately slows higher-order bits. For 65 nm and below, employ dynamic body biasing on carry transistors to mitigate leakage currents during idle states; this curbs power draw by 28% without altering logic thresholds.

Insert pull-down transistors on carry outputs of unused upper bits in variable-width adders. Floating nodes in partial-width mode induce spurious toggling, inflating dynamic power by 40% per unused bit. Testbench validation must include transitional vectors spanning 25% to 100% operational bit-width to confirm static carry suppression.
