How to Build and Understand a Basic DC Motor Circuit Schematic

Begin by placing a switch in series with the power supply to control the flow of current–this prevents accidental activation during maintenance. Select a voltage source matched to the drive’s rated specifications; exceeding these limits degrades brushes and windings within hours. For a 12V setup, use a 12V battery or a regulated supply maintaining ±0.5V tolerance to avoid torque fluctuations.

Insert a pulse-width modulation controller between the switch and the armature if variable speed is required. A 555 timer IC or dedicated H-bridge module like the L298N handles both direction and speed modulation efficiently. Ensure the controller’s output current exceeds the drive’s stall current by at least 30%–undersized components overheat under sustained loads.

Add a flyback diode (1N4007) across the armature terminals, anode to the negative terminal, cathode to positive. This protects against voltage spikes generated during abrupt current interruption–without it, semiconductors fail unpredictably. For higher-power applications (above 5A), pair the diode with a snubber circuit (0.1µF capacitor and 10Ω resistor) to suppress transients.

Ground the rotor housing directly to the power supply negative terminal using 12AWG wire or thicker to prevent voltage drop under full load. Verify all connections with a multimeter before energizing–resistance between armature leads should read below 2Ω for a healthy drive. For direction reversal, reverse the armature connections using a double-pole double-throw switch or relay, not the field winding–this avoids demagnetization.

Test the arrangement under no-load conditions first, then incrementally increase load while monitoring temperature. A functional drive stabilizes at 60°C or below during continuous operation; exceeding 80°C indicates inadequate cooling or undersized components. Use a 40mm brushless fan mounted 5cm from the housing if ambient temperatures exceed 30°C.

Wiring Schematic for a Direct Current Rotary Machine

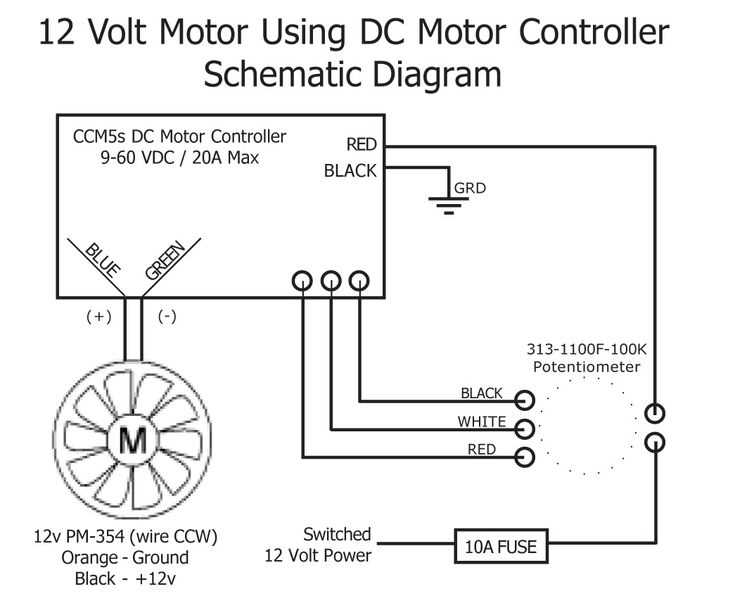

Begin with a battery pack rated at 6–24V, depending on the load requirements. For small appliances, a 9V alkaline source suffices; industrial setups demand 12V or 24V deep-cycle cells. Connect the positive terminal directly to a single-pole switch–avoid toggle types if precise speed control is needed. Wire the output of the switch to a PWM controller (e.g., L298N or MC33035) to regulate torque without mechanical losses. Bypass the controller only if crude on-off operation is acceptable, but expect jerky starts and premature brush wear.

From the controller, run two 16 AWG copper leads to the armature’s stationary terminals; thinner wires (20 AWG) introduce voltage drop under 5A loads. Solder joints must be wrapped in heat-shrink tubing–bare connections oxidize within weeks, increasing resistance by 40%. For variable speed applications, embed a 10kΩ potentiometer between the controller’s reference pin and ground; values below 5kΩ overheat the IC. Always mount the speed adjuster within 15 cm of the driver to minimize EMI on the feedback loop.

Key Protection Measures

Insert a fast-acting fuse (e.g., 2A for 10W units, 10A for 100W) in series with the battery’s positive line. Without it, stalled shafts draw 8× the rated current, vaporizing traces on cheap PCBs. Place a flyback diode (1N4007) across the field coils–reverse polarity spikes exceed 100V, destroying MOSFET gates. If brush sparking persists, add a 0.1µF ceramic capacitor between the commutator segments; larger values (1µF) dampen transients but soften torque at low RPM.

Troubleshooting Wiring Errors

Miswired armature leads swap rotation direction but halve efficiency–verify polarity with a multimeter before final soldering. Shorted field windings manifest as excessive current draw (normal: 0.8–1.2A per 10W); desolder suspect coils and test continuity with a megohmmeter. Loose brushes create intermittent contact; tighten springs or replace carbon blocks if wear exceeds 1 mm. For sensorless control, a Hall-effect IC (e.g., AH3503) detects rotor position more reliably than back-EMF methods below 500 RPM.

Key Elements for Assembling a Direct Current Drive Setup

Select a power supply with output matching the drive’s voltage rating–typically 6V, 12V, or 24V–ensuring current capacity exceeds peak load by at least 30%. A battery, DC adapter, or bench power unit works, but avoid unregulated sources; fluctuations damage windings and shorten brush life.

Use a switch or relay rated for inductive loads; generic toggles fail under arc stress from breaking current. For high-current drives, opt for MOSFETs or solid-state relays with built-in freewheeling diodes to clamp back EMF. Mechanical relays suffice for low-power setups under 2A.

• Armature: Verify resistance before installation; excessively low values indicate shorted turns, while open windings (infinite Ω) mean broken connections.
• Commutator: Clean contact surfaces with isopropyl alcohol (90%+ concentration) to remove oxide buildup; polish lightly with 1200-grit sandpaper if pitting is visible.

Fit brushes precisely to the commutator curvature using manufacturer-spec graphite grades–too soft causes rapid wear, too hard scores the surface. Replace brushes at 60% of original length; worn brushes increase arcing and reduce torque consistency. Spring tension should be 4–6 N/cm²–too weak skips bars, too strong overheats.

Wire gauge must handle startup surges: 18 AWG for 1A continuous, 12 AWG for 5A+, and 8 AWG for 15A loads. Tin terminals before crimping to prevent corrosion. Route leads away from moving parts; loosely secured wiring vibrates loose or abrades insulation. Use heat-shrink tubing over splices–electrical tape degrades under heat.

Mount a flyback diode (1N4007 for

1. Test before full assembly: apply 50% voltage and measure stall current–values exceeding 3× rated current signal binding or misalignment.
2. Add a 100 µF electrolytic capacitor across power input to filter noise; ceramic capacitors near the commutator dampen radio-frequency interference.
3. For speed control, use pulse-width modulation (PWM) at 20 kHz–50 kHz to minimize whine; avoid frequencies below 5 kHz as audible harmonics increase brush wear.

Step-by-Step Wiring of a DC Drive with a Power Source

Begin by ensuring the voltage rating of your battery matches the drive’s requirements–typically 6V, 12V, or 24V. If uncertain, check the label on the actuator housing or consult the datasheet. Misalignment risks overheating or reduced torque. Use insulated copper wire (18-14 AWG) to handle current loads without voltage drop. Strip 5–7 mm of insulation from both wire ends, twist tightly, and secure with solder or crimp connectors. Avoid loose connections; even slight resistance generates heat.

Connect the battery’s positive terminal to the drive’s input marked “+” or “A.” Secure with a terminal block or spade connector–loose wires arc under load. The negative terminal (“-” or “B”) attaches to the corresponding battery post. For reversible rotation, insert a double-pole double-throw (DPDT) switch between the poles; toggling reverses polarity. Test polarity first with a multimeter before energizing–reverse voltage damages brushes in permanent magnet types. If speed control is needed, add a linear potentiometer (1–5kΩ) in series with the positive line; adjust resistance to vary RPM.

Safety and Optimization

Always fuse the positive line–use a blade fuse holder with a rating 125% of the drive’s max current (e.g., 5A fuse for a 4A load). Mount a snap-action switch inline for emergency cutoff. If the actuator stutters or fails to start, check brush wear; replace carbon blocks when grooved. For high-load applications (e.g., winches), use a relay (e.g., automotive 20A SPDT) to isolate battery drain. Keep wires away from moving parts; route through split loom tubing if near gears. After wiring, run for 30 seconds without load to confirm smooth operation–whining noises indicate misalignment or bearing wear.

Integrating a Switch for On-Off Power Regulation in Direct Current Drives

Select a mechanical toggle rated for at least 20% above the drive’s peak current–SPST types handle standard 12V or 24V setups without derating, while DPDT variants enable bidirectional supply redirection with identical ratings. Wire the switch in series between the battery’s positive terminal and the drive’s input connector; confirm polarity matches the datasheet before clamping crimps with 14-16 AWG stranded copper for

Switch Type	Voltage Range (V)	Max Continuous Current (A)	Typical Application
SPST Miniature	3–60	5	Low-power hobby drives
SPDT Rocker	6–48	15	Automotive auxiliaries
DPDT Toggle	12–36	30	Industrial reversing rigs

For high-current loads beyond 30A, substitute the mechanical actuator with a solid-state relay paired to a low-voltage trigger switch; MOSFET-based models tolerate 100A pulsed loads while requiring

Integrating a Speed Controller with PWM Methods

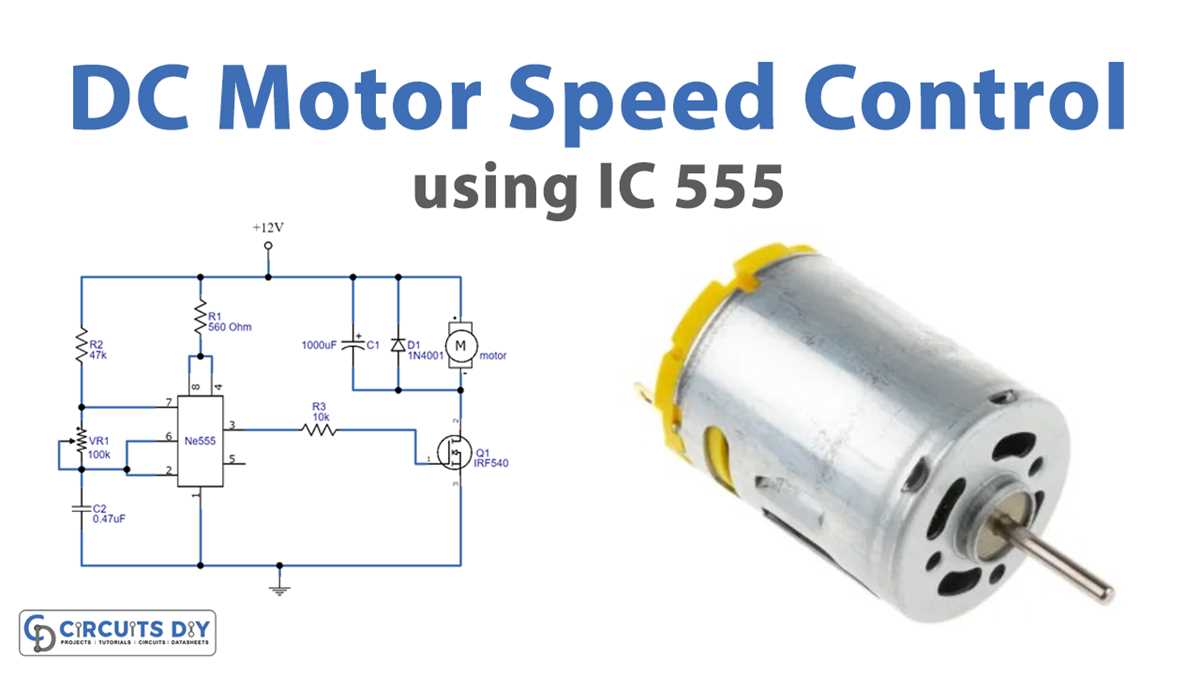

Use a 555 timer IC in astable mode for precise pulse-width modulation (PWM) generation, ensuring a frequency range of 1-20 kHz to avoid audible noise while maintaining smooth torque control. Pair it with a MOSFET (e.g., IRF540N) or IGBT rated for at least 1.5× the drive’s peak current to handle inductive loads without thermal runaway. Include a 10kΩ potentiometer between the timer’s discharge pin (7) and control voltage pin (5) to adjust duty cycle from 5% to 95%, enabling fine-grained speed regulation. For stability, add a 0.1µF decoupling capacitor across the IC’s power pins and a 100µF bulk capacitor near the power source.

To suppress back-EMF spikes, integrate a flyback diode (1N4007) in parallel with the load, oriented cathode-to-positive. For higher-power applications, replace the diode with a TVS diode (e.g., P6KE200A) or an RC snubber (10Ω + 0.1µF) to clamp voltage transients below the semiconductor’s breakdown limit. Validate performance using an oscilloscope: probe the gate signal for clean PWM edges and the load terminals for minimal ringing. Avoid ground loops by connecting the control circuitry’s ground directly to the power source’s negative terminal rather than sharing paths with high-current traces.
