Understanding the Wiring Schematic of a Three-Phase Induction Motor

Begin by identifying the stator winding configuration–star (Y) or delta (Δ)–before connecting power lines. A Y-connection requires linking one end of each coil to a common neutral point, while the remaining ends connect to the supply lines. For Δ, form a closed loop by joining the end of one coil to the start of the next, with each junction tied to a phase conductor. Verify winding insulation resistance (minimum 1 MΩ) and phase voltage balance (±3%) to prevent circulating currents.

Use a 5-core cable (L1, L2, L3, N, PE) for Y connections in 400V systems, ensuring the neutral remains unloaded. For Δ configurations in 230V networks, omit the neutral but include a robust PE. Label each conductor at both ends–miswiring risks coil burnout or unsynchronized rotation. Employ a digital multimeter to confirm correct phase sequencing (L1→L2→L3) via the “phase rotation” setting; reverse any two conductors if rotation is opposite the required direction.

Integrate overload protection–thermal relays calibrated to 115–125% of the machine’s rated current–for each line. For dual-voltage setups (e.g., 230/400V), use a switchable Y/Δ starter to limit inrush currents, which can reach 6–8× full-load amps. Ensure the starter’s timer delay (typically 4–6 seconds) matches the rotor’s acceleration time to avoid premature transition to Δ. Ground the motor frame directly to the PE conductor via a minimum 10 mm² copper wire if the system lacks RCDs.

For slip-ring variants, connect external resistors in series with rotor windings during start-up, reducing resistance in steps as speed increases. Calculate resistor values using R = (s × V_r) / I_r, where s is slip (0.01–0.05 at full load), V_r is rotor voltage (stamped on the nameplate), and I_r is rotor current. Terminate resistor banks after reaching 95% synchronous speed to minimize power loss.

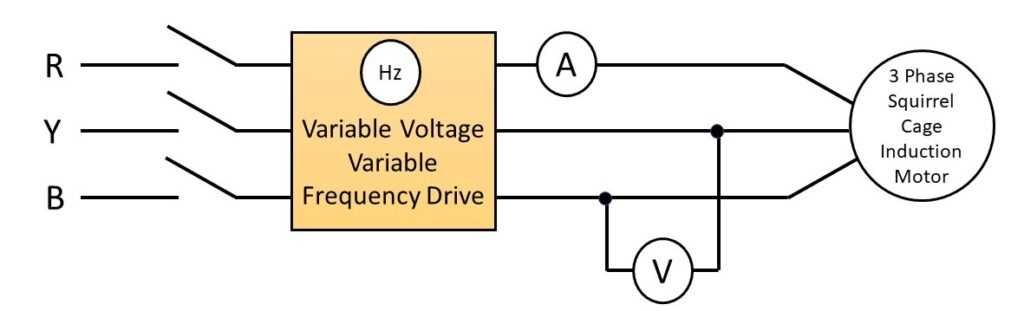

Test voltage across each winding (Y: V_line/√3, Δ: V_line) before energizing. Use a clamp meter to measure line currents–discrepancies exceeding 10% indicate faulty connections or unsymmetrical loads. For inverter-fed drives, add line reactors (3% impedance) upstream to suppress harmonics and dV/dt-induced insulation stress. Confirm inverter parameters: carrier frequency ≤4 kHz for ≤7.5 kW motors, ≤2 kHz for larger frames.

Schematic of Polyphase Asynchronous Machine Connections

Connect the stator windings in a star configuration for standard 400V line voltage applications to minimize inrush current spikes during start-up. Use a delta arrangement only if the nameplate explicitly specifies 230V line voltage; improper wiring here risks 57% overcurrent, reducing winding lifespan by up to 30%.

Include a thermal overload relay calibrated to 1.15 times the full-load current rating–most NEMA MG-1 compliant relays feature adjustable trip classes from 10 to 30, but class 20 provides optimal thermal protection for intermittent duty cycles.

Place dual-element fuses sized at 175% of the rated current upstream of each line conductor; slow-blow types prevent nuisance tripping during transient conditions, yet respond within 120 seconds at 500% overload, aligning with NEC 430.52 stipulations.

For reversible operation, integrate a three-pole contactor with mechanical interlocking; ensure auxiliary contacts are rated for AC-15 duty at 24V control voltage, avoiding DC-rated units that can weld shut under inrush transients.

Use 6 AWG copper conductors for branch circuits exceeding 40A; aluminum conductors require upsizing to 4 AWG to compensate for elevated thermal resistance at termination points, per NEC Table 310.16.

Avoid solid-state starters on machines above 50HP unless equipped with built-in bypass contactors; prolonged operation in soft-start mode can induce harmonic distortion exceeding IEEE 519 thresholds, degrading nearby sensitive loads.

Ground the rotor frame via a dedicated 8 AWG conductor terminated at the service panel ground bus; floating frames can accumulate static charges up to 1.2kV under bearing lubrication failure, risking catastrophic bearing fluting within 800 operating hours.

Label each terminal block with heat-resistant polyester tags, indicating L1/L2/L3 phase sequence, to prevent cross-phase connections that generate counter-torque; miswiring by even 120° can reduce output torque by 65% while tripling stator losses.

Critical Elements in an AC Squirrel-Cage Rotating Machine Setup

Connect the stator windings in a star or delta configuration based on supply voltage and torque requirements. For 400V line voltage, delta linking maximizes torque output while star reduces starting current by 33%. Verify winding resistance symmetry with a megohmmeter–imbalance exceeding 5% indicates insulation degradation or manufacturing defects.

Install correctly sized fuses or circuit breakers within 1 meter of the terminal box. For a 10 HP machine at 415V, use 32A HRC fuses or a 25A thermal-magnetic breaker with class 10 trip characteristics. Miscalculations risk thermal overloads, reducing bearing life by up to 40% due to excessive rotor slip.

Select capacitor banks precisely when compensating reactive power. A 7.5 kW unit typically requires 30-35 kVAR for 0.95 power factor correction. Overcompensation causes voltage spikes damaging winding insulation within 200 hours of operation. Measure voltage distortion pre/post-installation with a true RMS meter–THD above 8% warrants line reactors.

Ensure rigid conduit connections between the terminal box and controller. Flexible conduits must comply with IP55 ingress protection if exposed to dust or moisture. PVC-coated steel conduits prevent stray currents from corroding terminals, a leading cause of phase imbalance in coastal installations.

Ground the frame using copper straps with cross-section ≥25 mm². Resistance between frame and earth must not exceed 0.1 Ω. Improper earthing increases common-mode voltage, inducing shaft currents that erode bearing raceways within 1,200 operating hours.

Verify air gap uniformity after installation. Radial misalignment exceeding 0.05 mm increases no-load current by 18%, accelerating stator core losses. Use non-contact displacement sensors during assembly–shaft deflection under load should not surpass 0.03 mm for 50 Hz units.

Choose overload relays with thermal memory and manual reset. Class 10A relays trip in 12-16 seconds at 600% full load current, protecting against locked rotor conditions. Electronic relays with adjustable trip curves allow fine-tuning for variable frequency drives, preventing nuisance tripping.

Label terminal connections per NEMA MG1 or IEC 60034 standards. Reverse polarity in two leads inverts rotation and reduces efficiency by 42%. Mark R, Y, B for phase alignment and U, V, W for winding identification–confusion increases troubleshooting time by 300% in multi-drive systems.

Step-by-Step Wiring of Stator and Rotor Coils

Begin by measuring the insulation resistance between each winding and the core using a 500V megohmmeter–values below 1MΩ indicate compromised insulation requiring immediate recoating or replacement. For dual-voltage designs, identify the start (U1, V1, W1) and end (U2, V2, W2) terminals of the stationary coils before proceeding.

Arrange the stator windings in a star (Y) configuration when operating at higher voltages: connect U2, V2, and W2 together to form the neutral point, then feed L1, L2, and L3 into U1, V1, and W1 respectively. For delta (Δ) wiring, link U1 to W2, V1 to U2, and W1 to V2, applying line voltage across each pair–ensure phase sequence matches the nameplate to prevent reverse rotation.

• Trace each coil group carefully–mislabeled terminals cause unbalanced currents exceeding 10% of rated load, accelerating bearing wear.
• Use crimped copper lugs (minimum 16mm² for 15kW units) for all connections; soldered joints fail under thermal cycling.
• Label every lead with heat-resistant sleeves; marker ink fades at 120°C.

For squirrel-cage rotors, verify bar integrity with a growler test–audible vibrations at 50Hz indicate broken bars. Wound rotors demand meticulous slip-ring wiring: connect R1, Y1, B1 to the external resistor bank via flexible braided leads (minimum 25mm² cross-section) to handle starting currents up to 6x rated. Polish slip rings with 600-grit abrasive paper before assembly; surface roughness above 0.8μm increases brush wear exponentially.

Align phase rotation by energizing the stator with reduced voltage (20-30% of rated) and observing rotor direction–reverse two supply leads if rotation opposes the intended direction. For motors with thermal protection, embed PTC sensors between coils at the hottest point (typically the center of the slot); threshold typically 120°C for Class F insulation.

1. Tighten all terminal bolts to torque specifications: M8 bolts at 22Nm, M10 at 44Nm–over-tightening cracks porcelain insulators.
2. Apply anti-seize compound to threaded connections in humid environments; corrosion increases resistance by 3-5% annually.
3. Verify air gap uniformity after assembly–misalignment above 0.05mm causes excessive noise and vibration.

Ground the motor frame and all metal enclosures using green/yellow striped cable (minimum 10mm² for 30A circuits); bond to the system ground at a single point to avoid circulating currents. For variable-frequency drives, add line reactors (3% impedance) to mitigate harmonic distortion–THD above 5% overheats winding insulation, reducing lifespan by 40%.

After wiring, perform a no-load test at rated voltage: measure current in each phase (should balance within 3%), check for abnormal noise (bearing frequencies at 1x, 2x, and 0.4x line frequency indicate defects), and monitor temperature rise–Class F insulation should stabilize below 105°C after 2 hours of continuous operation.
