Creating and Interpreting Closed Circuit Diagrams for Electrical Systems
Begin by labeling every connection point with unique identifiers–numeric or alphanumeric–directly on the wiring layout. Avoid relying on color-coding alone; labels eliminate ambiguity when tracing paths through dense configurations. Use standardized symbols (IEEE 315 or IEC 60617) for switches, resistors, capacitors, and power sources to ensure cross-team readability. If the loop includes microcontrollers, mark pin assignments alongside corresponding functions (e.g., PC0: Sensor Input, PD4: Relay Trigger).
Group related components into functional zones: power delivery, signal conditioning, load control. Separate high-voltage sections (e.g., 220V AC) from low-voltage logic (e.g., 5V DC) with clear visual barriers–dashed lines or shaded areas–to prevent accidental shorts during assembly. For complex loops, break the system into sub-layouts and reference them via hierarchical numbering (e.g., Section A: Rectifier → A.1: Bridge Configuration).
Simulate the wiring layout before physical assembly using SPICE-based tools (LTspice, KiCad) or online emulators (Falstad, EveryCircuit). Validate current paths by injecting test loads (e.g., 10Ω resistor for a 5V line) and measure drop voltages at critical nodes. If discrepancies exceed ±5% of expected values, revisit connections for cold solder joints or reversed polarities. Store simulation outputs alongside the layout as a baseline for troubleshooting.
Document real-world deviations. If a relay’s datasheet specifies a 20ms actuation time but field tests show 35ms, note this on the layout near the component. Include oscilloscope captures for dynamic elements like PWM outputs or sensor responses. For modular loops, add a revision table listing changes, dates, and responsible technicians–this shaves hours off debugging during upgrades.
Prioritize failsafe integrations. Insert fuses rated at 125% of peak current draw; specify their location on the layout with a label (e.g., F1: 1.5A, Polyfuse). For loops powering inductive loads (motors, solenoids), place flyback diodes (1N4007) across coils and mark their orientation. If the loop interfaces with external systems, use optocouplers (e.g., PC817) for galvanic isolation and label their connection points.
Designing Secure Electrical Loop Layouts
Begin by mapping each component’s position with precision–deviations as small as 2mm can disrupt signal flow in low-voltage loops. Use industry-standard symbols (IEC 60617 or ANSI Y32) to denote switches, resistors, and power sources, ensuring each is labeled with exact values (e.g., R1: 220Ω ±5%). For verification, cross-reference with a multimeter reading before finalizing the layout; discrepancies often reveal faulty traces or misaligned connections.
Limit the loop’s total resistance to under 50Ω for power-sensitive applications–higher values introduce voltage drops that degrade performance. Place decoupling capacitors (0.1µF ceramic) within 5cm of ICs to suppress noise; omit them only if the loop operates at frequencies below 1kHz. Test the layout under full load by measuring current draw–fluctuations exceeding 10% indicate parasitic resistance or poor solder joints.
Optimizing Loop Pathways
Avoid right-angle bends in high-frequency loops; they act as impedance discontinuities and radiate electromagnetic interference. Instead, use 45° mitered corners or smooth arcs (radius ≥3× trace width) to maintain signal integrity. Ground planes should cover at least 70% of the board’s underside to reduce loop area; smaller planes amplify crosstalk between adjacent pathways.
For transient suppression, integrate TVS diodes (1.5× the operating voltage) directly across sensitive nodes–these clamp spikes faster than Zener diodes. Validate the loop’s thermal stability by monitoring temperature rise after 30 minutes of continuous operation; temperatures above 60°C suggest inadequate heat sinking or excessive current density (target
Core Elements of an Enclosed Electrical Layout in Design Blueprints
Start by identifying the power source in your layout–batteries, generators, or regulated supplies must be sized to deliver 10–15% more current than the load demands to prevent voltage drops under transient conditions. For low-power designs (under 5W), coin cells or lithium-polymer packs are viable; for high-current applications (50W+), select rechargeable lead-acid or lithium-ion chemistries with built-in protection circuits against overcharge and deep discharge.
Fuses and breakers should be placed within 10 cm of the power input to isolate faults before they propagate–use slow-blow fuses for transient loads like motors, and fast-acting types for sensitive logic. For automotive or industrial systems, add a resettable polymeric positive temperature coefficient (PPTC) device rated at 125% of the maximum continuous current to handle short-circuit events without permanent failure.
Switching and Regulation Hardware
Mechanical switches (toggle, push-button) introduce 5–20 mΩ contact resistance–opt for solid-state relays in noisy environments where arcing is unacceptable. For voltage regulation, linear regulators dissipate excess power as heat; switch-mode buck converters achieve 85–95% efficiency with inductors sized to handle peak currents without saturation–calculate using L = (Vin – Vout) × D / (f × ΔI), where D is duty cycle, f is switching frequency, and ΔI is 20–40% of the output current.
Capacitors stabilize voltage rails–place bulk electrolytics (10–100 µF) near the power source and ceramic decoupling caps (0.1–1 µF) adjacent to each IC. For high-frequency noise suppression, X2Y capacitors with interleaved electrodes reduce equivalent series inductance (ESL) to below 0.1 nH, critical for RF and switched-mode power supplies.
Load and Signal Integrity Measures
Trace widths on printed boards correlate directly to current capacity–0.5 oz copper supports 1 A/mm, while 2 oz handles 3.5 A/mm at 20°C ambient; increase width by 50% for every 10°C rise. Ground planes should be continuous and unbroken, with vias stitched every 5 mm to prevent ground loops in mixed-signal designs. For inductive loads (relays, solenoids), incorporate flyback diodes or varistors to clamp voltage spikes–schottky diodes reduce recovery time to
Terminal connectors must match the application’s mating cycles–crimp contacts endure 50–100 cycles, while gold-plated PCB edge connectors support 500+. For modularity, use polarized headers with keyed housings to prevent reverse insertion; in high-vibration environments, add secondary retention mechanisms like latches or threaded fasteners to prevent disengagement.
How to Represent Energy Suppliers and Consumers in a Connected Flow
Place the primary energy supplier–such as a battery or generator–at the top-left corner of the design layout. Ensure its positive terminal faces downward and the negative terminal aligns horizontally to the right. Label the voltage rating directly adjacent to the symbol, using a font size no smaller than 2.5 mm for clarity. For multi-cell configurations, stack symbols vertically with consistent spacing of 5 mm between each cell to avoid visual clutter. If using a regulated power module, substitute the standard battery glyph with a rectangle labeled “PSU” and annotate input/output pins in 0.8 mm text.
- For DC sources, always orient the longer line (anode) toward the flow’s entry point.
- Alternating current symbols require a sine-wave icon; mark frequency in hertz below it.
- Photovoltaic panels are shown as a rectangle with three upward arrows; denote wattage next to the output leads.
Connect loads–resistors, motors, or LED clusters–directly opposite the energy supplier, maintaining a vertical pathway no wider than 15 mm. Resistive elements demand a zigzag line; inductive components use a spiral or coiled icon. Light-emitting components must include an arrow pointing outward from the curved side of the diode symbol. For complex loads like microcontrollers, use a generic block labeled with pin assignments extracted from the datasheet. Insert a 0.5 mm gap between the load boundary and adjacent conductors to comply with ANSI Y32.2 standards.
Verify polarity alignment by tracing each connection path before finalizing. Tools like KiCad or Altium enforce netlist rules; manually cross-check with a highlighter on printed drafts to catch inverted signs. Use color-coding: red for positive rails, black for ground, and blue for auxiliary lines. When stacking multiple consumers, stagger them diagonally to reduce cross-conductor intersections, ensuring no two paths overlap within 3 mm of each other.
Step-by-Step Guide to Connecting Switches in an Electrical Loop
Begin by identifying the power source terminals–positive (+) and negative (−). Use a multimeter to confirm voltage (e.g., 9V, 12V, or 24V DC) and ensure the source is isolated from other components during testing. Mismatched voltage levels will cause premature failure or overheating.
Select switches rated for the current load of your setup. For low-current applications (under 1A), basic SPST switches suffice. For higher loads (1A–10A), use rocker or toggle switches with a contact rating exceeding your maximum current by at least 20%. Overloading switches leads to arcing or welded contacts.
| Switch Type | Max Current (A) | Typical Use Case |
|---|---|---|
| SPST (Single Pole) | 0.5–2 | Signal control, LEDs |
| SPDT (Single Pole Double Throw) | 3–10 | Relay control, motors |
| Rocker | 5–15 | High-load appliances |
Wire the first switch in series between the power source and the load. Connect the positive terminal of the source to the switch’s common terminal (COM). Run a conductor from the switch’s normally open (NO) terminal to the load’s positive input. Ground the load directly to the source’s negative terminal. Verify polarity before powering on.

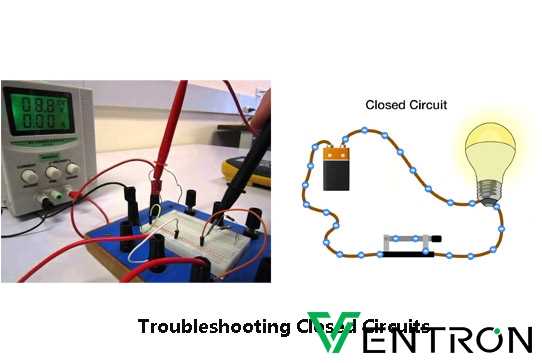

Troubleshooting Common Wiring Errors
If the load fails to energize, check for loose connections using a continuity tester. A broken path often results from frayed wires or improperly crimped terminals. Measure voltage drop across each switch–values above 0.1V indicate resistance issues. Replace switches with signs of heat discoloration or pitting.
For multi-switch configurations, connect additional switches in parallel to the first, branching off from the same power line. Each switch controls a separate load segment without affecting others. Label wires with heat-shrink tubing or numbered tags to prevent miswiring during maintenance. Use 18–14 AWG wire for low-current paths; upgrade to 12 AWG for currents exceeding 5A.
