Complete Nissan Radio Wiring Diagram Color Codes Guide for Easy Installation

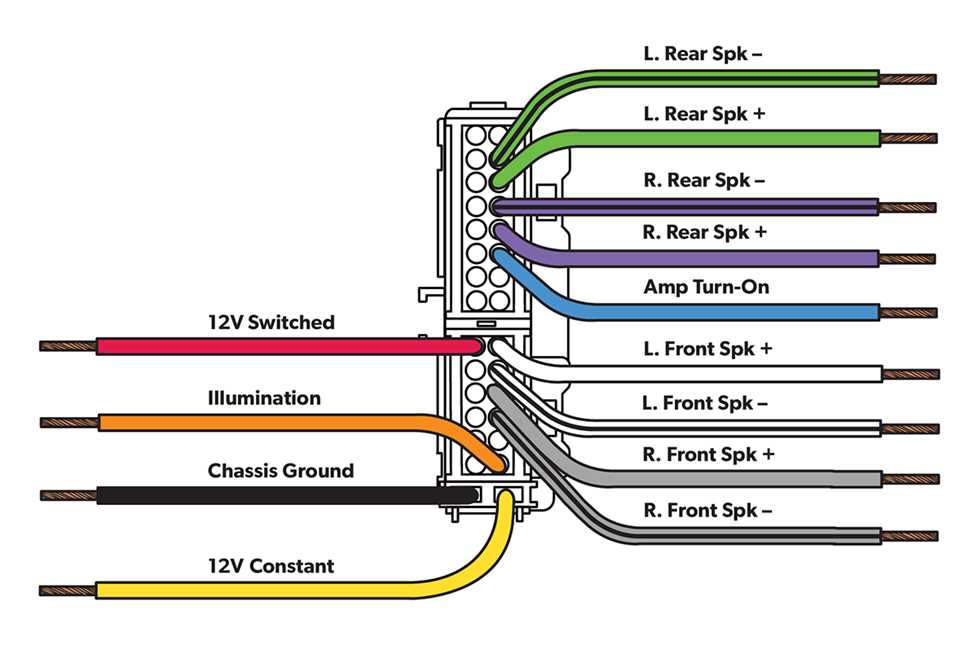

For precise installation or troubleshooting of factory audio interfaces, begin by identifying the vehicle’s production year and trim level. The manufacturer’s harness configurations differ significantly between base and premium sound packages, often integrating amplifier setups that alter pin assignments. Older models (pre-2010) typically rely on a 12-pin connector with standardized yellow (constant power), red (switched ignition), black (ground), blue/white (amplifier remote), and orange (illumination dimmer) leads. Verify polarities with a multimeter–never assume continuity based on wire sheathing alone.
Modern variants introduce CAN bus integration, where traditional color schemes may merge with data signals. A purple or gray lead, for instance, could carry speaker-level outputs or network communication, depending on the model. Refer to the service manual’s electrical section for rigorous confirmation. Aftermarket adapters (e.g., Metra AX-TOY17) simplify retrofits but require cross-referencing with the vehicle’s original harness to avoid signal interference or module errors.
If repairing damaged connectors, use heat-shrink tubing crimped with solder rather than twist-and-tape methods. Crimp connectors rated for 18-22 AWG minimize voltage drops across long runs. For rear speaker channels, note that some models invert polarity on striped or solid green/brown wires–swapping these will degrade stereo imaging. Always disconnect the battery’s negative terminal before handling persistent power cables to prevent shorts.
Amplified systems demand additional scrutiny. The tan or pink lead often carries a low-level signal from the head unit to an external amplifier; splicing this incorrectly can overload the unit’s preamp outputs. If static or cutouts persist, inspect the antenna lead (light blue) for corrosion or poor grounding–this component is commonly overlooked but critical for radio-frequency clarity.
Automotive Audio Connector Shade Guide for Japanese Vehicles
Begin by identifying the constant 12V power line–typically a thick, solid yellow wire in most aftermarket installations. This conductor supplies uninterrupted voltage directly from the battery, ensuring memory retention for preset stations and clock settings. Verify its function with a multimeter set to DC voltage; a reading below 11V indicates corrosion or an undercharged source, not a wiring discrepancy.
Ground connections demand meticulous attention. Locate the black or brown conductor, often grouped with the speaker wires but distinguished by its larger gauge. Secure this lead to a bare metal chassis point near the stereo unit, avoiding painted or coated surfaces. A poorly connected earth can manifest as static, weak bass, or erratic display behavior, mimicking amplifier failure.
| Function | Factory Lead | Aftermarket Equivalent | Common Issues |
|---|---|---|---|
| Primary power | Solid yellow | Red with yellow stripe | Voltage drop |
| Ignition-controlled | Red | Yellow with red tracer | Delayed power-on |
| Right front speaker (+) | White | Gray | Phase reversal |
| Right rear speaker (-) | Green with black stripe | Purple with black stripe | Blown fuse link |
Speaker wires follow a consistent polarity pattern: solid coloring for positive leads, striped variants for negative. Misalignment results in audio cancellation, particularly noticeable with bass frequencies. Use a 9V battery to test individual channels; a faint pop confirms correct wiring, while silence suggests open circuits or incorrect pairing.
Accessorized functions like steering-wheel controls require dedicated harness adapters. The illumination wire–usually orange–must match the vehicle’s dimmer circuit. Connecting this to a constant 12V source forces dashboard lights to remain on, draining the battery. For vehicles equipped with navigation, the speed pulse wire (pink with white stripe) provides velocity data critical for GPS accuracy; omission causes delayed recalibration during turns.
Anticipate variations between model years. Pre-2005 units utilize separate pink and light-green wires for automatic antenna control, while later models consolidate this into a single pink lead with a white stripe. Cross-reference the build date with the vehicle’s service manual before finalizing connections–aftermarket harnesses often default to generic configurations that may omit critical auxiliary features.
Matching Vehicle Audio Connector Shades Across Production Years
For 2005–2012 Altima models, locate the solid blue wire (constant 12V power), purple with a white stripe (ground), and green with a red stripe (antenna trigger) behind the factory harness. Verify each strand with a multimeter before splicing–factory schematics often omit late-year revisions where green switches to yellow on 2011–2012 sedans.
Frontier pickups from 2000–2004 rely on a beige harness with distinct traces: orange supplies illumination, brown manages left rear speaker outputs, and gray with a black stripe handles right rear outputs. Post-2005 redesigns introduce a white/black tracer for the dimmer circuit, a detail absent in earlier wiring schematics–cross-check with a test light to confirm voltage consistency.
Rogue crossovers built before 2020 use a 14-pin connector where tan wires deliver memory retention, pink manages the amp remote turn-on, and light blue handles steering wheel control inputs. Models after 2020 merge the steering wheel interface with the tan lead, necessitating an adapter for third-party head units–always probe the harness before installation to avoid resets.
Murano SUVs span three connector generations: pre-2008 (16-pin rectangular), 2009–2014 (20-pin circular), and 2015+ (24-pin miniaturized). Key traces–dark blue with white for power, solid black for chassis ground, and violet for switched accessory–remain consistent, but pinout positions shift between generations. Use aftermarket harness charts specific to the build month, not just the model year, to account for mid-cycle revisions.
Pathfinder harnesses reveal hidden complexities: 2013–2017 units integrate CAN bus signals through seemingly duplicate green/white wires (one carries illumination, the other bus data). Later years split the orange tracer into separate illumination and constant power feeds–failure to isolate these during upgrades risks draining the battery. Employ a load-side scan tool to identify signal protocols before connecting aftermarket stereos.
Step-by-Step Guide to Identifying Vehicle Audio System Power Conductor Hues
Begin by accessing the rear of the entertainment unit in your vehicle model. Most installations use a standardized connector layout–locate the harness adapter first. For models produced after 2010, the constant 12V feed is typically marked by a yellow or bright amber conductor, while the switched ignition lead is red or deep crimson. Ground connections often follow a black, brown, or dark green stripe pattern. Use a multimeter set to DC voltage to verify: probe the yellow wire–it should maintain 12V even with the ignition off. If readings fluctuate, check for fuse integrity in the under-dash fuse box, usually labeled “AUDIO” or “RADIO.”
Key Variations by Model Year
- 2000–2005: Blue with white stripe handles remote amplifier turn-on, while orange with white stripe manages illumination.
- 2006–2015: Purple may replace blue for amplifier control; white with black stripe often serves as a dimmer input.
- 2016–present: Additional data buses (gray or violet) appear for advanced systems–avoid mistaking these for power leads.
Trace conductors to their source using a wiring schematic specific to your trim. Factory harnesses rarely deviate, but aftermarket units often splice colors–compare against original equipment specs. For models with Bose or premium audio, a dedicated light gray conductor delivers battery power exclusively to the amplifier. Disconnect the battery before splicing to prevent shorts.
Integrating OEM Audio Cables with Third-Party Head Units
Begin by verifying the harness adapter for compatibility–match the vehicle’s factory connector pinout to the aftermarket stereo’s wiring loom using a multimeter. Most Asian-market receivers follow a standardized 12V accessory (yellow), ground (black), ignition (red), and speaker leads (purple/gray for right, white/green for left, typically + and – pairs). European or JDM models may invert polarity on rear channels; confirm with the vehicle’s manual or a quality harness guide like Metra 70-1761. Solder or use crimp connectors rated for 18-20 AWG to prevent corrosion or voltage drop, especially on longer cable runs to door woofers.
- Identify constant power (battery) vs switched power (ignition) cables–connecting the 12V line directly to battery avoids memory loss after shutdown but risks draining it if the stereo lacks a proper sleep mode.
- Bridge the mute/parking brake wire (light blue) if required for video playback–some interfaces require a bypass resistor or grounding to simulate “brake engaged” signal.
- Avoid twisting + and – speaker pairs together during testing; instead, use a 9V battery to briefly pulse each wire–correct polarity emits a distinct pop, while reversed polarity produces a muted click.
- For amplified setups, locate the factory amp remote turn-on (usually dark blue/white) and splice it to the new unit’s corresponding lead–failure to do so mutes the system or distorts output.
High-impedance inputs (e.g., 4-8Ω) demand direct connections; bypassing OEM crossovers can clip tweeters or overload passive crossovers in component speakers. Double-check vehicle-specific quirks–for example, some Infiniti QX56 models route rear door speakers through the trunk amp, requiring an adapter to bridge the signals to the dash harness.
