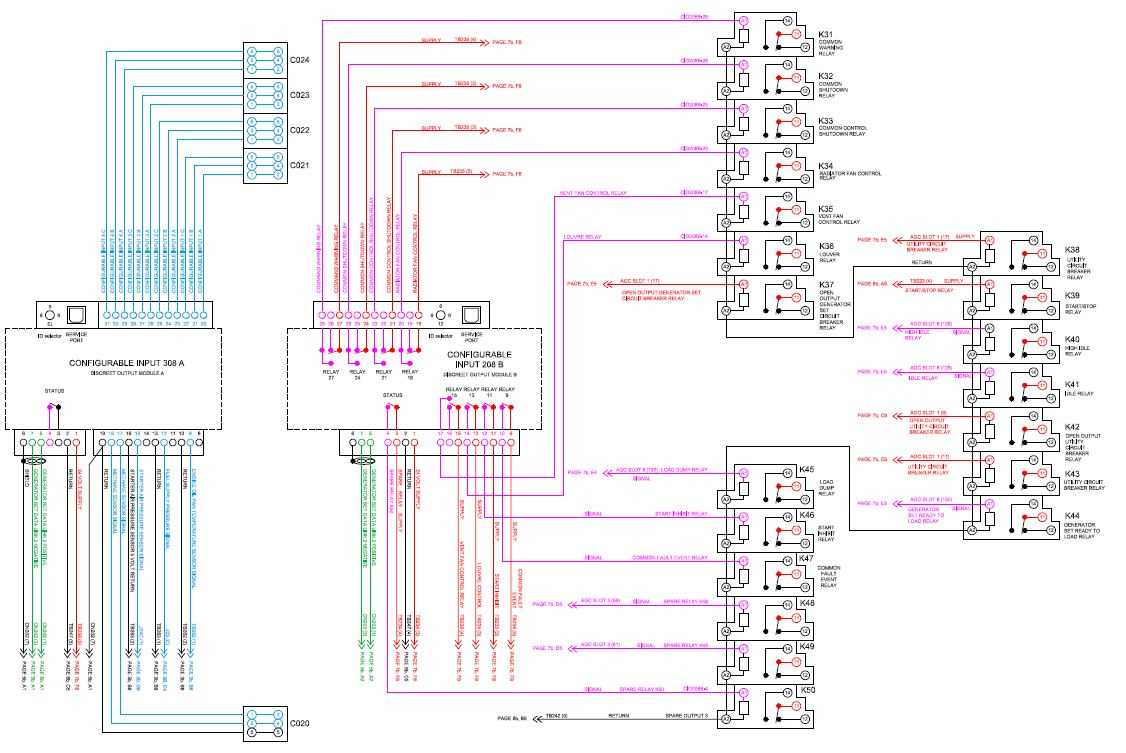

Key Types of Electronic Circuit Diagrams and Their Practical Uses
Start with the block layout–a simplified representation dividing complex systems into functional modules. Use rectangles for each stage (e.g., power supply, amplifier, sensor input) and label them clearly. Arrows between blocks show signal or data flow, not component connections. This approach reduces clutter and helps identify errors at the system level before diving into details.
For power distribution, sketch a vertical rail for each voltage level (+5V, +12V, ground) and align components along them. Connect decoupling capacitors (0.1µF ceramic) directly between each IC’s power pin and the nearest ground rail–never daisy-chain them. Keep high-current paths (motors, heaters) on separate traces thicker than 2mm to prevent voltage drops under load.
Use net labels sparingly. Overlabeling creates visual noise; reserve labels for signals crossing multiple sheets or critical test points. Number resistors sequentially (R1, R2) and capacitors by prefix (C for ceramic, E for electrolytic), but group related parts (e.g., R33–R37 for a resistor network) to speed up debugging. Color-code traces: red for VCC, blue for GND, green for data lines.
Avoid the temptation to cram everything into a single sheet. Split circuits by function (e.g., analog front-end, digital processing, power regulation) across pages, ensuring continuity with consistent net names. For microcontroller projects, isolate analog ground from digital ground with a star connection to the power supply–join them only at the main battery input.
Annotate pinouts from datasheets directly on the drawing. Highlight critical specs: max voltage, current limits, polarity markings. For ICs, circle the notch or dot indicating pin 1. Add test-point notes (e.g., “TP4: Verify 3.3V at boot”) to streamline troubleshooting. Store offline backups as PDFs with layer visibility toggled–never rely on proprietary software files.
Key Circuit Representations in Modern Design
Begin by adopting standardized symbols for passive components: use IEC 60617 (or ANSI Y32 for North American projects) to avoid misinterpretation. Resistors should display their value in ohms (Ω) or metric prefixes (kΩ, MΩ), while capacitors must include both capacitance (F) and voltage rating (V). For inductors, specify inductance (H) and current tolerance (A). Label power rails explicitly–VCC, VDD, GND–to prevent shorts during prototyping.
For semiconductors, annotate pinouts precisely: BJTs require E/B/C labels, MOSFETs G/D/S, and ICs the exact datasheet pin numbers. Use ground symbols consistently–triaangular for signal ground, three-line for chassis, and inverted triangle for earth. Include test points (TP1, TP2) at critical nodes (e.g., amplifier outputs, microcontroller clocks) to simplify debugging. For mixed-signal layouts, isolate analog and digital grounds with a single star-point connection to minimize noise.
Automate error checking with Design Rule Checks (DRC) in tools like KiCad, Altium, or OrCAD. Verify netlist consistency against the bill of materials (BOM) before PCB layout. Use color-coded layers for clarity: red for power, blue for signals, green for annotations. For high-frequency circuits, add impedance-matched traces and guard rings around sensitive nodes. Store version-controlled drafts with timestamps (v1.0_20240515) to track revisions.
Key Symbols and Their Meanings in Circuit Blueprints
Begin by memorizing resistors, capacitors, and inductors–the core passive components. A zigzag line (resistor) represents opposition to current, with values marked in ohms (Ω), kilohms (kΩ), or megohms (MΩ). Two parallel lines (capacitor) denote charge storage, labeled in farads (F) or microfarads (μF). A coiled line (inductor) symbolizes magnetic energy storage, measured in henries (H). Verify polarity for electrolytic capacitors: the positive lead aligns with the curved plate or “+” marker.
Active Component Symbols
Transistors use distinct shapes: bipolar junction transistors (BJTs) show an arrow for emitter current direction (NPN: arrow out; PNP: arrow in). Metal-oxide-semiconductor field-effect transistors (MOSFETs) depict a gap (gate) between source and drain, with an arrow indicating channel type (N-channel: arrow inward; P-channel: arrow outward). Diodes feature a triangle pointing toward a line–the anode (triangle base) conducts when forward-biased. Light-emitting diodes (LEDs) include two small arrows radiating outward to signify light emission.
Integrated circuits (ICs) simplify complex functions into rectangular blocks with numbered pins. Pin 1 often sits near a dot, notch, or angled corner for orientation. Power rails connect to designated pins (e.g., VCC, VDD, GND), while input/output pins link to external circuitry. Always cross-reference the IC’s datasheet for pin assignments–assumptions lead to errors. For microcontrollers, note reset pins (typically active-low) and crystal oscillator connections (two pins with a parallel capacitor symbol).
Switches and connectors display mechanical function through simplified line art. A single-pole single-throw (SPST) switch shows an open gap; toggling closes the path. Relays combine a coil (inductor symbol) and switch contacts (normally open or closed). Connectors use a series of dots or lines–male headers show pins, female headers depict sockets. Ground symbols vary: a downward-pointing triangle represents chassis ground, while three stacked lines signify signal ground. Avoid mixing grounds; isolate analog and digital sections to prevent noise coupling.
How to Read and Interpret Block Diagrams in Circuit Design
Identify the primary functional units first–each rectangular or oval shape represents a distinct module, subsystem, or processing stage. Label analysis is critical: inputs and outputs are typically marked with arrows or pin identifiers (e.g., VIN, CLK, DATA). Cross-reference these labels with datasheets to confirm signal direction, voltage ranges, and intended functionality. For power-related blocks, note voltage rails (e.g., +5V, -12V) and decoupling requirements; missing these details often leads to stability issues.
- Trace signal flow from source to destination–start at power inputs (AC/DC converters, regulators) and follow through amplification, filtering, or digital processing.
- Check for hierarchical nesting: blocks within blocks (e.g., a microcontroller containing CPU, RAM, and peripherals) indicate subcircuits–expand these mentally or consult supporting blueprints.
- Verify ground symbols: separate analog/digital grounds prevent noise coupling; look for “star grounding” patterns or distinct symbols (⏚ vs. ▽).
- Highlight feedback loops: blocks with arrows returning to earlier stages (e.g., oscillators, PLLs) require special attention to phase and gain margins.
Use block interactions to predict behavior under fault conditions. For example, if a voltage regulator’s output is tied to a microcontroller’s reset pin, a dropout could trigger unintended resets. Simulate critical paths by hand–calculate expected voltage/current at each node (Ohms Law, Kirchoff’s rules) before prototyping. Annotate assumptions (e.g., “Assuming 74HC logic threshold at 2.5V”) to flag dependencies during testing. Keep a highlighter to mark “single-point failures”–blocks whose malfunction disables the entire system (e.g., crystal oscillators, common-mode chokes).
Step-by-Step Guide to Drafting a Circuit Blueprint for Power Sources
Select components based on input voltage range and required output. For a 12V DC output, use the following parts: transformer (220V AC to 15V AC), bridge rectifier (4 diodes or integrated module), smoothing capacitor (1000µF, 25V), voltage regulator (7812), and two 0.1µF decoupling capacitors.
Begin by positioning the transformer as the input stage. Draw the primary coil connected to the AC source (e.g., 220V) and the secondary coil leading to the rectifier. Label all wires with voltage ratings–mislabeling risks component failure. Example: “AC 220V” and “AC 15V“.
Add the bridge rectifier next. If using discrete diodes (1N4007), arrange them in a diamond pattern with anodes/cathodes connected as follows:
| Diode | Anode | Cathode |
|---|---|---|
| D1 | AC Input 1 | Positive Rail |
| D2 | AC Input 2 | Positive Rail |
| D3 | AC Input 1 | Negative Rail |
| D4 | AC Input 2 | Negative Rail |
Place the smoothing capacitor (1000µF) across the rectifier’s output. Ensure the positive terminal connects to the positive rail and the negative to ground. Omitting this step causes ripple voltage exceeding 500mV peak-to-peak, degrading performance.
Insert the voltage regulator (7812) downstream. Connect its input pin to the capacitor’s positive terminal, the output pin to the load, and the ground pin to the common ground. Add 0.1µF capacitors at both input and output of the regulator to filter high-frequency noise. Misplacement leads to oscillations.
Calculate power dissipation for the regulator. For a 1A load at 12V output: (15V – 12V) × 1A = 3W. Use a heatsink if dissipation exceeds 2W. Mark thermal requirements directly on the draft to avoid overheating during prototyping.
Verify connections by simulating ground loops. Trace every path from power input to ground–interruptions create floating nodes, causing erratic behavior. Use a multimeter in continuity mode to confirm all nets connect as drawn.
Troubleshooting Critical Errors
Avoid reversed polarity on electrolytic capacitors (catastrophic failure). Check diode orientation–cathode bands must align with positive rails. For linear regulators, ensure dropout voltage margins: 7812 requires >2.5V input above output. Exceeding maximum ratings (e.g., 7812’s 35V input limit) destroys the IC.
