Designing and Interpreting Condenser Circuit Diagrams for Engineers

Begin with isolating the refrigeration cycle’s expansion valve–its orifice size and pressure differential directly dictate heat rejection efficiency. Reference ASHRAE Standard 15 for refrigerant-specific flow coefficients; R-134a and R-410A require orifice diameters scaled at 0.8–1.2 mm per ton of cooling for optimal subcooling. Verify manufacturer torque specs on flare connections (typically 12–15 ft-lbs) to prevent micro-leaks that degrade performance by 8–12% annually.

Map the airflow path across cooling fins with anemometer readings at three critical points: inlet, middle fin stack, and outlet. Target velocities of 450–550 FPM ensure turbulent flow, preventing stagnant zones that reduce heat transfer coefficients by up to 30%. If readings fall below 400 FPM, increase fan blade pitch incrementally (2–3° per adjustment) or clean fins with a 120°F water jet at 400 PSI to dislodge particulates without damaging fin spacing.

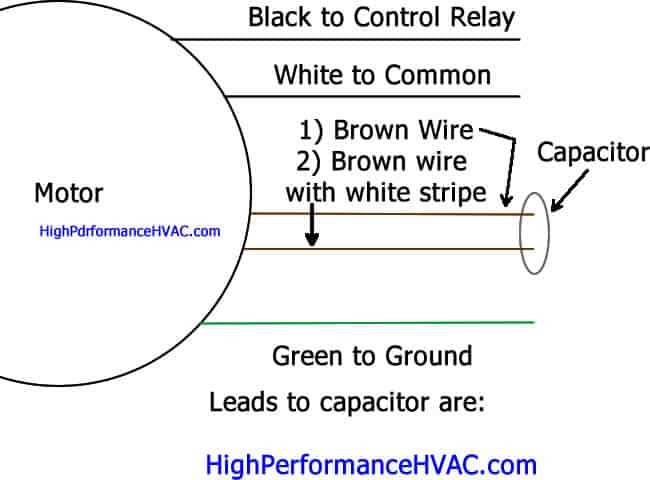

Trace electrical control paths for dual-capacitor configurations (start/run). Measure capacitance with a multimeter at 10% tolerance–aged units lose 5% efficiency per 1,000 hours of operation. Replace capacitors exceeding 5% variance; use polypropylene types rated for 40°C ambient environments to extend lifespan beyond 7 years. Label wiring with heat-resistant sleeves, following NEC Article 440 for hermetic motor protections.

Validate pressure drops across coils using a digital manifold set. Subcooling targets should align with refrigerant saturation curves: 8–12°F for R-134a, 10–15°F for R-410A. Readings outside this range indicate coil fouling, expansion valve malfunctions, or improper refrigerant charge–address overcharge first by recovering excess in 2-oz increments until target pressures stabilize within ±2 PSI.

Inspect defrost cycles via timed temperature probes. Thermal cutout switches should engage at 32°F (±2°F) and disengage at 50°F; failure here causes ice bridging, which blocks airflow entirely within 2–4 hours. For low-ambient conditions, retrofit with a head pressure transducer and setpoint relay to override defrost at temperatures below 40°F, preventing unwarranted cycle activation.

Visualizing Heat Exchange System Layouts

Begin by segmenting the thermal transfer unit into three core zones: vapor inlet, phase transition section, and liquid outlet. The vapor inlet should incorporate a pressure equalization port–positioned at a 45° angle to the main flow path–to prevent uneven cooling and potential vapor lock. Use ANSI-standard symbols for valves (e.g., gate valves at DN50 or larger) and heat exchangers, ensuring pressure drops below 1.2 psi across the transition zone. Label thermodynamic states with T_in, T_cond, and T_out directly on the drawing, referencing ASME BPE-2019 Section 4.2 for measurement tolerances.

Incorporate a secondary cooling loop for subcooling when outlet temperatures exceed 35°C, utilizing a counterflow arrangement with 3/8″ copper tubing spaced 1.5x OD apart. Specify refrigerant types (e.g., R-134a, R-410A) next to each flow path, including enthalpy values (h_fg) and condensation points derived from NIST REFPROP data. For shell-and-tube variants, indicate tube pitch–triangular or square–and bundle configuration (e.g., 1-pass, 2-pass), noting that triangular pitch improves heat transfer by 12-15% but increases pressure drop.

Add a detailed legend with cross-references to maintenance protocols: include torque specifications for flange bolts (40–50 Nm for Class 300 flanges), leak test pressures (1.5x MAWP), and material compatibility charts (e.g., avoid copper with ammonia systems). Use dashed lines to denote instrumentation–RTDs, pressure transducers–and annotate their locations relative to the fluid flow (e.g., upstream of expansion valve). For digital exports, embed hyperlinks to CAD models or manufacturer datasheets (e.g., SPX Heat Transfer Model 54A) in the file metadata.

Key Elements Breakdown in Heat Exchange Blueprints

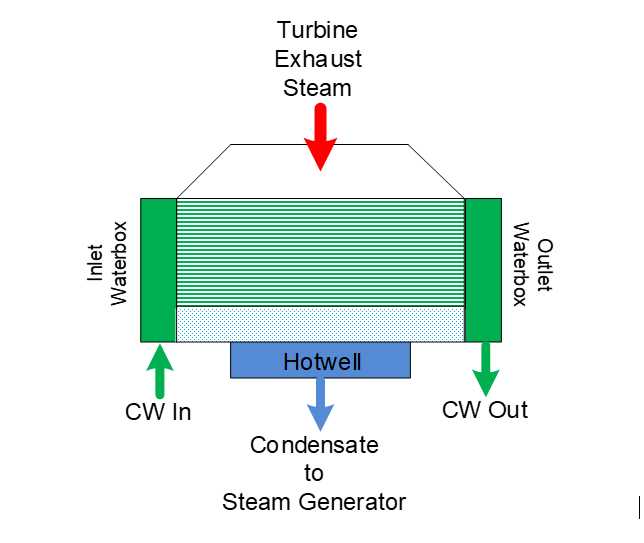

Begin analysis by pinpointing the coolant flow circuit–trace inlet and outlet ports marked with arrows or color gradients (typically blue for cold intake, red for discharge). Verify labels like “CHW IN/OUT” (chilled water) or “CW IN/OUT” (cooling water) on industrial layouts; residential variants often use simplified “IN/RTN” notations. Misinterpretation here leads to system inefficiency.

Core Components and Their Symbols

• Evaporator coil: Represented by serpentine tubing with finned surfaces in sectional views. On ANSI-compliant plans, appears as a wavy line with hash marks on one side. Confirm thermal capacity matches system load (e.g., 12,000 BTU/h per ton of refrigeration).
• Compressor unit: Identify as a circular or cylindrical symbol with internal diagonal lines. Check voltage ratings (230V single-phase or 460V three-phase) and displacement specs (e.g., 30-60 cm³/rev for scroll types).
• Expansion device: Look for capillary tubes (thin straight lines) or TEVs (thermostatic expansion valves) depicted as small rectangles with labeled ports (e.g., “S,” “D,” “L”). Confirm orifice sizing–0.040″–0.080″ diameters standard for R-410A systems.

Cross-reference pressure points using gauges typically shown as circular dials with psi/kPa scales. High-side ports (discharge line) should read 250–450 psi for R-410A; low-side (suction line) 100–150 psi. Discrepancies indicate blockages or refrigerant undercharge (target 75%–85% charge by weight per manufacturer specs).

Locate fan/motor assemblies–axial fans appear as propeller symbols, centrifugal blowers as squares with curved vanes. Verify RPM (800–1200 for single-speed, 400–1400 for variable) and power draw (1/3–3 HP for residential units). Check wiring diagrams adjacent to symbols for start/running capacitor values (e.g., 25–50 µF for PSC motors).

Inspect thermal sensors–NTC thermistors manifest as small triangles with temperature scales (°C/°F) or resistance curves (e.g., 10kΩ at 25°C). Validate placement: evaporator inlet/outlet, condenser discharge, and suction line positions must align with control logic (defrost cycles trigger at -5°C ±2°C).

1. Examine filter-driers: Represented as cylindrical shapes with inlet/outlet markings. Confirm desiccant type (molecular sieve grade 4A for HFCs, activated alumina for CFCs) and micron rating (40–100 µm for liquid lines).
2. Validate refrigerant lines: Liquid lines (smaller diameter) should use copper 3/8″–5/8″ OD; vapor lines (larger) require 3/4″–1-1/8″ OD. Check for insulation symbols (typically dashed lines) on suction lines to prevent condensation.
3. Check safety controls: High/low-pressure switches depicted as hexagons with “HP” or “LP” labels. Set points: high-pressure cutout at 450 psi ±10%, low-pressure at 50 psi ±5%. Verify reset mechanisms (manual/automatic).

Decode electrical schematics alongside mechanical layouts: solid lines denote power circuits (120V/240V), dashed lines represent control voltage (24VAC). Relays shown as rectangles with coil/switch symbols; cross-reference with wiring diagrams to confirm coil activation (e.g., “C” for common, “Y” for compressor).

Prioritize material compliance: Copper tubing symbols require ASTM B280 ratings; brass components (e.g., valves) must meet ASTM B16 standards. For brazed joints, verify alloy compatibility–phosphorus-bearing (BCuP) for copper-to-copper, silver-bearing (BAg) for dissimilar metals. Corrosion-resistant coatings (epoxy or zinc plating) should be noted on outdoor component symbols.

Step-by-Step Guide to Drafting a Capacitor Circuit Layout

Select a precision drafting tool–vector-based software like KiCad, Altium, or even graph paper and a 0.5mm technical pen guarantees clean lines and scalable outputs. Define the circuit’s functional blocks first: power source, heat exchanger coils, valve controls, and sensor nodes. Each block should occupy a dedicated spatial quadrant to prevent cross-line clutter.

Component Placement Protocol

• Place the power supply terminal in the top-left corner, aligning positive and negative leads vertically with a 10mm separation.
• Position the heat exchanger coil centrally, ensuring serpentine loops maintain uniform 3mm spacing between turns to reduce parasitic induction.
• Valve actuators require 5mm clearance from coil traces; use 90° bends for inlet/outlet pipes to avoid stress fractures.
• Sensor nodes–temperature, pressure, flow–should sit adjacent to their respective monitoring points, wired with 0.25mm traces for signal integrity.

Trace routing demands adherence to impedance norms: keep high-current paths (≥1A) at 1.5mm width, signal lines (≤500mA) at 0.5mm. Use teardrop pads where traces meet component leads to prevent etching cracks. Avoid acute angles; substitute 135° miters for 90° junctions to minimize voltage drops. Implement ground planes beneath sensitive areas, stitching them with via nets spaced ≤15mm apart for electromagnetic shielding.

1. Export final layout as Gerber files; verify drill holes against manufacturer tolerances (±0.1mm).
2. Run Design Rule Checks (DRC) to flag line overlaps, insufficient clearances, or unrouted nets.
3. Annotate each component with reference designators (e.g., C1, R2) and nominal values (μF, Ω) using 1.5mm sans-serif fonts.
4. Include a legend block in the bottom-right corner detailing revision history, date, and draftsperson initials.

Common Errors in Circuit Blueprint Creation and Prevention Techniques

Overlooking component polarity during initial layout is the most frequent yet critical error. Capacitors, diodes, and integrated circuits often fail when reversed, leading to silent malfunctions or catastrophic damage. Always verify datasheet pinouts before placing symbols on the board–mark anode/cathode positions with contrasting colors or annotations. Use EDA tools with built-in polarity checks for passive elements (e.g., electrolytic caps) and active devices (e.g., MOSFETs). For multi-pin parts like transistors, cross-reference footprint pads with package diagrams to avoid mirroring errors.

Incorrect net labeling causes isolation breakdowns where connections should exist and unintended short circuits where none belong. Adopt hierarchical naming (e.g., “VCC_CORE,” “GND_ANALOG”) instead of generic tags like “NET1.” Group related signals into buses and use consistent naming conventions (e.g., prefix inputs with “IN_,” outputs with “OUT_”). Audit netlists post-export with a diff tool against the reference design to catch mislabeled or duplicate entries.

Ignoring thermal considerations during footprint selection leads to premature component failure. Copper pour areas, thermal vias, and pad shapes must match power dissipation requirements–standard SMD pads won’t suffice for TO-220 packages. Reference IPC-7351 guidelines for pad dimensions, accounting for device wattage; for example, a 5W resistor needs significantly larger pads than a 0.25W variant. Add thermal relief patterns to high-current traces but ensure they don’t compromise conductivity for sensitive analog paths.

Reserving insufficient clearance between conductive elements invites arcing and noise coupling. Maintain minimum spacing dictated by voltage levels (e.g., 8 mils for 50V, 20 mils for 200V) and increase gaps near high-frequency traces to 30+ mils. Use polygon pours for ground planes but keep them at least 40 mils away from signal traces to prevent unintended coupling. For flex PCBs, expand clearances by 25% to accommodate substrate movement.

Skipping design rule checks (DRC) before fabrication wastes resources. Configure DRC files with exact manufacturer tolerances (e.g., minimum drill size, annular ring width, solder mask expansion). Enable checks for disconnected pins, unrouted nets, and acute angles (which trap etchant). For differential pairs, set specific impedance constraints and verify length matching within 5 mils. Cross-check DRC results with a third-party tool when possible–automated checks may miss context-specific errors like overlapping keep-out zones.

Misaligned layers in multilayer designs cause misregistration visible only after lamination. Ensure all mechanical layers (courtyard, assembly, silkscreen) align precisely with the copper layers. Use fiducial marks (minimum 1 mm diameter, 1 mm clearance) on the outer layers for machine vision alignment. For blind/buried vias, verify layer stack-up compatibility with the fabricator–some processes support only symmetric stacks, while others require staggered via placement. Export Gerber files in RS-274X format and open them in a viewer to spot alignment discrepancies before release.
