Understanding CPAP Machine Circuit Layout and Component Connections

Building a reliable pressurized airflow setup begins with a clear schematic focusing on three critical sections: the power source, airflow regulation, and patient interface. Use a low-noise, brushless DC motor (12V–24V) as the foundation–models like the Sunon GM1204PFV2-AY or NMB-MAT 09224VH provide consistent pressure (6–20 cm H₂O) with minimal vibration. Pair this with a silicone-based tubing network (ID 15–22mm) to prevent kinks and maintain laminar flow.

Integrate a proportional solenoid valve (e.g., SMC PVQ31) for dynamic pressure adjustment. This component should sit upstream of the humidifier chamber–opt for a passive heated plate humidifier (37°C–42°C) with a water reservoir (300–500 ml) to reduce mucosal dryness. For real-time monitoring, embed a piezoresistive pressure sensor (0–5 psi range) near the patient mask, wired to a microcontroller (Arduino Nano or STM32) via I2C. Avoid placing sensors too close to the motor to prevent signal noise.

Choose a full-face or nasal interface with exhalation ports sized for 25–50 L/min flow rates. For safety, add a one-way check valve (cracking pressure ≤0.5 cm H₂O) before the humidifier to block backflow during power loss. Power supply redundancy is non-negotiable: a 12V LiFePO4 battery (10Ah+) should run parallel to the primary adapter, with a MOSFET switch triggering failover in

Test pressure curves using manometer calibration (e.g., Dwyer Series 477) before connecting to the patient interface. Verify stability across leaks (up to 20 L/min) by simulating shallow breathing patterns (12–20 breaths/min) with a test lung (Michigan Instruments Dual Adult). Replace tubing every 3–6 months or when surface cracks exceed 0.2mm depth–silicone degrades faster under UV exposure and ozone from motor arcs.

Breaking Down the Pneumatic Flow Schematic for Practical Use

Start by identifying the pressure generator as the core component–typically a blower fan with a sealed impeller housed in a rigid enclosure. The motor’s rated speed (10,000–40,000 RPM) dictates airflow output, so ensure the voltage matches the power supply specs (±5% tolerance). Most devices use a 12V or 24V DC brushless motor; verify this against the schematic’s BOM to prevent overheating or undervoltage stalls. Replace generic PWM drivers with a dedicated motor controller if the stock unit lacks thermal protection or fails under continuous load (e.g., 4+ hours at 20 cmH₂O).

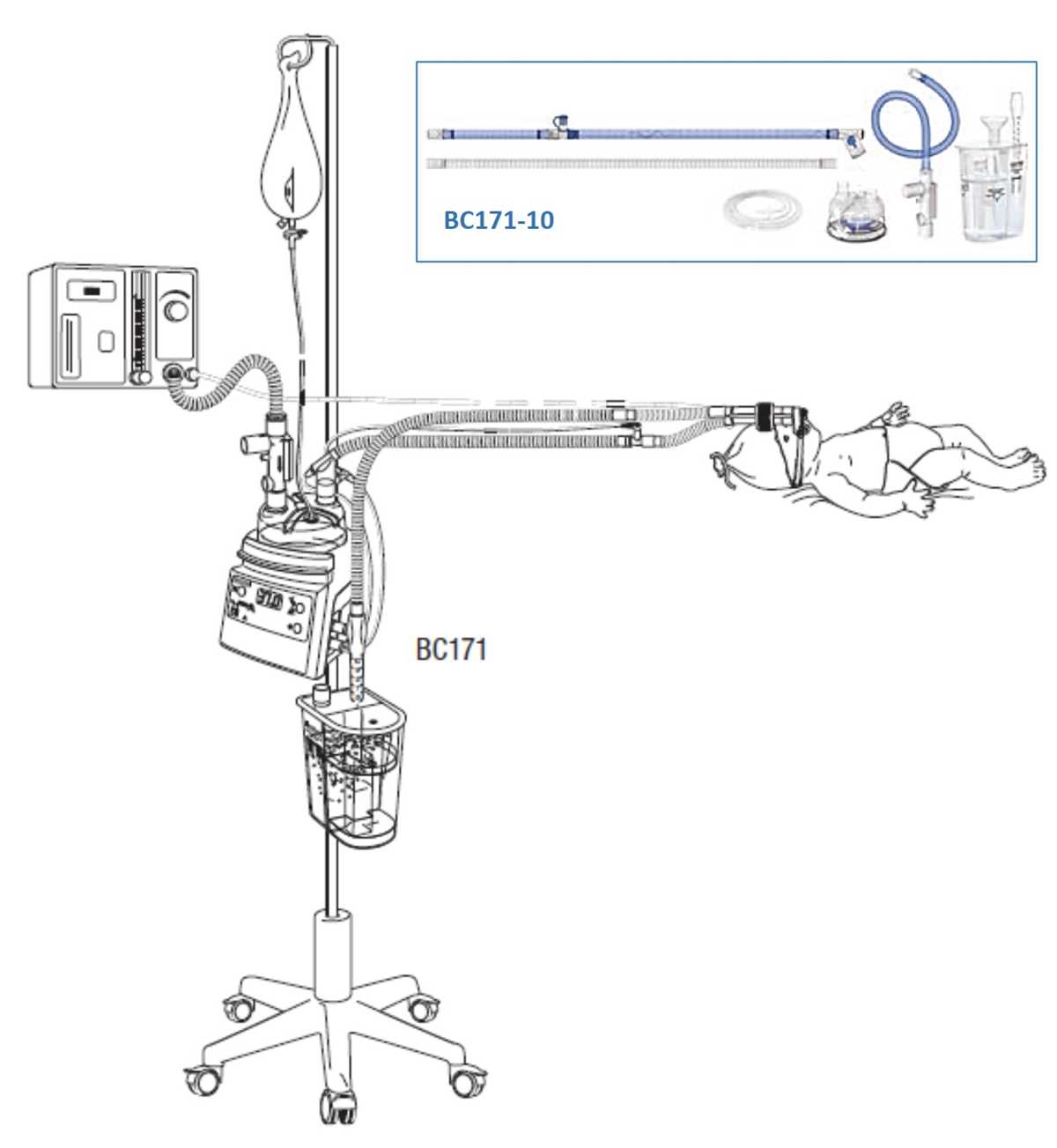

Trace the airflow path from the impeller to the patient interface: two silicone hoses (standard 22mm OD) connect the generator to a humidifier chamber, then to a heated tube (if applicable). The humidifier’s heating plate must maintain 30–35°C to avoid condensation drops that disrupt pressure delivery; calibrate the thermistor every 500 hours of use. Bypass the humidifier entirely if using a non-heated setup, but expect 15–20% higher rainout in the tubing. For portable models, swap rigid tubing for lightweight corrugated variants, ensuring internal diameter doesn’t drop below 19mm–any reduction increases resistance, forcing the blower to work harder and shortening its lifespan.

Examine the pressure sensor’s placement–usually located near the output port or integrated into the generator’s PCB. Analog sensors (e.g., Honeywell HSC series) require a clean 5V supply and a stable ground; noise on the signal line can trigger false pressure readings, causing erratic airflow modulation. Replace damaged sensors with digital alternatives (I²C/SPI) if rebuilding the control logic, but recalibrate the entire feedback loop against a verified manometer. The proportional valve, if present, should align with the sensor’s dynamic range (typically 0–40 cmH₂O); a mismatch here leads to overshoot during ramp-up phases, risking patient discomfort or barotrauma.

Power delivery poses the most common failure point. DC-DC converters (e.g., LM2596) often lack proper input filtering, leading to voltage sag under load. Add a 470µF electrolytic capacitor on the input side and 100nF ceramic capacitors across the motor terminals to suppress EMI. For battery-powered units, Lithium-ion packs degrade at 1–2% capacity per 100 cycles; replace after 300–400 cycles if runtime drops below 4 hours on a single charge. Avoid cheap chargers–opt for CC/CV modules with temperature cutoff (e.g., TP4056 with thermistor) to prevent thermal runaway. Always isolate the power ground from signal ground to avoid ground loops corrupting pressure readings.

For maintenance, disassemble the airflow path monthly: soak non-electronic parts in 3% hydrogen peroxide for 30 minutes, then rinse with distilled water to remove biofilm. Replace disposable filters (HEPA-grade) every 1,000 hours, or when airflow decreases by 10%. If DIY modifications include adding a bacterial filter near the patient interface, ensure it’s hydrophobic (e.g., Pall BB50T) to prevent moisture buildup that could reintroduce pathogens into the airflow. Test the entire assembly post-repair with a calibrated airflow meter–target 60–80 L/min at 10 cmH₂O for standard configurations.

Critical Elements of a Continuous Positive Airway Pressure System and Their Roles

Start with a high-quality air pump delivering consistent flow at 4–20 cm H₂O, calibrated via an internal pressure transducer. Models like the ResMed AirSense series use brushless DC motors for quiet operation below 30 dB, reducing nocturnal disturbances. Verify the pump’s inlet filter–replaceable HEPA-grade mesh–to prevent dust accumulation, which degrades performance by up to 15% over six months.

Integrate a heated humidifier chamber with an adjustable thermostat (30–40°C) to prevent mucosal drying. Silicone tubing with embedded heating coils maintains temperature stability, reducing rainout–a condensation buildup causing airway resistance. Opt for corrugated tubing (diameter 22 mm) to minimize dead space, ensuring laminar airflow without turbulent drops exceeding 2 cm H₂O per meter.

Use a dual-pressure sensor configuration (proximal and distal) to monitor real-time airway resistance. Proximal sensors, located near the mask, detect leaks as low as 4 L/min, triggering alarms within 3 seconds. Distal sensors, positioned at the machine outlet, validate delivered pressure accuracy (±0.5 cm H₂O) through PID-controlled feedback loops. Replace sensors annually; drift compromises compliance data.

Select nasal or full-face masks with exhalation ports sized for 10–20 L/min leak rates. Ports must vent CO₂ efficiently without creating back-pressure; designs like the Fisher & Paykel Evora use diffused venting to limit noise to 25 dB. Check mask cushion material–memory foam or gel–against skin irritation, replacing every 3–6 months to maintain seal integrity under pressures above 15 cm H₂O.

Implement a microcontroller running closed-loop algorithms for auto-titration. Sensor inputs adjust blower speed in 1-second increments, targeting an AHI below 5. Verify software calibration against manual titration polysomnography; discrepancies over 10% indicate sensor drift. Update firmware quarterly to patch vulnerabilities affecting pressure ramp timing.

Equip the system with a battery backup (Li-ion, 96 Wh) for at least 8 hours of operation during power failures. Avoid lead-acid alternatives–weight increases compliance issues. Test backup weekly with a 10-second discharge cycle to confirm voltage stability; degradation below 80% capacity necessitates replacement.

Add a particulate filter (0.3 micron) upstream of the pump to trap airborne pathogens, changing every 7 days in high-pollution environments. Downstream, use a bacterial/viral filter rated at 99.99% efficiency for 3 microns, sterilizing exhaled air to protect caregivers. Ensure filters are single-use; reusables fail integrity tests after three washes.

How to Read and Interpret Respiratory Therapy Wiring Symbols

Begin by identifying key components in the airflow assembly layout. Each symbol corresponds to a specific part: a straight line with a triangular resistor-like shape typically denotes a turbine or blower, while a zigzag line represents a heater element. Look for labels adjacent to these symbols–manufacturers often annotate with abbreviations like “P” for pressure sensor or “F” for flow meter. Use a legend if available; if not, cross-reference with common industry schematics to avoid misinterpretation.

Trace the airflow pathway step-by-step. Start at the air intake (usually marked by a straight or gently curved line leading into a small enclosure) and follow it through each stage:

• Humidifier chamber (depicted as a rectangle or canister with internal waves)
• Delivery hose connection (often a thicker line branching off)
• Patient interface (mask or cannula, shown as a circular or oval outlet)

Obstructions or filters appear as dashed lines or shaded blocks–verify their placement to confirm proper filtration stages.

Decoding Control Signals and Power Paths

Isolate power supply symbols first. A battery or AC input is shown as a pair of parallel lines (one short, one long) or a rectangle with “+” and “-” markings. Solid arrows indicate current direction–follow these to the main control board, which aggregates sensor inputs. Dashed arrows represent signal pathways; these connect sensors to the microprocessor, critical for real-time adjustments. Pay special attention to:

1. Pressure transducers (circular with an internal “P”)
2. Thermistors (rectangular with a squiggly line)
3. Solenoids (coiled lines with a diagonal slash)

Misreading these can lead to incorrect troubleshooting–confirm each symbol’s function before proceeding.

Analyze safety mechanisms in the design. Overpressure valves appear as a spring-loaded outlet (a circle with a diagonal line), while fuses look like a thin rectangle with a horizontal line. Ground symbols–a downward-pointing triangle or a line terminating in three parallel strokes–must connect properly to prevent electrical hazards. If the schema includes redundancy (e.g., dual power sources or backup alarms), these are typically grouped in dashed boxes–verify their activation logic.

Test your interpretation with real-world checks. Power up the unit and measure voltages at key points using a multimeter: turbine outputs (usually 12V or 24V), heater plates (low-resistance paths), and sensor nodes (variable signals). Compare readings against the schema’s expected values–discrepancies often point to faulty components rather than schematic errors. For advanced diagnostics, use oscilloscope traces to monitor PWM signals driving the turbine; these should match the waveform depicted near the motor symbol.
