Designing and Analyzing CPU Power Delivery Schematics for Reliable Performance

For a stable microprocessor unit, implement a multi-phase buck converter with synchronous rectification. Use N-channel MOSFETs rated for at least 20A continuous current and 30V breakdown voltage–IRFZ44N or SI4450DDY are reliable choices. Configure the PWM controller (TPS51216 or RT8812A) with a switching frequency between 300-500 kHz to balance efficiency and thermal performance. Ensure input capacitance includes a 220μF electrolytic capacitor paired with a 10μF ceramic capacitor to suppress voltage spikes.

Place the inductor downstream of the switching transistors, selecting a value between 1-3.3 μH based on load current. For a 60W processor, a 1.2 μH inductor from the SL series provides optimal transient response. Add a soft-start circuit using a 0.1 μF capacitor on the EN/SS pin to prevent inrush current. Bypass the controller’s feedback pin with a 0.1 μF capacitor to stabilize regulation under dynamic load conditions.

Route sense lines directly from the load terminals to the controller’s differential amplifier inputs, avoiding vias to reduce noise. Use 1 oz copper pours for power paths and ground planes, maintaining a minimum trace width of 100 mils for 10A currents. Include a crowbar circuit with a 5A fuse and a PTC thermistor to protect against overvoltage events. Test the design with an oscilloscope, ensuring ripple voltage stays below 20 mV p-p at full load.

For redundancy, incorporate a secondary linear regulator (LM1085) supplying standby voltage to the chipset’s auxiliary rails. This reduces dependency on a single point of failure in the primary converter. Validate thermal performance under sustained loads, targeting MOSFET case temperatures below 90°C. Use a heatsink with a thermal resistance of 15°C/W or lower for high-power applications.

Designing a Processor Voltage Regulation Layout

Integrate a multiphase buck converter with at least 4–6 phases for modern high-performance silicon to distribute thermal load and reduce ripple below 10 mV_pp. Place the input capacitors (2× 220 µF/16 V X5R 1206) as close as possible to the high-side MOSFET drain pads to minimize parasitic inductance, keeping traces under 5 mm in length. Select low-ESR inductors (0.3 μH, 20 A saturation) with shielded construction to prevent EMI coupling into adjacent signal layers.

Critical Trace Routing Practices

• Keep the feedback trace shielded between V_OUT sense point and the controller’s FB pin–route on an internal plane with ground pour on adjacent layers.
• Avoid vias on the high-current path from the controller IC to the gate drivers; use direct solid fills with 2 oz copper.
• Isolate analog ground (controller decoupling) from power ground (MOSFET sources) using a single-point star connection at the input filter cap.
• Use Kelvin sensing at the V_CORE pad with two dedicated 0.2 mm traces–one for voltage, one for return–terminating at the controller’s remote sense pins.

Choose a controller IC with adaptive dead-time control (e.g., Infineon TDA21472) to prevent shoot-through and optimize efficiency above 90 % at 1.8 V/100 A load. Implement a soft-start ramp of 2–5 ms to limit inrush current to 1.5× nominal, protecting the input bulk capacitors. Include overvoltage protection with a 5 % hysteresis threshold and undervoltage lockout at 85 % of nominal to prevent brownout damage during transient spikes.

Key Components of a Processor Voltage Regulation Network

Begin with a multi-phase voltage regulator (VRM) designed for transient response under 50 ns. Industry-standard controllers like the Infineon TDA21472 or Texas Instruments TPS51632 offer phase-shedding capabilities, reducing idle power losses by up to 30% without compromising load regulation (±0.5% accuracy). Pair each phase with low-ESR ceramic capacitors (10 µF, X5R/X7R) mounted within 5 mm of the load point to minimize parasitic inductance. Avoid aluminum electrolytic capacitors–their ESR degrades under thermal cycling, increasing ripple by 40% over 1,000 hours.

MOSFET selection dictates thermal efficiency and switching losses. Use OptiMOS (e.g., Infineon BSC0906NS) or TrenchFET (Vishay SiRA00DP) devices with R_DS(on) below 2 mΩ at 12V input. Synchronize gate drivers (e.g., onsemi NCP51511) with dead-time under 20 ns to prevent shoot-through; adjustable drivers let you fine-tune for trade-offs between EMI and efficiency. Below is a comparison of key MOSFET parameters:

Model	RDS(on) (mΩ)	Qg (nC)	VDS (V)	Max ID (A)
BSC0906NS	0.95	25	25	100
SiRA00DP	1.5	18	30	80
CSD18533Q5B	1.2	15	25	90

Feedback Loop Optimization

Reduce output impedance by placing the remote sense lines directly at the processor’s V_core pins, compensating for PCB trace drops (up to 50 mV at 100A). Employ a dual-loop architecture: fast inner loop (500 kHz) for transient response and slow outer loop (10 kHz) for DC accuracy. Use type-III compensation (two zeroes, one pole) with ceramic capacitors (C_z1=4.7 nF, C_z2=1 nF) and resistors (R_z1=5.1 kΩ, R_z2=1 kΩ) to maintain phase margin >60° at crossover. Avoid fixed-frequency controllers–adaptive on-time (e.g., Richtek RT8897A) improves light-load efficiency by 15% over PWM.

Building an ATX-to-Processor Voltage Delivery Scheme: Key Stages

Begin by isolating the +12V rail from the mainboard connector (24-pin ATX) using a ferrite bead rated for 3A minimum. This filters high-frequency noise before any conversion. Bypass the bead immediately with a 22µF ceramic capacitor to ground, placed within 5mm of the bead’s output pad.

Select a synchronous buck regulator with a 90%+ efficiency rating at 10A load. The Texas Instruments TPS51632 or Analog Devices LTC3851 are optimal–both include built-in gate drivers and adaptive dead-time control, eliminating the need for external MOSFETs in most 30W–80W scenarios. Place input and output capacitors (low-ESR ceramics: 10µF ×4 at input, 47µF ×2 at output) as close as possible to the regulator IC’s pins.

Route the inductor between the regulator’s switching node and output capacitor pad with traces no wider than 2mm to minimize parasitic inductance. Use a shielded power inductor (Coilcraft SER2918H-103ML; 10µH, 12A saturation) to suppress radiated EMI. Ground the inductor’s shield pad directly to the PCB’s internal ground plane via thermal vias, avoiding stitching to the top layer.

Implement soft-start by connecting a 0.1µF capacitor from the regulator’s SS/TRK pin to ground. This ramps output voltage at 1V/ms, preventing inrush current spikes. For processors requiring dynamic voltage scaling, add a 10kΩ resistor in series with a 100nF capacitor from the feedback node to the external DAC signal, enabling real-time adjustments down to 0.6V with

Add overcurrent protection by sampling the voltage across a 5mΩ sense resistor in series with the output path. Route this to the regulator’s current-sense inputs using a differential pair (10 mil width, matched ≤1% length). Include a 5.1V Zener diode across the sense pins to clamp transients during load steps.

Terminate the output with a pi-filter: two 47µF ceramics in parallel, followed by a 10µH common-mode choke and a final 220µF polymer capacitor. Maintain ≤30mm trace length from the last filter stage to the processor socket to preserve transient response. Verify loop stability by injecting a 10mA, 1kHz–1MHz sine wave at the feedback node–phase margin should stay above 45° across the entire load range (0.1A–12A).

Ground returns must funnel into a single star point at the mainboard’s bulk capacitor ground pad, avoiding split planes. Use no fewer than four 10mil vias per pad when transitioning between layers, with a dedicated via for each high-current path (≥5A). Test radiated emissions with a near-field probe; if >30dBµV at 100MHz, add a 1nF snubber across the switching MOSFETs or reduce the inductor’s shield ground impedance further.

Voltage Regulation Methods in Processor Energy Delivery Systems

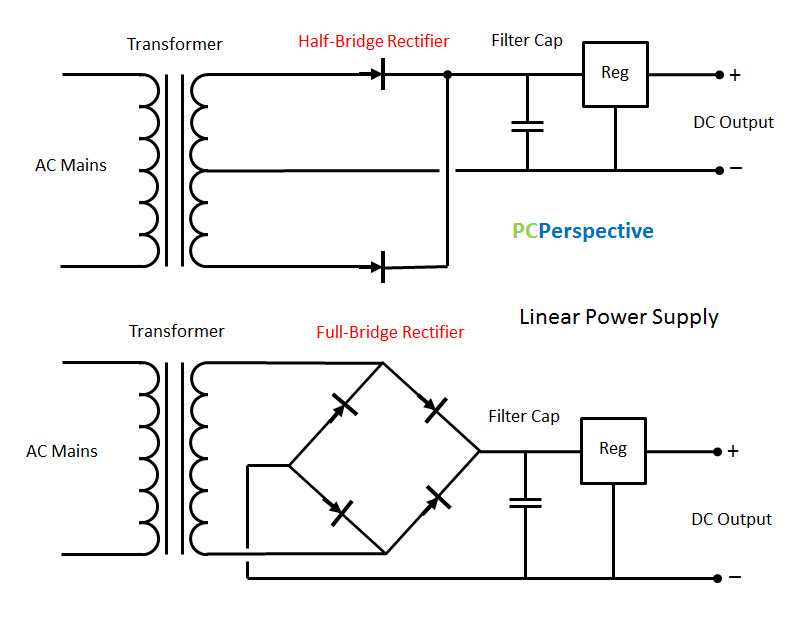

Linear stabilizers dominate low-noise applications where transient response outweighs efficiency concerns. An LDO like the TPS7A49 delivers 500mA at 1.2V with under 30μVRMS output noise while rejecting input variations exceeding ±5%. Thermal dissipation remains the tradeoff–calculate junction temperature using T_j = T_a + (P_d × θ_JA) before exceeding 125°C for reliable operation. Select output capacitors smaller than 10μF to prevent phase-shift instability while maintaining ESR below 0.2Ω.

Switch-mode topologies achieve 90%+ conversion ratios but demand careful layout to curb EMI. A synchronous buck converter such as the LT3741 uses dual N-channel MOSFETs switched at 500kHz–keep high-current traces under 2mm wide and place input/output capacitors within 3mm of the IC. Compensation networks require precise R-C values; a 4.7kΩ resistor paired with a 470pF capacitor stabilizes load transients up to 10A/μs. Include a 4.7μH inductor wound on a 744043111 core to limit ripple to 5% peak-to-peak at full load.

Hybrid Architectures for Dynamic Workloads

Combine linear and switching stages for adaptive voltage scaling under rapidly shifting computational loads. The dual-stage IR3883 integrates an LDO stage for static core demands while switching handles load steps above 2A–program the crossover threshold via an analog voltage divider monitoring real-time current consumption. Anti-cross conduction delays of 50ns between phases prevent shoot-through; verify dead-time settings with an oscilloscope during worst-case load dumps.

Multiphase converters distribute thermal stress across interleaved stages, reducing copper loss in high-current designs. An eight-phase buck using the ISL6398 drives each 12V rail through a 0.8mΩ MOSFET like the CSD88584–phase currents must match within ±3% via matched inductors and symmetrical trace geometries. Current balancing firmware tunable to 3μs response times ensures phase shedding during light loads while maintaining sub-2% ripple. Install a 10nF snubber across each switching node to dampen oscillations exceeding 150MHz.

Digital Control Loops for Precision Tuning

Firmware-controlled regulators like the ADP2120 allow per-phase voltage adjustments with 0.5% accuracy–use I²C registers to set soft-start ramps below 1mV/μs to minimize inrush currents. Compensation parameters stored in EEPROM enable temperature-compensated output profiles; a -2mV/°C slope matched to silicon characteristics extends operating margins by 7°C. Implement digital filters with corner frequencies under 1kHz to reject 50Hz noise without phase lag exceeding 20°.

Load-line calibration compensates for resistive drops in micro-load scenarios. A 0.2Ω programmable impedance in firmware offsets PCB trace resistance–measure AC currents with a 0.1Ω sense resistor and amplify via INA188 to achieve 1mV/V precision. Dynamic voltage positioning commands fed to a PID controller maintain transient droop under 3% for step loads exceeding 30A. Include diagnostic registers logging min/max voltage excursions with 2μs timestamp resolution for post-event analysis.

Resonant topologies minimize switching losses at high frequencies. A dual LLC stage using the UCC256402 achieves 94% efficiency at 1MHz–select magnetizing inductance within ±5% of calculated L_m = Q_r/I_rms at ZVS boundaries. Primary-side sense resistors smaller than 5mΩ minimize insertion loss while secondary-side synchronization pulses ensure dead-time matching below 10ns. Thermal foldback curves programmed via NTC lookup tables prevent over-temperature shutdown during sustained overload conditions.

GaN devices reduce dead-time losses in high-frequency designs. A 650V eGaN FET like the EPC2218 switches in under 1ns with total gate charge under 1.5nC–layout requirements dictate a continuous ground plane beneath the device and Kelvin connections for both gate and source. Paralleling multiple devices mandated by current sharing resistors under 5mΩ avoids thermal runaway. Spice simulations must include package parasitics: a 1.2nH trace inductance can introduce 2% efficiency penalty if unaccounted for.
