Practical Crowbar Circuit Design for Overvoltage Protection Schematics
Use a thyristor-based clamping mechanism as the core component in any high-current power regulation setup. A 10A SCR like the MCR100-8 paired with a 3.3V Zener diode (1N4728A) provides instant response when input voltage exceeds safe thresholds. Place the Zener between the SCR gate and ground–triggering occurs at 3.9V (Zener voltage plus gate-cathode drop), diverting excess energy away from sensitive loads.
Select a fuse rated at 125% of the maximum expected current–never exceed this value. For a 5A system, a 6.3A slow-blow fuse (e.g., Littelfuse 312006) prevents nuisance trips while ensuring protection during sustained faults. Mount the fuse holder directly on the PCB or in-line with the input wiring to minimize resistance and heat buildup.
Position the voltage reference close to the sensing point to avoid noise-induced false triggers. A 1% tolerance resistor divider (e.g., 10kΩ + 4.7kΩ) ensures accuracy, while a 100nF ceramic capacitor across the Zener diode filters transients. For 12V systems, a 5.1V Zener (1N4733A) with a 2:1 divider ratio sets the trip point at 10.2V–adjust resistor values to match your target threshold.
Route all high-current traces with at least 2oz copper and 2mm width per ampere. Use a star grounding scheme for the SCR cathode connection to prevent ground loops. Test the design with an adjustable bench supply, gradually increasing voltage until the clamping engages–expect a sharp current spike as the fuse blows, confirming proper operation.
Overvoltage Safeguard Schematic Breakdown

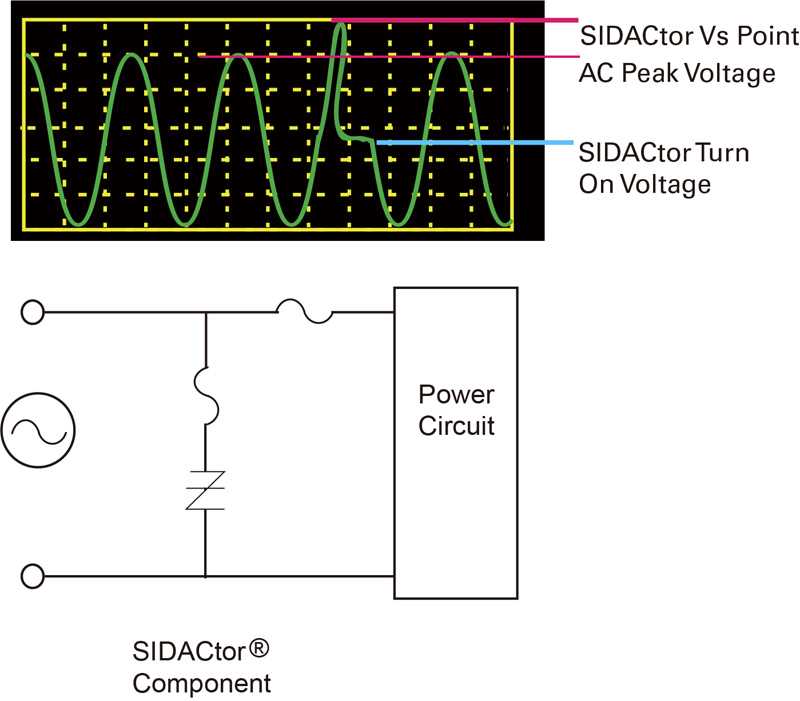

Connect a thyristor (SCR) directly across the power supply output, bypassing the load when triggered. Use a Zener diode rated 10-15% above nominal voltage to sense spikes–standard values like 5.6V for 5V rails work reliably. Gate the SCR via a resistor (470Ω–1kΩ) from the Zener anode to limit current; omit capacitors in this path to ensure microsecond response. A 1N4007 freewheeling diode across the load protects against inductive kickback, though it won’t substitute for the main clamp.
Component Selection Parameters
SCR: Choose parts with Avoid triacs–unidirectional conduction is critical. Zener: Power dissipation must exceed (Vspike × IZener); 1W devices suffice for most low-power supplies. Resistor: Wattage should exceed (VZener2 / R) × 3 for safety margin. Test with a bench supply: adjust Zener value in 0.1V increments until clamp engages
Mount the assembly
Critical Elements for a Fault-Clipping Voltage Clamp
Specify a thyristor with a forward blocking voltage rating at least 20% above the system’s maximum operating level–ex. a 1200 V SCR for a 24 V bus–paired with a snubber network: 10 Ω resistor (1 W) in series with a 10 nF polypropylene capacitor (rated for 630 V DC). Trigger the gate via a zener stack (ex. five 1N4746A zeners in series) that clamps at 51 V, ensuring the over-voltage threshold is reached before the SCR fires; add a 2.2 kΩ gate-cathode resistor to bleed leakage.
- Choose bulk capacitors for the supply rail with ESR < 0.1 Ω and ripple current rating > 2× the transient current; polymer electrolytic types (ex. 1000 µF/25 V Panasonic EEEFK) endure 50 A surges for >1 ms without degradation.
- Place the clamp components within 2 cm of the load terminals; every 5 cm of trace adds ~0.5 µH, slowing the response by 20 ns.
- Fuse links must interrupt at 1.5× the SCR’s repetitive surge current (ex. a 5 A fast-blow fuse with 10 kA interrupt rating); avoid slow-blow variants that permit sustained latch-up.

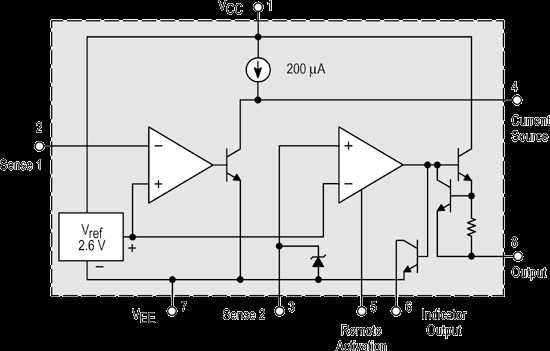

- Sense the rail with a precision divider: 1% tolerance resistors (ex. 499 kΩ + 10 kΩ) fed into a 2.5 V reference comparator (ex. TLV3401); hysteresis of 5% prevents spurious triggering.
- Ground the SCR’s cathode to a solid copper pour (2 oz. thickness) tied directly to the chassis local to the clamp; avoid daisy-chaining ground returns.

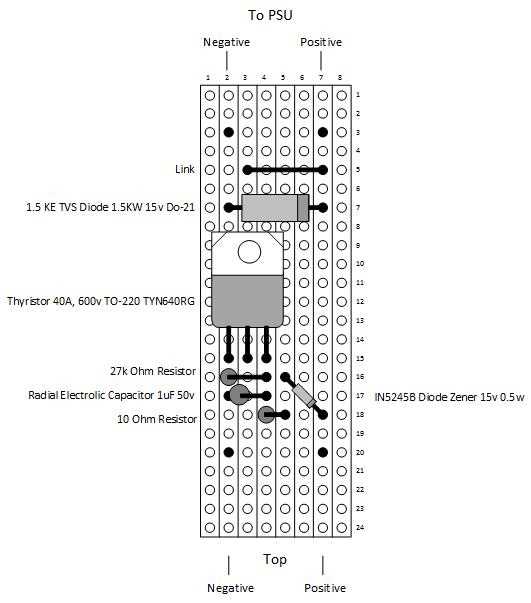

Step-by-Step Assembly of an Overvoltage Safeguard PCB Layout
Begin by soldering the thyristor (e.g., TYN612) near the power input traces, ensuring the cathode aligns with the ground plane and the anode connects to the load side. Maintain a minimum 3mm clearance between high-voltage traces and adjacent components–use a 2oz copper pour for dissipation. Place the voltage reference diode (e.g., 1N4744A) directly across the thyristor’s gate and cathode, with a 1kΩ resistor in series to limit current; verify polarity with a multimeter before soldering.
Route the sense network–comprising a 10kΩ trimpot and a 10µF tantalum capacitor–along the board’s edge to minimize interference. Ground the trimpot’s wiper to the chassis via a dedicated via, avoiding shared paths with noisy signals. Test continuity with a low-ohm setting after each solder joint, ensuring no dry joints or cold solder bridges exist. Apply conformal coating to exposed traces if the board operates above 50V.
Selecting Optimal Semiconductor Switches for Overvoltage Safeguarding
Opt for a thyristor with a blocking voltage at least 20% above the maximum clamping voltage of your transient suppression device. For 48V systems, a 100V-rated SCR like the STMicroelectronics TN1215H-6I provides adequate margin while maintaining low conduction losses–typically 1.5V forward drop at 50A. In high-frequency environments, prioritize devices with sub-5µs turn-off times to prevent thermal runaway during repetitive transients.
Current Handling and Package Considerations
Match the surge current rating to your system’s worst-case fault scenario. A TO-220 package like Vishay’s VS-8TTS12PbF handles 120A surges but requires a heatsink for continuous currents exceeding 8A. For compact designs, surface-mount D2PAK triacs such as ON Semiconductor’s MAC223A8G tolerate 25A surges without additional cooling–ideal for space-constrained layouts. Account for lead inductance: PCB traces should be widened to 2oz copper for currents above 30A.
Gate sensitivity influences trigger reliability. Opt for a 5mA–10mA gate current threshold in noisy industrial settings to avoid false activations. Devices like Littelfuse’s Q6010L5TP deliver consistent triggering with a 50µA gate drive, reducing auxiliary circuitry complexity. For phase-angle control applications, select triacs with symmetrical switching characteristics to minimize harmonic distortion during fault recovery.
Thermal management dictates long-term stability. Calculate junction temperature rise using the manufacturer’s transient thermal impedance curves–an 80°C/W device will exceed safe operating limits under sustained 10A loads unless paired with thermal vias or a copper pour. For outdoor deployments, verify the maximum junction temperature exceeds 150°C and include a snubber network if dv/dt exceeds 50V/µs to prevent erroneous turn-on.
Calculating Trigger Thresholds and Resistor Values for Reliable Activation
Set the activation point at 120% of the nominal voltage to avoid false tripping while ensuring swift response. For a 5V system, this means targeting 6V as the trip level. Use the formula Vtrip = Vnom × (1 + R2/R1) where R1 is the upper resistor and R2 the lower resistor in a voltage divider. For a 5V input with a 6V trip, a practical starting ratio is R2/R1 = 0.2, yielding R1 = 10kΩ and R2 = 2kΩ. Verify with a multimeter under load–adjust R2 in 1% increments if the threshold drifts by more than ±50mV.
Component Tolerances and Temperature Effects
Resistor tolerance directly impacts threshold accuracy. For 1% resistors, expect ±60mV variance in a 5V→6V setup. Use 0.1% resistors (e.g., Vishay Z201) if ±10mV precision is required. Temperature coefficient adds another layer of drift: a 10kΩ 1% resistor with ±100ppm/°C will shift ±10Ω per 10°C. At 6V, this translates to ±1mV/°C. For ambient swings of 40°C (25°C to 65°C), budget for ±40mV of thermal drift. Pre-age resistors at 125°C for 100 hours to stabilize resistance before final adjustment.
| Input Voltage (Vnom) | Target Trip (Vtrip) | R1 (Ω) | R2 (Ω) | Expected Error (1% R) |
|---|---|---|---|---|
| 3.3V | 4.0V | 6.8k | 1.5k | ±40mV |
| 5V | 6V | 10k | 2k | ±60mV |
| 12V | 14.4V | 15k | 3k | ±140mV |
For high-current applications, replace R1 with a fixed resistor and a trimmer in series (e.g., 9.1kΩ + 2kΩ trimmer) to fine-tune the trip point. Measure the actual voltage at the divider node with the switching element disconnected–this isolates the divider’s behavior from downstream loading. If hysteresis is needed, add a feedback resistor (e.g., 1MΩ) from the switching element’s output back to the divider node to create a 5–10% deadband, preventing oscillation.
