Step-by-Step Guide to Building a Crown Amplifier Schematic

For reliable, low-distortion amplification in professional audio systems, the bridged Class-D topology remains the optimal choice. Start with a dual-MOSFET power stage using IRFB4110 or IXYS IXFN230N100 devices–these offer sub-30mΩ R_DS(on) and 100V+ breakdown, critical for handling transient peaks without clipping. Pair them with a dedicated gate driver like the IR2110 or TI UCC27511, ensuring dead-time control between 20-50ns to prevent shoot-through while maintaining efficiency above 90%.

Signal conditioning begins with a high-speed differential input stage, preferably using THS4131 or OPA1632 op-amps configured for unity gain. This avoids common-mode noise while preserving phase integrity–non-negotiable for reproducing full-bandwidth audio up to 50kHz. Capacitive coupling at input/output stages must use film or C0G ceramic (e.g., Kemet R76KN61005030J), as electrolytics introduce unacceptable ESR-induced distortion above 1kHz. Power supply decoupling demands 470μF low-ESR polymer caps (e.g., Panasonic EEU-FR1V471) per rail, placed within 10mm of the MOSFETs to suppress HF ripple.

Coil selection defines output quality–use air-core toroids (e.g., Jantzen Audio 1.5mH 0.2Ω) wound with 1.5mm litz wire to minimize skin-effect losses. PCB layout must prioritize star grounding, separating analog and power traces with a single-point ground near the output filter. Thermal management requires copper pours of at least 8 oz/in² on both sides, with TO-247 packages mounted to heatsinks via thermal adhesive pads (e.g., Bergquist 5000S35)–never rely on silicone grease for long-term reliability.

For protection, implement a dual-threshold comparator (e.g., LM393) monitoring both DC offset (>2V) and thermal overload (>85°C), triggering a latched shutdown via a CD4013 flip-flop. Avoid software-based protection; hardware solutions react within 2μs to catastrophic faults. Test under full load (e.g., 4Ω at 100W RMS) using a 20Hz-20kHz log sweep, verifying THD+N remains below 0.05% across the entire bandwidth–any deviation indicates layout or component flaws.

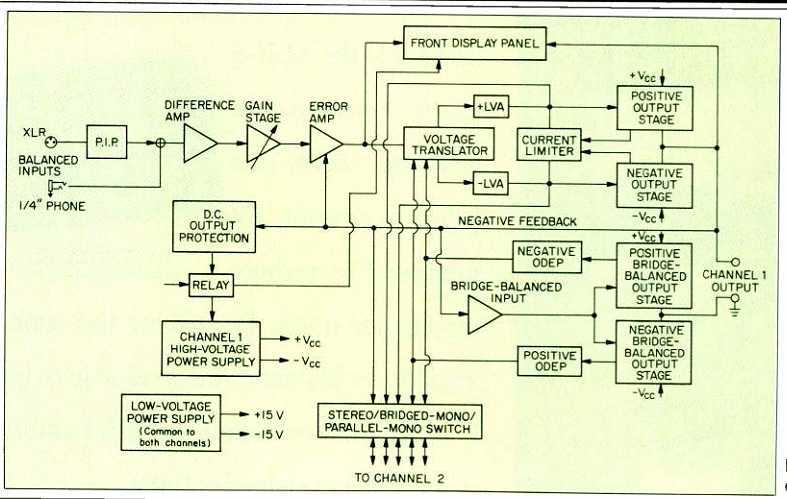

Understanding Professional Audio Signal Flow Layouts

Begin by identifying the power supply section in any high-fidelity sound reinforcement schematic–look for dual-rail voltage inputs (±48V to ±70V) feeding complementary transistor pairs. The exact voltage range depends on the model series, with power modules in XLS-series handling 2,400W into 4Ω, while MA-series units operate at 1,600W under the same load. Always verify rail voltages against the manufacturer’s service notes before probing, as improper handling risks irreversible damage to output stages.

The input differential pair typically consists of matched low-noise JFETs (2SK170 or similar) or bipolar transistors (2SC3324) configured for high common-mode rejection. Measure input impedance–it should sit between 20kΩ and 100kΩ, with signal levels clamped at ±12V for balanced XLR inputs. If impedance deviates, check for failed input resistors or cracked solder joints on the preamp PCB.

The protection relay network deserves special attention. Most professional units integrate a delayed turn-on relay (2-5 seconds) and instantaneous overcurrent detection. Test relay coils with a multimeter: DC resistance should read 50-150Ω. A relay that fails to engage often points to a faulty optocoupler (PC817) or microcontroller (PIC16F627) governing the startup sequence.

Component	Expected Value	Troubleshooting Steps
Output transistors (2SC5200/2SA1943)	VCE = 60V, hFE = 70-140	Replace in matched pairs; check for shorts with diode test
Zobel network resistors	10Ω ±5%, 5W	Inspect for overheating; verify with passive speaker load
Bridge rectifier (KBPC3510)	VRRM = 1000V, IO = 35A	Test each diode individually; replace if leakage exceeds 10µA

Heat sink compound selection impacts long-term thermal stability. Use silver-based paste (Arctic Silver 5) with a thermal conductivity of 8.7 W/m·K. Apply 0.05mm layer uniformly; excessive paste reduces heat transfer. Torque mounting screws to 0.6 Nm–over-tightening warps transistor flanges, causing hot spots.

Ground loops frequently manifest as 60Hz hum in the output. Isolate chassis ground from signal ground using a 10Ω resistor in series with the chassis connection. Measure ground lift currents–any reading above 5mA indicates improper shielding. For touring applications, use isolated power transformers (2kVA) to prevent ground contamination between venues.

When servicing, disconnect all capacitors and discharge safely. Electrolytics (6800µF/100V) should hold residual voltage below 5V after 24 hours. Failed capacitors often bulge–replace with 105°C-rated equivalents. Always recalibrate DC offset trimmers (20kΩ multi-turn) to less than ±20mV before reattaching speaker loads, as unchecked offset risks driver damage.

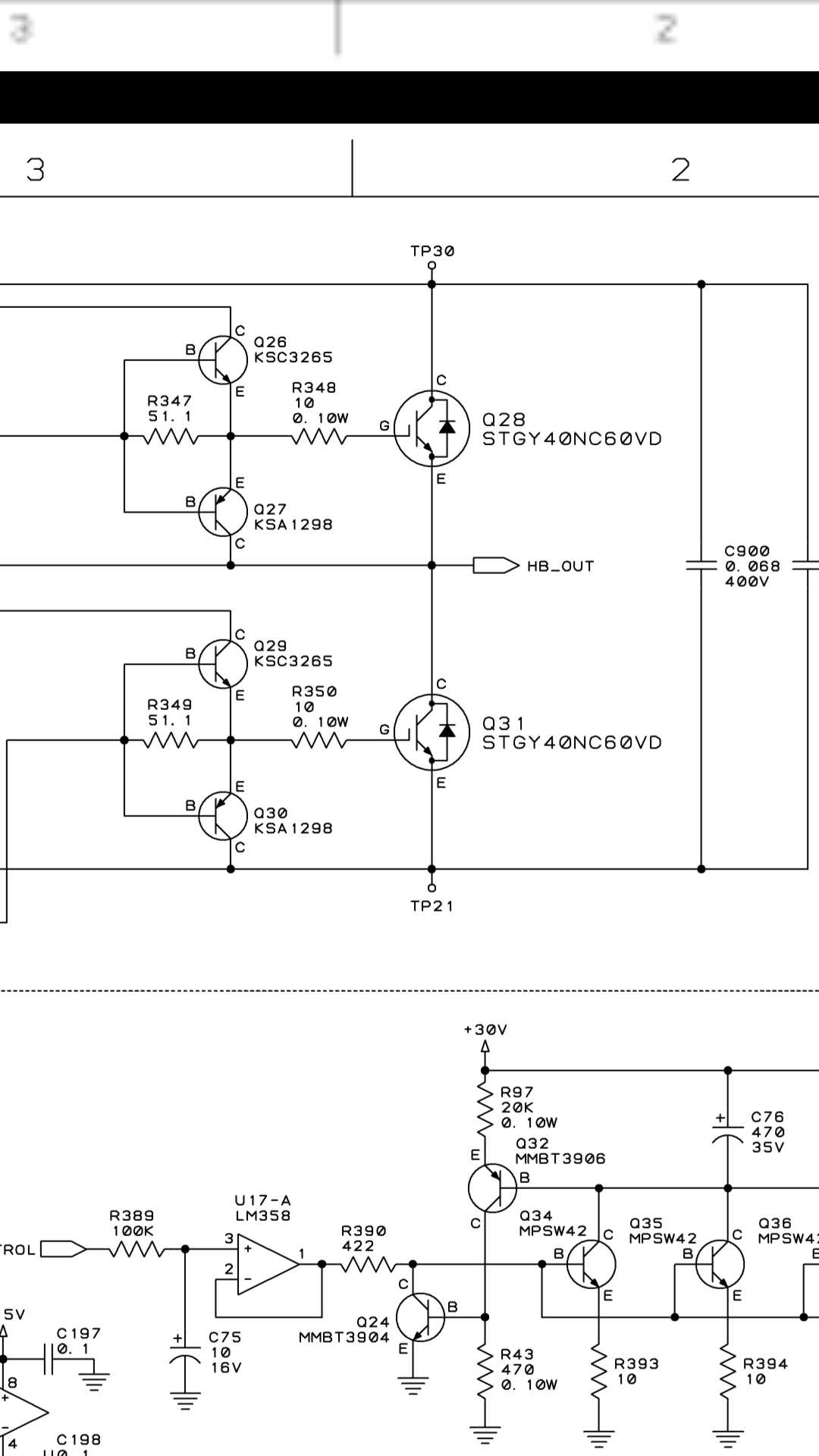

How to Interpret Power Stage Schematic Symbols

Begin with ground and power rails–these are baseline references. Identify the chassis ground (vertical line with horizontal dashes) and signal ground (triangle pointing downward). Voltage rails typically appear as parallel lines with labels (+V, -V), often near switching components.

Locate transistors by their three-terminal symbols: bipolar (NPN/PNP) show a vertical line with angled leads, while FETs (JFET/MOSFET) have a perpendicular bar with diagonal lines. Emitter, base, and collector (or source, gate, drain) follow standardized placement–verify against datasheets if orientation differs.

Resistors use zigzag lines, but variable types (potentiometers, thermistors) add a diagonal arrow. Capacitors appear as two parallel lines (polarized) or curved plates (non-polarized). Electrolytic variants include a “+” near one plate. Inductors show coiled loops, sometimes with core markings (solid or dashed rectangles).

Diodes feature a triangle pointing toward a line–the direction of current flow. Zener diodes add a bent line at the cathode. LEDs swap the line for a circle with rays. Thyristors and triacs combine diode symbols with extra gates (G). Bridges use four diodes in a diamond.

ICs are rectangles with numbered pins. Op-amps and comparators include “+” and “-” inputs, with output on the opposite side. Voltage regulators add a bold arrow inside the rectangle. Check pinouts: power pins (+V/ground) often sit at corners, while signal pins cluster along edges.

Switches show contacts as dots connected by lines. Momentary types have parentheses or brackets. Relays use coil symbols (curved lines with dots) separate from switch contacts. Transformers show stacked coils, sometimes with core symbols (dashed rectangles) between windings.

Test points appear as circles or dots with labels (TP1, TP2). Jumpers use dashed lines between pads. Fuses show a zigzag inside a rectangle. Heatsinks appear as shaded rectangles near power components. Always cross-reference symbols with the bill of materials–some schematics use custom notations for proprietary parts.

Step-by-Step Guide to Wiring a High-Power Audio Processor

Start by locating the input and output terminals on the rear panel. Most pro-grade units feature XLR or ¼-inch TRS connectors for signal routing–identify these first to prevent mismatched connections. Label each terminal with masking tape to avoid confusion during wiring.

Connect the preamp output to the processor’s input using shielded balanced cables. Ensure the cable length does not exceed 25 feet (7.6 meters) to minimize signal degradation. For unbalanced sources, use an impedance-matching transformer or a direct box to convert the signal without introducing noise.

Power and Ground Configuration

Verify the voltage rating on the unit’s power supply matches your local mains (120V/230V). Use a dedicated circuit with a minimum 15-amp breaker for stable operation. Ground the chassis to a star-ground configuration–connect all ground wires to a single point on the chassis to eliminate hum loops. Avoid sharing ground paths with other equipment.

For bridged mode, confirm the unit supports it by checking the manual–most models require specific jumpers or switch settings. Bridge both channels by connecting the positive output of channel A to the positive terminal of the load and the negative output of channel B to the negative terminal. Never exceed the unit’s bridged power rating (typically 4 ohms minimum).

Test the setup with a 1 kHz sine wave at low volume before connecting speakers. Use an oscilloscope or a polarity tester to verify signal integrity. If distortion occurs, recheck grounding, cable shielding, and speaker impedance. Adjust gain staging by turning output levels down before powering on to prevent transient damage.

Key Elements in Professional Audio Power Processing and Their Roles

Begin with the power transformer–ensure it matches the device’s voltage requirements with a 10–15% overhead to handle transient loads without saturation. Toroidal cores reduce electromagnetic interference but require proper mounting to avoid mechanical hum. Compare datasheets for efficiency ratings; a 95%+ unit minimizes heat buildup in enclosed rack setups.

The bridge rectifier converts AC to DC for downstream stages. Use ultrafast recovery diodes (e.g., STTH8S06D) for low forward voltage drop and reduced switching noise. Parallel diodes if current exceeds 10A to distribute thermal stress. Add a snubber capacitor (0.1µF film type) across each diode to suppress high-frequency spikes that degrade signal integrity.

Filtration capacitors dictate dynamic response and noise floor. Select high-ripple current electrolytics (e.g., Nippon Chemi-Con KY series) with ≥3,000 hours lifespan at 105°C. For critical channels, pair with film capacitors (polypropylene) to bypass residual high-frequency noise. Values should balance size constraints: 10,000µF per rail for 500W class, scaled linearly with output power.

Active devices define thermal and electrical limits. Lateral MOSFETs (e.g., IXYS IXTH200N50L2) offer superior linearity for Class D designs but demand tight gate drive impedance (

Protection and Signal Integrity Measures

• Temperature sensors: Mount NTC thermistors (e.g., Vishay NTCLE100E3) directly to heatsinks within 1cm of output transistors. Set thresholds at 70°C (warning) and 85°C (shutdown).
• Overcurrent: Implement a 1µs blanking period in comparator circuits to ignore turn-on transients. Use Hall-effect sensors (e.g., Allegro ACS712) for isolated current monitoring.
• Relay muting: Specify TE Connectivity T90 series relays with gold-plated contacts. Add a 1kΩ resistor across load terminals to discharge capacitors during power-down to prevent pops.
• RF filtering: Ferrite beads (Fair-Rite 2643006601) on input lines suppress EMI from switching stages. Place beads upstream of differential amplifiers.

Optimizing Passive Networks

1. Feedback loop: Use 1% metal film resistors in the error amplifier stage to maintain gain accuracy. Add a 2.2pF compensation capacitor across the feedback resistor to prevent high-frequency oscillations.
2. Output inductor: Core material dictates saturation margin. Sendust (Kool Mu) tolerates higher DC bias than gapped ferrite but has lower permeability. Size for ≤30% current ripple at maximum output.
3. Snubber networks: For switching topologies, place an R-C snubber (10Ω + 1nF) across output MOSFETs to dampen ringing at turn-off. Adjust values based on load impedance (e.g., 4Ω vs. 8Ω).

PCB layout separates power and signal grounds at the star point, typically the negative terminal of the main filter capacitor. Route high-current traces (>5A) with 2oz copper and ≥3mm width per ampere. Place decoupling capacitors (
