Step-by-Step Guide to Building a Reliable Current Detector Circuit
Use a shunt resistor in series with the load for accurate ampere sampling–aim for resistance values between 0.01Ω and 0.1Ω to balance sensitivity and power loss. Low-side placement reduces interference but introduces a ground offset; high-side avoids this but requires differential amplification for clean readings.
For microcontroller integration, pair the shunt with an operational amplifier like the LM358 or INA169 to scale the millivolt drop to a usable 0–5V range. Ensure the op-amp’s bandwidth exceeds 10kHz to capture transient spikes without distortion. Add a low-pass filter (RC cutoff ~1kHz) to suppress EMI from motors or switching supplies.
In designs exceeding 10A, replace the shunt with a Hall-effect sensor (e.g., ACS712) to eliminate resistive losses. Configure it with a 100nF decoupling capacitor close to its power pins to prevent false triggers. For AC monitoring, use a current transformer with a turns ratio tailored to your expected amplitude–typically 1000:1 for 1–10A RMS inputs.
Isolate high-voltage tracks from logic paths using creepage distances ≥8mm or optocouplers like the HCPL-7840. Test prototypes with a load step response between 10% and 90% of rated capacity to verify stability. Record maximum deviations–ideal overshoot/undershoot should stay below ±5%.
Calibrate against a bench multimeter (e.g., Fluke 87V) by adjusting the gain resistor until readings match within ±1%. Store coefficients in EEPROM for consistent performance across temperature swings. For battery-operated units, add a power-down circuit to cut quiescent draw below 1µA.
Designing a Precision Signal Tracker Layout
Begin with a low-value shunt resistor–ideal values range between 0.1Ω and 1Ω–for minimal voltage drop while ensuring measurable potential. Position it in series with the load path, avoiding ground loops that introduce noise.
Pair the shunt with an instrumentation amplifier like the INA125 or AD8221, configured with a gain of 100 to 200. These ICs reject common-mode interference up to 80dB, critical for low-level readings in noisy environments.
Add a 10μF bypass capacitor between the amplifier’s supply pins and ground, placed within 2mm of the IC, to suppress high-frequency transients. For isolated applications, opt for a galvanically separated design using the AMC1200, which provides ±250mV input range and 10kV surge protection.
Output filtering reduces false triggers: a 1kΩ resistor in series with a 10nF capacitor forms a low-pass network, cutting frequencies above 16kHz. Adjust values based on load dynamics–inductive loads may require a snubber (10Ω + 10nF) across the shunt to dampen ringing.
For digital interfacing, use a 12-bit ADC like the MCP3201, sampling at 10ksps with a reference voltage of 2.048V for 0.5mV resolution. Calibrate offsets by shorting the input and adjusting the amplifier’s zero-trim potentiometer until the output reads midscale.
Test stability under varying loads: a 1A change should produce consistent readings within ±2%. Compensate thermal drift by selecting a shunt with a low temperature coefficient (e.g., manganin or constantan alloys,
Protect against overvoltage with a TVS diode (e.g., SMAJ58A) across the shunt, clamping spikes exceeding 64V. For battery-powered designs, add a MOSFET switch (e.g., SI2302) to disconnect the load during idle states, extending operational life by up to 40%.
Core Parts for a Basic Sensing Mechanism
Begin with a shunt resistor (0.1Ω–1Ω, 1–10W rating) to convert flow magnitude into a measurable voltage drop. Pair it with an operational amplifier (LM358, LM324) configured as a differential amplifier–gain between 10× and 100×–to boost the signal above noise thresholds. Add a comparator IC (LM393) to trigger outputs at a set threshold, with hysteresis (10–20% of reference voltage) to prevent false flips. For visual feedback, include an LED (2V forward voltage, 5–20mA) and a current-limiting resistor (220Ω–1kΩ) to match supply constraints.
Component Specifications at a Glance
| Element | Typical Values | Key Considerations |
|---|---|---|
| Measurement shunt | 0.1Ω–1Ω, 1W–10W | Low inductance, temperature coefficient <100 ppm/°C |
| Op-amp | LM358, LM324 | Common-mode range ≥ supply voltage –1.5V |
| Comparator | LM393 | Open-collector output, hysteresis 10–20% |
| Feedback LED | Standard 5 mm, 2V/5–20 mA | Series resistor 220Ω–1kΩ, color for visibility |
Step-by-Step Assembly of a Shunt Resistor-Based Measurement Setup
Begin by selecting a precision shunt resistor with a resistance value between 0.01Ω and 0.1Ω, ensuring it matches the expected load range. For example, a 0.05Ω shunt rated at 10W will handle up to 14A without excessive heat buildup, assuming a maximum voltage drop of 70mV. Verify the resistor’s power rating against your application’s peak demands–thermal dissipation is critical to avoid drift or failure.
Mount the shunt in series with the load path, placing it as close as possible to the ground reference to minimize noise pickup. Use thick, short traces or wires (12 AWG minimum) for the shunt’s connections to reduce parasitic resistance. If soldering, apply heat sinks temporarily to prevent thermal stress distorting the resistor’s core properties.
For signal amplification, choose an operational amplifier (op-amp) with a low input offset voltage ( 80dB). The AD8221 or INA188 are optimal for this role, offering stable gain and minimal drift. Configure the op-amp with a gain of 100 (e.g., 1kΩ/10kΩ resistors) to scale the shunt’s millivolt output to a usable 0–5V range for ADC input.
Ground the amplifier’s reference pin to the same point as the shunt’s low-side terminal to eliminate ground loops. Include a 0.1µF ceramic capacitor between the op-amp’s power pins and ground to filter high-frequency noise. Add a 10µF electrolytic capacitor in parallel if the supply voltage experiences low-frequency ripple.
Connect the amplified output to an analog-to-digital converter (ADC) with at least 12-bit resolution for sufficient granularity. Ensure the ADC’s reference voltage matches the op-amp’s output range (e.g., 5V). Calibrate the setup by measuring the actual voltage drop across the shunt with a multimeter at known load levels, then adjust the gain resistors if the ADC readings deviate by more than ±1%.
Isolate the measurement path from high-power components using a separate ground plane or a dedicated analog ground. Twist the signal wires or use shielded cable if the environment contains electromagnetic interference. Avoid running the amplified signal near PWM lines or switching regulators to prevent cross-talk.
Test the setup under load by applying a known current (e.g., a 1Ω resistive load at 12V draws 12A). Verify the ADC output correlates linearly with the expected values–non-linearity suggests stray resistance in connections or incorrect gain settings. For thermal validation, monitor the shunt’s temperature rise with an infrared thermometer; exceeding 60°C may require a heatsink or higher-power shunt.
Add a transient voltage suppressor (TVS) diode across the shunt if the setup is exposed to inductive loads. Include a fuse rated at 1.5× the maximum expected flow to protect against short circuits. Log data over time to assess long-term stability–drift exceeding 2% warrants revisiting the op-amp’s offset trim or thermal management.
Choosing Operational Amplifier Specifications for Precise Load Monitoring
Prioritize input offset voltage below 50 µV for low-magnitude signal fidelity. Amplifiers like the LT1028 or OPA227 achieve <20 µV, minimizing zero-crossing errors in shunt-based measurements. Match this parameter to your smallest expected voltage drop across the sensing element–typically 10–100 mV for 1–10 A ranges–and verify against datasheet drift values over temperature.

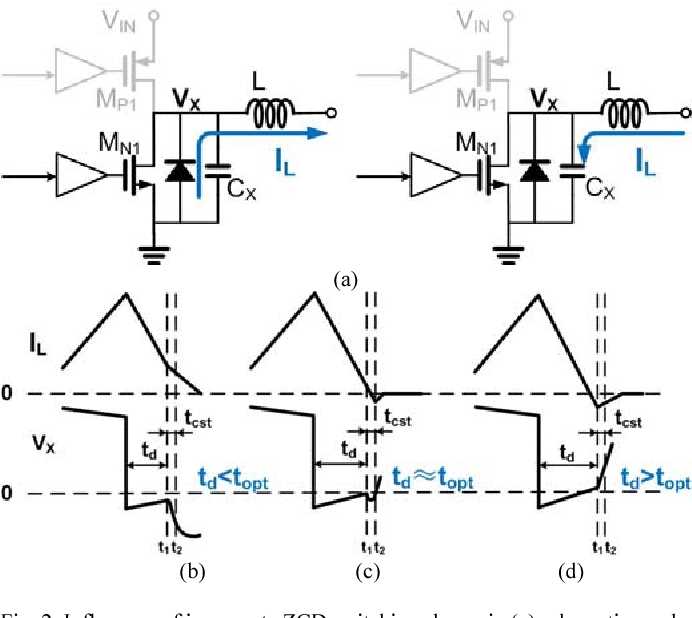

Select a gain bandwidth product >5 MHz when handling switching transients up to 100 kHz. For example, the AD8676 offers 10 MHz GBW, ensuring <1% settling error for 5 µs pulses. Calculate required bandwidth as:
- 2 × highest signal frequency × desired closed-loop gain.
- Add 20% margin for parasitic inductance effects in traces.
Ensure input bias currents <1 nA for resistive dividers or shunts above 10 kΩ. The LTC1050 (chopper-stabilized) guarantees <30 pA, critical when pairing with 100 kΩ shunt resistors to avoid loading errors. For active filters or integrators, verify the op-amp’s bias current drift remains below 10% of the feedback network’s leakage.
Noise and Common-Mode Rejection
Target voltage noise density <10 nV/√Hz at 1 kHz for low-impedance sources. The OPA333 achieves 55 nV/√Hz, outperforming general-purpose ICs by 3–5× in 1–10 Hz bandwidths. Use this metric to estimate total noise:
- Multiply by √(bandwidth × 1.57) for white noise.
- Add flicker noise (1/f corner) via datasheet graphs at operating frequency.
Common-mode rejection ratio (CMRR) must exceed 100 dB for differential setups with ±15 V supplies. The INA125 provides 120 dB, reducing errors from supply rail variations or EMI-induced offsets. Test CMRR across full input range–many ICs degrade by 20–30 dB near rails.
Confirm output swing capability within 50 mV of supply rails for optimal dynamic range. The LM7171 (rail-to-rail input/output) avoids clipping with ±2.5 V supplies and 1 kΩ loads, but requires decoupling caps <2 cm from VCC pins to prevent oscillation. For single-supply designs, ensure the negative rail output can pull within 100 mV of ground.
Thermal drift specifications should align with environmental conditions. The OPA2188 offers 0.2 µV/°C offset drift, suitable for industrial -40°C to +125°C ranges. Cross-reference:
- Maximum junction temperature (Tj).
- Thermal resistance (θJA) for your PCB layout (e.g., 1 oz copper pours reduce θJA by 30%).
- Self-heating effects in high-gain configurations.
Select packages like SOIC over MSOP if power dissipation exceeds 500 mW, as exposed pads improve heat sinking.
