Complete Guide to Curt 7 Way Trailer Wiring Diagram Connections
Start by identifying pin functions before handling tools–standard configurations assign ground to the center post, running lights to the top left, and brakes to the bottom right. Verify these positions with a multimeter reading 12V DC when activating the corresponding vehicle circuit. Mismatches here cause intermittent failures or damage to trailer electronics.
Use tinned copper wire (minimum 16 AWG for lighting, 12 AWG for brakes/charge circuits) and crimp connectors rated for 20A. Solder all joints after crimping to prevent corrosion–inspect with a magnifier to confirm full infiltration. Heat-shrink tubing must cover the entire joint; use adhesive-lined versions for outdoor reliability.
Attach the connector housing only after testing–energize each circuit separately while observing trailer lamps or a diagnostic resistor load (3Ω 10W). Record voltage drops: >0.5V over 5 meters signals insufficient wire gauge or poor grounding. The ground terminal must connect directly to the trailer frame, not through bolted surfaces–clean paint and rust before attachment.
Label all wires at both ends using heat-resistant sleeves printed with function codes (GTW, L, R, BR). Store spare connectors pre-wired with 6-inch leads for quick field repairs–include a small tube of dielectric grease to prevent moisture ingress in critical connections.

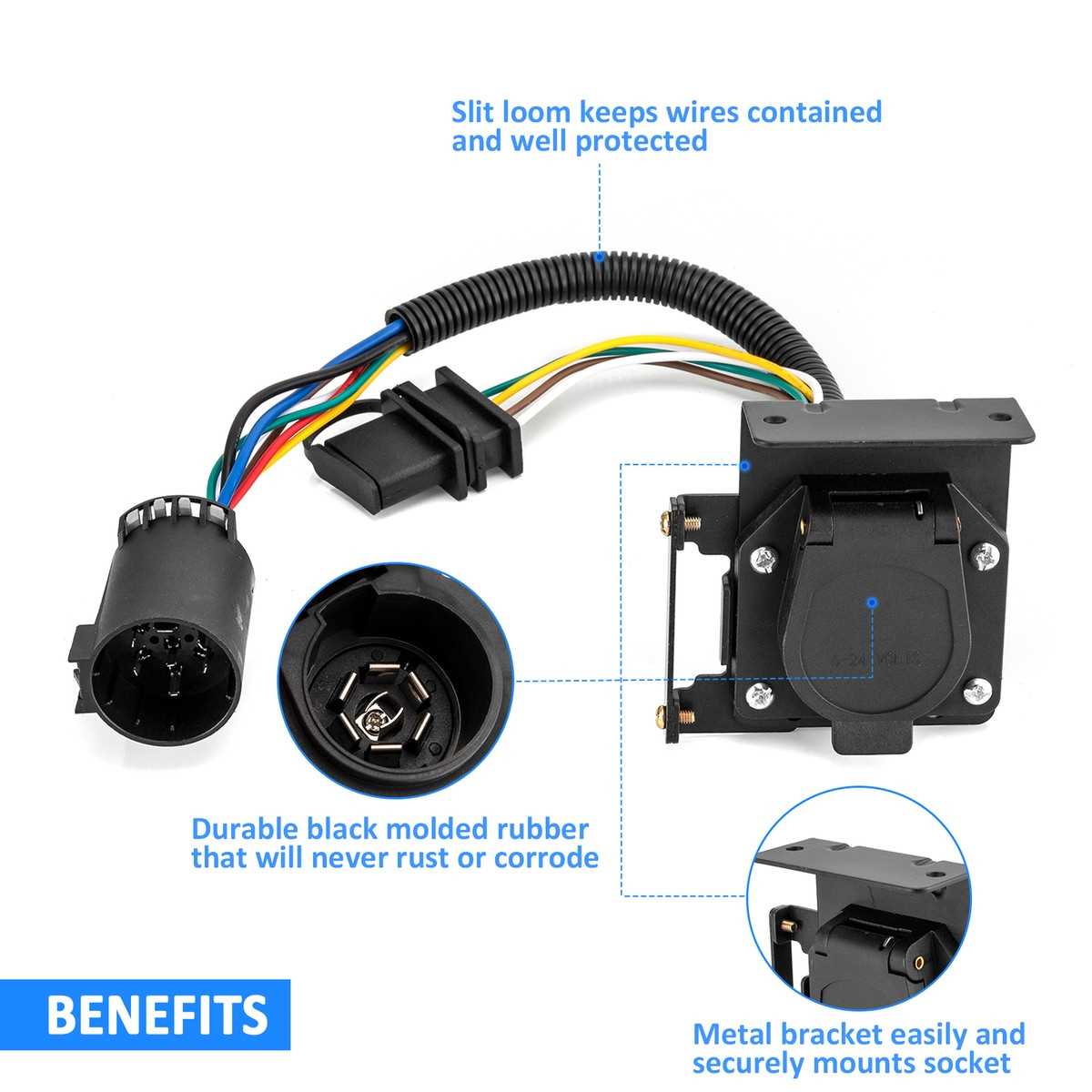

7-Pin Electrical Connector Guide for Trailers
Start by identifying pin functions before making connections–miswiring causes safety risks. The standard layout assigns pin 1 (yellow) to left turn/brake, pin 2 (blue) to auxiliary (12V reverse or electric brakes in some setups), pin 3 (white) to ground, pin 4 (green) to right turn/brake, pin 5 (brown) to tail/running lights, pin 6 (red) to brake controller, and pin 7 (black) to 12V power. Verify these with a multimeter–voltage on wrong pins damages components.
Use color-coded wire connectors matching the manufacturer’s grid. For aftermarket harnesses, splice wires using heat-shrink butt connectors–cheap crimp terminals corrode within months. Seal exposed splices with dielectric grease or adhesive-lined shrink tubing to prevent moisture intrusion. Avoid taping connections; adhesive degrade faster than mechanical seals under vibration.
Common Wiring Errors and Fixes
- Flickering lights: Check ground integrity–corrosion at the trailer frame or tow vehicle chassis disrupts continuity. Sand paint off grounding points and attach directly to metal, not bolts or brackets.
- Non-functional brakes: Confirm power to pin 6; some controllers require a 12V source (pin 7) to activate. Test with a trailer brake tester before diagnosing the controller.
- Reverse lights not engaging: Some systems repurpose pin 2 for backup LEDs. If unused, cap the wire to avoid short circuits.
For heavy-duty setups, upgrade wiring gauge–18 AWG suffices for lighting, but 12 AWG is mandatory for brake controllers and auxiliary circuits to handle current spikes. Route wires through flexible conduit along the trailer frame, securing every 18 inches with cable clamps. Avoid sharp edges; chafing severs wires during road vibration.
Test all circuits with a plug-in harness tester before coupling the trailer. Manually activate brakes, signals, and lights while monitoring voltage drops–consistent readings within ±0.5V of the tow vehicle’s battery indicate proper connections. Recheck after 50 miles; thermal cycling reveals loose terminals.
Adapters and Cross-Compatibility
- Foreign trailers often use a 6-pin European layout–match function, not color codes. Pinouts vary: European brown may indicate fog lights, not tail lamps.
- For vehicles without a factory socket, install a pigtail harness spliced into the tail light assembly. Use a T-connector to maintain OEM wiring integrity.
- Oversized trailers require a relay block between pins 5/7 to prevent voltage sag from high-current accessories (e.g., winches, refrigerators).
Document all modifications with photos and labels–future repairs depend on clear reference. Store extra wire and connectors (including waterproof terminals) in the glovebox for quick roadside fixes. Replace the entire harness if insulation is brittle or wires show green oxidation; patchwork fails under load.

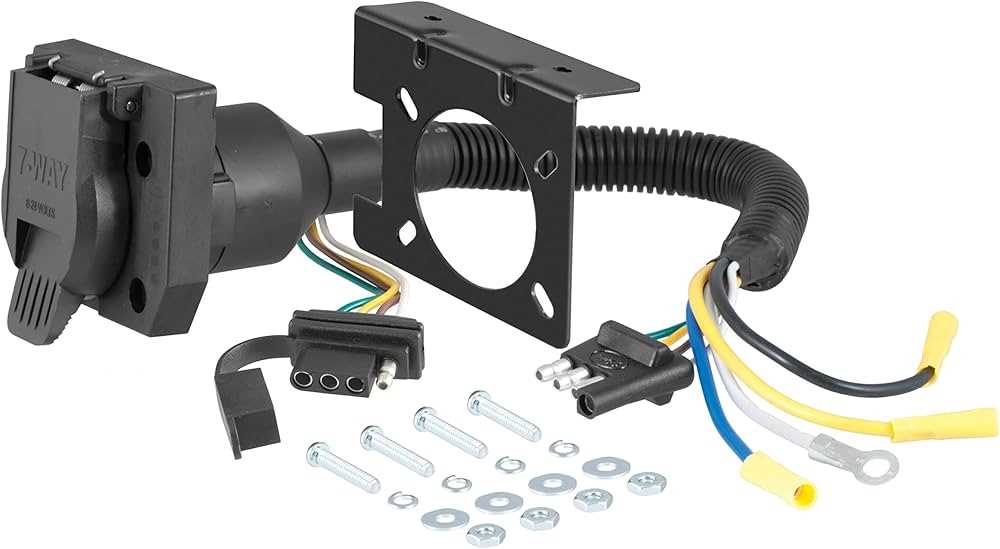

Step-by-Step Guide to Connecting a Trailer Electrical Connector
Start by gathering the necessary tools: wire strippers, crimping tool, multimeter, masking tape, and a 7-pin plug kit. Ensure the vehicle’s power is off before handling any cables to prevent short circuits. Identify the corresponding wires on both the vehicle’s harness and the trailer socket–use a color-coded reference chart if available, as mismatched connections can cause malfunction or damage.
Begin with the ground wire (typically white). Secure it to a clean, bare metal surface on the vehicle’s frame using a self-tapping screw. A poor ground is the most common cause of intermittent electrical issues, so ensure the connection is tight and free of corrosion. Test continuity with a multimeter before proceeding.
Connect the brown wire for the taillights to the vehicle’s running light circuit. Strip ¼ inch of insulation from the end, twist the strands, and insert into the terminal block of the plug. Crimp firmly, then solder for added durability–especially if the trailer will be exposed to vibrations or moisture. Repeat for the yellow (left turn/brake) and green (right turn/brake) wires, matching them to the vehicle’s corresponding circuits.
Install the blue wire (auxiliary power or reverse lights) last, as this is often optional. Check the trailer manufacturer’s specifications–some systems use it for electric brakes, while others ignore it. If unused, cap the wire with insulating tape to prevent accidental shorts. For vehicles with integrated brake controllers, route this wire directly to the controller’s output terminal.
Never splice wires without proper connectors. Use heat-shrink tubing or dielectric grease on exposed terminals to prevent oxidation. After securing all connections, test each function: turn signals, brakes, running lights, and auxiliary power (if applicable). Activate the trailer’s electrical system sequentially, watching for flickering or dim lights–these indicate loose connections or voltage drops.
For trailers with electric brakes, verify the brake controller’s settings. Adjust sensitivity and gain according to the trailer’s weight; typical values range from 6.0 to 6.5 for most mid-sized trailers. If the vehicle lacks a factory-installed controller, mount an aftermarket unit near the driver’s seat and wire it into the blue circuit. Refer to the controller’s manual for calibration steps.
Finalize the installation by wrapping the harness in split loom tubing or electrical tape to protect against abrasion and moisture. Secure the wiring to the vehicle’s frame using zip ties every 12–18 inches, avoiding sharp edges or moving parts. Recheck all connections after 50 miles of towing–early failures often reveal themselves under real-world stress, such as humidity or road vibrations.

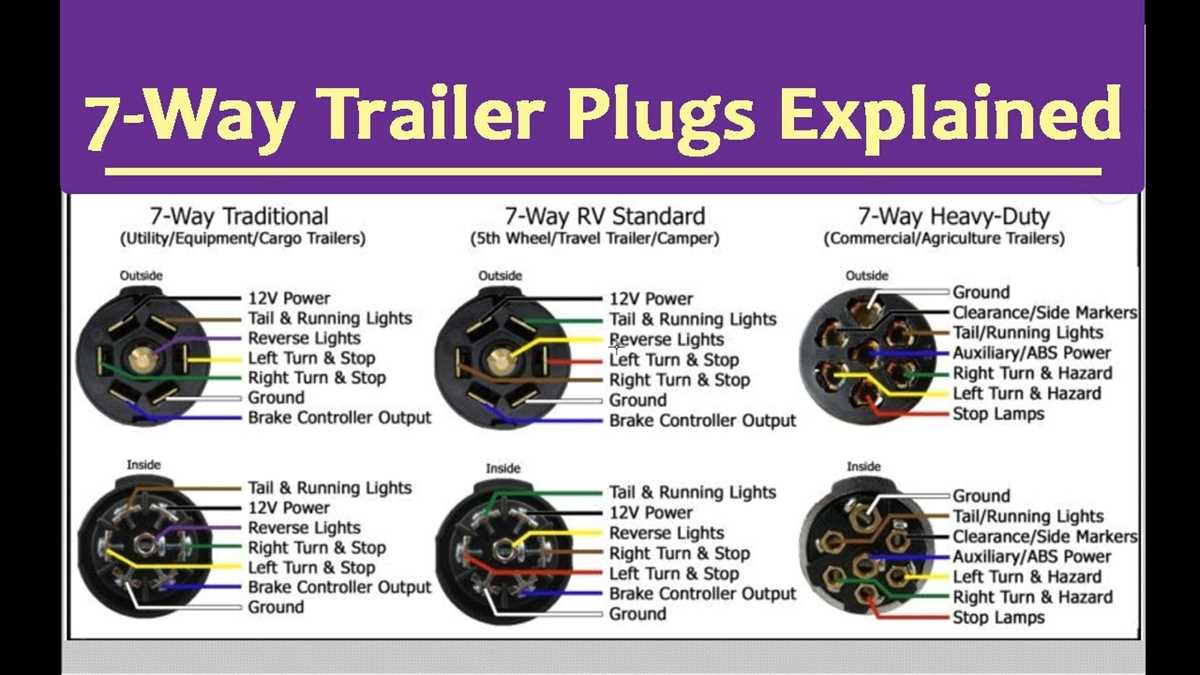

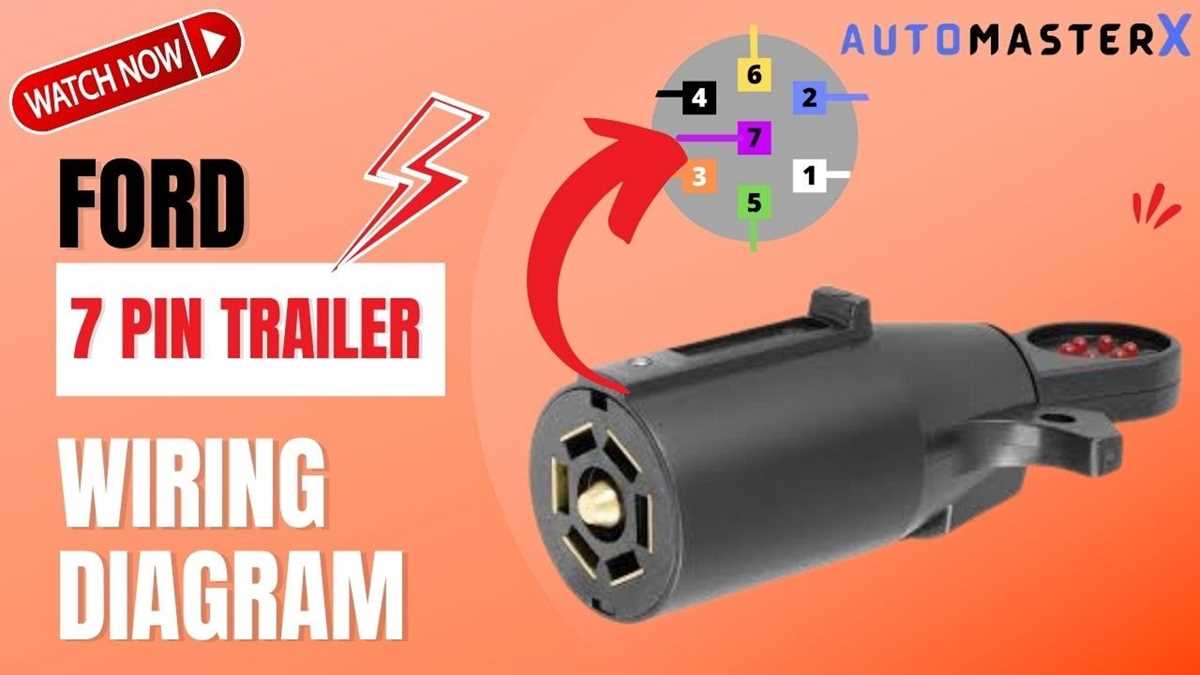

Standard Pin Color Schemes for Heavy-Duty Trailer Plugs
Always match the vehicle-side harness colors to the corresponding trailer socket terminals to prevent electrical faults. The industry-standard color assignments for a 7-pin RV-style connector are as follows: white for ground (G), brown for tail/running lights (TL), yellow for left turn/brake (LT), green for right turn/brake (RT), blue for electric brakes (EB), black for auxiliary power (AP), and red (or purple) for reverse lights (RL). Verify these against your specific model’s documentation, as some manufacturers deviate slightly, particularly for auxiliary circuits.
Incorrectly pairing yellow and green circuits can lead to simultaneous turn signals or brake lights activating on both sides–a critical safety hazard. Test each function individually with a circuit tester before hitching the trailer. If the brake controller triggers on the wrong side, re-examine the blue (EB) and black (AP) lines, as these are frequently swapped during installation.
| Pin Position | Function | Vehicle Harness Color | Trailer Socket Color |
|---|---|---|---|
| Center Pin | Ground | White | White |
| 1 o’clock | Right Turn/Brake | Green | Green |
| 3 o’clock | Tail/Marker Lights | Brown | Brown |
| 5 o’clock | Electric Brakes | Blue | Blue or Black |
| 7 o’clock | Auxiliary Power | Black | Black or Red |
| 9 o’clock | Left Turn/Brake | Yellow | Yellow |
| 11 o’clock | Reverse Lights | Red/Purple | Red/Purple |
Auxiliary power (black wire) often delivers 12V for trailer-mounted accessories like winches or interior lights. Confirm the amperage rating of this circuit–most tow vehicles support 20-40 amps, but exceeding this can damage the alternator or fuse. Use a multimeter to check voltage at the socket; if it reads below 12V, inspect the wiring loom for corrosion or loose connections at the battery terminal.
Reverse light circuits (red or purple) are optional but increasingly common on newer trailers. If your trailer lacks reverse lights, cap this wire with electrical tape to prevent shorting. Never omit the ground (white) wire–it’s critical for all electrical functions and corrosion resistance. Bare copper should be tightly secured to a clean metal surface, free of paint or rust.
Trailer manufacturers sometimes use alternate color codes for the 5 o’clock pin (electric brakes). While blue is standard, some models designate this pin with black insulation. Cross-reference with the trailer’s manual–conflicting codes can result in brake controller malfunctions or no braking at all. If the brake controller fails to activate, test continuity between the vehicle’s blue wire and the trailer’s corresponding pin.
For dual-function circuits (e.g., turn/brake lights), aftermarket adapters may split signals using diodes. Avoid cheap inline splices, which can overheat under load. Opt for a factory-style multi-pin harness or a high-quality diode kit rated for at least 10 amps per circuit. Improper separation can cause “cross-talk,” where turn signals trigger brake lights unexpectedly.
Regularly inspect connectors for moisture intrusion, especially in the winter. Apply dielectric grease to each pin during installation to prevent oxidation. If corrosion forms, clean with a wire brush and reapply grease–never use abrasive materials that can remove plating. For heavy-duty applications, consider sealed connectors with weatherproof boots to extend lifespan.
Always fuse the auxiliary power line (black wire) at the battery to protect the wiring harness. Use a fuse matching the circuit’s rating–typically 30-40 amps for basic trailers, up to 60 amps for high-draw equipment. Failure to fuse can result in melted wiring or vehicle fires if a short occurs. Double-check all connections after installation, as improperly seated pins are a leading cause of intermittent failures.
