Build a Simple Automatic Light Sensor Switch Circuit Guide
Use a 555 timer IC in monostable configuration paired with an LDR (light-dependent resistor) to trigger power delivery when ambient illumination drops below a set threshold. Connect the LDR between the timer’s threshold pin (6) and ground, with a 10kΩ resistor in series to VCC to form a voltage divider. Adjust the resistor value between 1kΩ and 100kΩ to fine-tune sensitivity for environments ranging from moonlit outdoor areas to indoor spaces with residual lighting.
For stable operation, pair the 555’s output (pin 3) with a logic-level MOSFET like the IRLZ44N or a low-power relay, depending on load requirements. A 1W LED array or a small DC motor will run directly from the MOSFET; inductive loads such as relays or solenoids require a flyback diode (1N4007) across the coil to prevent voltage spikes. Power the circuit from a regulated 9–12V DC supply, ensuring ripple stays below 100mV to avoid false triggers.
Calibrate the system by covering the LDR completely–output should activate within 200–500ms. If response time is sluggish, replace the timing capacitor (typical 10µF–100µF) with a smaller value or reduce the pull-up resistor. For harsh conditions (dust, humidity), enclose the LDR in a transparent epoxy-sealed housing to prevent drift while maintaining optimal spectral response around 500–700nm.
Expand functionality by adding a comparator stage (LM393) before the 555 timer for sharper switching edges. This isolates signal detection from timing, allowing precise adjustment via a 10-turn potentiometer set between the LDR and comparator input. For multi-stage systems, cascade identical modules with staggered thresholds–ideal for progressive lighting in greenhouses or security tiers where light levels vary by zone.
Test reliability under target conditions using a lux meter. A standard indoor room at dusk measures ~10–50 lux; design thresholds around 3–15 lux for consistent activation. Note that LDRs age; replace units every 3–5 years if deployed outdoors, as UV exposure degrades sensitivity–alternative sensors like photodiodes (BPW34) offer longer lifespan but require signal amplification.
Automatic Illumination Control Schematic Guide

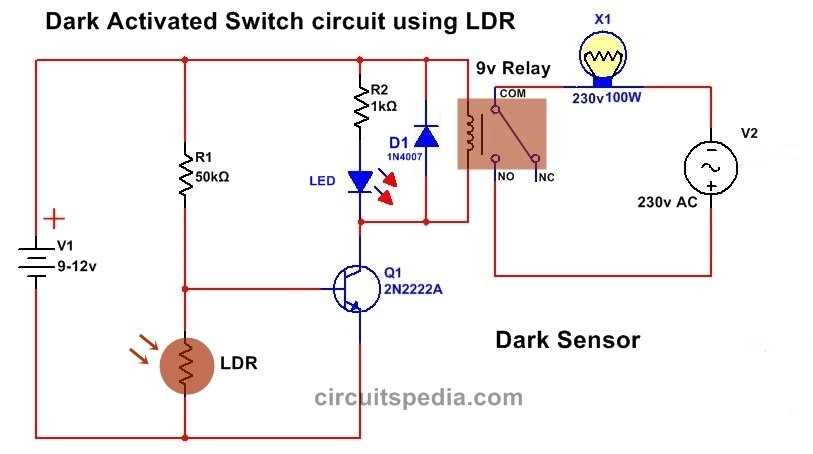

Build this automatic light-triggered control using an LDR (light-dependent resistor), BC547 transistor, and a 5V relay. Connect the LDR between the base of the transistor and ground, with a 10kΩ resistor in series to limit current. The collector should link to the relay coil, while the emitter grounds the circuit. A 1N4007 diode placed across the relay coil prevents voltage spikes, ensuring stable operation during state changes. Supply 5V to both the relay and the LDR-transistor junction for reliable switching at 50 lux or lower ambient intensity.
Component Selection and Calibration
Opt for an LDR with a resistance range of 10kΩ (light) to 1MΩ (shade) for precise sensitivity. Replace the BC547 with a 2N2222 if handling currents above 100mA. Adjust the series resistor to fine-tune the trigger point: 4.7kΩ for earlier activation, 22kΩ for delayed response. For outdoor use, coat all connections with conformal coating to prevent moisture-induced false triggers.
Core Elements for a Light-Sensitive Trigger System
Start with a photoresistor (LDR) as the primary sensing element. Choose a model with a resistance range of 1–10 kΩ under ambient lighting and 1–10 MΩ in low-light conditions for optimal sensitivity. Cadmium sulfide (CdS) variants like the GL5528 or VT90N2 have proven reliability in low-power applications. Verify the LDR’s spectral response peaks near 540 nm to ensure compatibility with standard white LEDs or incandescent sources.
A low-input-bias operational amplifier (op-amp) forms the comparator stage. The LM358 or MCP6002 are recommended for their rail-to-rail output and minimal offset voltage (
For the switching mechanism, employ a N-channel MOSFET or a logic-level BJT. The IRLZ44N handles up to 55 V and 47 A with an RDS(on) of 0.022 Ω, ideal for driving high-current loads like relays or LEDs. For lower-power applications, the 2N2222 BJT offers sufficient gain (hFE >100) at a fraction of the cost. Ensure the transistor’s breakdown voltage exceeds the supply voltage by at least 20% to prevent failure under inductive loads.
Power stabilization requires a decoupling capacitor (0.1–1 µF ceramic) near the op-amp’s supply pins to suppress noise. For transient loads, add a bulk capacitor (100–1000 µF electrolytic) across the power input. Use Schottky diodes (e.g., 1N5817) for reverse polarity protection if external power sources are involved. For precision tuning, incorporate a 10 kΩ trimpot in the reference voltage divider to fine-adjust the trigger point after assembly.
Step-by-Step Wiring Guide for LDR-Based Illumination Control
Begin by securing a 10kΩ resistor in series with your photoresistor. Connect the free end of the resistor to the positive rail of a breadboard, ensuring the photoresistor’s remaining lead grounds to the negative rail. This configuration creates a voltage divider critical for signal modulation under varying light conditions.
Attach the midpoint junction between the photoresistor and resistor to the base of an NPN transistor like the 2N3904. Verify the transistor’s pinout–emitter to ground, collector to the load (e.g., an LED with a current-limiting 220Ω resistor), and base receiving the LDR’s output. Miswiring here risks damaging the transistor or load.
Power the breadboard with a regulated 5V DC supply. Test functionality by covering the photoresistor; the LED should illuminate. If no response occurs, swap the LDR and resistor positions–polarity matters for consistent operation. Use a multimeter to measure voltage at the base; expect ~0.7V in low-light and near 0V in bright ambient.
Fine-Tuning Sensitivity
Adjust the resistor value to alter activation thresholds. Lower resistance (e.g., 4.7kΩ) triggers earlier in dim settings, while higher values (e.g., 47kΩ) delay response until near-total darkness. Experiment with these values based on application–security lighting demands rapid response, whereas garden lights tolerate gradual transitions.
For stability, solder connections after breadboard validation. Use heat shrink tubing on exposed joints to prevent shorts. If integrating a relay for larger loads, opt for a 5V coil model to match the circuit’s voltage, adding a flyback diode (1N4007) across the relay coil to protect the transistor from voltage spikes.
Optimizing Placement and Environmental Factors
Position the photoresistor away from heat sources and direct obstacles. Glass enclosures attenuate light; use frosted covers for diffuse sensing. In outdoor setups, waterproof the assembly with conformal coating or an IP65-rated enclosure. For consistent performance, avoid placing near artificial light sources that flicker (e.g., fluorescent bulbs).
Log output behavior over a 24-hour cycle to identify false triggers. If instability occurs, add a 100nF capacitor across the LDR’s output to smooth signal fluctuations. For microcontroller interfaces, feed the conditioned signal into an analog pin and apply hysteresis in code–set thresholds 20% apart to prevent rapid toggling at marginal light levels.
Common Mistakes When Building a Light-Dependent Control System
Incorrectly pairing the photoresistor with its load resistor causes inaccurate triggering. A 10kΩ resistor works for high-sensitivity tasks under indoor lighting, while outdoor setups often require 100kΩ or higher to prevent false activations from ambient light shifts. Measure resistance ranges first–most CdS cells vary between 50Ω (bright) and 1MΩ (shadows)–then select a resistor within 20-30% of the midpoint to balance response speed and stability. Avoid carbon film resistors; metal film types reduce drift under temperature swings.
- Ignoring voltage thresholds: LDRs in low-voltage designs (≤3.3V) may fail to register changes below 0.7V, leaving transistors or ICs partially on. Test with a multimeter at expected light levels before finalizing connections.
- Skipping hysteresis: Rushing into single-threshold designs creates rapid toggling near transition points. Add a feedback loop–use a 47kΩ resistor between the comparator output and non-inverting input for stable ~100mV deadband.
- Mismatched op-amp selection: Rail-to-rail models (e.g., MCP6002) handle full supply swings; generic LM358 clips at ~1.5V below Vcc, distorting weak signals. Verify datasheet limits for your supply voltage.
- Exposing components unshielded: Even brief light leakage through component gaps (e.g., between PCB layers) tricks sensors. Use opaque epoxy or a metal enclosure with a
- Overlooking thermal effects: Photoresistive materials drift ±5% per °C above 25°C. Compensate with a thermistor (e.g., NTC 10kΩ) in parallel if operating near temperature extremes.
Adjusting Sensitivity for Optimal Illumination Response
Begin by replacing the photoresistor with a component matching 5-10 kΩ in ambient light typical for your application. Outdoor setups benefit from lower resistance (5 kΩ) while indoor environments with consistent artificial lighting require higher values (8-10 kΩ). Measure the actual resistance across the sensor at your target activation threshold–this forms the baseline for precise calibration.
The voltage divider’s performance hinges on two resistors: the photoresistor and a fixed counterpart. Use this formula to calculate the optimal fixed resistor value: R_fixed = R_photo × (V_cc / V_trigger - 1), where V_cc is the supply voltage (e.g., 5V) and V_trigger is the desired control input threshold (typically 2.5V for most comparators). For a 5 kΩ photoresistor and V_trigger = 2.5V, the fixed resistor should be 5 kΩ. Deviations beyond ±20% from this value introduce hysteresis, causing erratic state changes near the threshold.
| Lighting Scenario | Recommended Photoresistor (kΩ) | Fixed Resistor (kΩ) | Trigger Voltage (V) |
|---|---|---|---|
| Direct sunlight (100,000 lux) | 1-2 | 1-1.5 | 2.0-2.2 |
| Cloudy daylight (10,000 lux) | 4-5 | 3-4 | 2.4-2.6 |
| Office lighting (500 lux) | 8-10 | 7-9 | 2.7-2.9 |
| Moonlight (0.1 lux) | 50-100 | 40-80 | 3.0+ |
Fine-tune response speed by adding a 10-100 nF capacitor in parallel to the fixed resistor. Smaller capacitors (10-47 nF) suit fast transitions like street lighting, while larger values (68-100 nF) prevent flickering in fluctuating conditions, such as car headlights. For comparators like LM393, adjust the reference voltage via a potentiometer to match the midpoint of your anticipated light levels–start with 50% of V_cc and observe the output over a 24-hour cycle.
Validate adjustments under worst-case scenarios: rapidly varying light (e.g., storm clouds) and low signal-to-noise ratios (e.g., night with distant light sources). Use an oscilloscope to check for false triggers–acceptable margins typically show V_threshold+ = 70% V_cc and V_threshold- = 30% V_cc.
Troubleshooting Misalignment
If activation occurs too early, increase the fixed resistor or reduce V_trigger. Late response requires the opposite: lower the fixed resistor or raise V_trigger. Persistent issues often stem from incorrect photoresistor selection–ensure the chosen model’s spectral response aligns with the light source (e.g., 550 nm peak for incandescent, 470 nm for LEDs). For environments with mixed lighting, average the spectral responses mathematically or opt for a dual-sensor configuration with weighted inputs.
