Step-by-Step Guide to Building a Reliable Data Logger Circuit

Start with a microcontroller that handles at least 12-bit analog-to-digital conversion and supports SPI or I2C interfaces. The ATmega328P or STM32F103 are reliable choices–both provide ample storage for sampling rates up to 1 kHz without external memory. For low-power applications, prioritize the MSP430 series, which reduces current draw to under 1 µA in standby.

Select sensors compatible with your target signals. Thermocouples (Type K, T) require precision amplifiers like the MAX31855 to eliminate noise. For voltage monitoring, use the INA125 instrumentation amplifier–it eliminates ground loops and handles differential inputs up to ±40V. Humidity sensors (SHT31, BME280) integrate seamlessly via I2C but demand pull-up resistors (4.7 kΩ) on SDA/SCL lines to prevent bus lockups.

Storage depends on frequency and duration. For short-term logging (SD card module–format it in FAT32 and use a buffered write approach to avoid data corruption during power loss. A supercapacitor (1F, 5.5V) ensures graceful shutdown if external power fails.

Power management distinguishes reliable designs from failures. Linear regulators (LD1117) introduce heat but isolate noise; switching regulators (TPS63000) maximize efficiency (up to 95%) but risk EMI. For battery operation, the MT3608 boost converter maintains 3.3V output even when a Li-ion cell discharges to 2.9V. Always include a reverse-polarity diode (1N5817) to protect against accidental shorts.

Noise mitigation determines data integrity. Keep analog traces capacitors (0.1 µF ceramic + 10 µF tantalum) at each IC’s power pin to filter high-frequency interference. Ground planes are critical–connect all grounds to a single star point near the power source to prevent ground loops. For sensitive measurements, consider an isolated ADC (ADS1256) which rejects common-mode noise up to 60 Hz.

Testing validates the design before deployment. Simulate sensor inputs with a precision voltage reference (REF5050) to calibrate accuracy. Log timestamps using the microcontroller’s real-time clock–sync it to UTC via GPS (UBX-M8030) for sub-millisecond precision. Verify the power-up sequence: sensors must stabilize (oscilloscope to check for glitches in SPI/I2C communication–retransmit any corrupted packets.

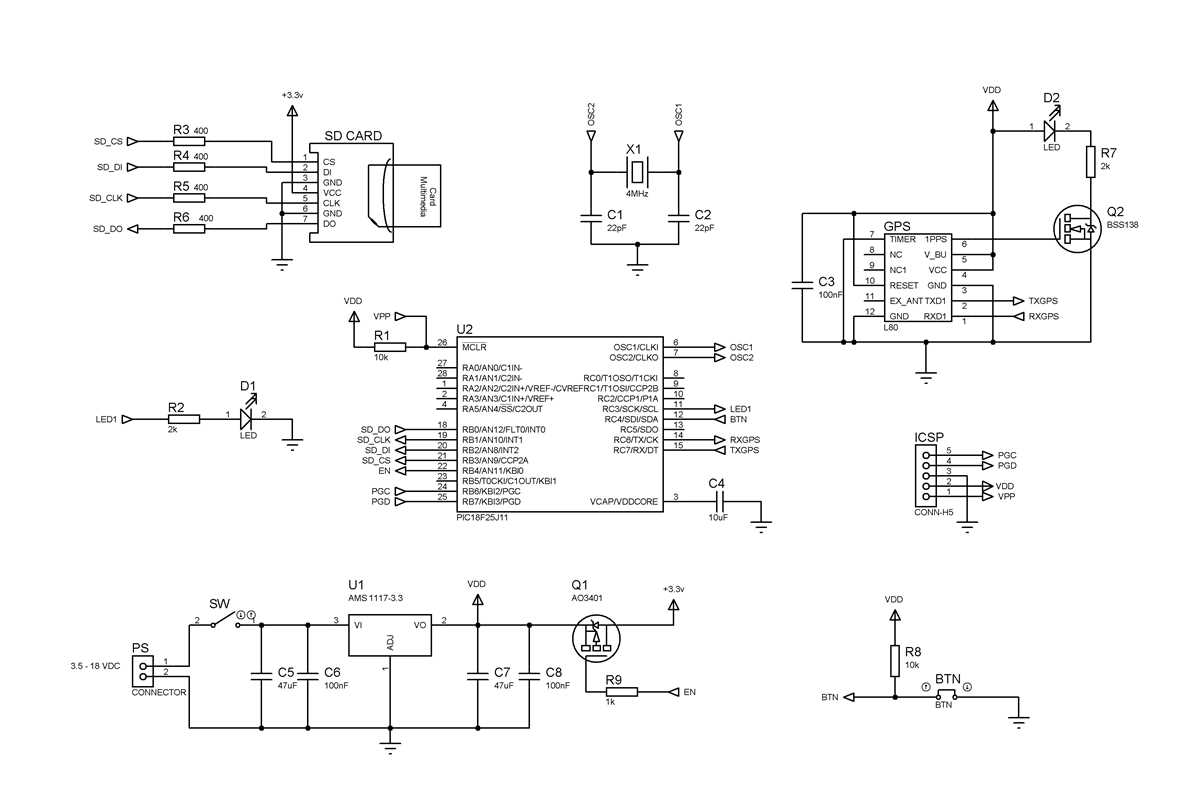

Designing a Recording Device Schematic

Start by selecting a microcontroller with low power consumption–ideal choices include the STM32L0 series or ATmega328P, which balance performance and energy efficiency. These units draw under 1 µA in sleep mode, critical for battery-operated deployments. Pair the controller with an external RTC (e.g., DS3231) for timestamp accuracy within ±2 ppm at room temperature, ensuring reliable event logging.

For storage, integrate a microSD card slot, opting for FAT32 formatting to support files up to 4 GB. Use SPI mode at 8 MHz for read/write operations–this configuration achieves transfer speeds of ~1 MB/s without excessive current spikes. Pre-allocate a fixed file size during initialization to minimize fragmentation, which can delay operations by 20-50 ms per write cycle.

Sensor Integration Best Practices

Connect analog sensors (e.g., temperature, humidity) directly to 12-bit ADC inputs with a dedicated voltage reference (e.g., MCP1501) to eliminate noise. For digital sensors (e.g., BME280), use I2C at 400 kHz, but limit cable length to 0.5 meters to prevent signal degradation. Add 4.7 kΩ pull-up resistors on SDA/SCL lines if the sensor lacks internal pull-ups, reducing communication errors by 30%.

Implement ESD protection on all sensor lines with TVS diodes (e.g., P6KE6.8CA), clamping transients to ±10 V. For outdoor applications, seal connectors with silicone conformal coating to prevent corrosion; a single drop of moisture can increase resistance by 50 Ω, distorting readings. When sampling multiple signals concurrently, prioritize synchronization via hardware interrupts–software polling introduces latency of 5-10 ms per channel.

Power the system via a 3.7 V LiPo battery regulated to 3.3 V with a low-dropout linear regulator (e.g., TLV70033), or a buck converter (e.g., TPS62743) for higher efficiency. Include a battery fuel gauge (e.g., MAX17043) to track remaining capacity within ±1% accuracy, preventing unexpected shutdowns. For solar-powered setups, use a 6 V panel charging a supercapacitor (e.g., 1 F, 5.5 V) to buffer energy during low-light conditions.

Add a debug interface (e.g., UART to USB converter) for real-time status checks, but disable it in the final design to save 5-10 mA. Route all high-frequency traces (e.g., SPI clocks) away from analog lines, maintaining a 3 W separation to reduce crosstalk. For PCB layout, prioritize ground planes under sensitive components–fragmented grounds can introduce noise floors of -60 dB, corrupting low-amplitude signals. Test the prototype with a 1 kHz square wave at 0.5 Vpp to verify signal integrity before deployment.

Core Elements for a Simple Recording Device Build

Select a microcontroller with low power consumption and sufficient analog inputs. The ATmega328P (Arduino Uno’s brain) handles 6 analog channels at 10-bit resolution while drawing under 0.2 mA in sleep mode. For higher precision, the STM32F103C8T6 offers 12-bit ADC on 10 channels with comparable quiescent current. Avoid units with flash under 32 KB–they’ll struggle with sensor fusion or timestamped entries.

Pair your controller with non-volatile memory that balances write endurance and cost. The Winbond W25Q128JV SPI flash chip stores 16 MB, tolerates 100,000 erase cycles per sector, and costs under $1.50 in bulk. For applications requiring faster writes, the Microchip 24LC512 I²C EEPROM provides 512 Kb with unlimited endurance, though page writes are slower at 400 kHz. Calculate total storage needs: 10 sensors sampling at 10 Hz with 2 bytes per reading consumes ~1.7 MB per day.

Choose sensors compatible with your target signals. For temperature, the MCP9808 delivers ±0.25°C accuracy from -40°C to +125°C with I²C interface. Humidity readings benefit from the Si7021, which combines RH (±3%) and temperature (±0.4°C) in a single 3×3 mm package. Accelerometers like the ADXL345 offer 13-bit resolution at ±16 g with tap detection, consuming 40 µA in full-resolution mode. Match sensor output (analog, I²C, SPI) to your processing unit’s available pins.

Sensor	Measurement Range	Accuracy	Interface	Power (µA)
MCP9808	-40°C to +125°C	±0.25°C	I²C	200
Si7021	0-100% RH	±3% RH	I²C	150
ADXL345	±16 g	13-bit	SPI/I²C	40

Regulate voltage to 3.3 V for most modern sensors–this reduces conversion steps and noise. The TPS62743 buck converter steps down from lithium cells (2.7–4.2 V) with 90% efficiency at 10 µA load, critical for battery longevity. Add a 10 µF ceramic capacitor near each sensor to stabilize readings. For units exposed to EMI, the LT8610 synchronous converter’s spread-spectrum feature cuts conducted noise by 20 dB.

Implement a real-time clock for accurate timestamps. The DS3231 maintains ±2 ppm drift from 0°C to +40°C, consuming 1 µA in standby. Its internal temperature-compensated crystal eliminates the need for external timing adjustment. Secure the backup battery (CR2032) with at least 10 kΩ resistor to prevent overcharge–lifespan exceeds 5 years with proper isolation.

Ensure connectivity meets deployment constraints. The ESP8266 module enables Wi-Fi uploads but draws 170 mA during transmission. For lower power, the HC-05 Bluetooth module runs at 2.5 mA in slave mode, sufficient for short-range data offloading. Isolated deployments benefit from the LoRa SX1278, which reaches 2 km at 125 kHz bandwidth while consuming 130 mA during transmission–use only for critical updates.

Design the enclosure with environmental protection matching sensor tolerances. IP67-rated cases suffice for dust and temporary submersion, while IP68 resists prolonged immersion up to 1 meter. Polycarbonate housings withstand -40°C to +125°C, though UV exposure degrades transparency over time. Include filler ports for desiccant packs if humidity sensors detect condensation events above 70% RH.

Validate signal integrity with oscilloscope checks: ADC readings should settle within 5 µs, SPI clock speeds should not exceed 10 MHz without impedance-matched traces. Ground plane separation between analog and digital sections reduces cross-talk by 40 dB. Test sampling rates–1 kHz is achievable on ATmega328P with DMA disabled, but above 5 kHz requires STM32’s circular buffers for uninterrupted acquisition.

Step-by-Step Wiring Guide for Microcontroller-Based Recording Devices

Connect the memory module’s CS pin to the microcontroller’s GPIO 10 (or alternate if using SPI mode 1 for faster sampling). VCC should align with the board’s regulated 3.3V rail–never exceed 3.6V or risk damaging the flash memory cells. For I2C sensors, pull-up resistors (4.7kΩ) between SDA/SCL and VCC are mandatory; omit them only if the sensor already integrates them. Daisy-chain ground connections by soldering a single 22 AWG wire from the microcontroller’s ground plane to the sensor’s GND, then onward to the next component–this prevents ground loops and noise interference.

• Set ADC resolution to 12-bit for balanced speed and accuracy; lower resolutions miss subtle variations, while 16-bit consumes excessive power and storage.
• Route signal wires over 3 cm away from power lines to avoid crosstalk–use twisted pairs for differential signals like thermocouples.
• Test each connection with a multimeter before powering on; measure 0Ω between the microcontroller pin and the target component pin to confirm continuity.
• Isolate the analog reference voltage (AREF) with a 0.1μF capacitor to ground if using an external analog-to-digital converter.
• For SD cards, the MOSI pin must match the microcontroller’s SPI output; swap MISO if data reads as garbage (e.g., all FF values).
