Creating and Utilizing Data Schematic Diagrams for Database Design

Begin with a hierarchical layout if your model involves nested categories or parent-child associations. Tools like Mermaid.js or Graphviz support directed graphs where nodes branch predictably–ideal for databases with tables linked via foreign keys. Define root nodes first, then expand downward, grouping related elements under shared branches to prevent clutter.

For relational models, limit cross-links to avoid spaghetti diagrams. Each node should connect to no more than three others unless aggregation is intentional (e.g., star schemas in warehouses). Label edges explicitly–use ON DELETE CASCADE or 1:N–to document constraints without relying on color cues, which may not translate in monochrome or assistive tools.

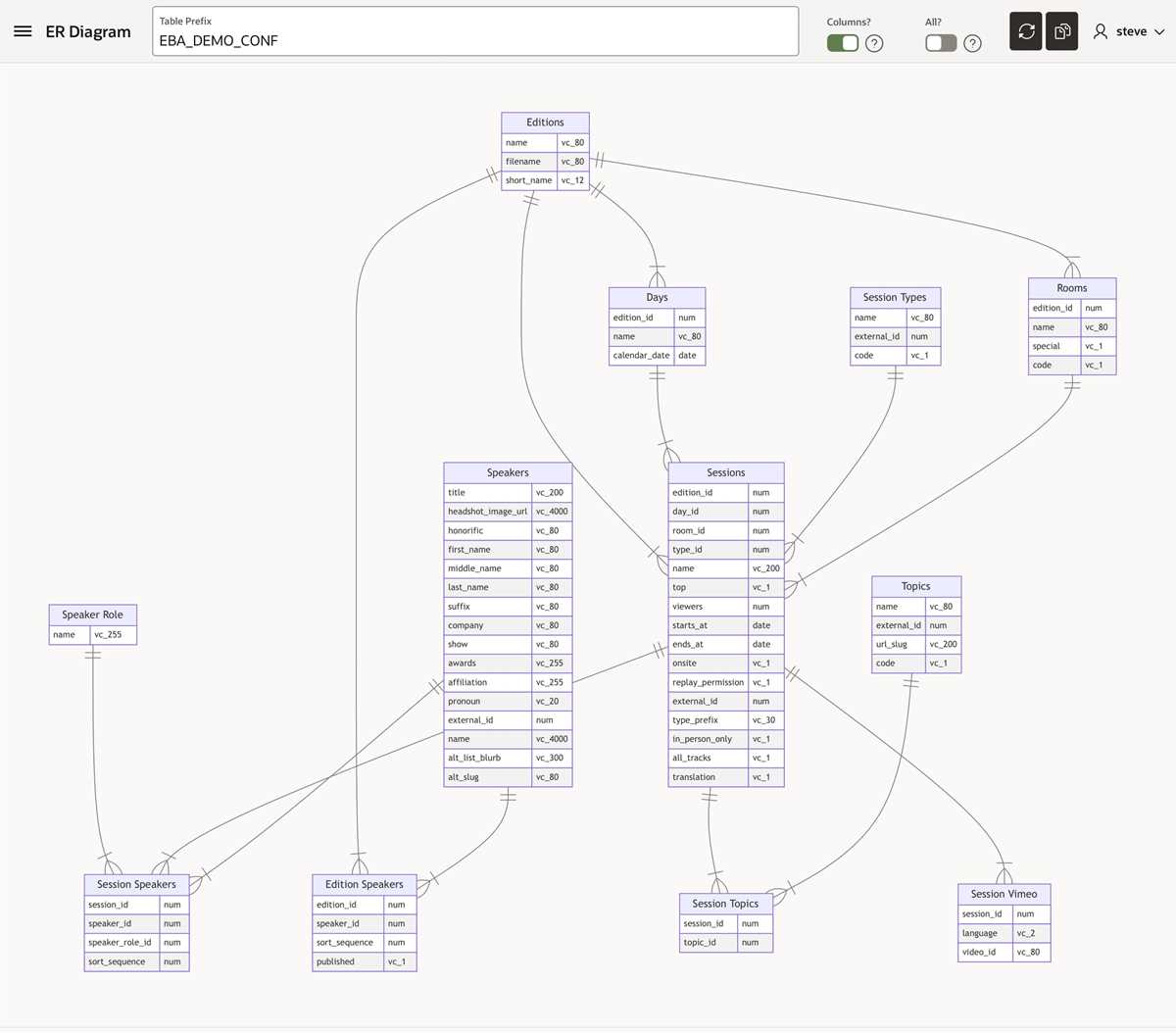

Entity-Relationship (ER) variants work best for transactional systems, while flow-based charts suit pipelines like ETL processes. If documenting microservices, isolate each service’s inputs/outputs in subgraphs; this reveals bottlenecks like circular dependencies or redundant API calls. Include sample payloads (e.g., JSON snippets) as annotations to bridge abstract representations and real-world usage.

Adopt versioned snapshots for iterative designs. Append timestamps (e.g., orders_v202405) to diagram filenames and store them alongside SQL migrations or Terraform templates. This ensures alignment with code deployments and simplifies debugging when discrepancies arise between expected and actual structures.

For high-cardinality datasets, elide non-critical details. Replace repetitive subtrees with ellipses or group nodes under labels like “+150 attributes”, linking to separate detail diagrams. Prioritize visual weight: bold borders for primary keys, dashed lines for optional relationships, and opaque fills for deprecated fields.

Validate diagrams with downstream users. Developers should spot missing indexes; analysts should flag fields requiring calculated aggregates. Conduct walkthroughs with a checklist: Are all join paths covered? Are timezone-sensitive fields marked? Does the layout reflect access patterns (e.g., frequent queries on wide tables)? Adjust until the graph minimizes ambiguity in both technical and business contexts.

Visual Mapping of Information Structures

Start by isolating core entities–tables, documents, or collections–and represent them as nodes with precise labels (e.g., “Customer_Orders” instead of “Orders”). Assign unique identifiers to edges, specifying cardinality with unambiguous notation: “1→N” for one-to-many, “M↔N” for many-to-many. Use color-coding sparingly but consistently–blue for transactional flows, red for constraints, green for indexing paths.

Limit node clusters to 12-15 entities per view to prevent visual clutter; split larger models into modular sub-maps linked via hypernodes (nodes referencing another map). Annotate each connection with access patterns (e.g., “read-heavy,” “write-locked”) and data transformation rules (e.g., “hash(email) → token_id”). Validate relationships with sample queries or scripted interactions to ensure logical coherence before finalizing.

Core Elements of Visual Blueprint Structures

Begin with entities–distinct objects or concepts your system tracks. Label each clearly, using consistent naming conventions. Avoid abbreviations unless universally recognized. Group related entities logically, ensuring relationships reflect real-world interactions. Example: in inventory tracking, suppliers connect to products, not employees.

Define relationships with precise connection rules. Use four primary types:

• One-to-one: Rare, but critical for natural hierarchies (e.g., CEO to company).
• One-to-many: Most common (e.g., customer to orders). Limit nested connections to three levels to avoid complexity.
• Many-to-one: Aggregates data upward (e.g., multiple branches to a single HQ).
• Many-to-many: Requires junction entities to resolve ambiguity (e.g., students to courses via enrollments).

Attribute placement matters. Attach descriptors only to relevant entities–avoid clutter. Prioritize storing attributes where they’re most queried. Example: store “order_date” with orders, not customers, unless analyzing purchase patterns. Use data types specifically: integers for quantities, floats for measurements, booleans for flags.

Cardinality indicators must be unambiguous. Use crow’s foot notation for clarity:

• || = “one exactly”
• |{ = “one or many”
• }| = “zero or one”
• }>{ = “zero, one, or many”

Include these near all connectors, not just complex ones.

Incorporate constraints directly into the visual. Flag mandatory fields with NOT NULL or a bold outline. Highlight unique identifiers (PK/FK) with double borders. Denote derived attributes (e.g., “total_cost” calculated from “unit_price × quantity”) with a slash prefix to distinguish them from stored data.

Separate operational and analytical views. Operational blueprints focus on transactional flows (e.g., sales processing), while analytical ones emphasize aggregations (e.g., monthly revenue). Overlay both versions on the same canvas only if comparing workflows; otherwise, split into distinct images to reduce cognitive load.

Validate the structure against three criteria before finalizing:

1. Query paths: Trace three hypothetical queries (e.g., “find all orders by customer X”). Every required step must exist in the blueprint.
2. Redundancy check: Identify duplicate attributes across entities. Merge or justify their separation.
3. Growth test: Add one hypothetical expansion (e.g., “multi-currency support”). Ensure new elements fit without restructuring core components.

How to Build a Clear Visual Representation of Information Flow

Start by listing every entity involved in the process–databases, APIs, user interfaces, or third-party services. Assign each a distinct shape: rectangles for systems, cylinders for storage, arrows for connections. Use consistent symbols; for example, ovals can denote external inputs. Avoid mixing conventions to prevent confusion during interpretation.

Place the primary system at the center of your layout. Arrange secondary components radially or hierarchically, depending on their relationship to the core. For linear workflows, align elements left to right or top to bottom, ensuring directional arrows follow the natural reading flow. Keep spacing even to allow room for labels without crowding.

Label every element with its exact name–no abbreviations unless universally recognized within your team. Use 10–12pt sans-serif fonts for readability. For arrows, add concise annotations in 8–10pt text describing the interaction type (e.g., “JSON upload,” “OAuth2 token request”). Color-code categories if necessary, but limit to 3–4 hues to avoid visual noise.

Validate every connection before finalizing the design. Walk through each interaction path: if an API retrieves records from storage, confirm the arrow direction and label reflect the actual request-response cycle. Eliminate redundant paths–if two components communicate in identical ways, merge the arrows with a single label or use a stacked arrow notation.

Test the representation with an outsider. Provide only the entity names and connection labels without explanation–if they reconstruct the intended flow correctly, the design is unambiguous. If gaps appear, refine symbols or split complex paths into sub-layers. Avoid nested groups unless absolutely necessary; use swimlanes for parallel processes instead.

Export the final version in multiple formats: SVG for scalability, PNG for quick sharing, and PDF for printouts. Include a legend explaining every symbol, color, and line style. Add version history in the document metadata, noting changes like “v1.2: Added Kafka topic arrow” to track evolution.

Update the illustration whenever the system changes–even minor tweaks like endpoint renames or protocol shifts must reflect immediately. Store the master file in a shared repository with write protections. Archive outdated versions separately, but keep them accessible for audits or rollback scenarios.

Key Applications for Visualizing Structural Models

Start with Lucidchart for quick collaboration on technical blueprints. Its real-time co-editing supports teams working across different locations, and the export options cover Visio, PDF, and PNG formats. The platform includes pre-built templates for ER models, flowcharts, and network layouts, cutting setup time by 40% compared to manual drafting. Free tier allows up to 3 active documents, while paid plans remove this cap.

draw.io (now Diagrams.net) works within Google Drive, Confluence, or as a standalone web app. It stores files directly in cloud storage without requiring local installations. Templates for entity-relationship layouts, UML, and BPMN streamline workflows for developers and analysts. Version history tracking lets users revert to earlier iterations without redundant file backups.

Specialized Software for Technical Precision

Enterprise Architect by Sparx Systems handles complex UML 2.5 specifications and sysML for engineering projects. It supports code generation for C++, C#, Java, and Python, synchronizing visual models with source repositories. SQL scripting within the tool automates repetitive tasks, while its simulation features validate designs before implementation. Licenses start at $299 per user.

Microsoft Visio remains the standard for Windows environments. Its integration with Office 365 syncs charts with PowerPoint and Excel, though the desktop-only Professional version ($589) unlocks advanced features like data-driven diagrams. Shape data linking pulls live metrics from databases, eliminating manual updates. The web version offers limited functionality but suffices for basic layouts.

Tool	Best For	Cost (USD)	Cloud-Based
Lucidchart	Team collaboration	$7.95/mo (Pro)	Yes
draw.io	Cloud storage integration	Free	Yes
Enterprise Architect	UML/sysML modeling	$299 (single license)	No
Visio	Office 365 integration	$589 (Professional)	Partial
OmniGraffle	MacOS/iOS vector precision	$12.49/mo	No

For macOS/iOS environments, OmniGraffle delivers vector-based precision with magnetic object alignment and SVG export. Its stencils cover UI wireframes, network topologies, and architectural frameworks. Automated spacing adjustments maintain consistent padding between elements, reducing manual tweaks. The Pro version adds scripting via JavaScript or AppleScript for custom workflows.
