Understanding DC Current Circuit Diagrams Key Components and Connections

Begin by selecting symbols conforming to IEC 60617 or ANSI Y32 standards to ensure clarity across technical documentation. For a single-battery setup, position the power source vertically on the left edge, aligning the positive terminal at the top and negative terminal at the bottom. This orientation mirrors conventional signal traversal, simplifying troubleshooting and reducing layout errors.

Use solid lines for conductive paths, maintaining a minimum width of 0.5 mm for primary connections and 0.3 mm for secondary branches to prevent ambiguity in dense configurations. Label each conductor with cross-sectional area (e.g., 18 AWG) and color code (e.g., red for positive, black for negative) adjacent to the line. Avoid diagonal routing–keep all paths orthogonal or horizontal unless bypassing physical obstructions in real-world assemblies.

Incorporate fuses or circuit breakers within 5 cm of the power source, specifying their rating in amperes (e.g., 10A) and response time (e.g., fast-acting). For inductive components like relays or motors, add a flyback diode (e.g., 1N4007) with the cathode connected to the positive rail and anode to the negative, preventing voltage spikes that degrade semiconductor junctions.

Ground references should converge at a single star point, minimizing noise in low-signal applications. Use distinct symbols for signal ground (⏚), chassis ground (⏛), and earth ground (⏜) to isolate potential interference sources. Verify continuity with a multimeter set to ohm mode before finalizing the layout–readings above 1 Ω indicate poor connections requiring rework.

For parallel branches, distribute load evenly byplacing resistors, LEDs, or other components along equidistant paths. Calculate total impedance using Ohm’s Law (V = I × R) and cross-check with Kirchhoff’s Current Law to confirm cumulative branch valuesmatch the source output. Annotate voltage drops across each segment (e.g., 3.3V @ 200mA) to streamline debugging.

Integrate test points (TP1, TP2, etc.) at critical junctions–particularly before and after switches, regulators, or microcontrollers–to facilitate measurements without probing active traces. Use thicker lines (0.7 mm) for high-demand routes (e.g., 5V rail) to visually prioritize power delivery. Finalize by exporting the schematic in PDF with vector graphics for lossless scaling during revisions.

Designing Reliable Low-Voltage Electrical Schematics

Begin by selecting a power source with a tolerance ±5% of the required voltage to prevent component stress. For instance, a 9V battery provides 8.55–9.45V under load, which suits most small electronics without risking overheating in resistors rated at ¼W. Always pair the supply with a fuse sized at 120% of the maximum anticipated amperage to avoid fire hazards during short circuits.

Use thick traces on printed boards for high-amperage paths–minimum 2oz copper for 5A flows, expanding width by 0.2mm per ampere beyond that. For breadboard prototypes, insert solid-core jumper wires (22 AWG or thicker) directly into terminals to reduce resistance; stranded wire introduces parasitic inductance, distorting transient responses in high-speed signals.

Label every component in the schematic with its exact value, tolerance, and footprint type (e.g., “R1 220Ω ±1% 0805”). This eliminates misinterpretation during assembly and speeds debugging–soldering the wrong resistor causes cascading failures in series chains, especially in voltage dividers where precision matters. Add test points at critical nodes: ground references, regulator outputs, and microcontroller pins prone to noise.

Avoid parallel paths unless absolutely necessary; unequal resistances create uneven distribution, overheating weaker branches. Instead, route power sequentially through devices ranked by current draw, starting with the most demanding–motors, LEDs, then logic gates–to maintain stable voltage drops across the entire loop.

Simulate the design before building. Free tools like LTspice or Falstad’s online editor reveal hidden flaws: ringing in inductors, reverse polarity risks, or insufficient decoupling capacitor sizing (μF values should match load capacitance to filter 100Hz–1MHz ripple). Replace electrolytic caps with ceramic types where space allows–they handle 10× higher ripple currents and last 20× longer without drying out.

Document every revision in a version-controlled folder, noting changes like “Replaced D1 from 1N4007 to Schottky 1N5817 for lower forward drop (0.2V vs 0.7V), reducing heat dissipation at 3A by 1.5W.” This record prevents regressions and helps others troubleshoot later.

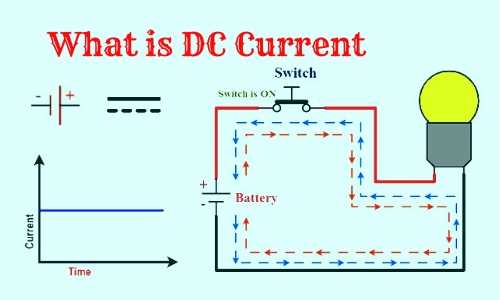

How to Sketch a Simple Direct-Energy Path with a Power Source and Load

Begin by placing a straight horizontal line at the top of your workspace–this represents the positive terminal of your power supply. Mark it with a “+” symbol near the left end to indicate polarity. Draw a shorter perpendicular line downward from the “+” end, then extend a second horizontal line to the right, maintaining equal spacing from the first. This forms the conductive path’s upper segment.

Next, position a rectangle (width ~1.5x height) below the right end of the upper path to depict the resistive component. Label it with “R” followed by its ohmic value (e.g., “R = 220Ω”). Connect the bottom of the rectangle to a vertical line dropping straight down, then draw a horizontal line leftward until it aligns directly beneath the power supply’s starting point. Leave a small gap where the vertical segment meets this lower path.

Component	Symbol	Spacing Guide
Power cell (single)	Pairs of parallel lines	Upper line: 5mm, lower line: 3mm (offset)
Conductive trace	Solid straight line	2mm segment length between junctions
Load element	Rectangle	Width: 12mm, height: 8mm

Add the power source by replacing the left gap with a single pair of parallel lines: the upper line should be marginally longer (5mm) than the lower (3mm). Place “+” adjacent to the longer line’s outer edge. Extend the lower conductive path upward to meet the bottom of the shorter line, ensuring all junctions connect seamlessly. Verify no gaps exceed 1mm–breaks disrupt the flow model.

Annotate numerical values adjacent to components using concise notation: “V = 9V” beside the power cell, “P = 0.37W” for dissipation if applicable. Use arrows alongside the upper path to show assumed flow direction–pointing rightward from the “+” terminal. For clarity, align labels horizontally or vertically, never diagonally.

Finalize by tracing over pencil guidelines with ink (0.5mm tip for traces, 0.3mm for arrows). Erase construction marks once dry. Store templates of common values (e.g., 100Ω, 1kΩ) to expedite future sketches–consistent symbol proportions improve readability across different representations.

Step-by-Step Guide for Adding Multiple Loads in Parallel

Start by verifying the voltage rating of your power supply matches all connected devices. Parallel connections maintain identical potential differences across each branch, so mismatched ratings risk damaging components or causing inconsistent performance. For example, if the supply delivers 12V, ensure resistors, LEDs, or motors are rated for 12V–no exceptions.

Calculate the total resistance effect before wiring. Unlike series arrangements, parallel setups reduce combined impedance as more branches are added. Use the formula 1/R_total = 1/R1 + 1/R2 + ... + 1/Rn to determine the equivalent load. For instance, two 100Ω resistors in parallel yield 50Ω total, halving the original value. Double-check calculations with a multimeter if precision matters.

Follow this sequence for safe assembly:

• Disconnect the power source completely.
• Connect each device’s input terminal directly to the supply’s positive rail using identical-length wires to minimize voltage drop.
• Link all output terminals to the negative rail, ensuring no shared paths between branches.
• Add a fuse (e.g., 1A–5A) in line with the positive rail to prevent overloads.
• Test each branch individually before powering the entire setup.

Monitor heat dissipation during operation. Parallel branches draw cumulative energy, potentially exceeding the supply’s capacity. If devices feel warm after 30 seconds, add heatsinks or redistribute the energy draw. For high-wattage applications (e.g., motors), use separate fuses per branch to isolate faults without disrupting the entire flow network.

Key Symbols and Notations for DC Schematic Elements

Begin by memorizing these core graphical representations–they form the foundation of any low-voltage layout. A straight horizontal or vertical line with consistent thickness denotes a conductive path, while a breakpoint in this line (two short parallel slashes) signifies a deliberate gap or segment omission, saving space without ambiguity. Use a tiny hollow oval enclosing a plus (+) and minus (−) for any electrochemical cell; stacked cells indicate a battery pack, with the longer vertical line always marking the positive terminal.

Passive and Active Device Markings

• Resistors: Draw a zigzag line (ANSI) or a simple rectangle (IEC) with resistance values labeled in ohms (Ω), kilohms (kΩ), or megohms (MΩ) directly adjacent. Prefix tolerance codes–gold (±5%), silver (±10%), or color bands for precision–next to the numeric figure.
• Capacitors: Parallel lines (non-polarized) or a curved line alongside a straight line (polarized) with capacitance stated in farads (F) or submultiples like microfarads (µF), nanofarads (nF), or picofarads (pF). Mark electrolytic variants with a plus sign near the curved plate.
• Inductors: A series of tight loops or a helix symbol, labeled with inductance in henries (H), millihenries (mH), or microhenries (µH). Ferrite-core coils often show two parallel lines adjacent to the helix.
• Switches: A break in the conductive path with a diagonal line crossing it–single-pole single-throw (SPST) for basic on-off, double lines for double-pole variants, and arrows indicating momentary contacts.

Semiconductor symbols carry directional cues critical for proper flow alignment. A triangle pointing toward a horizontal bar designates a diode, with the triangle’s tip indicating the anode (forward direction). Light-emitting variants add two perpendicular arrows outside the triangle. For transistors, the npn symbol places an arrow on the emitter node pointing outward, while pnp reverses it inward–dot labels for emitter, base, and collector keep polarities explicit. MOSFET symbols replace the base bar with a single horizontal segment; depletion-mode variants include an extra vertical dash.

Label every component with a unique identifier–R1, C3, Q2–followed by electrical ratings where applicable. Position reference designators above or to the right of symbols; align numeric values neatly below or beside. Rotate symbols only in 90° increments to maintain readability; avoid diagonal placement that obscures polarity or flow direction. For multi-section schematics, group related symbols in functional clusters and separate them with dashed outlines or color-coded backgrounds where digital tools permit.
