Step-by-Step Guide to Designing a DC-DC Buck-Boost Converter Schematic

Start with a synchronous topology if efficiency above 90% is critical. Use a half-bridge configuration with low R_ds(on) MOSFETs like the Infineon BSC0906NS (6 mΩ) and pair them with a dedicated gate driver (TI LM5104) to handle switching speeds up to 500 kHz. Avoid relying on body diodes–force synchronous rectification with controlled dead-time to minimize losses, especially in discontinuous conduction mode.

For input voltages spanning 5–48 V and outputs requiring ±20% dynamic adjustment, prioritize coupled inductors over discrete components. A 30 μH coupled inductor (Coilcraft MSS1260) with

Implement current-mode control with fast transient response. Use the Analog Devices LT8471 or TI TPS54332, both supporting both step-down and step-up modes without external mode-switching logic. Configure the compensator for a 1 MHz crossover frequency with a phase margin >60° to handle load steps from 10% to 100% in under 20 μs. Disable soft-start during mode transitions to prevent output voltage sag.

Avoid electrolytic capacitors at the output. Replace them with 22 μF X5R/X7R ceramic capacitors (Murata GRM32 series) rated for 100 V. Bulk capacitance should never exceed 100 μF–use interleaved placement to cut ESR ripple by 30%. For high-current outputs (>5 A), add a small 4.7 μH ferrite bead in series to suppress HF noise spikes that ceramic caps cannot dampen.

Integrate protection at the schematic stage. Use the ISL6236A for input overvoltage lockout (set at 52 V) and output undervoltage lockout (set at -5% of nominal). Incorporate cycle-by-cycle current limiting with a sense resistor of 5 mΩ–this protects MOSFETs from short circuits without relying solely on thermal shutdown. Add a 1 Ω gate resistor to each MOSFET to dampen ringing during hard-switching events.

For layouts, group high dv/dt nodes (switching nodes, gate traces) tightly and shield them with ground planes. Keep power loops under 15 mm total length–use 2 oz copper for traces carrying >3 A. Separate analog and digital grounds at the inductor, then tie them together at a single point near the output capacitor to prevent ground bounce from corrupting feedback signals.

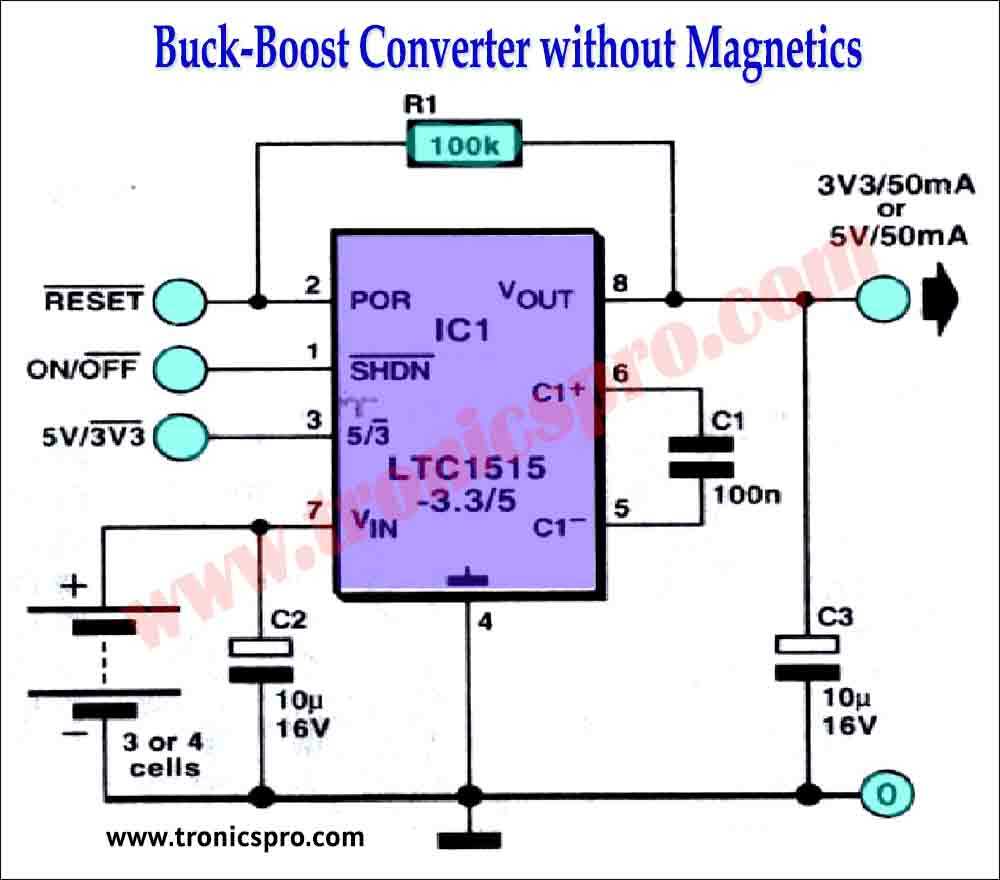

Designing a Versatile Voltage Regulator: Practical Schematics

Select an N-channel MOSFET with a low R_DS(on) (e.g., 5 mΩ for 10A loads) and a gate threshold below 3V to minimize switching losses–pair it with a Schottky diode rated 50% above expected current (e.g., 15A diode for 10A output) to reduce reverse recovery losses. For inductors, opt for a ferrite core with a saturation current 20% higher than peak current (e.g., 12A-rated inductor for 10A output) and wind it to achieve 20–100 μH, balancing ripple current (target

Pulse-width modulation (PWM) controllers like the LT8471 or TPS63020 require precise feedback network design: set the output voltage with a resistor divider where R1 (top resistor) is 10–100 kΩ and R2 is calculated as R1/(V_out/V_ref – 1), with V_ref typically 0.8V–use 1% tolerance resistors to maintain

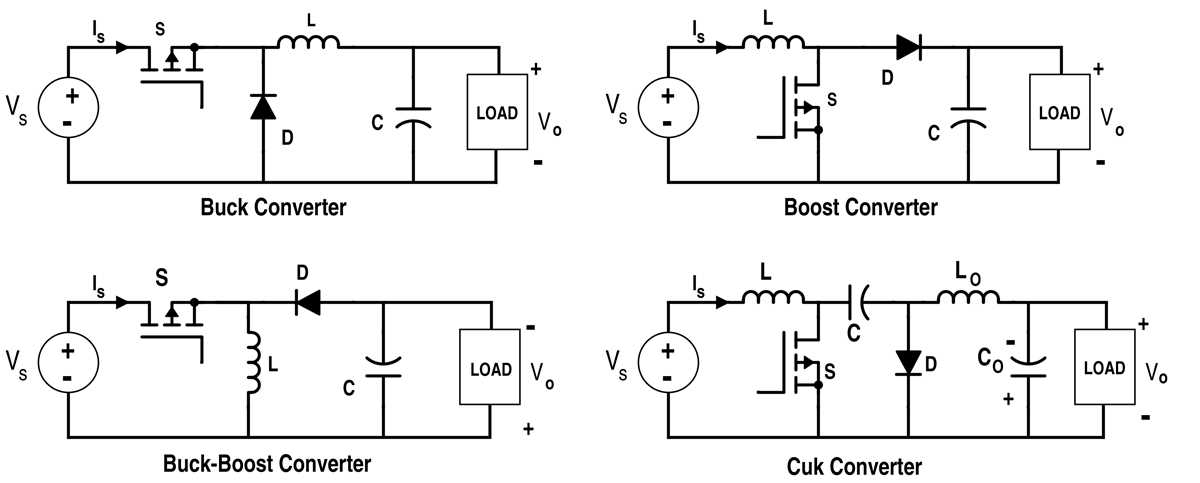

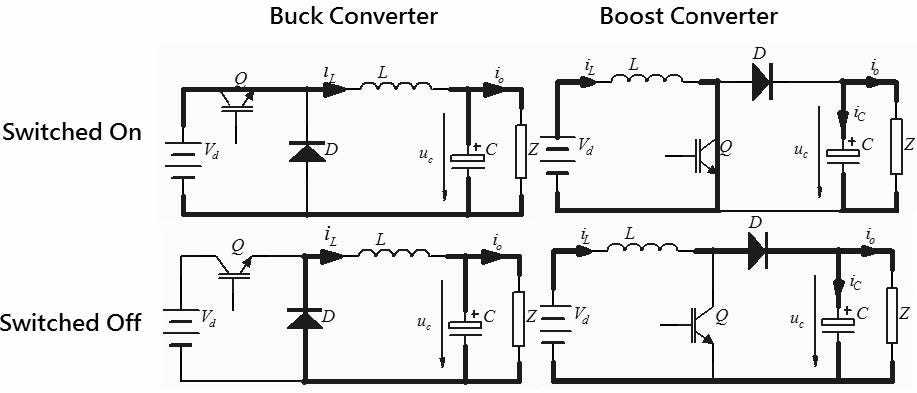

Key Components and Their Roles in Buck-Boost Topology

Select a power MOSFET with a breakdown voltage at least 1.5× the maximum input voltage to ensure reliable switching under dynamic load conditions. For example, a 60V-rated FET like the Infineon BSC0906NS handles 48V systems with a 20% safety margin while maintaining R_DS(on) below 9mΩ. Pair it with a gate driver capable of 10–12V output swing, such as the MIC4605, to minimize switching losses at frequencies above 200kHz.

The inductor’s core material dictates efficiency under varying load steps. For input ranges of 8–60V and output currents up to 5A, use a 10μH Coilcraft SER2918H-103ML with a saturation current of 8A. Ferrite cores outperform powdered iron in multi-megahertz applications due to lower core losses–expect

• Input capacitor: 47μF X7R ceramic (25V) placed within 5mm of the FET drain to suppress voltage spikes during dead-time; ESR under 2mΩ is non-negotiable.
• Output capacitor: 2× 220μF polymer aluminum (ESR
• Bypass capacitor: 1μF per every 10mm of trace length for high-speed gate drivers to prevent false triggers.

Control IC Selection and Compensation

Opt for a control IC featuring an internal error amplifier with 60dB open-loop gain and 1MHz bandwidth, such as the LT8471. Compensate the feedback loop with a Type-III network: 10kΩ input impedance, 1nF across the amplifier, and 10nF to ground via 1kΩ. This configuration ensures 45° phase margin at the crossover frequency of 100kHz, preventing subharmonic oscillations during 2:1 input voltage transients.

Sensing resistors for current mode control must handle peak currents without temperature drift. A Vishay WSK0612R0100FEA (10mΩ, 1% tolerance) in series with the inductor dissipates 125mW at 5A, maintaining

Ensure the diode’s reverse recovery time is under 35ns for 500kHz operation; a Schottky like the STPS30L45C (45V, 30A) eliminates recovery losses entirely. Mount it with a Kelvin connection to the output node–parasitic inductance above 5nH causes voltage ringing >20V at turn-off, reducing efficiency by up to 3%.

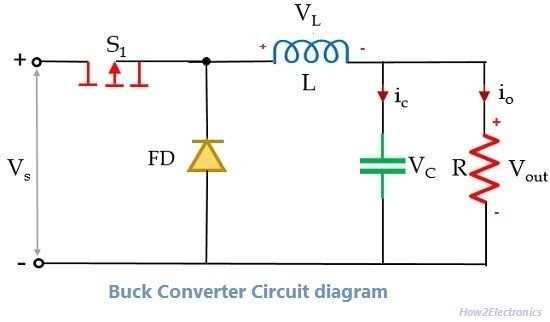

Step-by-Step PCB Layout for a Non-Inverting Power Stage

Begin by placing the switching element within 10mm of the inductor to minimize parasitic inductance in the high-current path. Use wide, symmetrical copper pours (minimum 2oz weight) for input/output capacitors, connecting them directly to the MOSFET source and inductor terminals with vias spaced no further than 2mm apart. The ground return for the input cap should mirror the output cap’s path, forming a tight loop with the switching node to reduce radiated noise.

Route the control IC’s feedback trace last, keeping it at least 5mm away from the switching node and inductor winding. Use a ground plane beneath this trace to shield it from coupling; if unavoidable, cross perpendicular to noisy traces with a ground stitching via. For the PWM signal, maintain a 10mil width with 20mil clearance, and terminate it with a 22Ω series resistor near the gate driver to dampen ringing.

Thermal vias under the MOSFET pad should be 0.3mm in diameter, spaced 1.2mm apart, and filled with solder to improve heat dissipation. The analog ground and power ground must merge at a single star point near the output capacitor’s negative terminal, preventing ground bounce from corrupting the feedback loop. Verify the layout with a 50MHz oscilloscope probe on the switching node to confirm ringing amplitude stays below 20% of the input voltage.

Determining Optimal Inductor and Capacitor Sizes for Desired Output Span

To achieve stable performance within a 5V to 12V adjustable output, begin by selecting an inductor with a value between 10µH and 47µH for moderate load currents (1A–3A). For currents exceeding 3A, reduce the inductance to 4.7µH–10µH to prevent core saturation while maintaining sufficient energy storage. A ripple current target of 20–30% of the maximum load current balances efficiency and component size; oversized inductors increase switching losses, while undersized ones risk discontinuous conduction mode.

Capacitor selection hinges on output ripple tolerance. For a 50mV ripple limit at full load, use a 10µF–47µF ceramic capacitor (X7R or X5R dielectric) in parallel with a low-ESR electrolytic (100µF–470µF) for transient response. Tantalum capacitors are discouraged due to failure risks under reverse voltage. Input capacitors should be sized for RMS current demands–typically 22µF–100µF–depending on the source impedance. Always verify capacitor voltage ratings exceed the peak input by at least 20%.

Switching frequency directly impacts component values: higher frequencies (500kHz–2MHz) permit smaller inductors (2.2µH–10µH) but require tighter capacitor ESR control (≤ 50mΩ). Lower frequencies (100kHz–300kHz) demand larger passives but reduce gate drive losses. Use the formula L = (V_in × D × (1−D)) / (f_sw × ΔI_L) to calculate inductance, where D is the duty cycle, f_sw the switching frequency, and ΔI_L the ripple current. For capacitors, C_out = ΔI_L / (8 × f_sw × ΔV_out) ensures ripple compliance.

Thermal constraints dictate passive selection: inductors with saturation currents ≥150% of peak load current avoid overheating. High-current designs benefit from shielded inductors to minimize EMI. Capacitors must endure pulse currents; ceramic types (e.g., 1206/1210 packages) handle transients better than through-hole equivalents. Measure actual ripple with an oscilloscope–simulated values often underestimate real-world parasitics like trace inductance or capacitor ESR drift over temperature.

Fine-tune values iteratively: start with conservative estimates (e.g., 22µH inductor, 22µF output capacitor), then test under worst-case conditions (minimum input voltage, maximum load). Adjust upward if ripple exceeds specs or downward if efficiency drops due to excessive switching losses. For multi-output designs, isolate each rail’s passives to prevent cross-regulation issues. Finally, validate stability with a network analyzer–phase margin should stay ≥45° across the full voltage range.

Common Fault Conditions and Diagnostic Methods

Start diagnostics by verifying input voltage with a scope: ripple exceeding 20% of nominal suggests faulty bulk capacitance or reverse recovery issues in switching elements. Use a low-ESR replacement capacitor rated 20% above calculated ripple current if measurements confirm excessive oscillation at turn-off.

Measure gate-source voltage during operation–deviations beyond ±0.5V from the driver IC specification indicate either degraded gate resistors or parasitic inductance in traces. Replace resistors with precision 1% tolerance axial types if drift is detected, and shorten trace lengths to <5mm where possible to mitigate ringing.

Fault Symptom	Root Cause	Verification Method	Corrective Action
Output voltage drift ±15%	Feedback divider drift or reference voltage shift	Compare divider nodes to IC datasheet reference pin voltage	Replace divider resistors with 0.1% tolerance thin-film types
Thermal shutdown at >85°C	Inadequate heatsinking or PWM duty cycle miscalculation	Monitor junction temperature via thermocouple attached to EXPOSED PAD	Recalculate thermal resistance; switch to copper pour of >2oz/ft² thickness
Input current peaking >3× steady-state	Inductor core saturation	Observe inductor current waveform slope during on-time	Replace with core material rated for 30% higher saturation flux density

Inspect solder joints under 10× magnification: cracked joints on switching components often manifest as intermittent over-voltage conditions. Reflow using SAC305 alloy with nitrogen purge if micro-fractures are visible; preheat PCB to 120°C and maintain 260°C peak for 30s to ensure void-free fillets.

If soft-start ramp exceeds 20ms, suspect leakage current in the bootstrap diode or incorrect soft-start capacitor value. Substitute with a Schottky diode rated 1.5× the maximum reverse voltage and verify capacitance tolerance to ±5% using a calibrated LCR meter.

For audible noise above 15kHz, probe the coil with an ultrasonic microphone: peak energy at the switching frequency confirms magnetostriction. Reduce switching frequency by 10-15% or switch to powdered iron core material with distributed air gaps to suppress acoustic emissions.
