Build Your Own DC Fan Speed Regulator with This Circuit Guide

For reliable thermal regulation in electronic enclosures, integrate a PWM-based voltage modulator using a simple 555 timer IC. This configuration delivers 0–100% duty cycle control with minimal component count–ideal for 12V DC brushless blowers. Connect the NE555’s output (pin 3) to a logic-level MOSFET (e.g., IRLZ44N) to handle currents up to 20A without heatsinking. Ensure a flyback diode (1N4007) is placed antiparallel to the motor to suppress inductive spikes.

For lower-cost applications, replace the 555 IC with a trimmer potentiometer (10kΩ) wired in series with a 2N2222 transistor and a 100Ω base resistor. This linear approach reduces component count but introduces ~2W power dissipation at max load–adequate for 5W blowers but inefficient for larger units. Calibrate using a multimeter to confirm 3–12V output range at the motor terminals.

When designing for high-altitude or dust-prone environments, opt for a closed-loop feedback system. Add an NTC thermistor (10kΩ) near the heat source and feed its signal into the 555’s threshold input (pin 6). This enables automatic temperature-based adjustment, maintaining ±2°C accuracy without manual intervention. Use a 0.1µF decoupling capacitor on the 555’s Vcc to prevent false triggering from noise.

For low-RPM stability below 20% duty cycle, include a 100µF electrolytic capacitor across the motor terminals to smooth current ripple. This prevents stalling in microcontroller-compatible configurations where PWM frequency exceeds 5kHz. Test the setup with a 5V logic signal before scaling to 12V to avoid oversaturation of the MOSFET gate.

Adjustable Airflow Regulator Schematic for Cooling Devices

Begin with a pulse-width modulation (PWM) arrangement using a 555 timer IC for precision adjustment. Set the frequency between 25 kHz and 50 kHz to minimize coil whine while maintaining smooth operation. Connect the IC’s output to an IRFZ44N MOSFET, ensuring the gate voltage remains below 20V to prevent damage. Use a 10kΩ potentiometer to vary the duty cycle from 0% to 100%, mapping airflow from stall to full thrust. A freewheeling diode (1N4007) across the device terminals is mandatory to suppress voltage spikes during switching transitions.

Component	Value	Purpose
NE555 Timer	Standard	Generates PWM signal
IRFZ44N MOSFET	100V/49A	Switches load current
1N4007 Diode	1A/1000V	Clamps inductive kickback
Resistor (R1)	1kΩ	Limits charging current
Capacitor (C1)	10nF	Sets PWM frequency

For heat dissipation, mount the MOSFET on a TO-220 heatsink with thermal paste if the load exceeds 2A. Ground the heatsink unless using an isolated package. Calibrate the potentiometer’s range by adjusting R1 and C1 values–lower capacitance increases frequency, while higher resistance lengthens the cycle. Avoid exceeding 300mA through the 555’s output to prevent overheating; amplify the signal with a BC547 transistor if higher currents are needed.

Test the assembly with a multimeter: confirm PWM output varies smoothly with potentiometer rotation, and verify the MOSFET’s drain-source voltage drops to near 0V at full duty. Add a 10μF electrolytic capacitor across the power input to filter noise if audible buzzing persists. For battery-operated setups, ensure the supply voltage matches the device’s rating–most cooling units tolerate 5V to 12V but may require recalibration at lower voltages.

Key Components for Building a DC Airflow Regulator

Select a power MOSFET as the primary switching element–IRF540N handles up to 33A and 100V, making it ideal for demanding loads. Pair it with a PWM signal generator like the NE555 timer IC, configured in astable mode to produce adjustable frequency pulses between 20Hz and 1kHz. Ensure the MOSFET gate receives proper voltage levels (10-15V) via a gate driver such as the TC4427A to prevent slow switching and reduce heat buildup.

Integrate a potentiometer (10kΩ linear taper) to modulate the duty cycle of the PWM output. The resistor’s value must match the timing capacitor (typically 0.1µF) to maintain consistent pulse width variation. For precise airflow modulation, add a flyback diode (1N4007) across the motor terminals to absorb inductive kickback, preventing voltage spikes from damaging the MOSFET or other components.

A heatsink (at least 10°C/W rating) is critical for the MOSFET, especially when driving currents above 5A. Use thermal paste and secure mounting to ensure optimal heat dissipation. For stability, include a decoupling capacitor (100nF ceramic) near the power supply input to filter noise and smooth voltage fluctuations that could disrupt PWM signals.

For enhanced control, incorporate a microcontroller like the ATtiny85 to replace the analog potentiometer with digital precision. This allows software-defined profiles (e.g., gradual ramp-up or temperature-based adjustments) using I2C or SPI feedback from an NTC thermistor (10kΩ) for closed-loop operation. Ensure all traces on the PCB are wide enough–at least 2mm for 5A currents–to prevent overheating.

Step-by-Step Wiring Guide for PWM-Based Cooling Device Regulation

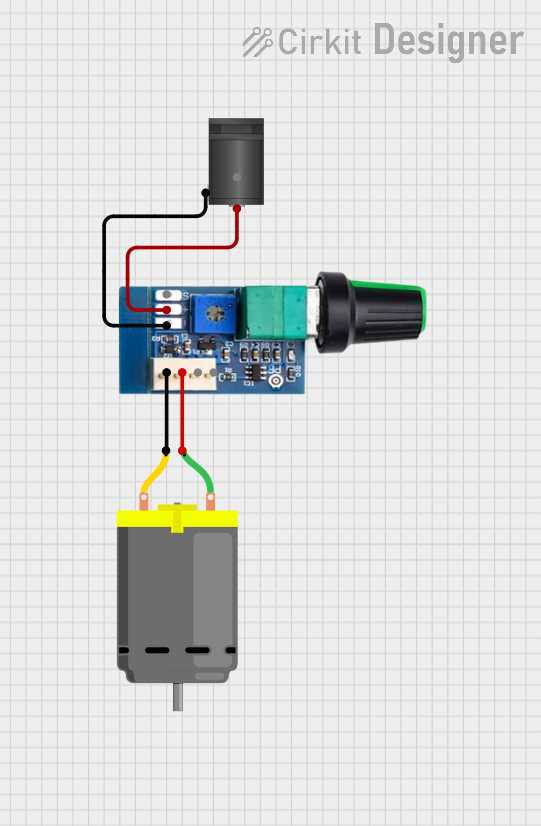

Begin by connecting the power source’s positive terminal to the input of your adjustable driver module–ensure compatibility with the motor’s voltage rating (12V/24V). Use a multimeter to verify the supply’s stability before proceeding, as fluctuations above 5% can damage sensitive components. Solder joints must be reinforced with heat-shrink tubing to prevent short circuits under vibration.

1. Identify the PWM input pin on your driver–typically labeled “CTRL” or “SIGNAL.”
2. Connect this pin to your microcontroller’s digital output (e.g., Arduino’s D9) via a 220-ohm resistor to limit current.
3. Ground the driver’s common terminal to the microcontroller’s GND, ensuring a shared reference point to avoid signal drift.
4. For feedback, add a 10k-ohm pull-down resistor between the PWM input and ground to stabilize low-speed operation.

Test the assembly by uploading a script with incremental duty cycles: start at 30%, then gradually increase to 100% in 10% steps. Monitor the rotor’s response–erratic behavior at specific intervals indicates insufficient decoupling; add a 100nF capacitor across the driver’s power inputs to filter noise. For high-load applications, replace the driver with an H-bridge module rated for at least 1.5x the anticipated current draw.

• Critical: Never exceed the motor’s max RPM rating–check datasheets for safe thresholds.
• Tools required: Soldering iron (60W), wire strippers, oscilloscope (optional), thermal probe.
• Error handling: If stator hum persists, swap the driver’s MOSFET for a higher-frequency variant (e.g., 20kHz).
• Final check: Seal exposed connections with silicone conformal coating to prevent oxidation in humid environments.

Adjusting Airflow via Potentiometer: Key Setups

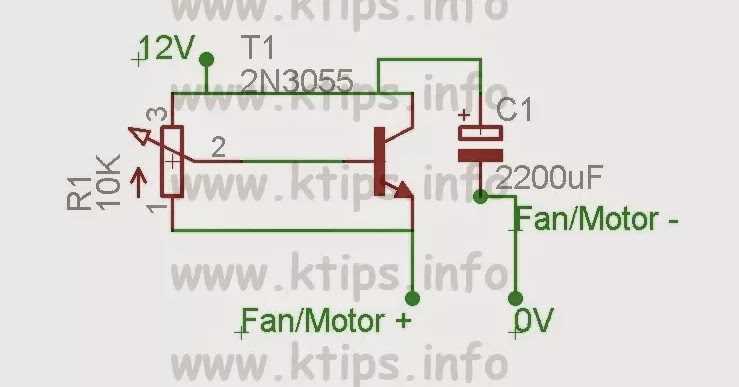

Use a 10kΩ linear potentiometer for precise rotational adjustment–its resistance range ensures smooth modulation of cooling device RPM without abrupt changes. Connect the wiper terminal to the base of an NPN transistor (e.g., 2N3904) through a 1kΩ resistor to limit current, while grounding the potentiometer’s lower end and linking the upper end to a 5V supply. This configuration allows the transistor to act as a variable resistor, directly influencing motor voltage between 0-5V. For higher-power applications, replace the transistor with a logic-level MOSFET (e.g., IRLZ44N) to handle currents up to 40A, ensuring the gate resistor is 10kΩ for stable switching.

Alternative Configurations

• PWM-Based Approach: Pair the potentiometer with a 555 timer IC in astable mode to generate PWM signals. Set R1=1kΩ, R2=10kΩ (potentiometer), and C=0.1µF to adjust duty cycle from 0-100%, controlling power delivery to the motor without linear voltage drop losses.
• Op-Amp Buffer: Insert an LM358 op-amp between the potentiometer and switching element to prevent loading effects, especially in high-impedance circuits. Configure the op-amp as a non-inverting amplifier with a gain of 1 (unity) to isolate the potentiometer’s resistance changes.
• Dual-Potentiometer Setup: For dual-motor systems, use two 10kΩ potentiometers wired in parallel, each controlling a separate transistor/MOSFET. Add 1N4007 diodes across each motor to suppress back EMF and protect components.

1. Calibrate the potentiometer’s full range by measuring voltage at the wiper terminal; ensure it spans from 0V to supply voltage without dead zones.
2. For brushed motors, add a 0.1µF ceramic capacitor across terminals to reduce electrical noise, improving stability at low RPM.
3. Select heat sinks for transistors/MOSFETs rated for at least 3°C/W thermal resistance to prevent overheating during prolonged use.

Leveraging the 555 Timer IC for Accurate Airflow Modulation

The NE555 timer integrated into a pulse-width modulation setup delivers repeatable adjustments for cooling elements. Configure the timer in astable mode with a 10 kΩ resistor between pins 7 and 8, a 1 kΩ resistor between pins 6 and 7, and a 10 µF capacitor connected from pin 6 to ground. This arrangement generates a consistent square-wave signal with a duty cycle adjustable via a 100 kΩ potentiometer placed between pins 2 and 7, controlling the on-time ratio.

For stable operation under varying thermal loads, pair the 555 with a MOSFET like the IRFZ44N. Connect the timer’s output (pin 3) to the MOSFET gate through a 220 Ω resistor to limit current spikes. The MOSFET source ties to ground, while the drain interfaces with the motor’s negative terminal–ensure a freewheeling diode (1N4007) is placed in parallel to suppress voltage transients during switching.

Fine-tune the frequency to avoid audible noise or mechanical resonance; values between 20 Hz and 100 Hz work well for typical axial impellers. The formula f = 1.44 / ((R1 + 2R2) * C) lets you calculate the exact frequency, where R1 is the 1 kΩ resistor, R2 the potentiometer’s effective resistance, and C the timing capacitor. Test with a multimeter in frequency mode to verify before finalizing.

Thermal stability requires attention to component placement. Mount the 555 on a small heatsink if ambient temperatures exceed 50°C, or use a CMOS variant (TLC555) for lower power dissipation. Keep traces short between the timer’s output and the MOSFET to minimize inductance, which can distort the signal edge. A 0.1 µF ceramic capacitor near the IC’s supply pins (pin 8 to ground) mitigates voltage fluctuations.

To prevent erratic behavior during startup, add a soft-start feature by charging the timing capacitor through a 10 kΩ resistor and a 47 µF electrolytic capacitor in series. This delays full power application by approximately 2 seconds, reducing inrush current. Ensure the potentiometer’s wiper connects to a stable reference–use a 1 µF decoupling capacitor to ground if noise is present.

For remote adjustment, replace the potentiometer with a digital potentiometer (e.g., MCP4131) controlled via SPI. This allows microcontroller integration for dynamic profiles, such as exponential ramp-up or temperature-linked modulation. When interfacing, add a 100 nF capacitor between the wiper and ground to filter digital noise, preserving signal integrity.

Load capacity depends on the MOSFET’s current rating. The IRFZ44N handles up to 49 A at 55 V, but dissipates 40 W at full load–use a TO-220 heatsink with thermal paste for currents above 5 A. For lower-power applications, a 2N2222 bipolar transistor suffices, though it requires a base resistor (470 Ω) and lacks the MOSFET’s efficiency.

Validate the setup with an oscilloscope. Check for clean PWM pulses at the MOSFET gate; ringing or overshoot indicates poor grounding or insufficient decoupling. Adjust the potentiometer across its full range, confirming the duty cycle varies linearly. If nonlinearity occurs, replace the potentiometer–cheap carbon-film types often drift under load.
