Comparison of Circuit Switching and Packet Switching Network Diagrams

For high-throughput voice applications requiring guaranteed latency under 100ms, dedicated channel architectures outperform shared transmission methods. Telco networks historically relied on this model–establishing a reserved pathway between endpoints before data transfer begins. Each connection allocates bandwidth exclusively, eliminating contention during transmission. This method reduces jitter to near-zero levels, critical for real-time services. Deployments typically use TDM (Time-Division Multiplexing) with fixed 64Kbps channels, ensuring predictable performance regardless of network load.

Shared transmission frameworks distribute data as discrete units across available links without reserving end-to-end resources. These systems fragment information into variable-sized segments, each carrying routing details. Network nodes analyze these segments independently, selecting optimal paths for each unit. While this introduces minor latency due to queuing and reassembly, efficiency gains emerge at scale–utilization rates often exceed 90% during peak loads. Protocols like TCP/IP leverage statistical multiplexing, dynamically adjusting to traffic patterns without manual intervention.

For latency-sensitive deployments, prioritize architectures using fixed pathways. They maintain consistent throughput during congestion–unlike shared alternatives that suffer packet drops under load. Financial trading systems and emergency communications mandate this approach. Conversely, data-intensive workflows benefit from path-diverse frameworks. Cloud providers exploit this flexibility, distributing workloads across multiple servers. Implement QoS policies to segment traffic: allocate guaranteed paths for critical traffic while others use best-effort delivery.

Network engineers should benchmark throughput under worst-case scenarios. Dedicated architectures impose higher infrastructure costs–each endpoint requires dedicated hardware. Path-diverse systems scale economically but demand sophisticated routing algorithms. Modern hybrid systems combine both approaches: MPLS networks use label-switching for virtual dedicated channels, while terminating over shared IP backbones. Deploy traffic shaping at network edges to enforce priority-based queuing. Always validate with synthetic test loads–latency spikes often reveal misconfigured buffers or inadequate link capacity.

Visual Representations of Dedicated and Distributed Network Pathways

Begin by sketching two vertical timelines: one for telephony-based connections, another for data segment transmission. Label the first timeline Continuous Link, showing a straight line from sender to receiver with no intermediate breaks–this reflects reserved bandwidth allocation lasting the full session duration, regardless of active data flow.

For the second timeline, fragment the path into discrete blocks, each representing transfer units moving through varied routes. Annotate delays between blocks to depict queueing at nodes; use arrows to indicate potential path divergence. Highlight that these blocks carry addressing information in headers, ensuring reassembly at the destination.

Attribute	Continuous Link	Transfer Units
Bandwidth Use	Reserved, underutilized	Shared, dynamic
Latency	Fixed after setup	Variable per segment
Fault Tolerance	None–single point failure	Reroutes available
Overhead	Minimal (setup/teardown)	Per-segment headers

Show node-level differences: in continuous paths, switches maintain open channels until teardown signals arrive. Contrast this with unit-based networks where nodes buffer incoming segments, perform lookups, and forward based on routing tables–illustrate this with small circles around nodes indicating buffer expansion and contraction.

Use colored overlays to differentiate active transmission phases: red for setup/teardown in continuous paths, green for intermediate segments in unit-based transfers. Add small icons atop active segments to denote quality-of-service markings or priority handling flags.

Emphasize link congestion scenarios: in continuous pathways, block-call tones or busy signals appear; in unit-based paths, show segment drops or retransmission requests. Annotate both with expected retry intervals or alternative route selection delays.

Finally, plot end-to-end throughput over time: a flat line for continuous connections versus a stepped graph for unit-based transfers with periodic surges correlating to header processing overhead.

Keep vertical alignment between both representations to allow direct comparison–this reveals the trade-offs between guaranteed delivery and efficient resource utilization at a glance.

Key Elements in Dedicated Path Network Visualizations

Begin by labeling each endpoint device with its exact bandwidth allocation–a 64 Kbps voice channel or a 1.544 Mbps T1 link–to set accurate expectations for throughput. On the schematic, place the trunk lines between intermediate nodes in thick, distinct lines (e.g., dark blue for copper, deep red for fiber) to visually prioritize capacity over signaling paths, which should use thinner dashed lines (0.25 pt) in contrasting colors like lime green.

Integrate a legend box at the bottom-right corner restricted to 3 cm × 2 cm, listing four symbols: a filled circle (termination point), an arrowhead (directional flow), a rectangle (cross-connect panel), and a zigzag (regenerator). Use Courier New font at 8 pt size to ensure clarity without crowding; align entries horizontally with 0.5 cm spacing between icon and label to maintain readability in printouts scaled to A3.

Hierarchy of Control Signals

Outline the signaling sequence using numbered green boxes (3-digit numerals) adjacent to each switch fabric, starting at the calling party and ending at the callee’s port. Ensure each box’s background is 15% opacity yellow to remain unobtrusive while still flagging critical timing–SS7 message (100), dial tone (110), ringback (120), and call teardown (130) must be included. Connect the boxes with solid gray lines (0.5 pt) routed above the physical links to avoid overlap, and label each line with a single uppercase letter denoting protocol phase.

Step-by-Step Analysis of Data Transmission via Distributed Networks

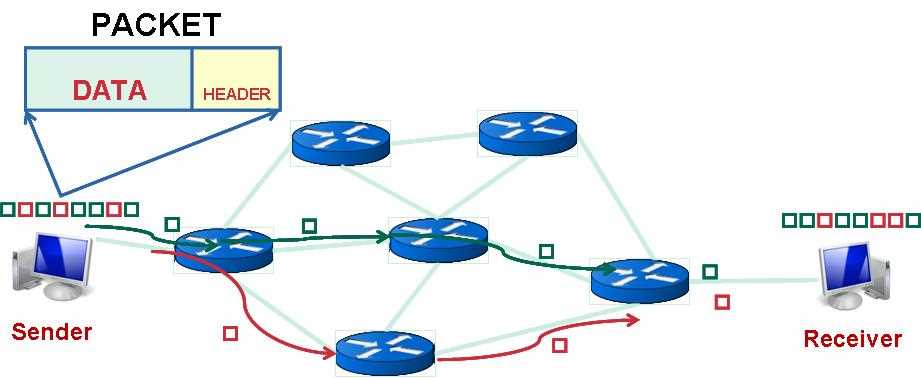

Start by segmenting the source data stream into discrete blocks of equal or variable length, typically ranging from 64 to 1,500 octets. Each block should include a header containing routing metadata: origin/destination addresses, sequence numbers, and checksums for error detection. For IPv4, headers span 20 bytes (without options); IPv6 extends this to 40 bytes. Prepend this structural overhead before forwarding segments to the next hop. Verify checksums at every node to discard corrupted chunks–retransmission protocols (e.g., TCP) handle lost fragments automatically.

Core Protocol Interactions During Transit

• Fragmentation/Reassembly: If a node encounters a link with a smaller maximum transmission unit (MTU), split segments further. The header’s “fragment offset” field tracks position within the original payload. Reassembly occurs only at the endpoint.
• Routing Algorithms: Use shortest-path protocols (OSPF, IS-IS) or distance-vector methods (RIP) to compute next-hop decisions. Dynamic tables refresh every 30–3600 seconds depending on network volatility.
• Queue Management: FIFO buffers hold segments during congestion. Advanced systems (e.g., RED, WFQ) prioritize time-sensitive traffic by dropping low-priority chunks preemptively.

Upon reaching the destination, the endpoint strips headers and reorders chunks using sequence numbers. TCP completes a three-way handshake (SYN, SYN-ACK, ACK) before data transfer–this adds ~1.5 RTT latency. UDP bypasses this step, trading reliability for speed. Validate payloads via checksums; TCP’s 16-bit checksum detects bit errors but is not cryptographically secure. For high-security applications, layer additional integrity checks (SHA-256) or encryption (AES-GCM) atop the transport layer.

Visual Comparison Techniques for Dedicated Path and Data Chunk Networks

Start schematic distinctions by depicting time-division pathways as continuous, unbroken lines–highlight intervals with color gradients marking active connections. Isolate these paths from segmented transmission visuals to emphasize fixed bandwidth allocation. Label endpoints explicitly, avoiding node clusters that imply shared resources. Use dashed boundaries around connection segments to signal reserved channels, ensuring viewers recognize pre-allocated nature.

• Render dedicated connections with solid arrows spanning source-to-destination without branching
• Annotate arrows with numeric values showing guaranteed throughput
• Place fragmented transmissions in separate sub-figures with dotted route segments
• Stack multiple fragmented flows vertically to contrast dedicated single-path simplicity

Fragmented transmission schematics demand varied arrow styles to showcase dynamic routing. Employ jagged, irregular lines for unpredictable pathways–add directional indicators at split points. Include numeric tags (packet IDs, timestamps) adjacent to line breaks to illustrate segmentation. Use color coding for distinct flows sharing the same medium: e.g., blue for Flow A, red for Flow B, with dashed intersections where they overlap.

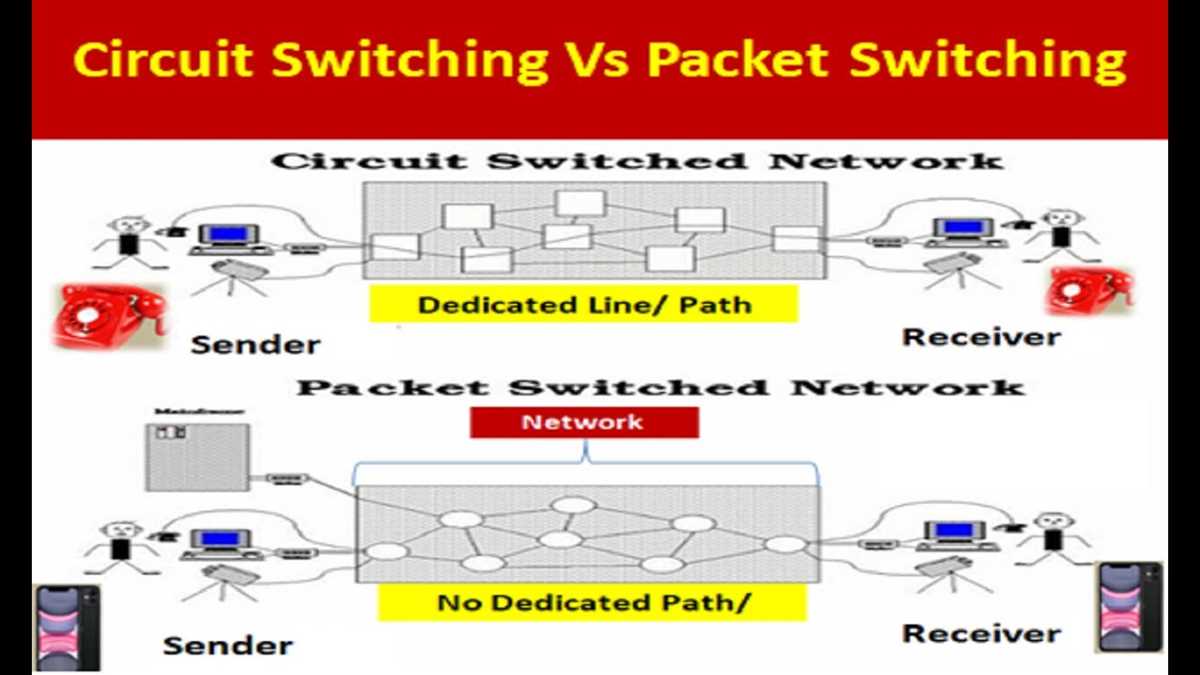

Juxtapose both approaches using a two-panel layout–left for continuous channels, right for partitioned flows. Align sources and destinations identically in both panels to force direct comparison. In partitioned flow schematics, exaggerate path divergence at intermediate nodes with wider angles between branches. Add legend entries explaining latency markers: fixed for dedicated lines, variable ranges for fragmented transmissions.

1. Measure and display propagation delay as static labels for dedicated lines
2. Indicate possible delay variations with shaded bars beside fragmented segments
3. Overlap error-handling symbols (e.g., retry loops) exclusively on fragmented paths
4. Scale symbols proportionally–larger nodes represent higher congestion points on shared routes
