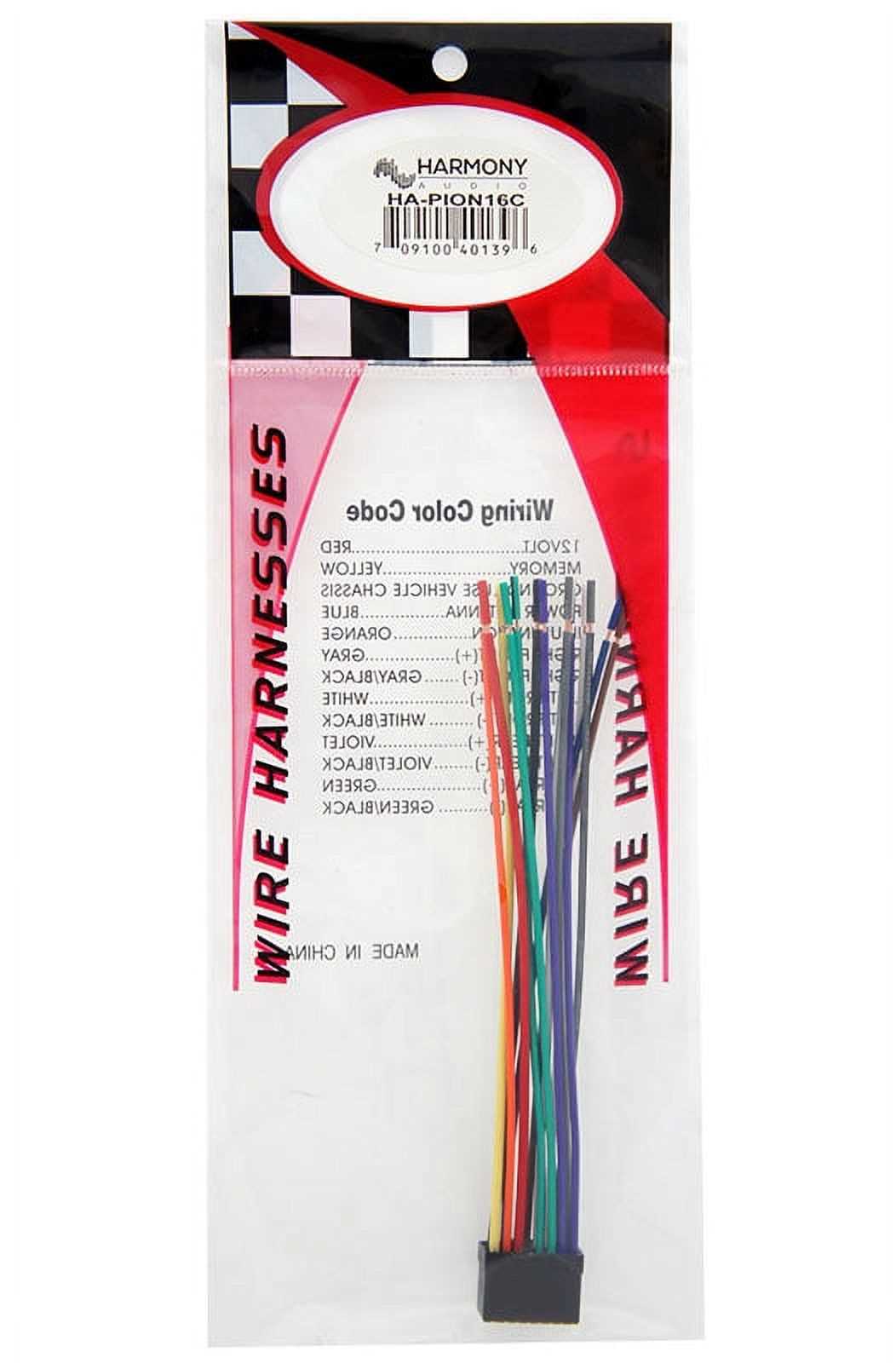

Understanding Automotive Wire Harness Color Codes for Pioneer Diagrams
For aftermarket stereo installations, matching wire functions demands precise reference to manufacturer-specific conventions. Pioneer’s legacy interface schemes follow a distinct chromatic sequence that deviates from universal automotive norms. Verify the primary power feed against the solid yellow conductor–this must maintain uninterrupted 12V input regardless of ignition state. Pair it directly with the red switched ignition line to prevent parasitic battery drain. Ground connections use a black cable, preferably routed to the chassis in a clean, vibration-free zone.
The speaker outputs adhere to a standardized polarity pattern but require validation. Front left positive terminates at gray with a gray/black stripe marking negative; right channel mirrors with white and white/black. Rear outputs split similarly: green and green/black for left, purple and purple/black for right. Cross-check these against all parallel connections–incorrect pairing risks phase cancellation, muffling audio fidelity.
Antenna triggers default to blue; this activates motorized antennas or amplifier turn-on circuits. The blue/white variant often supplies remote bass boost–confirm functionality with a multimeter before integration. Dimmer controls may link to orange or orange/white, but compatibility varies across vehicle LIN bus systems. Always isolate this circuit from accessory power to prevent interference with interior lighting modules.
Preamp outputs utilize thinner gauge wiring: brown (front left), tan (front right), dark blue (rear left), violet (rear right). These demand shielded cabling if routed near alternator leads or ECU wiring. For vehicles with factory amplification, identify and bypass resistor-loaded speaker circuits–these necessitate direct input from the head unit’s RCA outs to preserve signal integrity.
Understanding Factory Connector Pin Assignments for Car Audio Systems
First, match the vehicle’s pre-installed plug configuration with the aftermarket stereo’s adapter by referencing the manual’s pinout table. Most 16-pin connectors follow a standard pattern: red (ignition-switched 12V) at position 4, yellow (constant battery) at 5, black (ground) at 8, and blue/white (amplifier remote turn-on) at 7. Verify these before connecting anything else to prevent blown fuses or damaged electronics.
For amplified setups, locate the purple (reverse detector input) and grey/red (subwoofer channel +) wires–these typically occupy slots 12 and 13. If the car has a factory amp, splice these into the adapter’s corresponding outputs or risk losing signal strength. Always double-check polarity with a multimeter; some manufacturers invert the color scheme on specific models (e.g., Toyota flips orange and orange/white for illumination).
Troubleshooting Non-Standard Wiring Schemes
If the adapter doesn’t include a mute wire (brown, slot 1) but the vehicle supports steering wheel controls, use a separate interface module like iDatalink or ASWC-1. These require additional programming via a computer, so download the correct firmware file from the supplier’s site before installation. Avoid cutting factory wires unless absolutely necessary–most late-model cars use fiber optics or CAN bus, and incorrect splicing can trigger error codes on the dash.
Ford and GM vehicles often deviate from the universal standard, swapping pink (illumination) with light green (telephone mute) or merging speaker outputs into a single eight-wire ribbon. In these cases, trace each wire back to its origin at the factory radio’s connector housing–use a test light or tone generator to confirm function. For European brands (VW, BMW), prioritize the CAN bus wires (CAN-H typically orange/green, CAN-L orange/brown); these carry critical data for climate control sync.
When dealing with older Japanese imports (pre-2005), some Nissan and Honda models use a single pair of green wires for both left/right rear speakers instead of distinct colors. Disconnect the battery before probing these–accidental shorts can fry sensitive ECUs. For hybrid or electric cars, additional orange wires may carry safety interlocks; consult the vehicle’s service manual before connecting anything to avoid triggering limp mode.
Final Connector Assembly Steps
After verifying each terminal, crimp connectors with a specialized tool–avoid pliers, as uneven pressure can cause intermittent connections. Apply heat-shrink tubing to prevent corrosion, especially in humid climates. If the adapter lacks a specific wire (e.g., parking brake override), solder a jumper to the nearest compatible terminal after checking resistance with a load tester.
Lastly, secure the adapter to the mounting bracket with zip ties to prevent vibrations from loosening contacts. Reconnect power and test each function (lights, volume, chimes) before final panel assembly. If static persists, check for loose RCA cables or ground loops–these often cause more issues than incorrect pin assignments.
Decoding Head Unit Connector Layouts for Audio Systems
Locate the manufacturer’s model number on the back or side of the stereo unit–this is critical for accurate pin assignment references. Most aftermarket stereos follow proprietary arrangements, but common ground, power, and speaker terminals remain consistent.
Examine the connector plug for labeled pins or embossed numbers. If absent, use a multimeter to test continuity between pins and the corresponding cables. Standard configurations include:
- Constant 12V (yellow) – Battery direct, always hot
- Accessory (red) – Ignition-switched power
- Ground (black) – Chassis connection
- Front/Rear speaker outputs – Typically white, gray, green, purple pairs
- Illumination (orange) – Dimmer control
For vehicles with amplified speaker systems, identify the remote turn-on lead (usually blue/white). This wire activates external amps when the unit powers on–connecting it incorrectly risks draining the battery or damaging equipment.
Troubleshooting Mismatched Pinouts
If the plug doesn’t match the stereo’s socket, check for adapter compatibility. Third-party harnesses often reroute connections, so verify each wire’s function before soldering or crimping. Common mismatches include:
- Power wires reversed – Causes rapid battery drain
- Speaker wires crossed – Distorted audio or phase cancellation
- Missing ground – Humming or interference
Isolate each circuit with the vehicle off to prevent shorts. For European or JDM models, expect additional CAN bus wires (typically CAN-H/CAN-L)–skip these unless integrating steering wheel controls.
Verifying Connections
Use a test light or voltmeter before finalizing connections. Probe the constant power wire (should read 12V regardless of ignition state) and accessory wire (only active when ignition is on). For speaker wires, test each with a 1.5V AA battery–positive wire pushes the cone outward; negative pulls inward.
Secure all splices with heat-shrink tubing or solder to prevent corrosion. Avoid twisting wires–poor connections degrade audio quality and may trigger overheating. If the unit lacks sound, recheck speaker polarity and ground integrity first; 80% of post-install issues trace back to these errors.
Aligning Third-Party Plug Leads with Manufacturer-Specific Schematics
Connect aftermarket connectors by verifying the pinout against the OEM standard: track yellow (+12V constant), red (switched ignition), black (ground), and blue/white (remote turn-on) cores first–these form the critical power circuit. For audio channels, link white (front left +) and white/black (front left –) to the corresponding amplifier outputs; identical logic applies to gray (front right), green (rear left), and violet (rear right) pairs. Mismatched polarity risks phase cancellation, so confirm polarity with a multimeter before securing connections.
| OEM Lead | Aftermarket Wire | Function | Verification Tip |
|---|---|---|---|
| Yellow | Thick gauge, solid | Battery positive | Test for continuous 12V without ignition |
| Red | Thin gauge, striped | Ignition feed | Voltage present only when key is in accessory/on |
| Blue/White | Thin, pigmented | Amplifier trigger | Probe for 12V when head unit energizes |
Isolate input signals by soldering the orange (illumination) and orange/white (dimmed illumination) leads to the corresponding vehicle dimmer circuit; reverse polarity will disrupt gauge brightness sync. For RCA integration, preserve shielding continuity–twist signal and return paths tightly and bond the foil shield at both ends to the chassis reference. If retrofitting a non-OEM unit, replace generic connectors with heat-shrink butt splices or gold-plated crimp terminals to prevent corrosion; verify pull strength exceeds 10N before insulating.
Resolving Frequent Connector Configuration Errors in Audio Integration Kits
Check the ground connection first–intermittent audio, popping noises, or amplifier shutoffs often trace back to a loose or corroded grounding point. Scrape oxidation off the chassis mounting spot with a wire brush and secure the terminal with a torque of 8-12 lb-in. Replace any frayed or discolored ground wire regardless of appearance.
Verify signal lines for swapped connections between RCA outputs and inputs. A reversed left-right channel pair introduces phase cancellation, thinning midrange and diminishing stereo imaging. Use an oscilloscope or multimeter set to AC voltage mode to measure signal polarity at each terminal: pin one should register positive voltage when the source plays a test tone while pin two remains at zero.
Inspect aftermarket speaker adapters for incorrect pin assignments. Common 12-pin mini connectors frequently mix up constant and switched accessory inputs, causing the head unit to power down unexpectedly. Match each pin to the manufacturer’s pinout table using a continuity tester: accessory must correlate to ignition-on state, battery should show direct 12V, and illumination requires connection to dimmer circuit.
- Microphonics or alternator whine indicates a missing or improperly placed inline noise filter. Add a 1,000µF capacitor across power lines at the radio plug, observing polarity markings.
- Subwoofer outputs lacking bass extension suggest an inverted remote turn-on wire. Confirm remote voltage toggles between zero and 12V when switching audio sources; invert connection if signal behaves inversely.
- Dashboard lights failing to dim with headlamps often point to a severed variable-voltage lead. Locate the dimmer feed–typically a gray or orange-violet stripe–and bridge it directly to the radio’s illumination input if continuity breaks.
Isolate speaker wire shorts before replacing components. Disconnect each tweeter, midrange, and woofer cable at the amplifier terminal, then test for continuity between positive and negative conductors. Resistance below 0.5 ohms signals insulation damage or conductor contact; reroute or replace the affected segment.
Confirm retained accessory power functions correctly. If the radio resets after door locks cycle, the memory feed likely taps an unswitched fuse slot. Redirect to fuse 30 (constant) or 15 (accessory) using an add-a-circuit fuse tap, ensuring amperage rating (typically 10A) matches or exceeds factory specification.
- Double-check every splice crimp with a pull test: tug each connection at 5 lbs force–failure necessitates re-crimping with a ratcheting tool.
- Replace generic connector housings if terminal retention loosens–aftermarket clips often lack the precision retention tangs found in OEM parts.
- Recalibrate amplifier gain settings after correcting wiring faults–initial distortions often mask lingering phase or polarity issues.
