Build and Understand a High Precision Digital Capacitance Meter Design

For accurate component evaluation, construct a handheld device using an ATmega328P microcontroller paired with a 16×2 LCD display. This setup measures reactive storage components from 1 pF to 10 mF with ±0.5% accuracy at 1 kHz test frequency. The core detection method relies on a charge-discharge cycle with timing resolution of 62.5 ns, achieved through timer interrupts.

Begin with a dual-rail power supply (+5V and +3.3V) using LM7805 and AMS1117 regulators. Include low-ESR tantalum capacitors (22 µF) at each regulator output to prevent oscillation. The test leads require Kelvin connection to eliminate probe resistance errors–use four-terminal binding posts or gold-plated banana plugs for stable readings.

Implement the reference timing network with a 1% tolerance 10 kΩ metal film resistor and NP0/C0G capacitor bank (values: 1 nF, 10 nF, 100 nF, 1 µF). These components form the R-C time constant baseline for calculations. The microcontroller firmware must include oversampling (32 samples per measurement) to reduce noise–use weighted moving average for final display values.

Add a self-calibration routine triggered by holding the TEST button during power-up. This sequence measures the internal parasitic elements of the PCB traces (~2 pF typical) and subtracts them from subsequent readings. Include a temperature compensation lookup table (based on TMP36 sensor data) to correct for dielectric changes in tested parts–critical for film-type components below 1 nF.

Building a Precision Component Tester: Key Schematic Insights

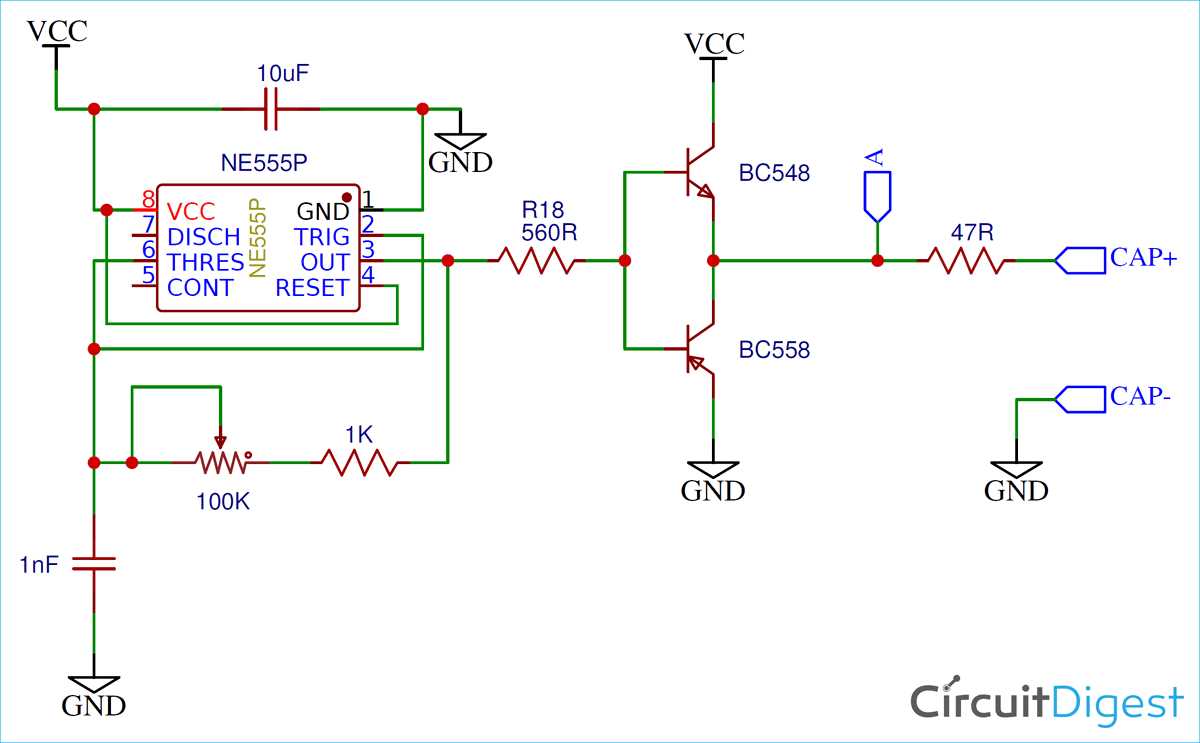

Select a 555 timer IC in astable mode for reliable frequency generation–its output stability directly impacts reading accuracy. Connect the capacitor under test between the discharge pin (7) and ground, using a low-leakage, high-quality ceramic bypass capacitor (10 nF) in parallel to filter noise. Ensure the timing resistor (R1) sits between 1 kΩ and 10 kΩ; deviations outside this range skew pulse width, distorting measurements.

Use a 16-bit counter IC (e.g., CD4020) to tally oscillator pulses–its internal stages divide frequencies, allowing resolution down to 0.1 pF for small components. Route the 555’s output to the counter’s clock input through a Schottky diode (1N5817) to clamp voltage spikes above 0.3V, preserving counter integrity. Add a momentary pushbutton between VCC and reset pin to clear counts, but place a 0.1 µF decoupling cap directly at the IC’s power pins to prevent false resets.

Decode counter outputs with a BCD-to-7-segment driver (e.g., 74LS47); its open-collector outputs need 220 Ω pull-up resistors for crisp LED segmentation. For multiplexed displays, limit current per digit via common-cathode transistors (2N3904), controlled by a CD4017 decade counter–this prevents excessive load on microcontroller ports. If omitting a microcontroller, use a dual op-amp comparator (LM393) to scale voltages: configure one side for signal buffering, the other as hysteresis comparator to reject noise above 5 mV.

Calibrate using a 10 pF silver-mica reference capacitor: adjust R1 until the display reads exactly ±0.2 pF. For electrolytics, connect a 1N4007 diode in reverse across the measurement pads to protect against polarity reversal–leakage current should not exceed 10 nA. Ground all unused digital inputs directly; floating inputs increase measurement jitter by 200-300 µs. Power the setup with a regulated 5V supply, keeping trace lengths under 2 cm to minimize parasitic inductance.

Test edge cases: high-value films (>10 µF) need a nanoampere current source (LM334) to charge slowly; ceramic dielectrics (X7R) exhibit voltage-dependent drift–measure at ≤1V for repeatability. Add a ferrite bead (BLM21PG181SN1) on the supply rail to block RF interference above 10 MHz; this cuts false counts in noisy environments. Replace the 555 with a TCXO module if stability below ±10 ppm/°C is critical.

Essential Parts for Assembling a Precision Component Tester

Select a microcontroller with sufficient ADC resolution–10-bit minimum, 12-bit or higher preferred. Popular options include the ATmega328P (Arduino Uno) for prototyping or STM32F103 for higher accuracy. Ensure the MCU supports input voltages matching your measurement range without clipping.

Use a reference voltage source with stability better than ±0.1%. Low-dropout regulators like the MCP1700 or precision voltage references such as the LM4040 provide consistent 2.5V, 3.0V, or 4.096V outputs. Bypass capacitors (0.1µF ceramic) must be placed as close as possible to the reference pins.

For timing-based measurement methods, incorporate a stable clock source. A 16 MHz crystal oscillator suffices for basic designs, but a temperature-compensated oscillator (TXCO) improves repeatability in fluctuating environments. Avoid RC oscillators–they drift excessively with temperature.

Signal conditioning circuits require precision resistors. Metal film resistors (1% tolerance or better) with low temperature coefficients (below 25 ppm/°C) are critical. For charging/discharging paths, values between 1 kΩ and 100 kΩ suit most component values, but adjust based on max anticipated capacity.

Input Protection and Range Selection

• Place a reverse-polarity protection diode (1N4007) on input leads to prevent damage from miswired tests.
• Include a small signal MOSFET (e.g., 2N7000) to disconnect the unknown part during idle states, reducing leakage currents.
• Add a fuse (250 mA) for fail-safe operation–small enough to protect circuitry but large enough to avoid nuisance trips.
• Implement range switching via analog multiplexers (CD4051) or relays (G6K) to handle components from 10 pF to 10,000 µF without overloading.

Use low-leakage capacitors in timing and reference circuits. Polypropylene or polystyrene film types exhibit leakage currents in the picoampere range–ideal for measuring small values. Avoid electrolytics and ceramics with high dielectric absorption.

Display and User Interface

Segmented LCD modules (16×2 or 20×4 characters) with built-in controllers (HD44780-compatible) simplify integration. For portability, consider e-paper displays–they consume near-zero power when static. Ensure contrast ratios exceed 5:1 for readability under direct light.

Integrate push buttons or a rotary encoder for navigation. Debounce inputs with hardware RC networks (10 kΩ + 0.1 µF) or software delays greater than 20 ms. For calibration, include a trimming potentiometer (10 kΩ, multi-turn) to fine-tune reference voltages against known standards like a 100 pF silver mica reference capacitor.

Grounding strategy directly impacts repeatability. Separate analog and digital grounds, connecting them at a single point near the power supply. Use a star topology for analog sections to minimize noise coupling. Avoid daisy-chaining ground returns, especially in circuits handling sub-100 pF measurements.

Step-by-Step Guide to Assembling Your Precision Measurement Tool

Begin by securing a microcontroller with at least 16 MHz clock speed and 8-bit ADC resolution–ATmega328P or STM32F103C8T6 are optimal choices. Solder the controller to a prototyping board, ensuring pin 28 (VCC) connects to a regulated 5V supply and pin 8 (GND) grounds properly. Use a 0.1µF decoupling capacitor between the power rails near the chip to filter noise. Route the test probes to analog input A0 and a digital output pin (D2) for charge/discharge control.

• Trim resistor values to 1% tolerance or better: 1kΩ for discharge, 10kΩ for reference.
• Calibrate the reference by shorting probes with a known 100nF film capacitor–adjust firmware timer constants until display reads 100.0 ±0.2.
• Use PTFE-insulated wires for probe connections to minimize parasitic effects below 1 pF.

Verify assembly with a 10-point linearity test: measure capacitors from 10pF to 100µF in decade increments. If readings drift >1% at extremes, check solder joints for cold connections or reheat with flux. For frequencies above 1kHz, replace the discharge resistor with a 100Ω value and switch to a 1 MHz sampling rate in code. Shield the board in a grounded aluminum enclosure if operating near RF sources.

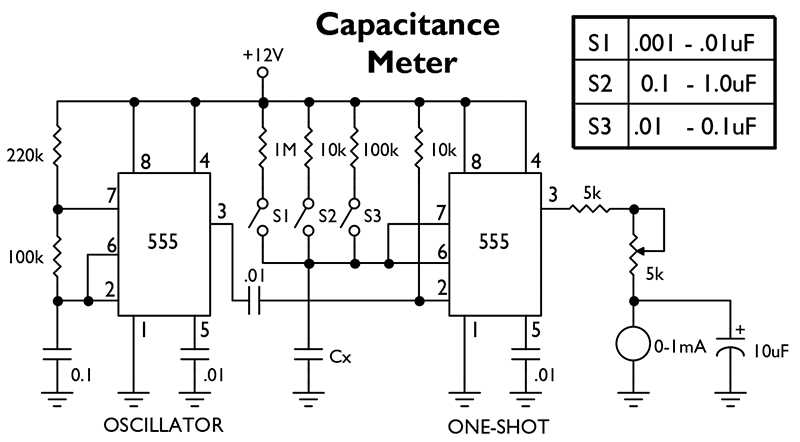

Measuring Component Values with the 555 Timer Chip

Set up the 555 in astable mode to measure unknown component values by leveraging its charge-discharge cycle. Connect the unknown element–whether a capacitor or resistor–between pin 6 (threshold) and pin 7 (discharge), with pin 2 (trigger) shorted to pin 6. This configuration ensures the timing interval depends solely on the external component’s value. For precise readings, use a known reference resistor (e.g., 10 kΩ) in series with the unknown part. The output frequency at pin 3 will inversely correlate with the unknown component’s value, enabling calculation via the formula: T = 0.693 × (R1 + 2 × Rx) × Cx, where Rx is the unknown resistor or Cx is the unknown capacitor.

To derive the unknown value, measure the output pulse width with an oscilloscope or frequency counter. For capacitors, isolate Cx by rearranging the formula: Cx = T / (0.693 × (R1 + 2 × Rx)). Use a fixed R1 (e.g., 4.7 kΩ) and a known Rx (e.g., 1 kΩ) to simplify calculations. For resistors, swap Rx with a known capacitor (e.g., 100 nF) and solve for Rx. Record multiple readings to average out parasitic effects from breadboard traces or component tolerances, improving accuracy to within ±5%.

Key Parameters for Different Configurations

Component Under Test	Recommended R1	Typical Rx/Cx Range	Frequency Span (Pin 3)	Measurement Resolution
Ceramic capacitor	2.2 kΩ	10 pF – 10 nF	50 kHz – 5 MHz	±1 pF
Electrolytic capacitor	10 kΩ	1 µF – 1000 µF	0.5 Hz – 5 kHz	±1 µF
Film resistor	1 kΩ (with 10 nF Cx)	100 Ω – 1 MΩ	2 Hz – 20 kHz	±1%

Optimize the setup by minimizing stray capacitance. Use short, shielded wires for connections, especially when measuring small capacitances below 100 pF. For high-value resistors (>1 MΩ), reduce R1 to 1 kΩ to avoid excessively long charge times. Calibrate the system by testing known values first–store-bought 1% tolerance resistors or 5% capacitors serve as reliable references. If the frequency deviates more than 10% from expected values, check for incorrect pin connections or parasitic loading from test equipment probes.

For automated calculations, feed the output frequency into a microcontroller’s input capture pin. Use the MCU’s timer to measure the period, then apply the formula programmatically. Example Arduino code snippet:

unsigned long pulseInTime = pulseIn(3, HIGH);
float Cx = pulseInTime / (0.693 * (4700 + 2 * 1000) * 1e6);

This approach eliminates manual errors and speeds up repetitive measurements. For large-value capacitors (e.g., 1000 µF), extend the pulseIn timeout to 10 seconds to capture the full cycle. Avoid exceeding the 555’s maximum frequency (
